WP24 White Plastic Thermostatic Cartridge - 24 Splines
Part number: WP24
Price: £89.99
Sale: £78.83
You save: £11.16 (12%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

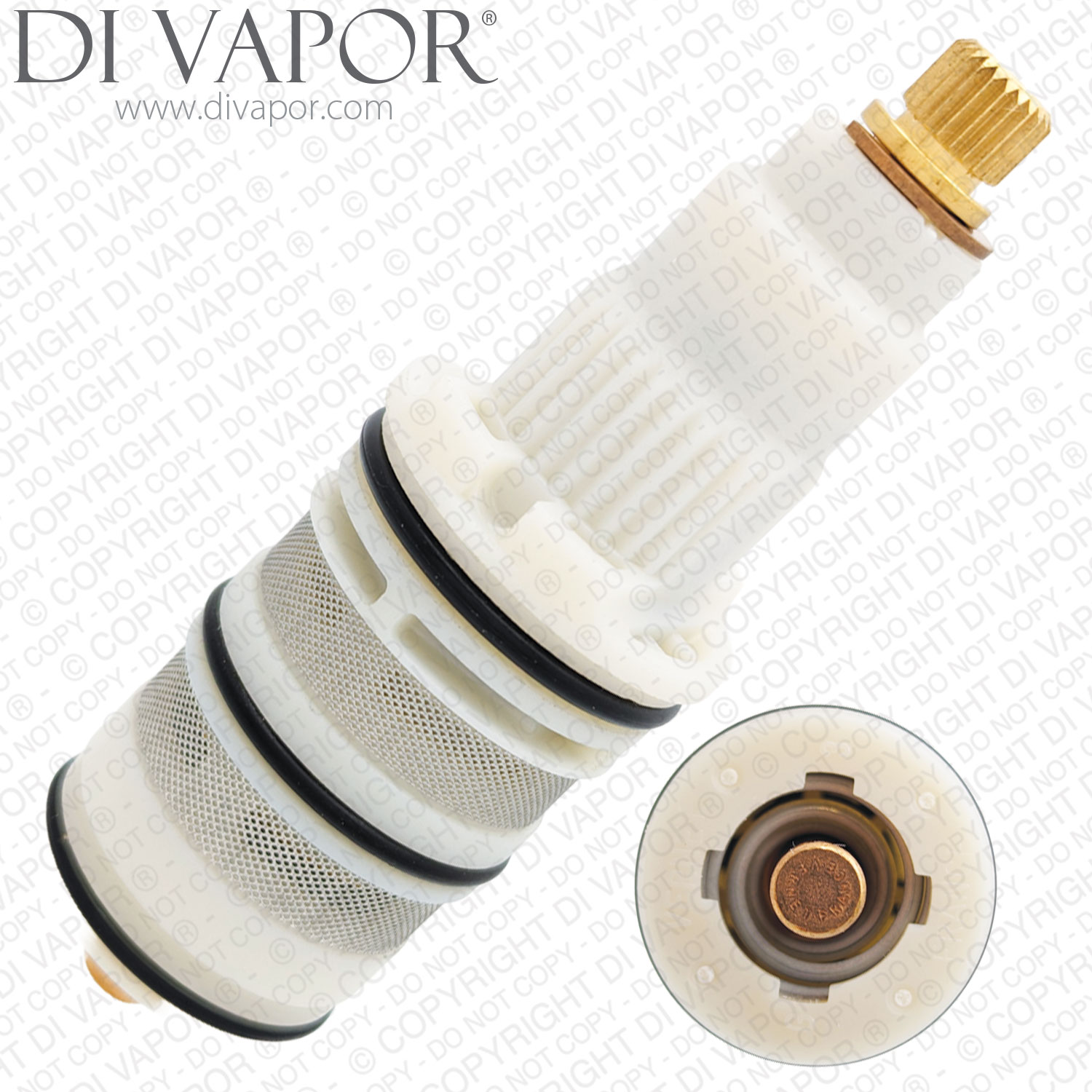

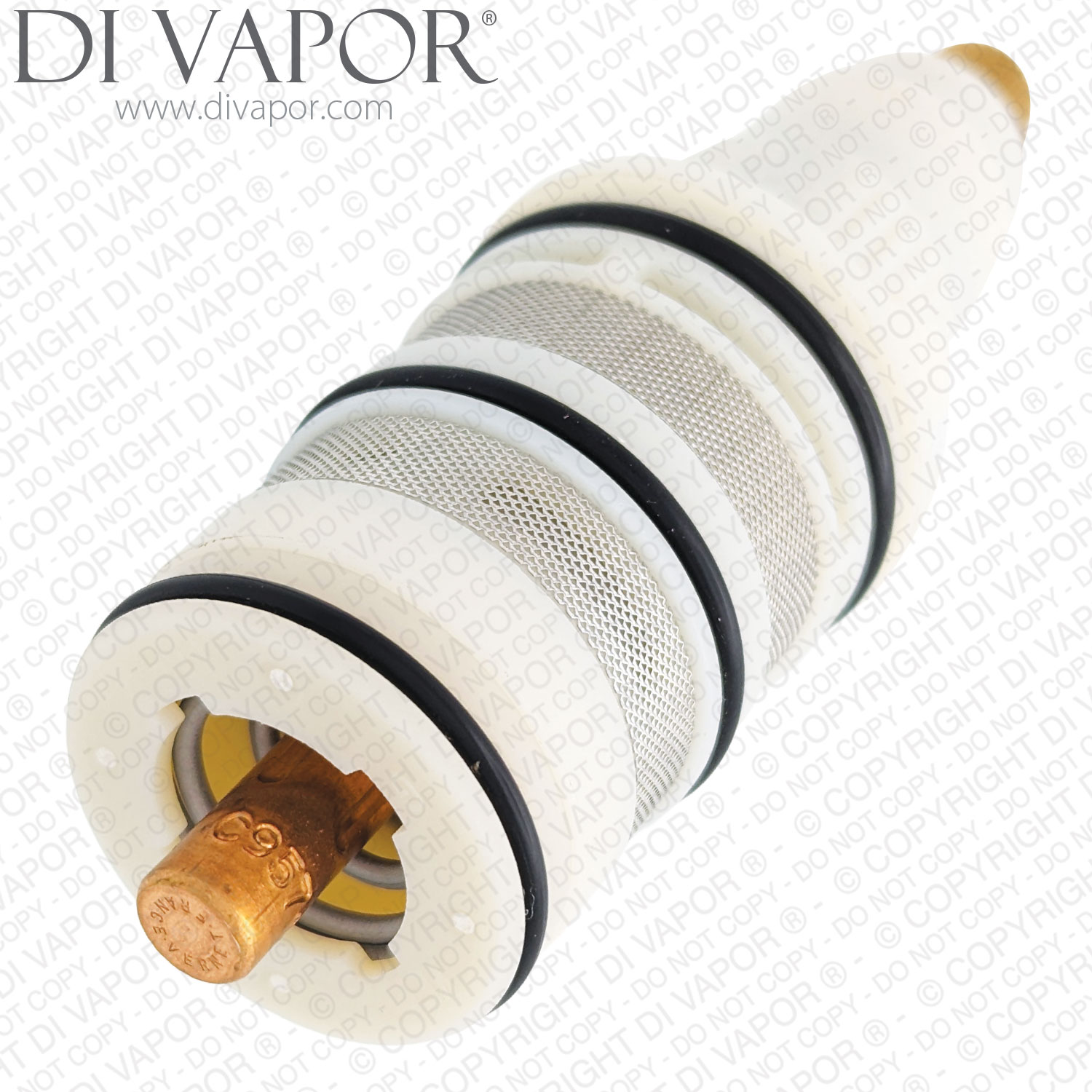

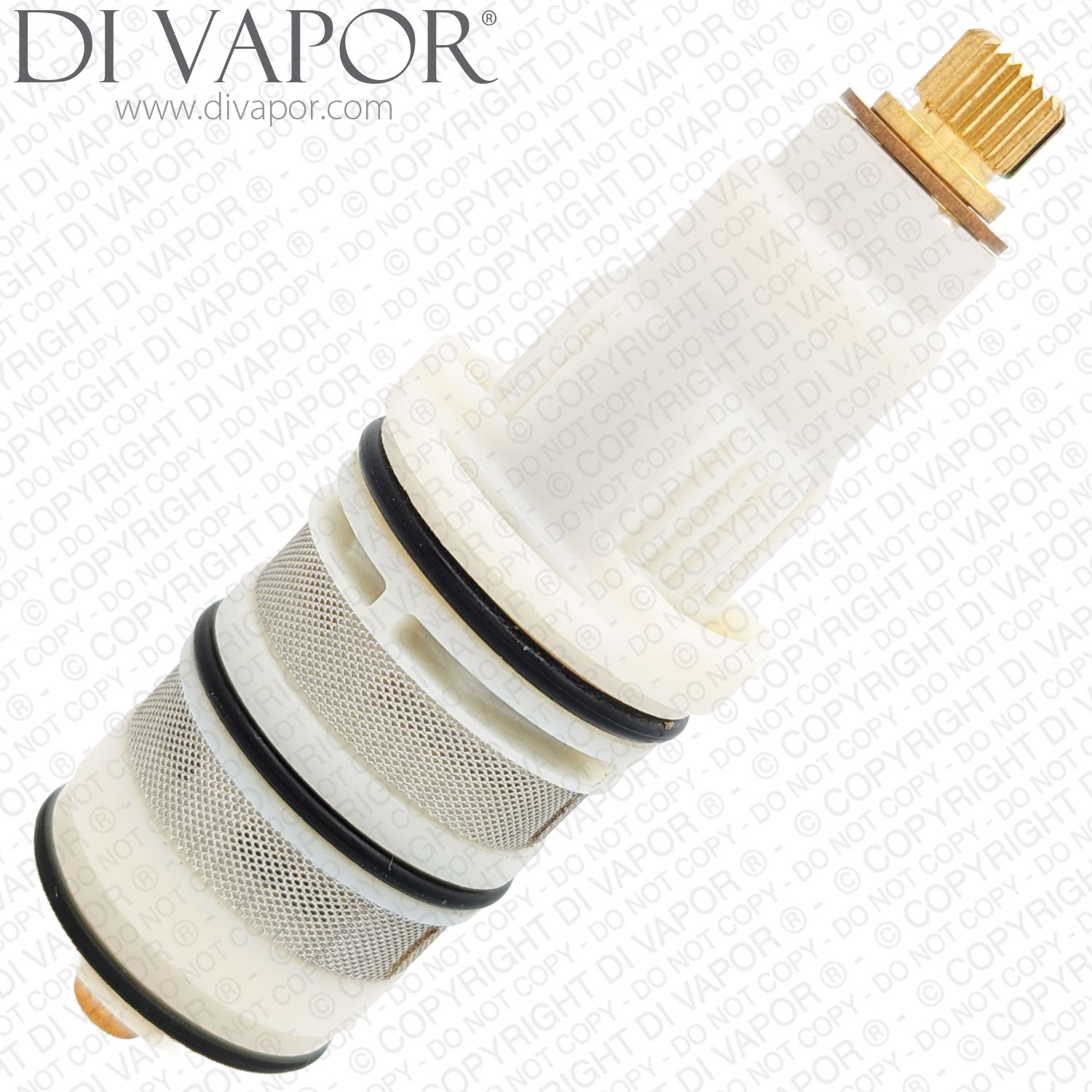

WP24 White Plastic Thermostatic Cartridge - 24 Splines
White plastic thermostatic cartridge with 24 splines/teeth at the top and 3 o-rings. This thermostatic cartridge is used in both concealed valves as well as exposed shower valves such as shower bar valves.
Dimensions:
| Total length (with wax thermostat) | 95mm |
|---|---|
| Total length (without wax thermostat) | 102.4mm |
| Number of 0-rings | 3 |
| Spindle length | 1.7mm |
| Splines count | 24 |
| Spline diameter | 9.5mm |
| Splines height | 6.6mm |
| Diameter (widest point) | 34.4mm |
| Diameter (below 1st o-ring) | 32.1mm |
| Diameter (below 2nd o-ring) | 30.4mm |
| Diameter (below 3rd o-ring) | 29.2mm |
| Material | Plastic |
| Colour | White |
| Fitting type | Push fit |
| Gauzes | 2 |
