Watts Industries Ultramix Trubert Eurotherm TX1REN Reverse Thermostatic Cartridge

SUMMARY

Watts Industries Ultramix Trubert Eurotherm TX1REN Reverse Thermostatic Cartridge

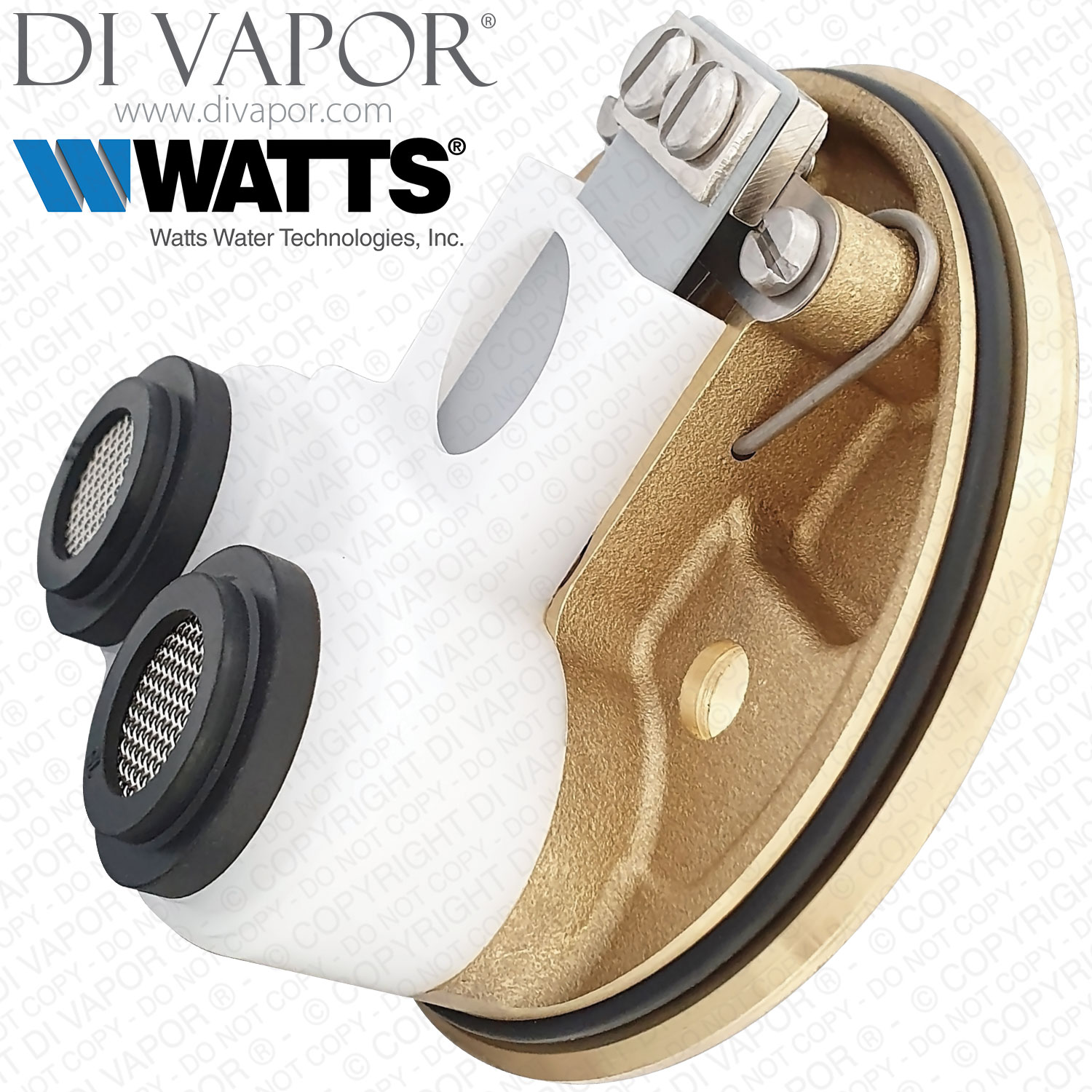

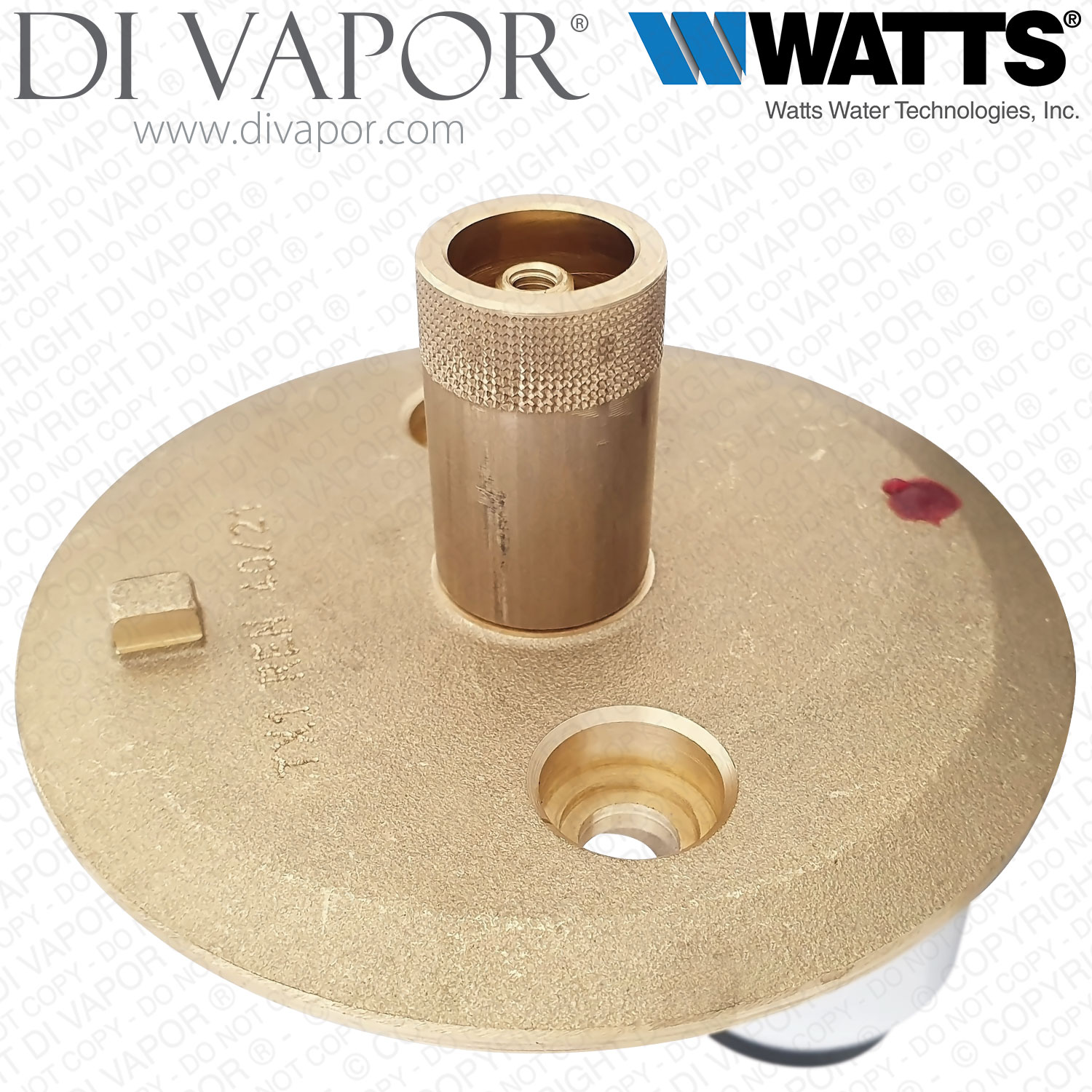

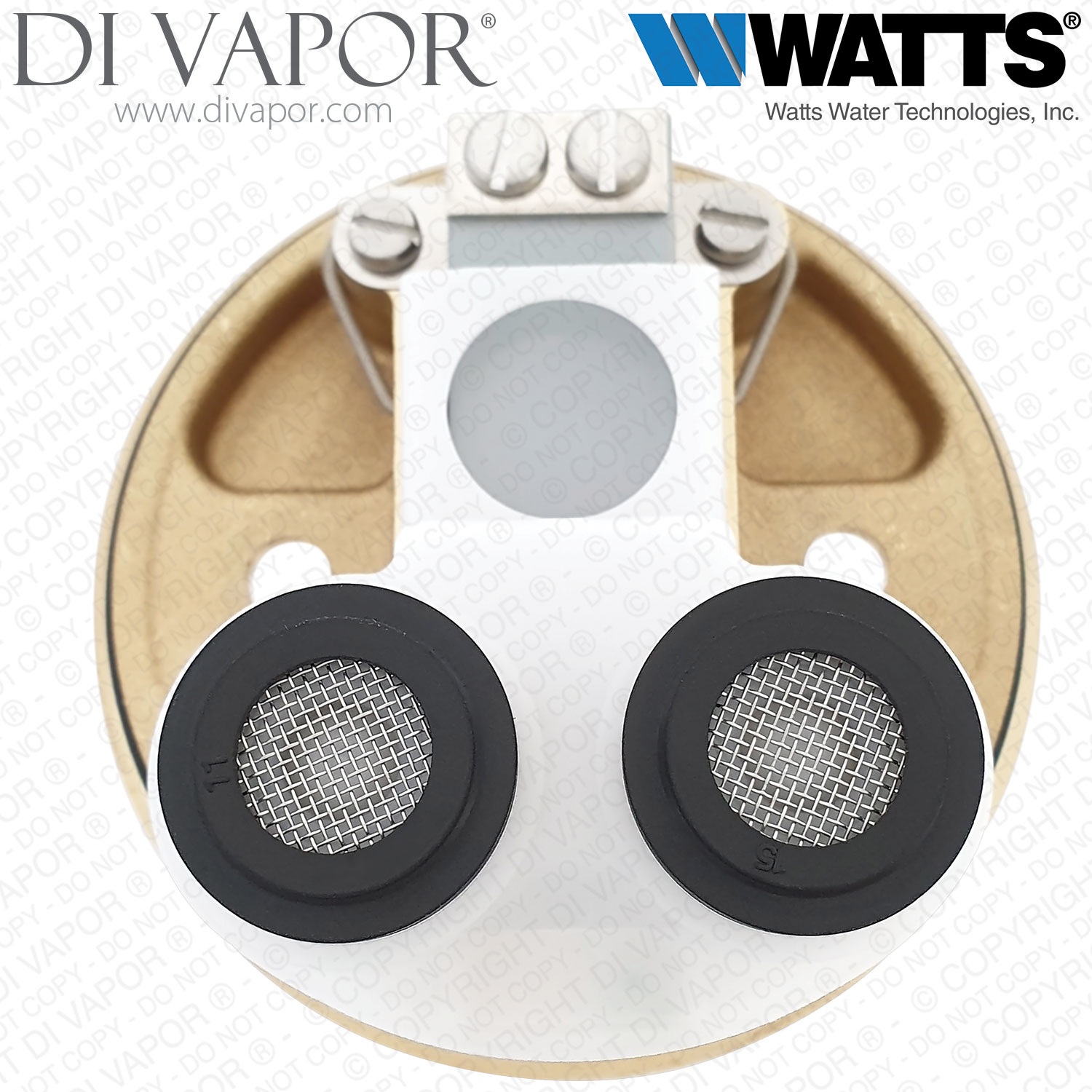

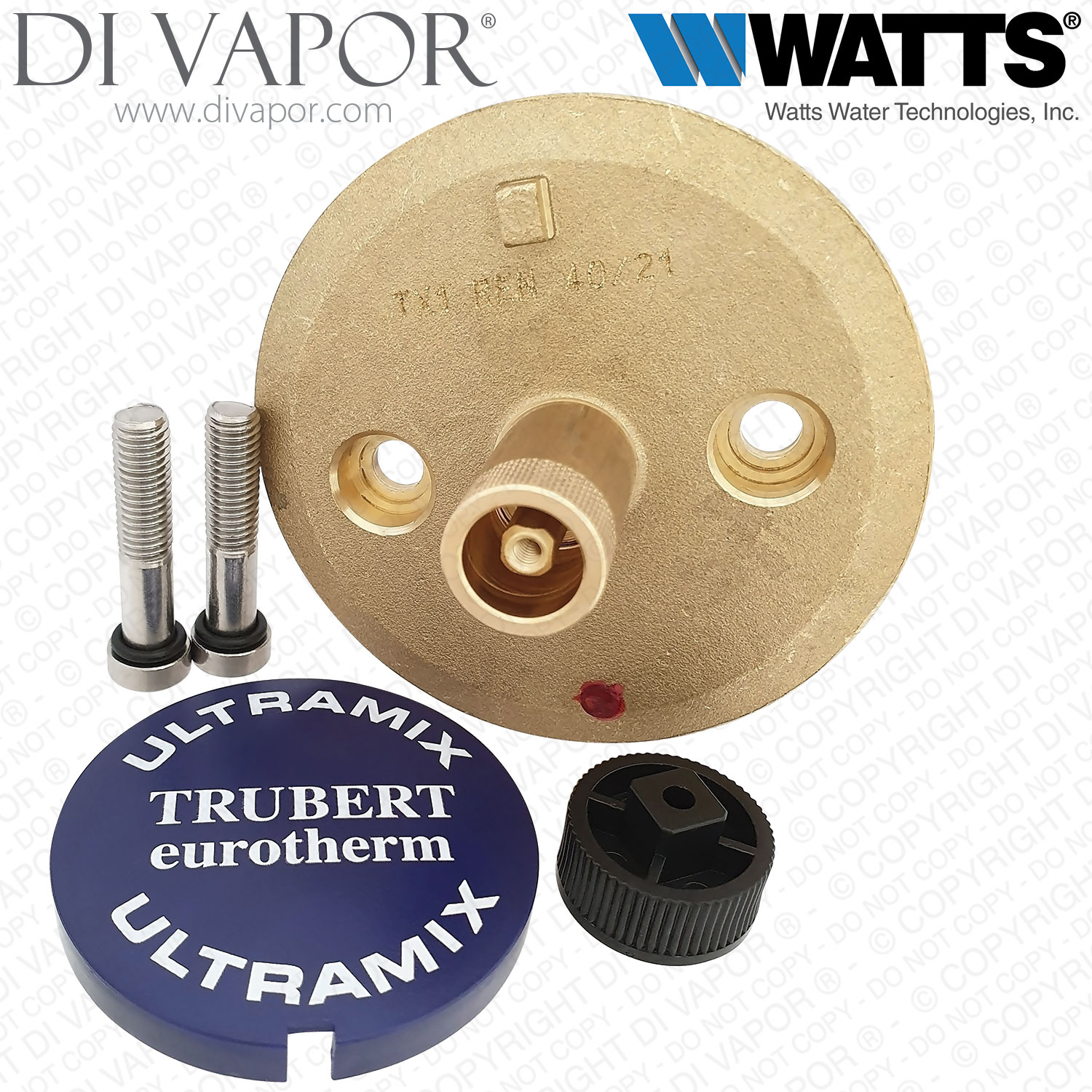

The Watts Industries Ultramix Trubert Eurotherm TX1REN is a reverse thermostatic cartridge for TX91 Ultramix thermostatic mixing valves where the valve installation requires the reverse cartridge arrangement.

This cartridge controls the blended water temperature inside the mixing valve and is used to restore thermostatic temperature regulation when the original cartridge is scaled, worn, sticking or no longer maintaining a stable outlet temperature.

Technical Details

- - Part Number: TX1REN

- - Cartridge type: reverse thermostatic cartridge

- - Valve group: TX91 Ultramix high-productivity thermostatic mixing valves

- - Flow range: 5 - 56 l/min

- - Temperature setting range: 10/50°C

- - Cartridge group sizing: ØA 85 mm and ØB 92.5 mm

- - TX91 valve context: TX91E and TX91C are 3/4" M valves for 1 - 7 users

Check the valve model, cartridge code and hot/cold inlet arrangement before ordering, as this TX1REN version is for reverse cartridge use and should not be selected solely by cartridge size.

Confirmed Compatible Models

- - TX91E

- - TX91C

- - T/X91CHP

Installation and Service Notes

Apply a suitable silicone grease to the cartridge O-rings before fitting. After installation or maintenance, recalibrate the mixed temperature and check that both hot and cold supplies are entering the valve correctly.

Troubleshooting

- - Symptom: mixed water temperature is unstable after calibration

- - Likely Cause: worn O-rings, blocked filters, scale build-up or cartridge wear

- - Solution: check and clean the valve, inspect the filters and replace the cartridge if service parts do not restore stable control

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
