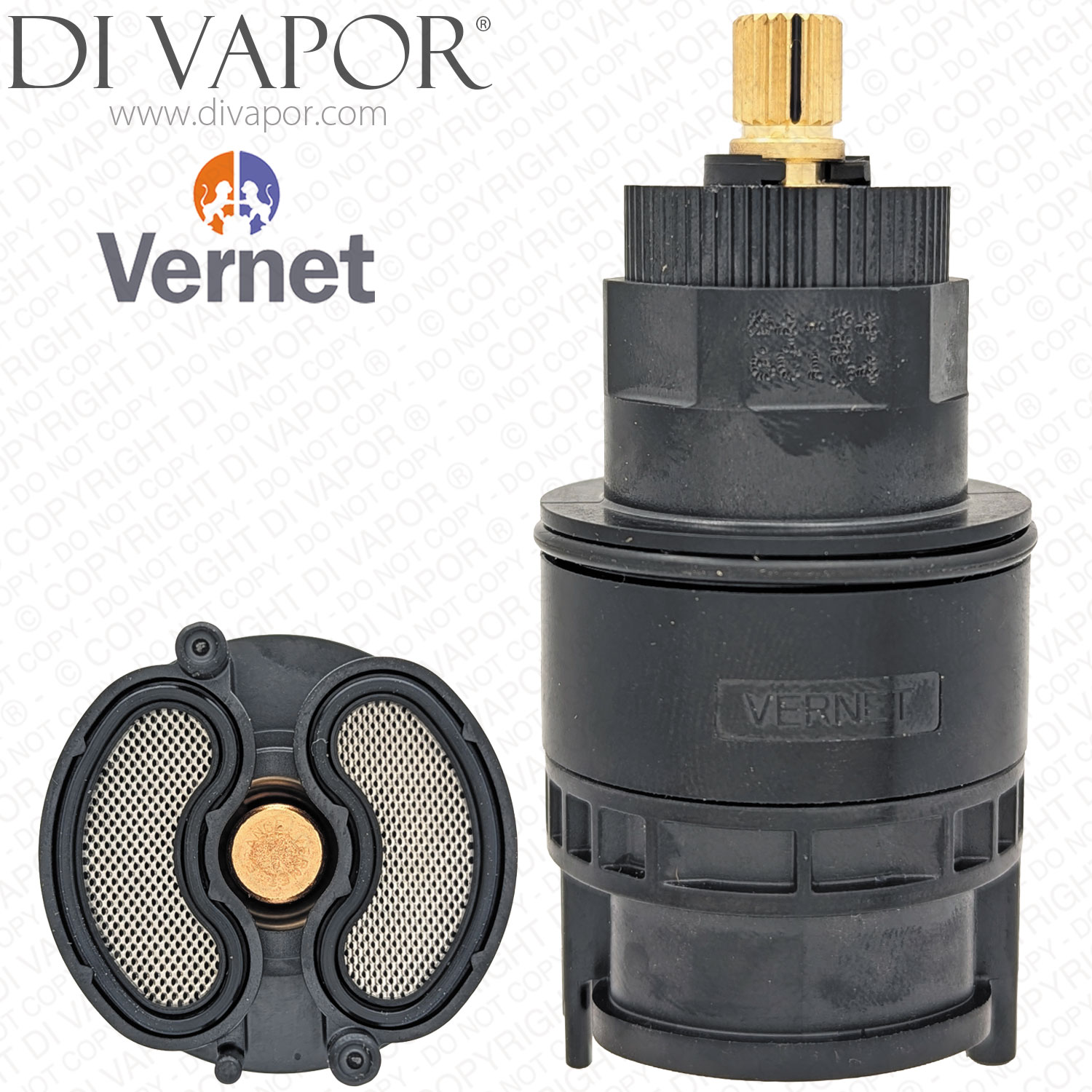

Vernet VT35CS-004 Thermostatic Cartridge

SUMMARY

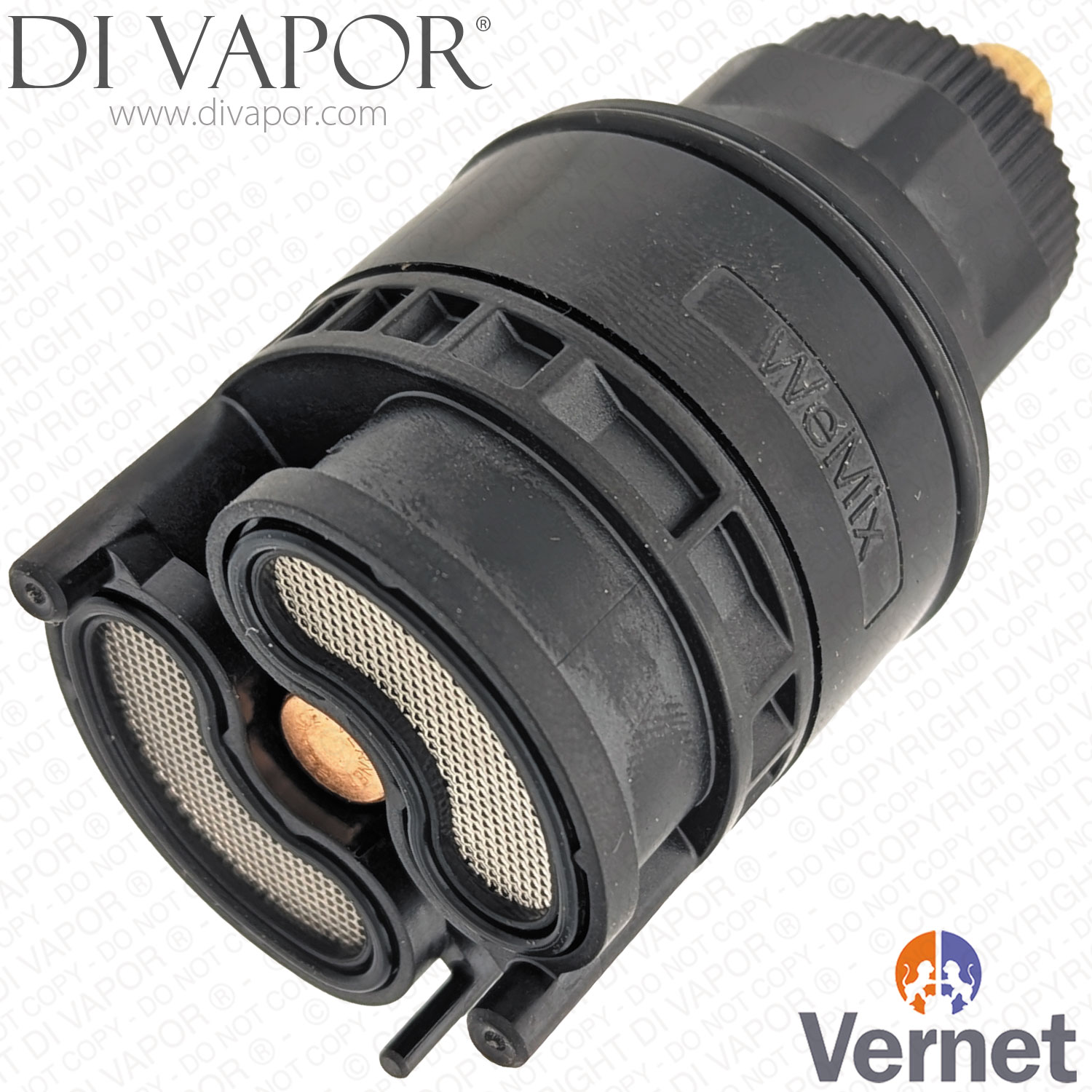

Vernet WeMix Compact Thermostatic Cartridge Platform

The Vernet WeMix is a compact thermostatic cartridge platform developed for shower and bath mixer applications where reduced body depth, flexible water management and reliable thermostatic control are required. Designed as a new thermostatic platform, WeMix addresses the limitations of traditional thermostatic cartridges, which are normally water fed through lateral inlets and can heavily dictate the overall mixer architecture.

Key Benefits

- - Compact cartridge design for mixer layouts with an overall length below 40mm

- - Hot and cold water reversible patented design

- - Inspired by ceramic cartridge water management architecture

- - Allows new mixer designs for concealed thermostatic valves

- - Designed to maintain thermostatic function even where hot and cold inlets are incorrectly connected during installation

- - Suitable for shower and bath applications with one version available for each application

Quality and Certification

Each WeMix cartridge is individually checked for stability, flow, operating torque, leakage and anti-scald function. The platform is designed as a solution for international standards, with materials certified for drinking water requirements.

Water Connections

- - Hot water inlet

- - Cold water inlet

- - Mixed water outlet

- - Sealing area incorporated into the housing design

Housing and Installation Details

- - M40 x 1.5 housing nut reference 2015042

- - Test body reference 2015044

- - Test mixer specification reference 2015044

- - Housing dimensions shown in millimetres

- - Main housing diameter references include dia. 35.3 +/- 0.05mm and dia. 36 +/- 0.25mm

- - Cartridge body diameter reference dia. 35 +/- 0.2mm

- - Upper cartridge diameter reference dia. 26 +/- 0.25mm

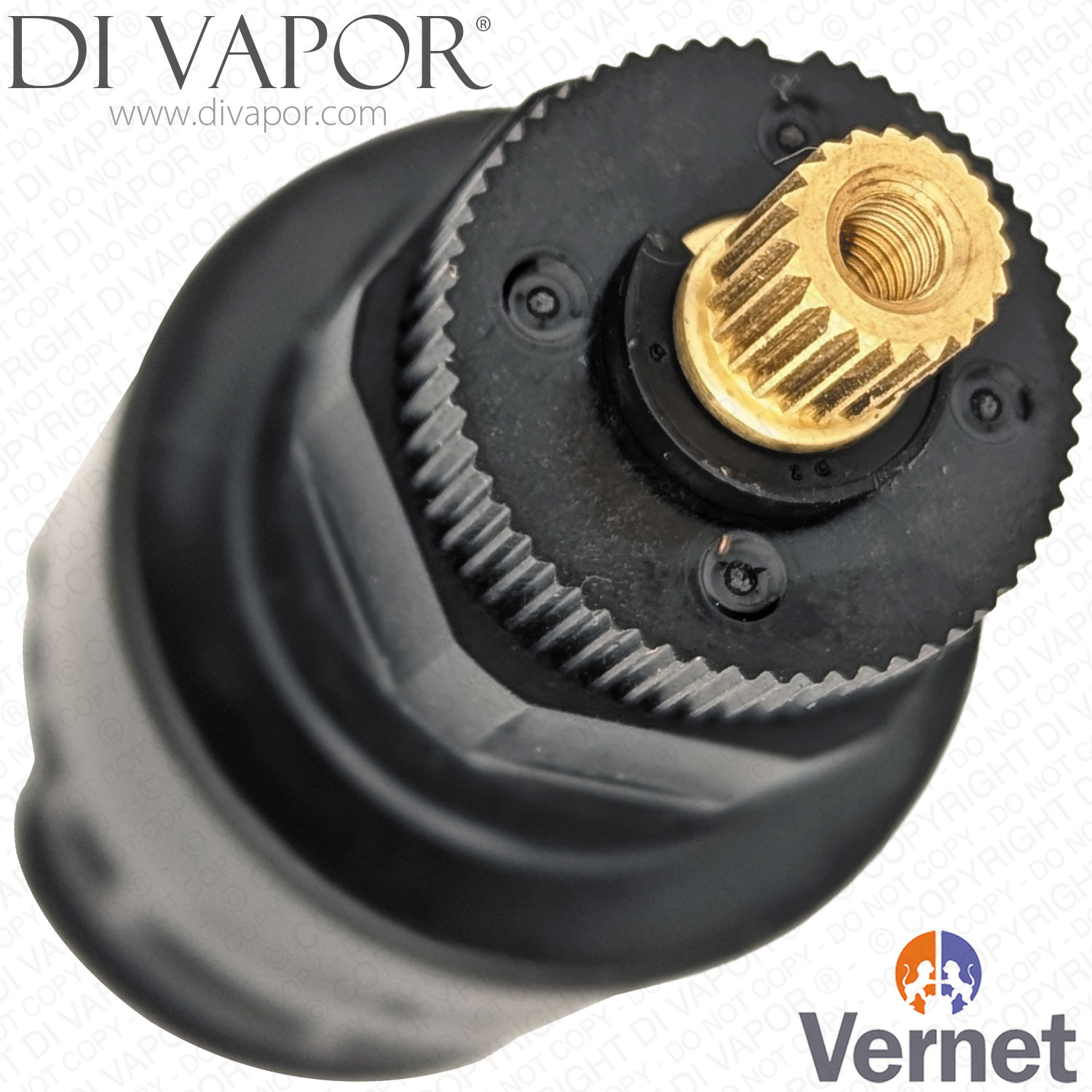

- - M4 x 0.7 spindle thread with 9mm depth

- - Circlip reference dia. 11.55 +/- 0.4mm

- - Additional fixing and port references include 2 x dia. 8.3 +/- 0.2mm, dia. 22.5 +/- 0.1mm, dia. 27 +/- 0.1mm, dia. 16.2 +/- 0.1mm, 2 x dia. 4 +/- 0.1mm, 4 x dia. 5.4 +/- 0.1mm and 2 x 4.9 +/- 0.1mm

Cartridge Dimensions

- - Overall reference height 33.6mm +/- 0.4mm

- - Main lower section reference height 36.5mm +/- 0.3mm

- - Intermediate height references include 22.2mm +/- 0.3mm, 15.7mm +/- 0.3mm and 7.4mm +/- 0.3mm

Flow Performance

Flow rate data is specified at 38 degrees C with C-hydraulic resistance. The standard version reaches approximately 29 to 30 litres per minute at 5 bar. A high flow rate version is shown as under development, reaching approximately 40 litres per minute at around 4.5 bar.

Application

The WeMix platform is intended for modern thermostatic shower and bath mixer design, including compact concealed valve formats where reduced cartridge size and flexible water feed architecture can help manufacturers create slimmer, more efficient mixer bodies.
