Vado V-703-34S Thermostatic Cartridge

SUMMARY

Vado V-703-34S Thermostatic Cartridge

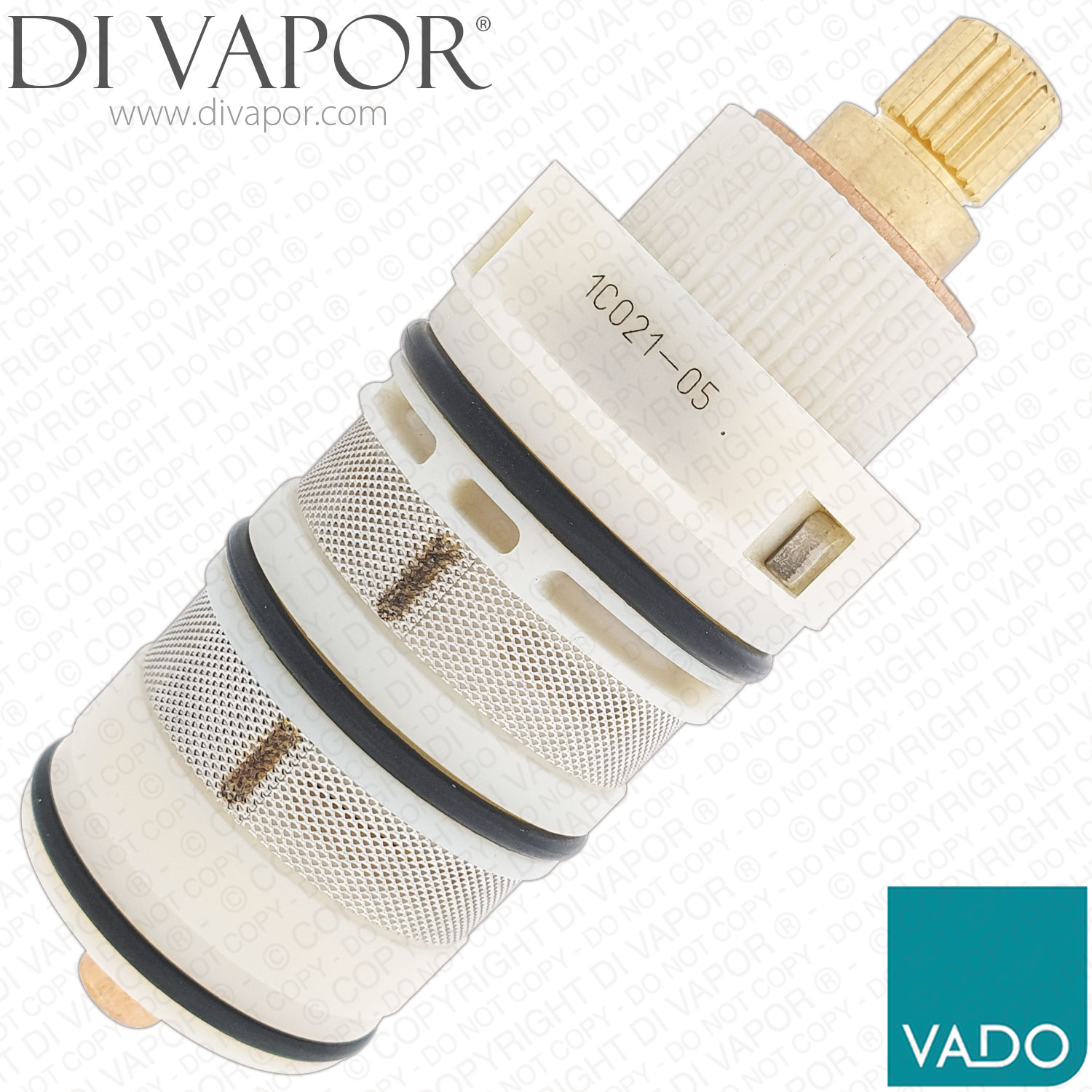

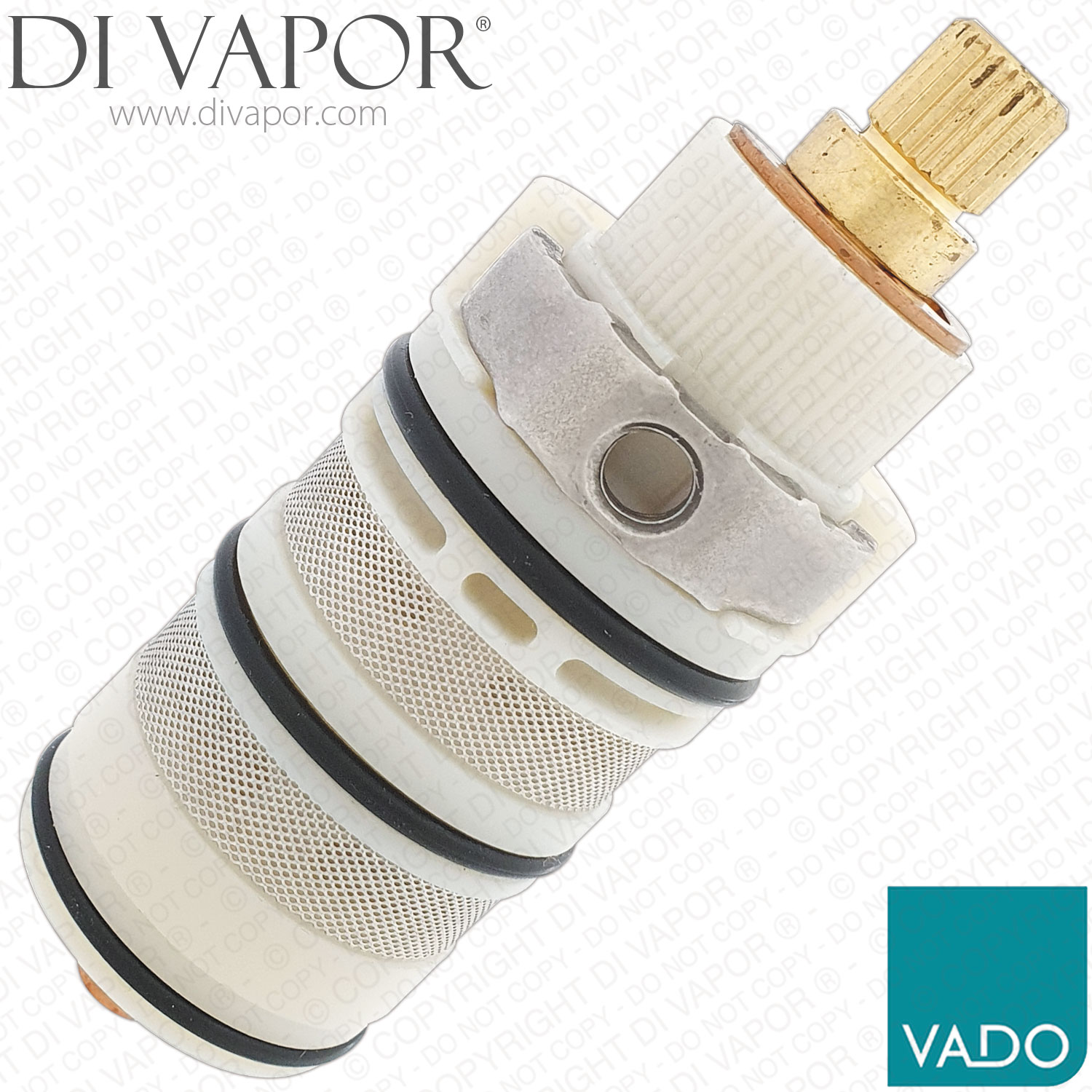

The Vado V-703-34S is a thermostatic cartridge for selected Vado exposed thermostatic shower valves and shower columns. It controls the blended hot and cold water temperature inside the shower valve and is used where the Vado spare part reference V-703-34S is specified.

This cartridge is associated with the older V-001A-PLA reference on some Vado pages. Check the cartridge code, valve code and cartridge shape before ordering, especially where an older valve diagram or spare parts page still references V-001A-PLA.

Technical Details

- - Part type: thermostatic shower cartridge

- - Current part reference: V-703-34S

- - Older reference found in system documentation: V-001A-PLA

- - Function: regulates mixed water temperature in the shower valve

- - Reported connection type: push-in cartridge body

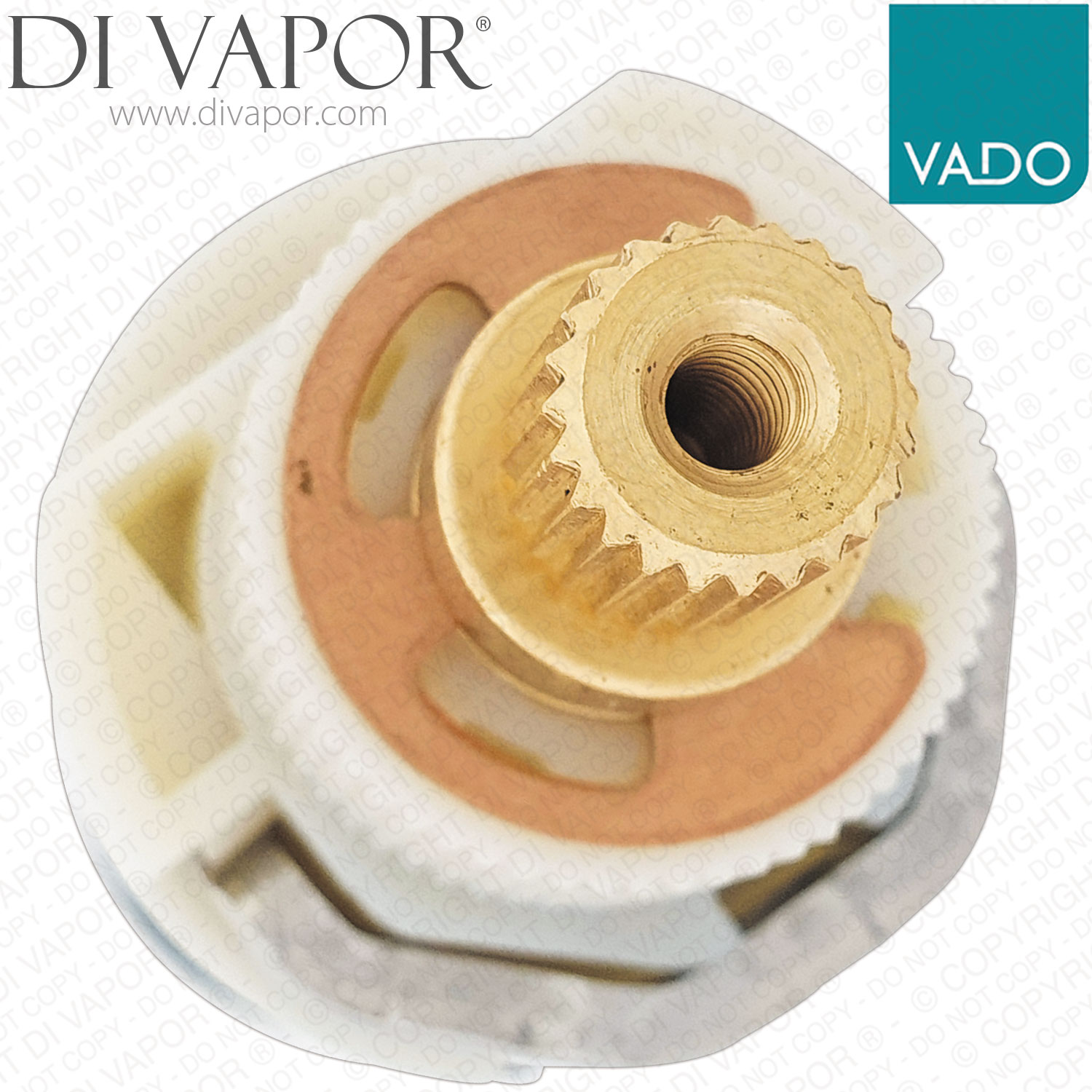

- - Reported spline count: 20 teeth

- - Reported spline diameter: 7.6mm

- - Reported cartridge body diameter: 32mm

- - Reported total length: 88.8mm

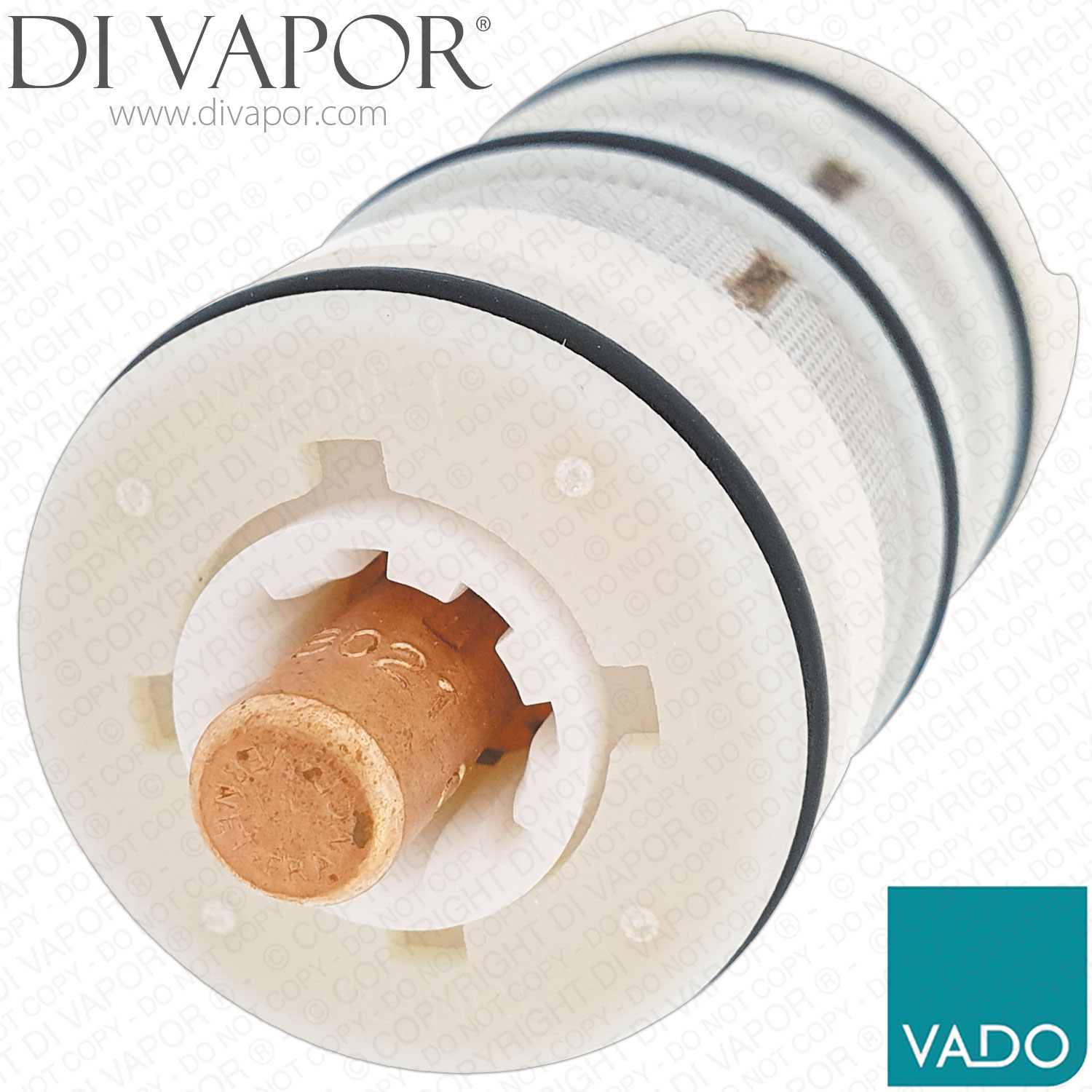

- - Reported seal layout: 3 O-rings

A failing thermostatic cartridge can cause unstable temperature, poor temperature adjustment, water running too hot or too cold, or a shower that cannot be correctly calibrated after normal adjustment. Always isolate the water supply before removing the old cartridge and compare the removed part with the replacement before fitting.

Confirmed Compatible Models

- - VADO TE-149T-C/P TÉ Exposed Thermostatic Shower Valve

- - VADO WG-TEBOX149/B-1/2-C/P TÉ Wall Mounted Exposed Thermostatic Shower Valve 1/2"

- - VADO DGS-149-1/2-C/P Shower Bar Valve in Chrome Central Outlet

- - VADO PRIMABOX4/B-SF-C/P Prima Round Exposed 1/2 Thermostatic Shower

- - VADO PRIMABOX4-MF-C/P Prima Round Exposed Thermostatic Shower Valve

- - VADO PHA-149RRK-CP Phase Showering Column with Thermostatic Shower Valve

- - VADO STRA-149RRK-CP Strata Showering Column Shower Valve

- - VADO AQB-149RRK-SQ-CP Adjustable Velo Aquablade Square Thermostatic Shower Valve with Diverter

- - VADO VEL-149RRK-SQ-CP Adjustable Velo Square Thermostatic Shower Valve with Integrated Diverter

Related Spares You May Need

- - Vado TAB-003A-FIL-HOUSING Non Return Valve

- - Vado TE-002B-1/2 Flow Cartridge - Anti-Clockwise Open

- - Vado DGS-002B-1/2 Flow Cartridge On/Off - Half Turn - Anti-Clockwise Open

- - Vado C-203-RTC On/Off Flow Cartridge - Half Turn - 1/2"

- - VADO FR-SHOWER/9-C/P Flow Regulator

- - Vado VEL-002A-C/P 29mm Flow Cartridge for VEL-149/RRK/DIV and VEL-149/RRK/SQ/DIV

- - Vado STRA-002A-PLA Diverter Cartridge

- - Vado STRA-1/FLOW-CP Flow Handle to Suit STRA-149RRK-CP

- - Vado DGS-1/FLOW-C/P Flow Control Handle

- - Vado DGS-1/TEMP-C/P Temperature Control Handle

- - 150mm Universal Shower Hose - NXT734

Before Ordering Check

Match the valve model code and the old cartridge layout before ordering. If the cartridge has already been removed, compare the spline, length, body diameter and O-ring positions with the replacement. If the valve model is not listed or the removed part differs, use the Di Vapor part identification service before fitting.
