Vado CEL-001C-WAX Thermostatic Cartridge for Celsius Exposed Thermostatic Shower Valves CEL-149-3/4-C/P | CEL-149-1/2-C/P | DGS-149-1/2
Send a photo of your item and we'll help confirm it.
Summary
Genuine CEL-001C-WAX thermostatic cartridge which is used on the following Vado shower mixers:

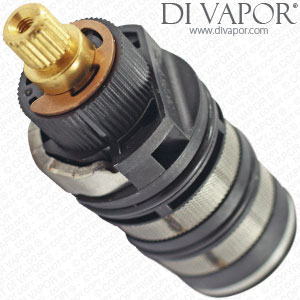

**Important** The brass version of this cartridge is now discontinued by Vado, therefore you will receive the Vado polymer replacement. O-ring 3 has been removed - Supplied cartridge comes with 3 o-rings rather than 4 as shown in the catalogue photograph.
This CEL-001C-WAX cartridge is used in the following Vado shower valves:
- Vado Celsius CEL-149-3/4-C/P Exposed 3/4 Thermostatic Shower Valve
- Vado Celsius CEL-149-1/2-C/P Exposed 1/2 Thermostatic Shower Valve
- DGS-149-1/2
The CEL-001C-WAX may also be used on other models not mentioned in this list.
Technical details on the cartridge are as follow:
| Cartridge Total Length | 94.6mm (from top of spindle to bottom of wax element |
|---|---|
| Cartridge Length | 86.6mm from top of spindle to bottom of cartridge body. |
| Diameter | 30mm at bottom o'ring |
| Diameter | 31.7mm at middle o'ring |
| Diameter | 33mm at middle o'ring |
Diameter at widest point (where the grub screw bolt connects): 34mm at middle o'ring
Top Spindle Spline that Temperature Handle Connects onto (with teeth): 11mm in height and 7.8mm in width
| Temperature stop ring connector (with teeth) | Width is 22.6mm |
|---|---|
| Number of O'Rings | 5 |
| Material | Brass |
| Type | Push Fit (held in with grub screw) |
| Gauze Filters | 2 |
Can't find what you're looking for? Send us a photo here and we'll identify it for you.
