ZSPSBARCA17 ZSPSBARCA17ZSPSBARCA17ZSPSBARCA17 Ultra Thermostatic Cartridge for JTY308 Shower Mixer ValvesZSPSBARCA17 Ultra Thermostatic Cartridge for JTY308 Shower Mixer Valves

Ultra ZSPSBARCA17-P Thermostatic Cartridge for JTY308 Shower Valve

Part Number: ZSPSBARCA17

SALE: £46.83

You save: £13.16 (22%)
Price includes UK VAT (Region: UK▼)
Quantity:
ADD TO BASKET
IN STOCK
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

SUMMARY

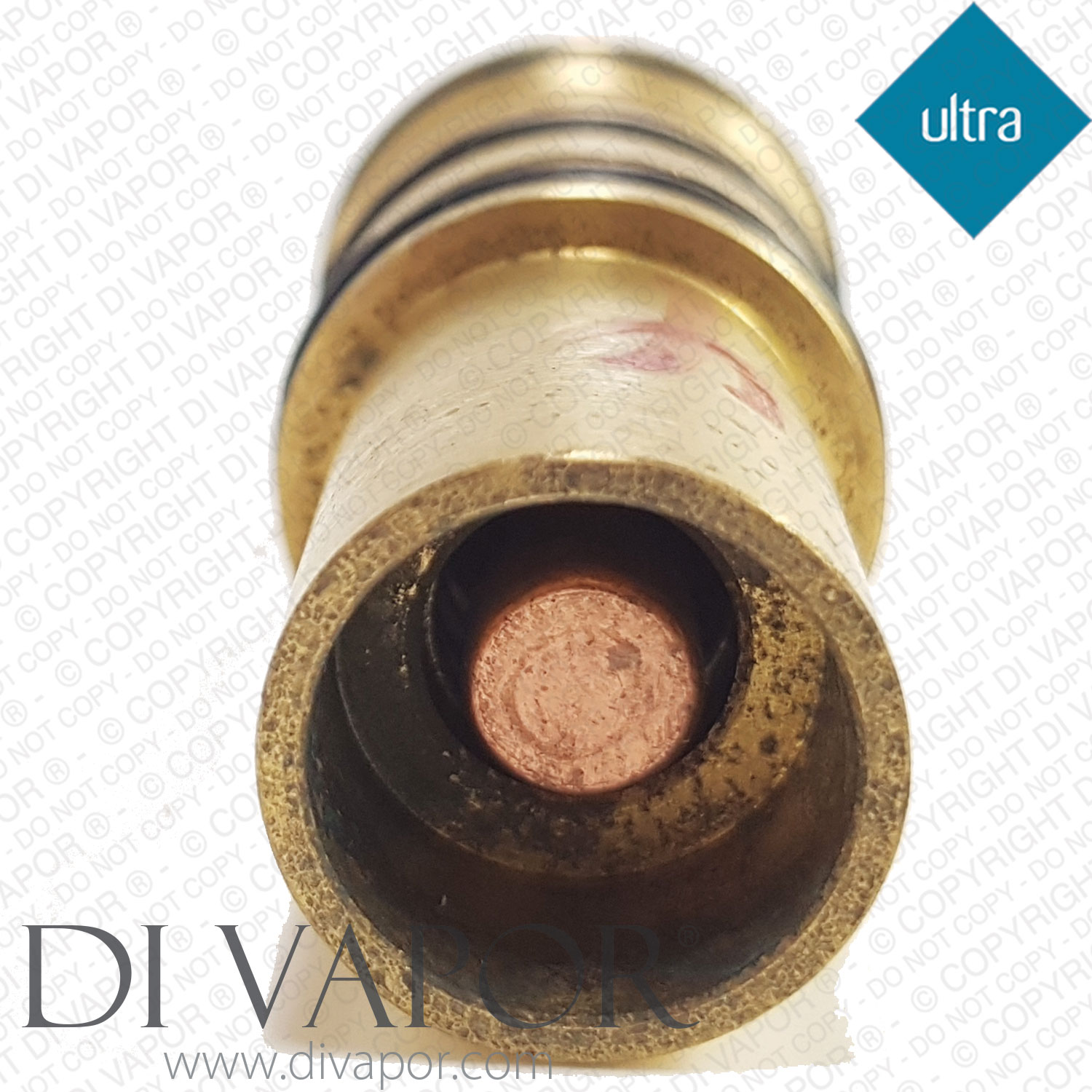

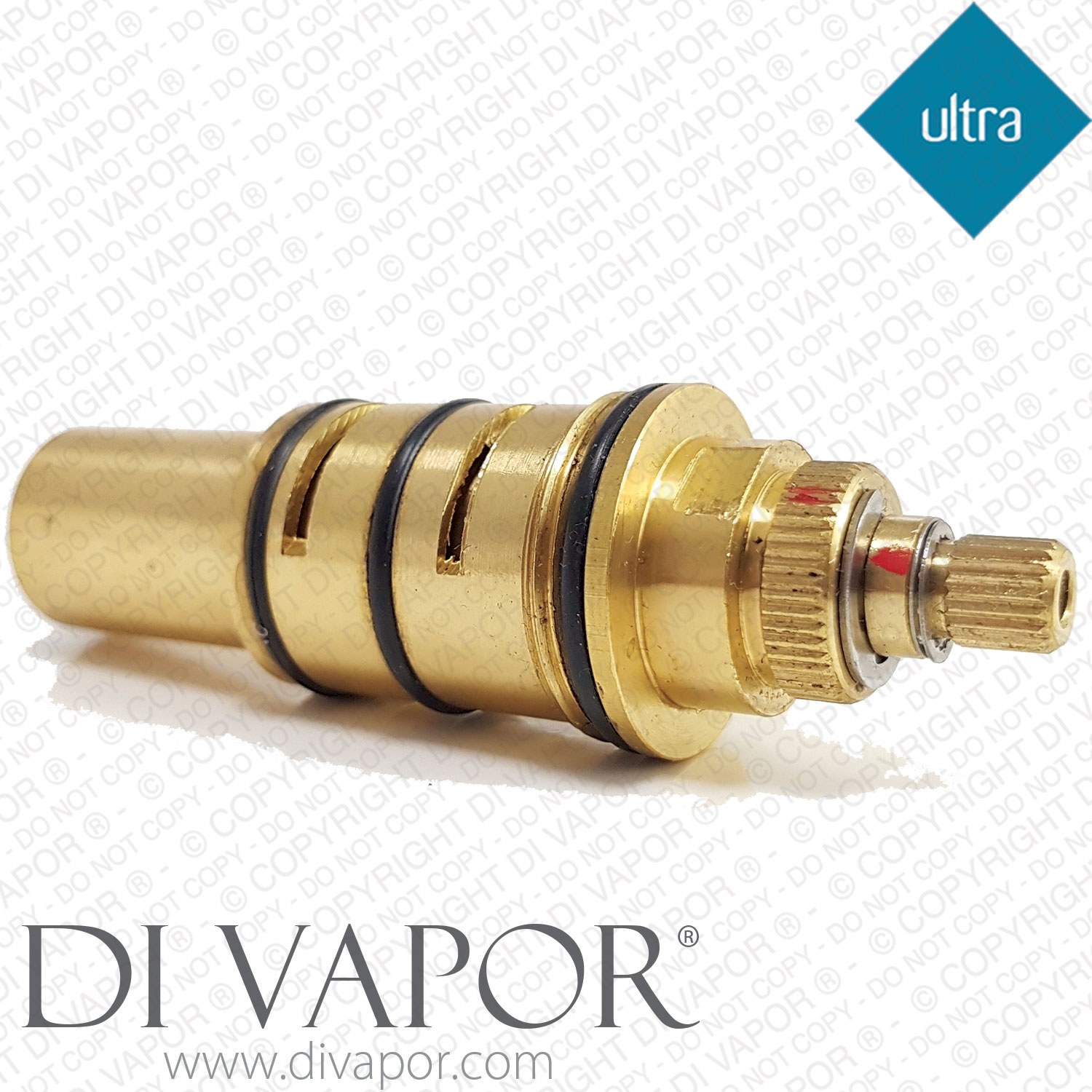

Ultra ZSPSBARCA17 Thermostatic Cartridge for JTY308 Shower Valve (ZSPSBARCA17-P)

This is a genuine Ultra thermostatic cartridge which is a screw fit installation. To remove the cartridge from the valve turn it anti-clockwise.

If you are experiencing water temperature issues with your shower valve then the most likely issue will be the thermostatic cartridge.

Cartridge Measurements:

Total Length: 90mm
Diameter at Widest Point: 28mm
Stop Ring Spline Diameter: 16.9mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Barrel Diameter (upper part): 24.5mm
Barrel Diameter (lower part): 19.5mm

The Ultra ZSPSBARCA17-P is a genuine thermostatic cartridge for the JTY308 shower bar valve and VBS005 thermostatic bath/shower mixer. It is also identified by part number ZSPSBARCA17.

The cartridge regulates the mixture of hot and cold water to control the outlet temperature. A faulty thermostatic cartridge can make the water temperature difficult to adjust or maintain. Temperature problems should be checked before deciding that the cartridge needs replacing.

Technical Details

- - Part type: thermostatic temperature control cartridge

- - Fitting: screw-in

- - Body material: brass

Confirmed Compatible Models

- - Ultra JTY308 Contemporary Thermostatic Shower Bar Valve with Bottom Outlet in Chrome

- - Ultra VBS005 Wall Mounted Square Thermostatic Bath/Shower Mixer Valve with Bottom Outlet in Chrome

Before Ordering

Check the exact valve model and compare the existing cartridge's overall shape, measurements, screw fitting, splines and seal positions. Matching only the diameter or spline count is not enough to identify the correct cartridge.

Fitting Information

Isolate the water supply before removing the cartridge. This screw-fit cartridge unscrews anti-clockwise. Apply a small amount of suitable silicone grease to the O-rings during installation, then check for leaks and correct outlet temperature after fitting.

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease for Tap and Shower Cartridges: lubricant for cartridge O-rings and seals during installation

- - NXT734 Shower Hose: a related accessory for the shower installation; check the required hose length and end fittings before ordering

Use the Di Vapor part identification service if you need help finding the right cartridge.
