Ultra ZSPSBARCA16 Thermostatic Cartridge
SUMMARY

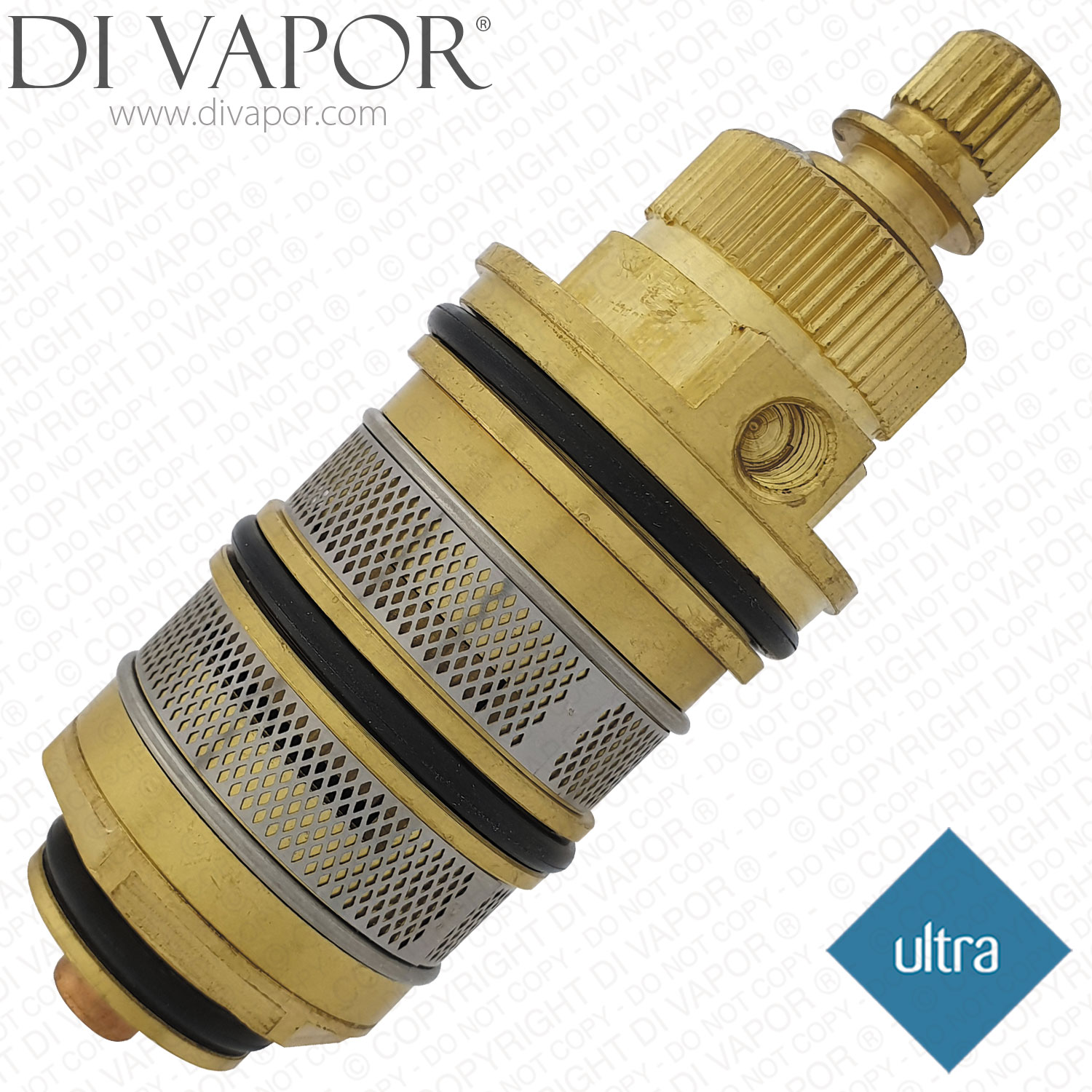

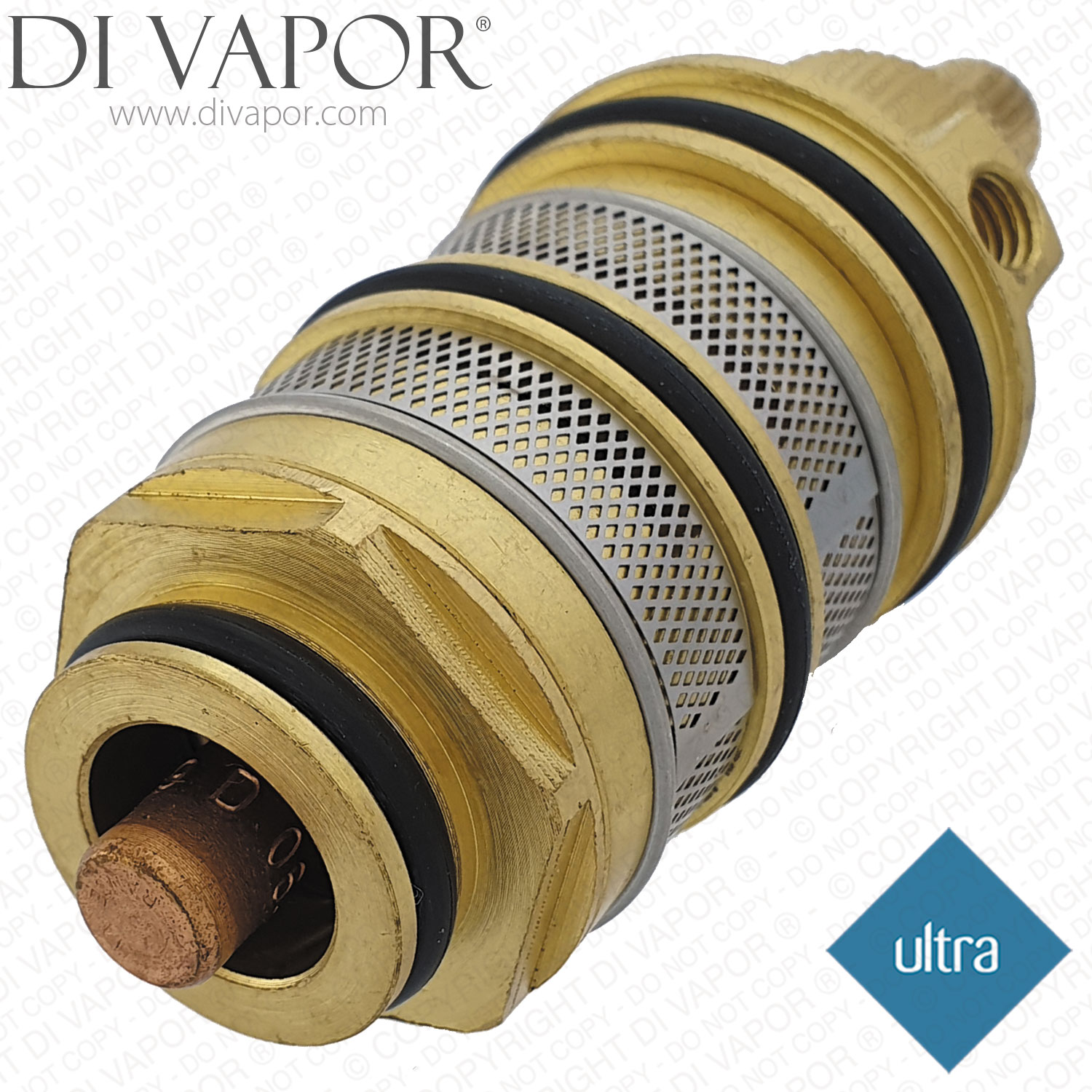

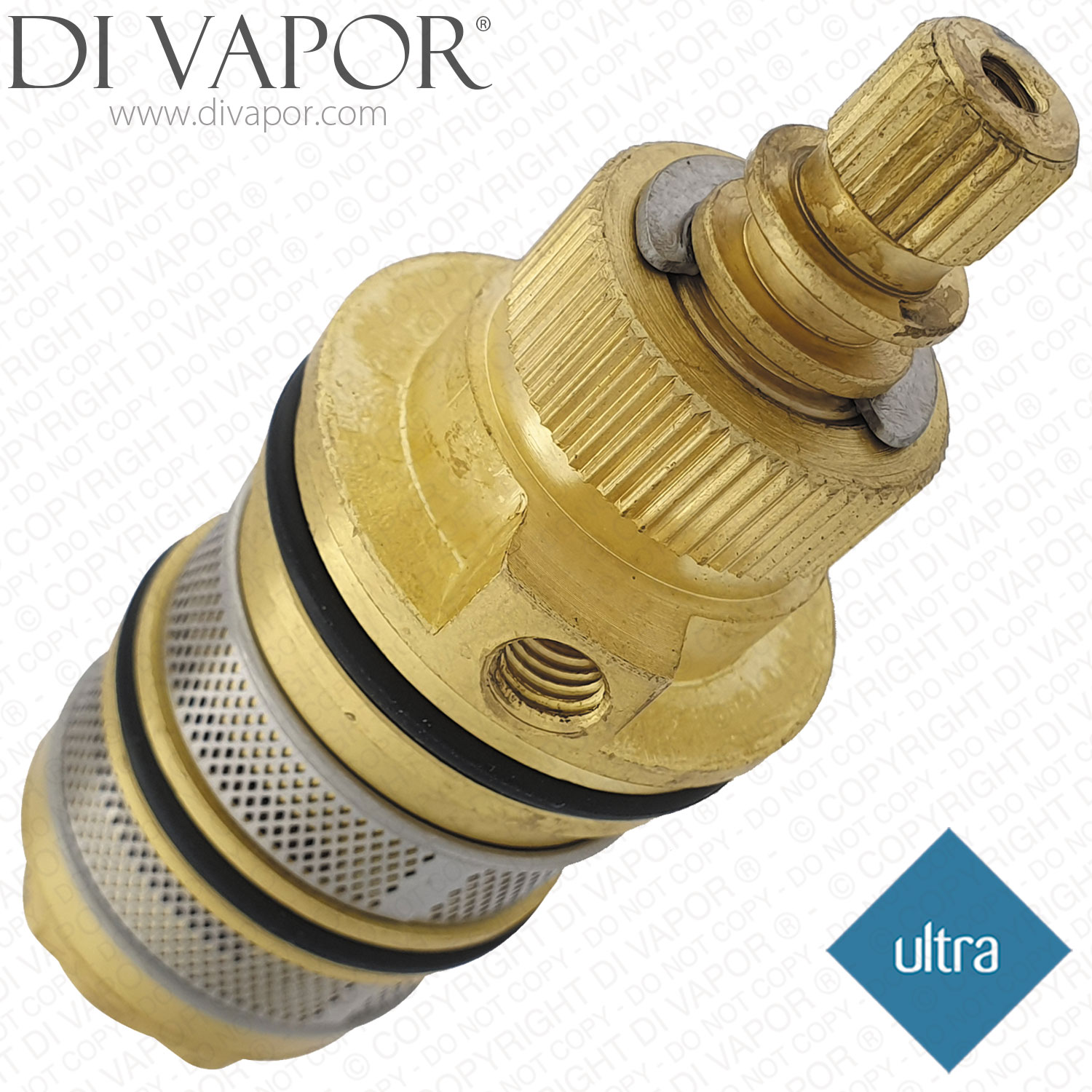

Ultra ZSPSBARCA16 Thermostatic Cartridge
The Ultra ZSPSBARCA16 is a thermostatic shower cartridge used in selected Premier thermostatic bar valves and a Premier thermostatic bath shower mixer. It controls the mixed water temperature within the valve and is used in VBS001, VBS006, VBS009, VBS021 and VBS022.
A worn or scaled thermostatic cartridge can cause unstable water temperature, difficulty adjusting the temperature or failure to reach the expected hot or cold range. Check the valve model and compare the cartridge dimensions and connection details with the removed part before ordering.
Technical Details
- - Part Number: ZSPSBARCA16
- - Part type: thermostatic shower cartridge
- - Overall length: 89.76mm
- - Diameter: 33.95mm
- - Body material: brass
- - Gauze filters: 2
- - O-rings: 3
- - Spline tiers: 2
- - Spline teeth: 24
- - Grub screw hole: yes
Confirmed Models
Bar Valves
- - Premier / Nuie VBS001 Thermostatic Bar Valve Shower Spare Parts
Shower Mixer
- - VBS021 Premier Thermostatic Bath and Shower Mixer
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Temperature Stop Ring - GS6672
- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)
Apply a suitable silicone grease to the cartridge O-rings during installation and avoid forcing the cartridge into the valve body.
Not sure this is the right cartridge? Use the Di Vapor Part Identification Service and send us a photo of your existing part.
