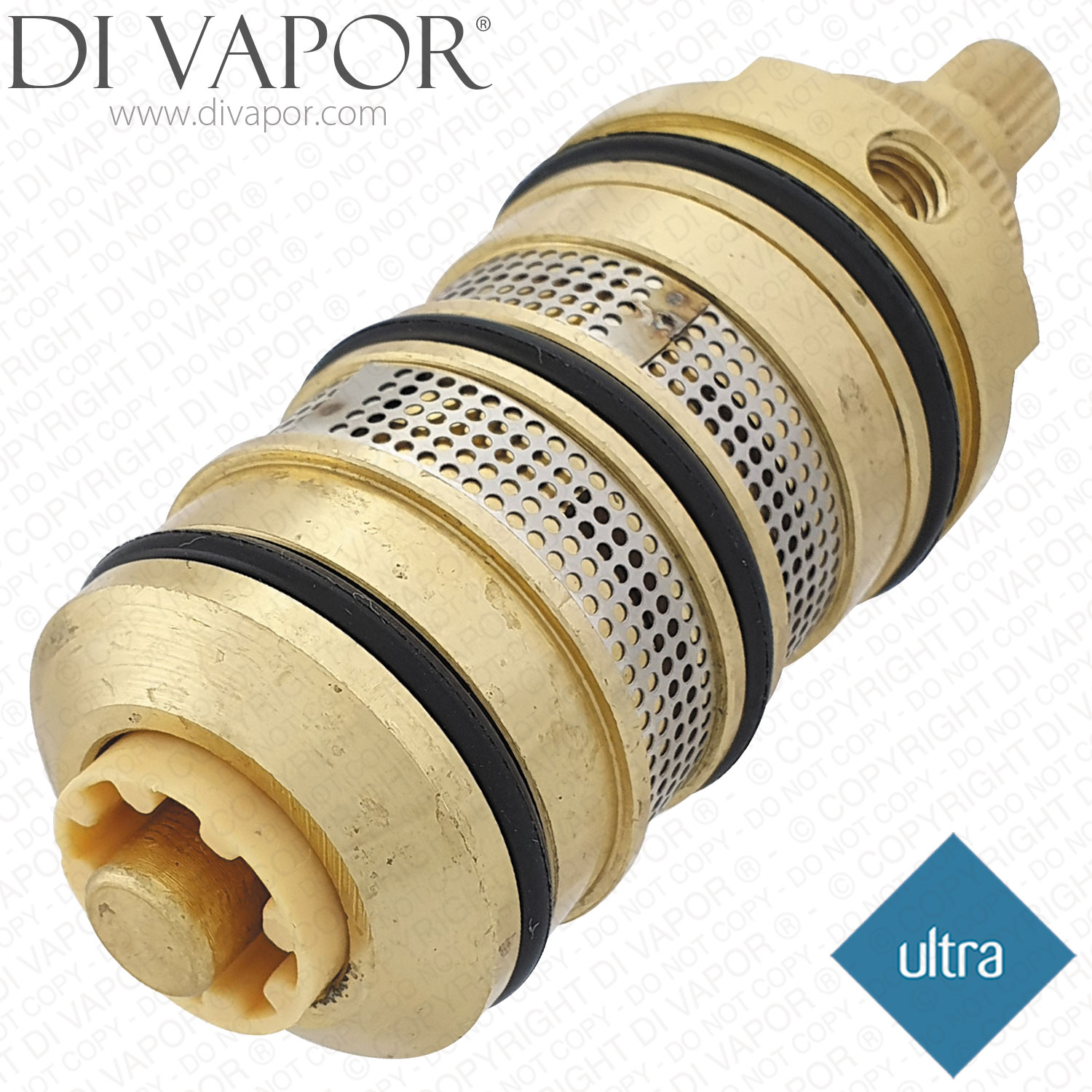

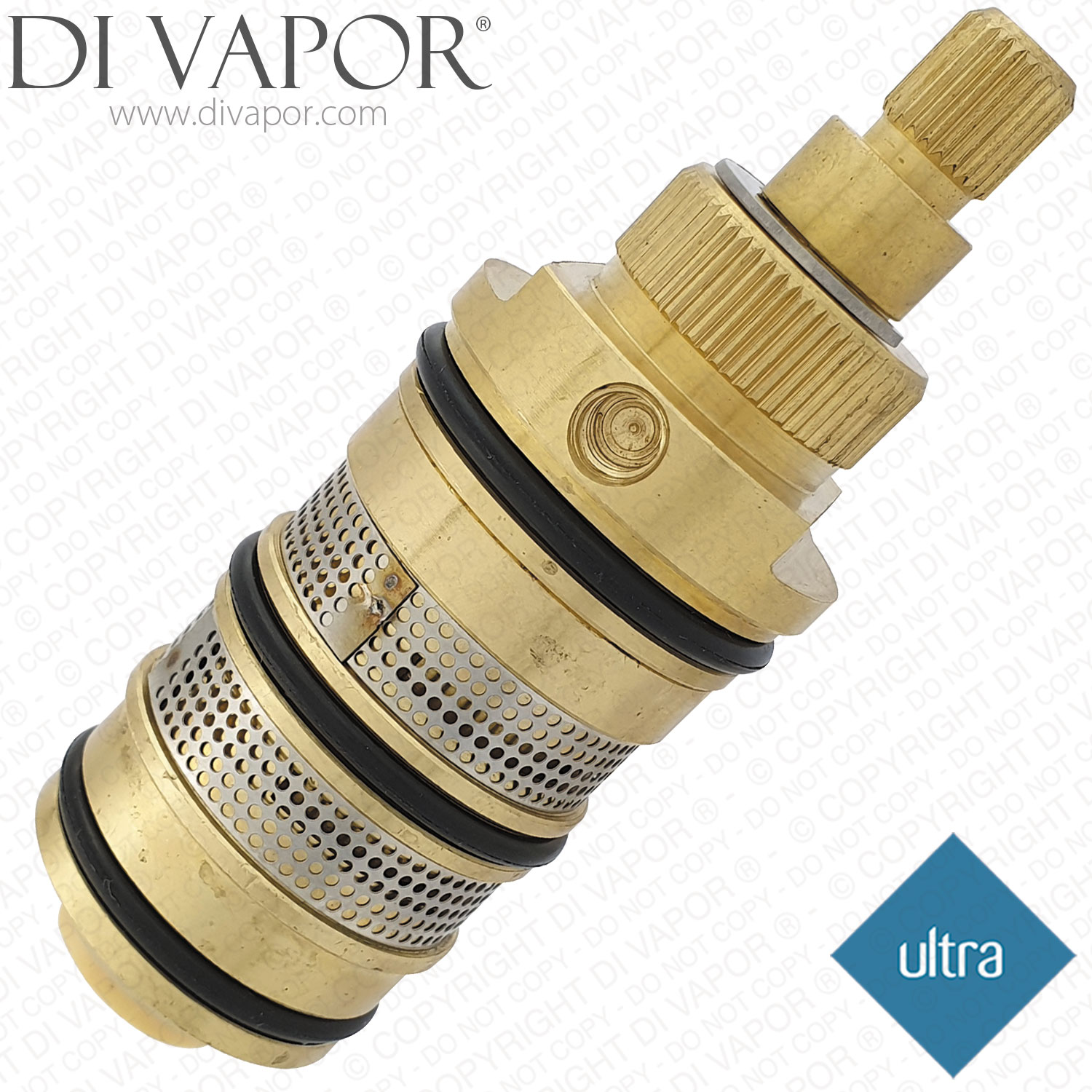

Ultra ZSPSBARCA14 Thermostatic Cartridge for Shower Panels (Premier Bathrooms)
SUMMARY
Ultra ZSPSBARCA14 Thermostatic Cartridge for Shower Panels (Premier Bathrooms). Please note that you will receive the new version of this cartridge which is aesthetically slightly different.Ultra Shower Spare Cartridge Measurements:
Total Length: 95.2mm (9.52cm)
Diameter at widest part: 34mm (3.4cm)
Top spline diameter: 9.5mm (0.95cm)
Ultra ZSPSBARCA14 is a thermostatic cartridge for selected Ultra, Hudson Reed, Premier Bathrooms and Nuie shower panels. The supplied cartridge is an updated version and may differ slightly in appearance from the original.
The cartridge controls the mix of hot and cold water to maintain the selected shower temperature. A worn or faulty cartridge can cause erratic temperature control or difficulty adjusting the water temperature. Check the water supplies and the condition of the valve before deciding which part needs attention.
Technical Details
- - Part Number: ZSPSBARCA14
- - Part type: Thermostatic temperature control cartridge
Confirmed Shower Panel Models
- - Premier / Nuie AS306 Thermostatic Shower Panel with Fixed Shower Head
- - Hudson Reed/Ultra AS307 Dream Showers Stylo Thermostatic Shower Panel
- - Hudson Reed AS374 Dream Showers Easton Thermostatic Shower Panel
- - Hudson Reed AS376 Dream Showers Payton Thermostatic Shower Panel
- - Hudson Reed AS377 Dream Showers Thermostatic Shower Panel
Before Ordering
Check the shower-panel model and any code on the existing cartridge, then compare the body shape, seal positions, spline arrangement and measurements. Do not select the cartridge by diameter alone.
Fitting Notes
Follow the servicing instructions for your exact panel and isolate the hot and cold water supplies before starting. On AS374 panels, the thermostat's side retaining screw must be released before the cartridge is withdrawn. Lightly lubricate suitable O-rings with silicone grease when fitting.
Related Spares You May Need
- - TACSIL 3g WRAS Approved Silicone Grease
- - GROHE 2g SYNTHESO LM 220 Silicone Grease (18007031)
The silicone greases are separate servicing options. For the shower hose, check the required length and end connections before ordering.
If you are unsure which part you need, use the Di Vapor part identification service for help.
