SUMMARY

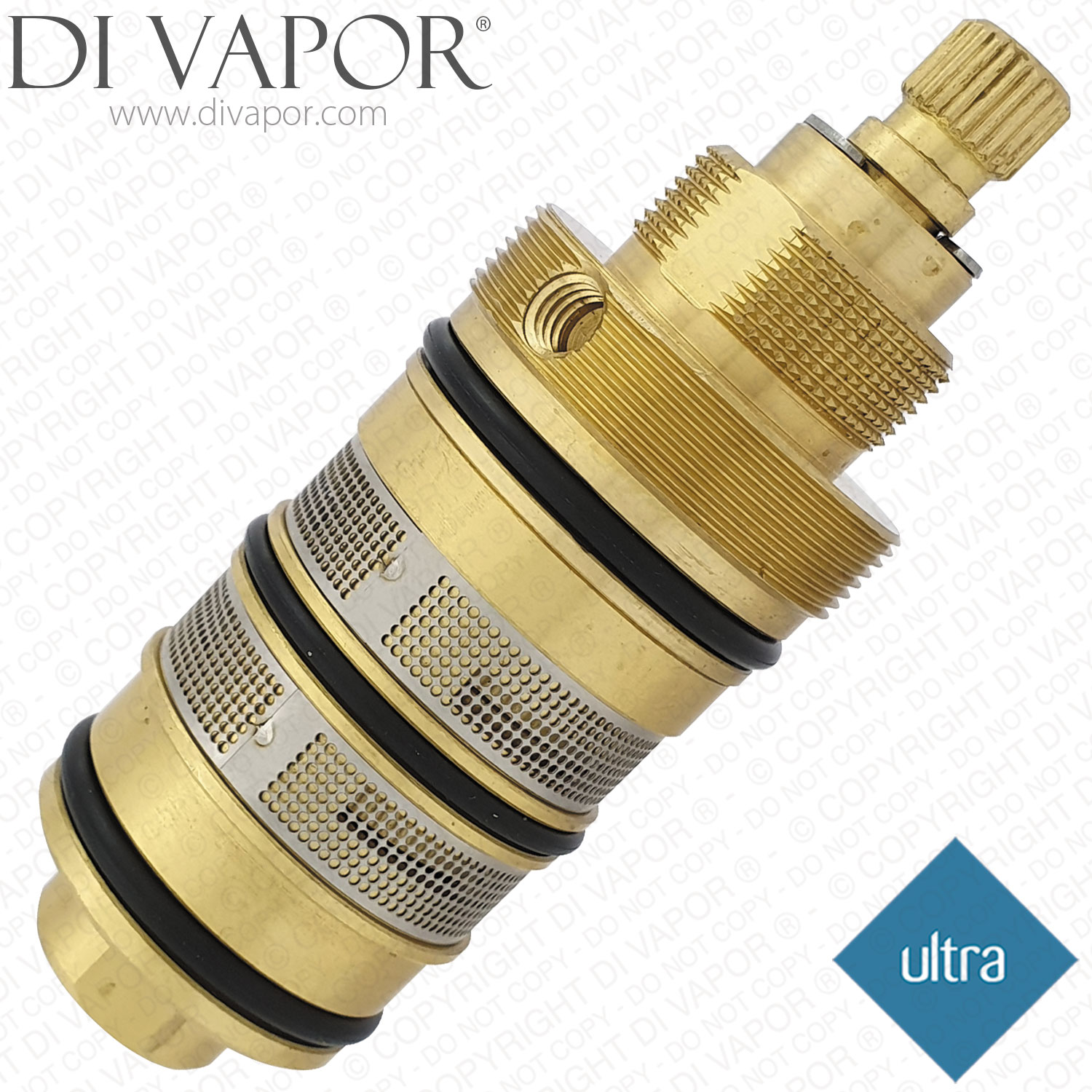

Ultra ZSPSBARCA12 Thermostatic Cartridge for Shower Panels (Premier Bathrooms). You will receive the cartridge as per the photos with the screw thread and grubscrew hole.

Shower Panel Repair Tips: Ultra ZSPSBARCA12 Thermostatic Cartridge

Ultra thermostatic cartridge ZSPSBARCA12 is the shower spare used in the Hudson Reed Genie shower panel.

– Before opening the shower panel:
The water supplies and pressure leading to the shower must be isolated or shut off. This is a safety precaution that will prevent scalding in case of accidental water flow. Shutting off the shower’s pressure will stop the cartridge from inadvertently popping out of the valve.

Shut the mains if the isolation valve cannot be found.

Turn the shower on to check if water supply isolation is achieved.

– Opening the shower panel:
There is a retaining screw around the handle. Remove the screw and the subsequent parts to get to the Ultra ZSPSBARCA12 thermostatic cartridge. The cartridge type is non-threaded and push-fit. Hence, grub screw which holds the cartridge in place can be removed using an Allen key.

The old cartridge can be discarded or kept for future reference.

– Silicone grease and shower repair:
Greasing the O-rings of the replacement ZSPSBARCA12 Ultra thermostatic cartridge will help it seal in the valve properly.

Please scroll to the last section of the page for the silicone-based plumbing grease we carry.

– Checking the results:
After the shower thermostatic cartridge is installed and the handle restored, open water supplies and pressure. Then, cycle the shower from hot to cold a few times. Also, check the water temperature and see if there are no leaks.

The minimum operating pressure for the shower panel is 2 bar and the maximum is 5 bar. The static water pressure must not go over 5 bar. Water pressure between hot and cold supplies must be equal.

Frequently Asked Questions: Ultra Thermostatic Shower Panel Cartridge ZSPSBARCA12

Question: What is the dimensions of the Ultra ZSPSBARCA12?
Answer: Here are the approximate measurements of the Ultra ZSPSBARCA12:

– Length: 90.5mm
– Diameter at the widest part: 33.8mm
– Diameter at splines: 9.5mm
– Spline teeth count: 24

Question: The shower is leaking from the handle when in use. Is this because of the thermostatic cartridge?
Answer: The shower panel’s thermostatic cartridge might be broken. A replacement ZSPSBARCA12 may stop the leak.

Confirmed Compatible Models

- - Hudson Reed AS361 Dream Showers GENIE LED Thermostatic Shower Panel

- - Hudson Reed / Ultra PGU001 Guise Recessed Thermostatic Shower Panel

For the AS361 shower panel, the A391 thermostatic cartridge is also listed as a component option. Compare the code, dimensions and push-fit grub-screw arrangement of the existing cartridge before ordering rather than selecting by the shower model or dimensions alone.

If you are not sure whether this is the correct cartridge, use the Di Vapor part identification service for help.

Related Spares You May Need

- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031) - for light lubrication of cartridge O-rings during fitting

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - single-use silicone grease suitable for cartridge O-rings

- - 150mm Universal Shower Hose - NXT734 - a related item for the confirmed AS361 and PGU001 shower panel systems
