SUMMARY

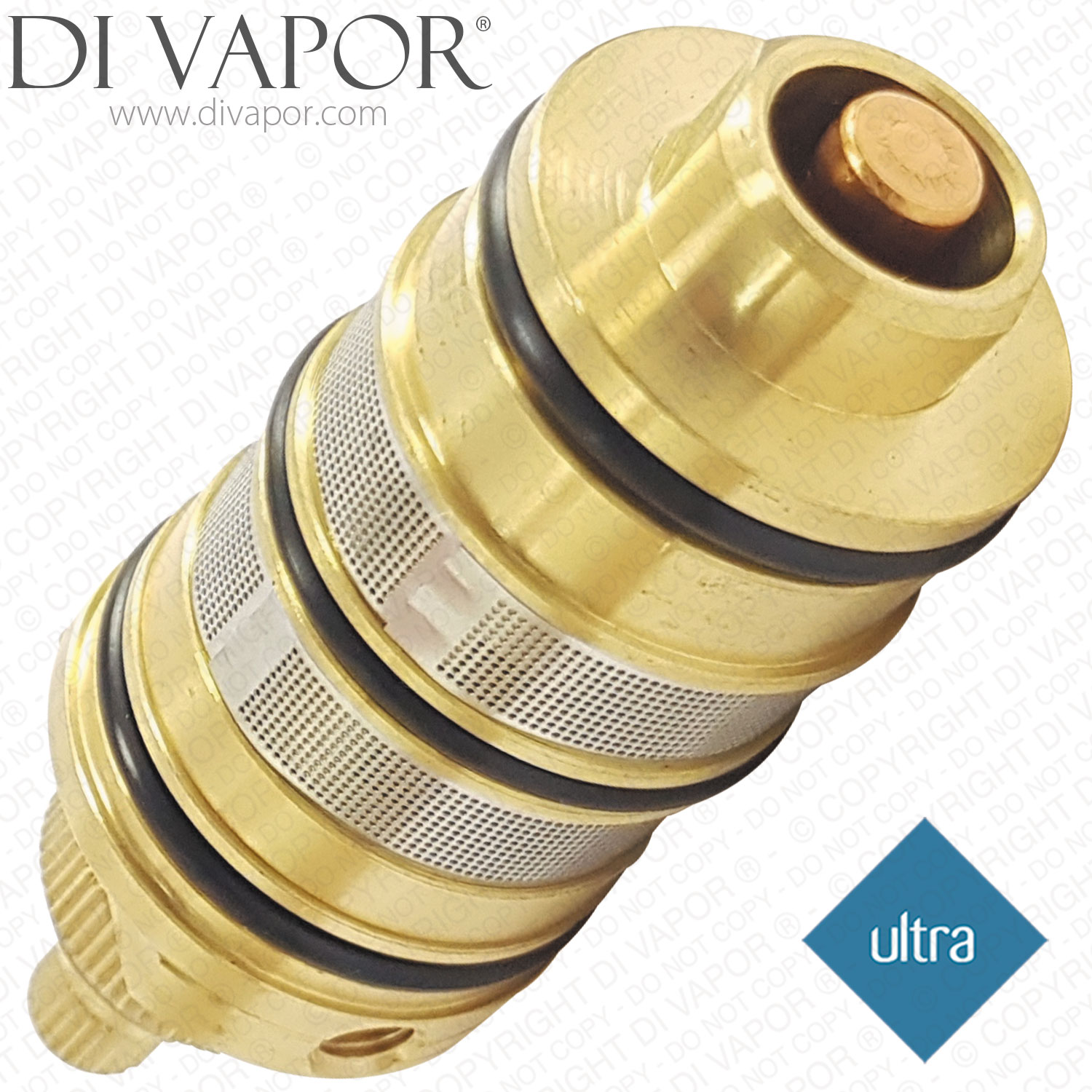

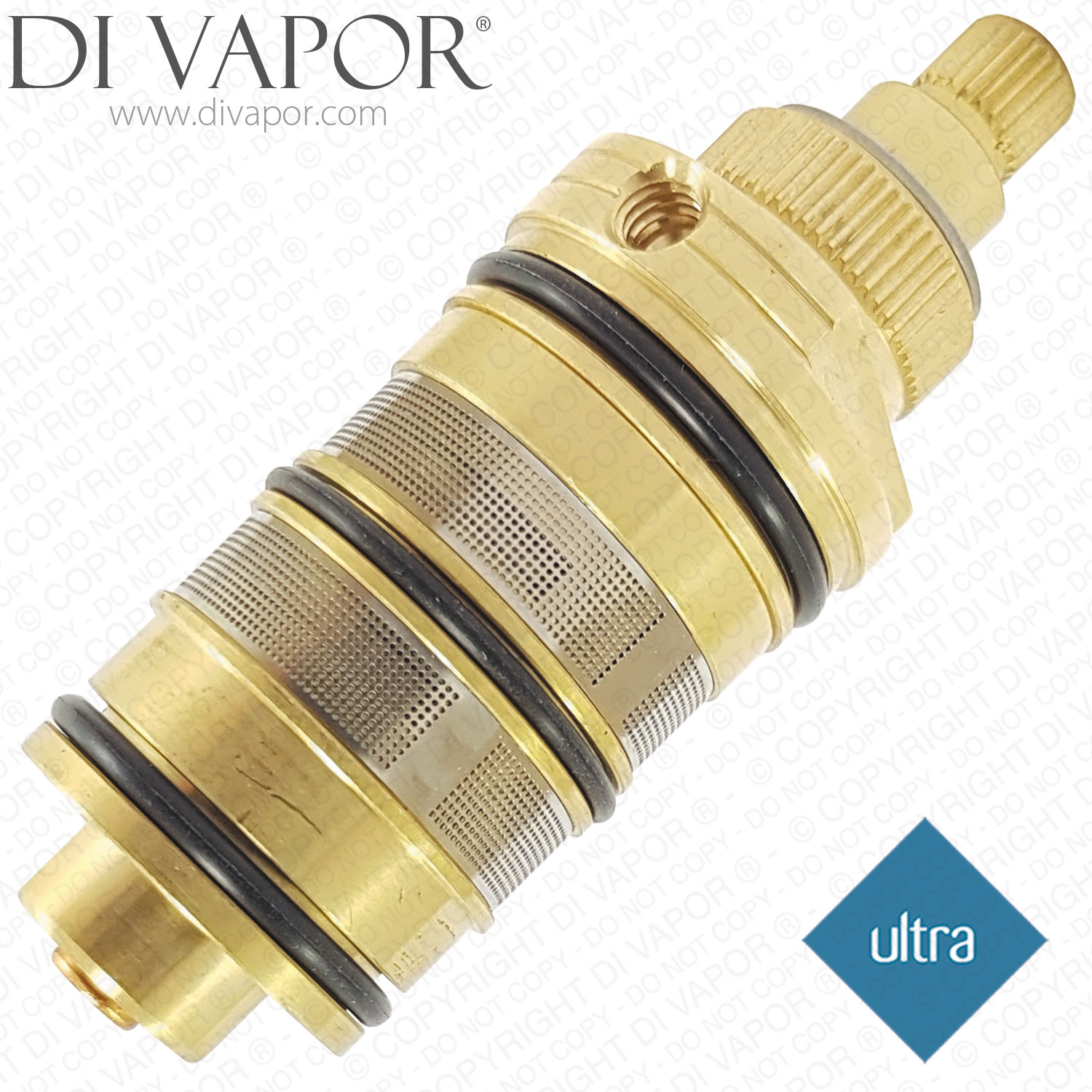

Ultra ZSPSBARCA11 Thermostatic Cartridge

Ultra Shower Cartridge ZSPSBARCA11 Measurements and Compatibility

Measurement:
Approximate total length: 90mm (9cm)
Diameter at widest point: 34mm (3.4cm)
Top spline diameter: 9.2mm
Number of splines: 24

Compatibility:
This is the Ultra / Hudson Reed replacement thermostatic cartridge for:
– Hudson Reed Glacier Thermostatic Shower Panel

Shower Spare Part: Ultra / Hudson Reed Replacement Thermostatic Cartridge – ZSPSBARCA11

Question: The plumber told me the thermostatic cartridge in the shower has to be replaced. Is there any other solution? Do I have to change the cartridge?
Answer: The only long-lasting and efficient solution is replacing the Ultra / Hudson Reed thermostatic cartridge once it gets worn out. These are a few of the reasons as to why this is essential:

1. Cartridges like the Ultra thermostatic cartridge ZSPSBARCA11 has a piston inside that moves up and down to control water temperature. Over a span of time, limescale and other dirt calcifies in and around the cartridge. The build-up acts like sandpaper against the piston. It, therefore, damages the piston and the interior of the cartridge.

2. Hot and cold water enters the Ultra thermostatic cartridge filters which are then regulated by the piston to produce the desired shower temperature. As scale and dirt accumulate and hardens it clogs the filters and prevents water from freely moving through the cartridge to the showerhead.

A replacement Ultra / Hudson Reed thermostatic cartridge ZSPSBARCA11 will get that shower up and running like the way it supposed to: optimal water flow and temperature regulated showers on demand.

Question: How important is greasing the cartridge?
Answer: It is very important because it helps the cartridge seal in the valve and protects it from pressure and pinching. All the O-rings of the Ultra / Hudson Reed replacement ZSPSBARCA11 thermostatic cartridge must be greased with plumbing grease before installation.


Di Vapor provides various Ultra thermostatic cartridges, flow cartridges, and a lot more Ultra shower spares.


Got spare part questions?
– Please message us with a photo and details of the cartridge or shower valve you have. We will do our best to help you identify the shower part needed.
*Messages received on a weekend will be responded to first on the start of the work week.
