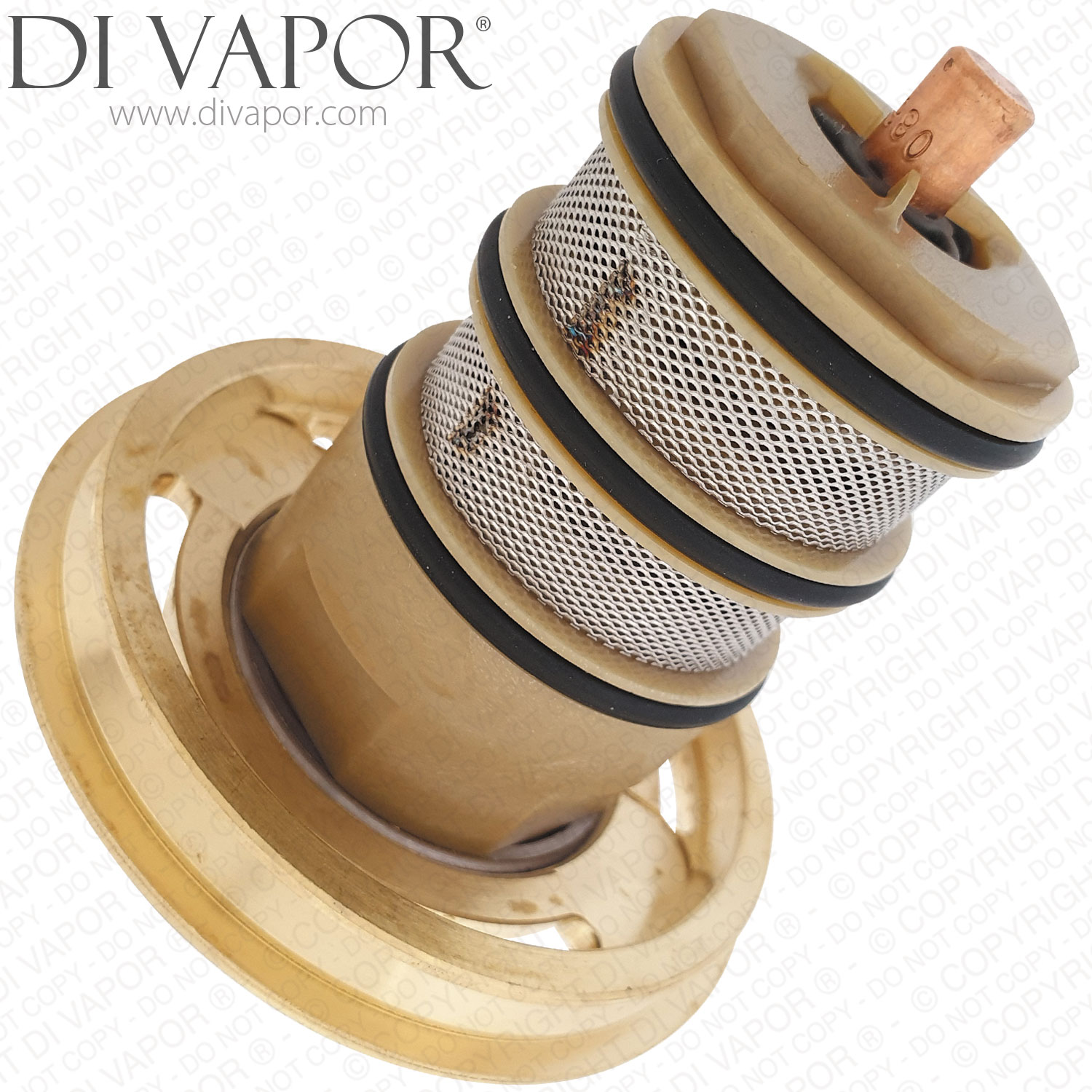

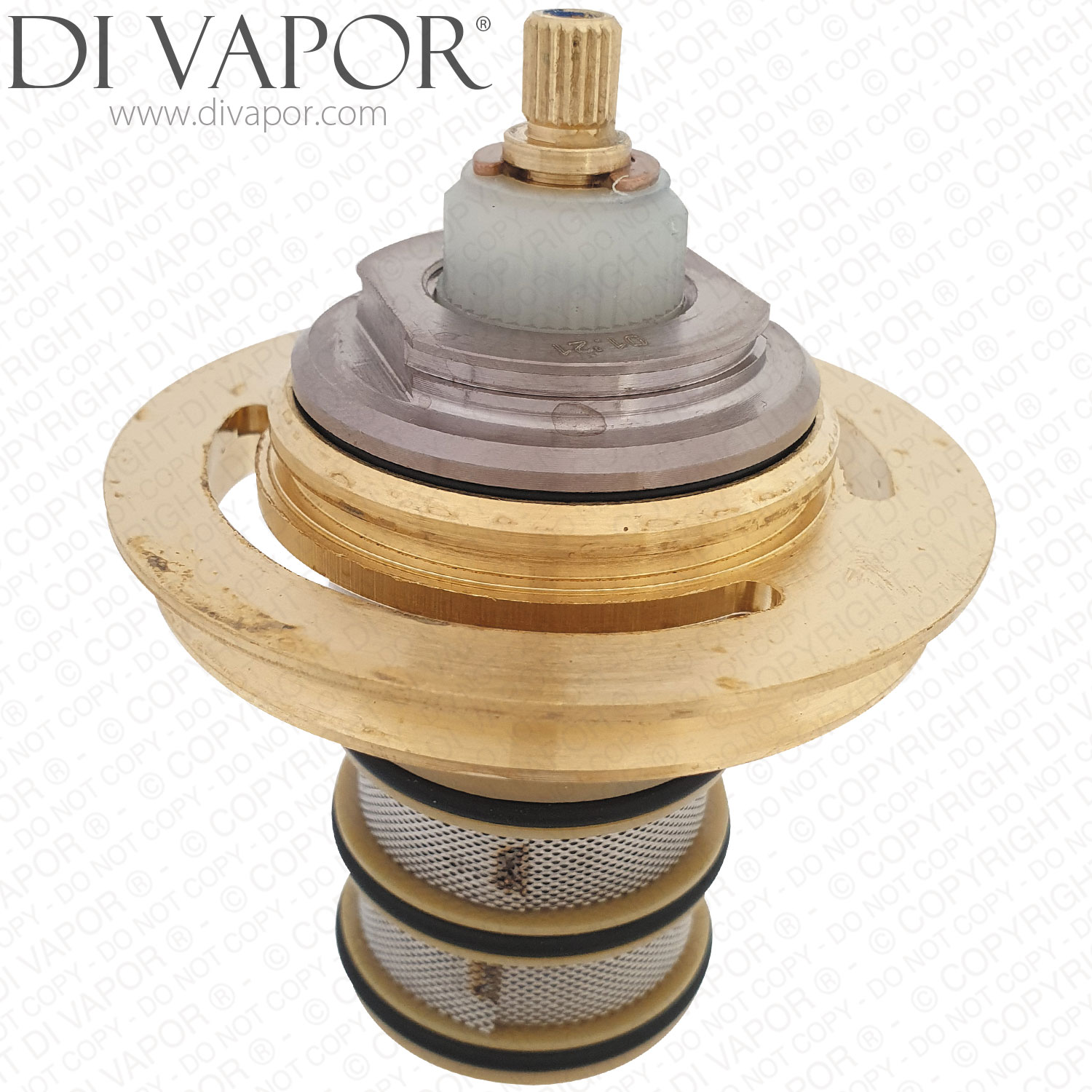

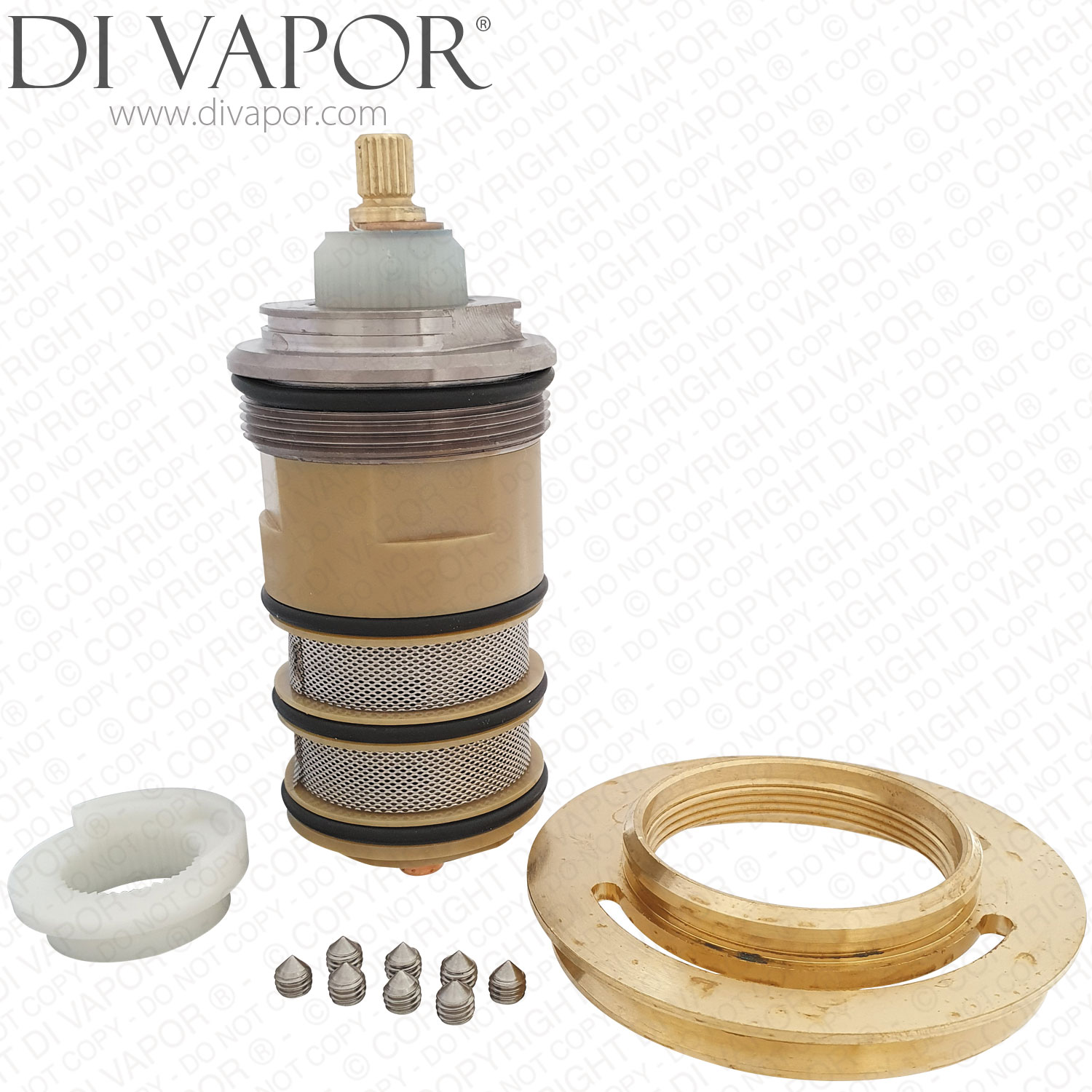

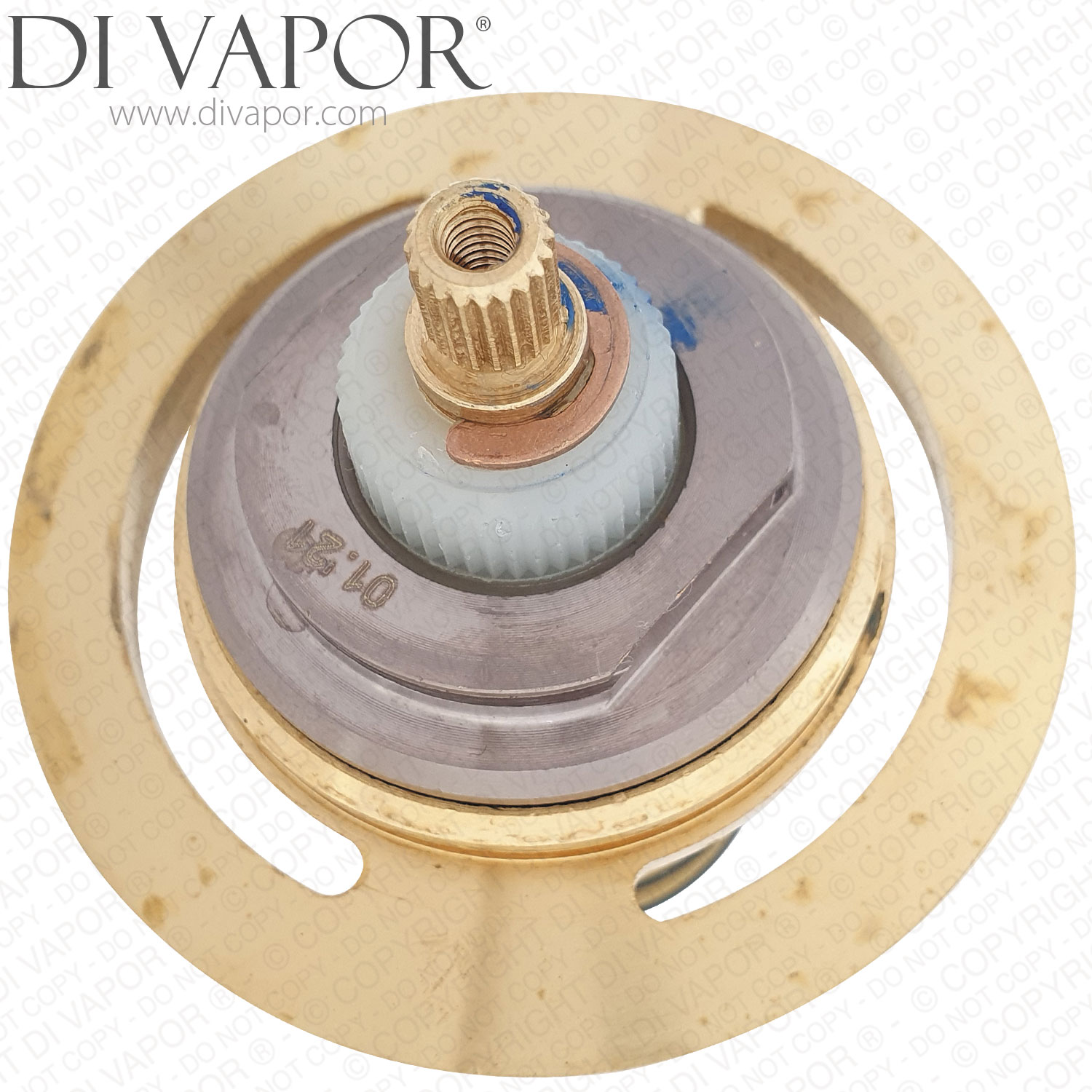

Triton 83315610 Elina Thermostatic Cartridge Assembly

SUMMARY

Triton 83315610 Elina Thermostatic Cartridge Assembly.

Gold ring.

The Triton 83315610 Elina thermostatic cartridge assembly is a temperature-control cartridge for selected Triton Elina concentric thermostatic mixer shower valves. It is the Elina thermostatic cartridge assembly with a gold ring.

This cartridge sits inside the shower mixer valve and helps regulate the blend of hot and cold water to maintain a stable outlet temperature. It is the cartridge to check when the shower is difficult to control, runs too hot or too cold, or shows deterioration in mixed-water temperature performance after the supplies and filters have been checked.

Technical Details

- - Brand: Triton

- - Part Number: 83315610

- - Part type: thermostatic cartridge assembly

- - Product identifier: gold ring

- - Application: Triton Elina concentric thermostatic mixer shower valves

- - Built-in valve body reference: 86004530

- - Exposed valve body reference: 86004540

- - Triton Elina concentric valves use separate flow and temperature controls

- - Temperature control operation: clockwise for cooler and anti-clockwise for hotter

Confirmed Compatible Models

- - Triton ELICMINCEX Elina Exposed Concentric TMV3 Mixer Shower + Grab Spare Parts

- - Triton ELICMINCEXVO Elina Exposed Concentric TMV3 Inclusive Mixer Shower Spare Parts

- - Triton ELICMINCBT Elina Built-In Concentric TMV3 Mixer Shower + Grab Spare Parts

- - Triton ELICMINCBTVO Elina Built-In Concentric TMV3 Inclusive Mixer Shower Spare Parts

- - Triton Elina Exposed Mixer Shower Valve Fixed Chrome 642FJ Spare Parts

Before Ordering

- - Confirm the shower is a Triton Elina concentric mixer valve before ordering by code alone

- - Match the existing cartridge to Triton 83315610 and the gold ring identifier where visible

- - Check whether the fault is temperature regulation rather than a separate flow control or outlet issue

- - Isolate both hot and cold water supplies before removing the cartridge

- - Clean the valve chamber before refitting and apply suitable silicone grease to the cartridge O-rings

Troubleshooting

- - Symptom: shower runs too hot or too cold

- - Likely Cause: thermostatic cartridge is no longer regulating the hot and cold mix correctly or the supplies are outside the required conditions

- - Solution: check supply temperatures, pressures, filters and non-return components before replacing the cartridge

- - Symptom: mixed-water temperature has changed significantly since previous servicing

- - Likely Cause: the thermostatic mixing valve may need servicing or the water supplies may need inspection

- - Solution: inspect inline strainers, check valves and isolation valves, then replace the cartridge if the valve still fails to regulate correctly

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number: TAC86

- - 150mm Universal Shower Hose - NXT734 - Part Number: NXT734

- - Triton 83312190 Thermostatic Cartridge for Elina Time-Flow Shower Valve - Part Number: T-83312190

Triton 83312190 is a separate Elina Time-Flow shower valve cartridge and should not be ordered as a substitute for Triton 83315610.
