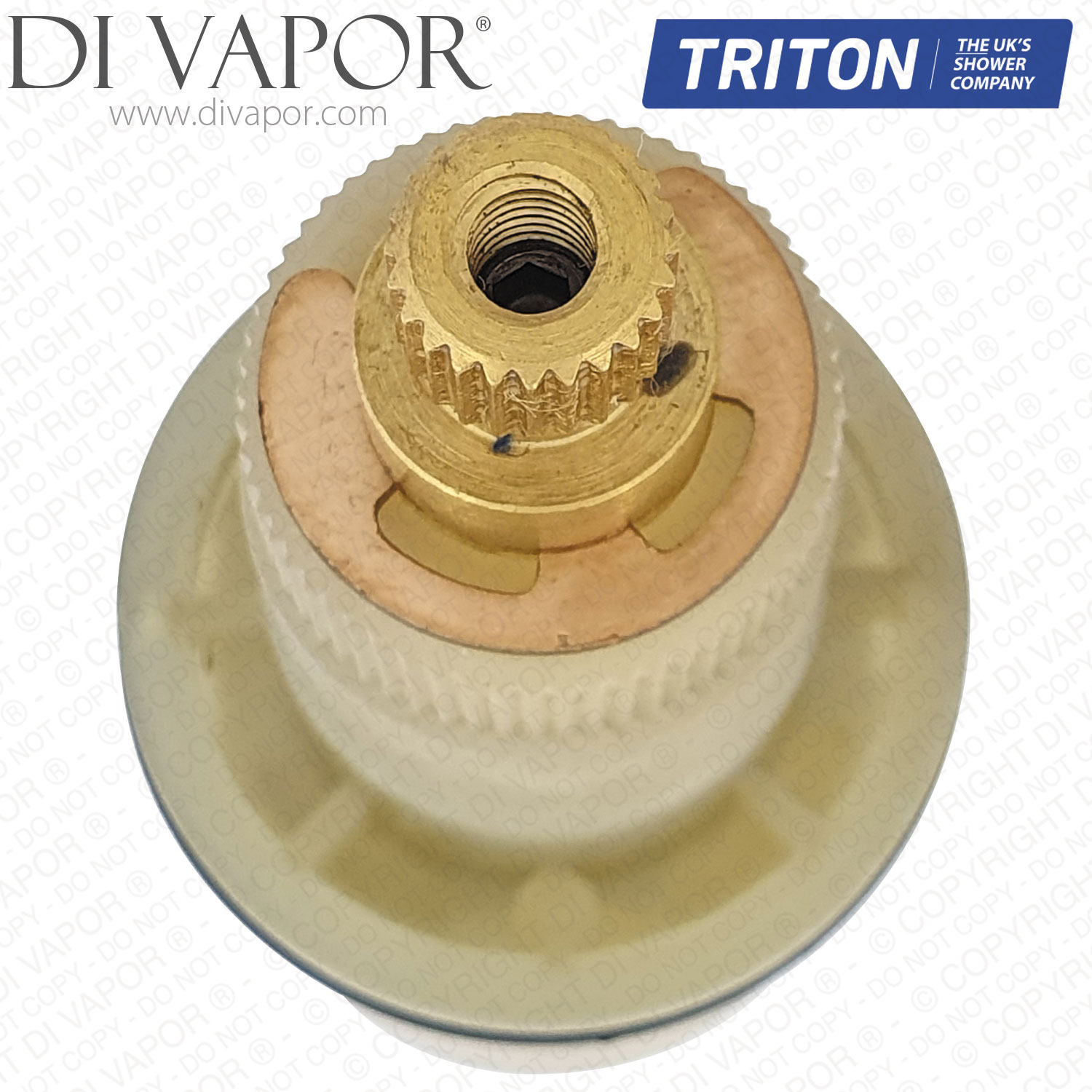

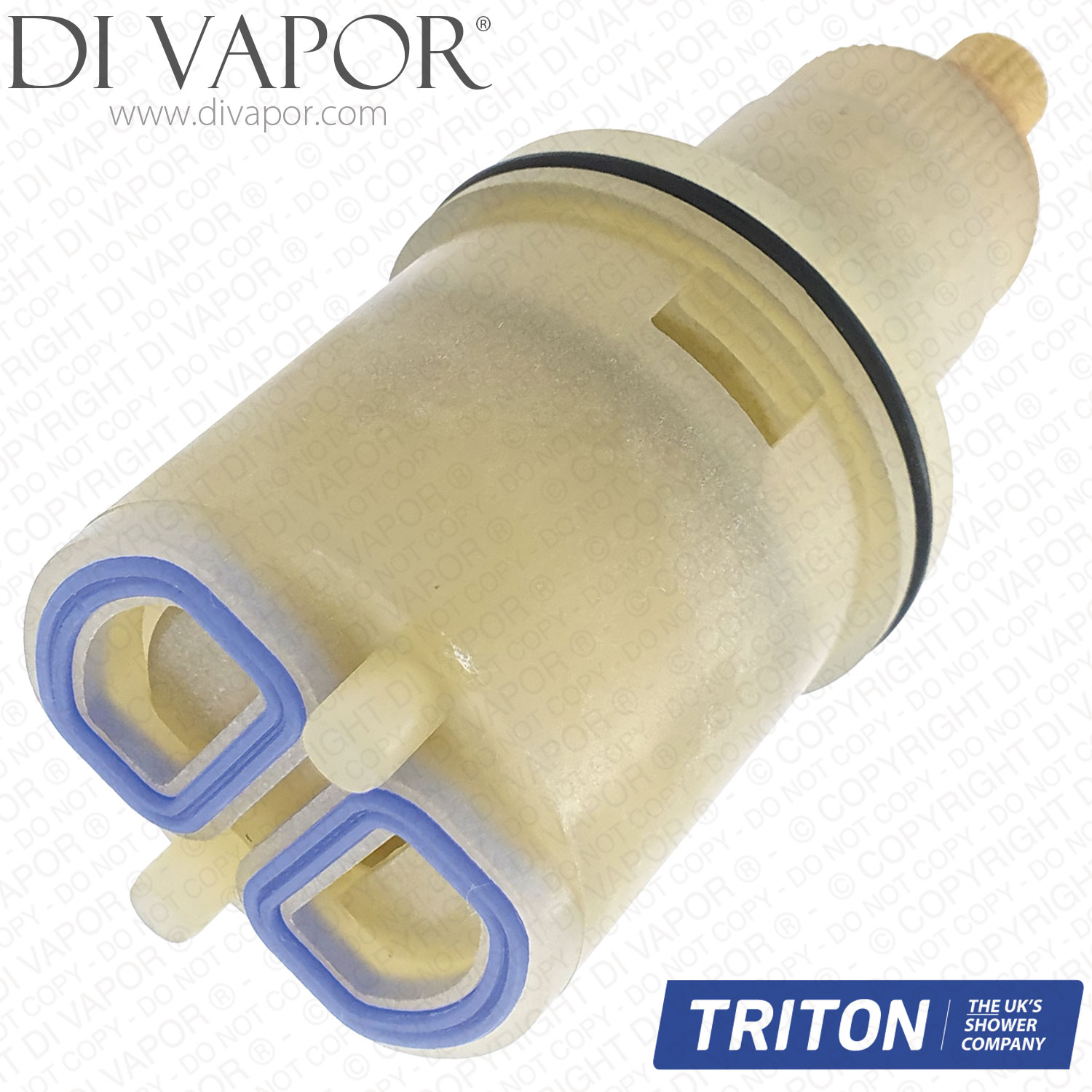

Triton 83313940 Thermostatic Cartridge for Moya, Mersey and Thames Shower Mixers
Part number: T-83313940
Out of stock - Ask a Question now
Unfortunately, this specific item is now discontinued and can no longer be purchased from Di Vapor. See the description below for alternatives or scroll down this page and see the associated 'Other items'.
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Triton 83313940 Thermostatic Cartridge for Moya, Mersey and Thames Shower Mixers
Cartridge Measurements:
| Total Length | 90mm (excluding locating pins at bottom) |
|---|---|
| Diameter at Widest Point | 40mm (at o ring) |
| Diameter at Stop Ring Splines | 33.8mm |
| Top Spline Diameter | 9.6mm |
| Top Spline Teeth / Notches | 24 |
| Diameter at Main Barrel | 36mm |
| Distance between locating pins (centre to centre) | 28mm |
| Diameter at Bottom O'ring | 30.1mm |
| Fitting Type | Push Fit |
| Colour | White |
