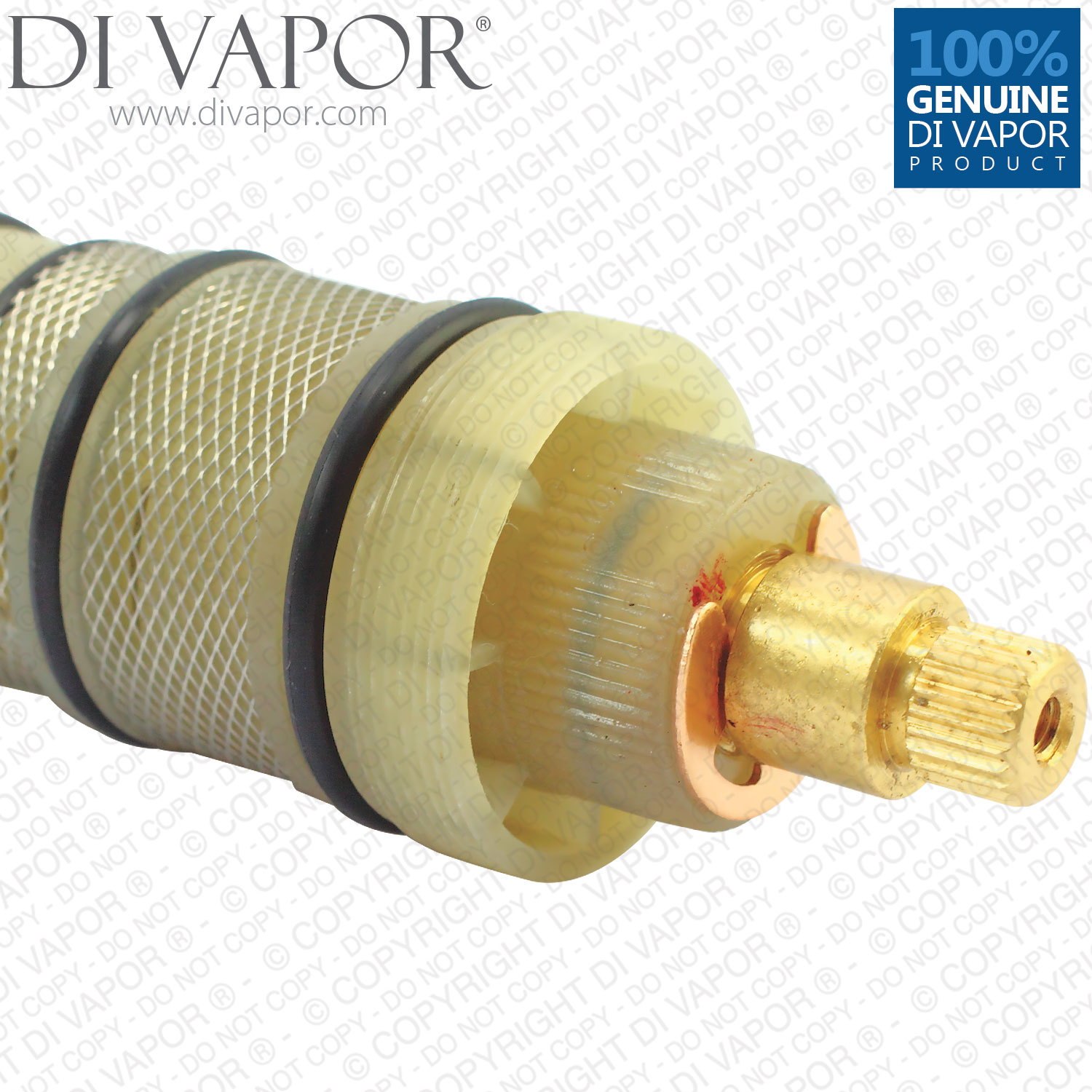

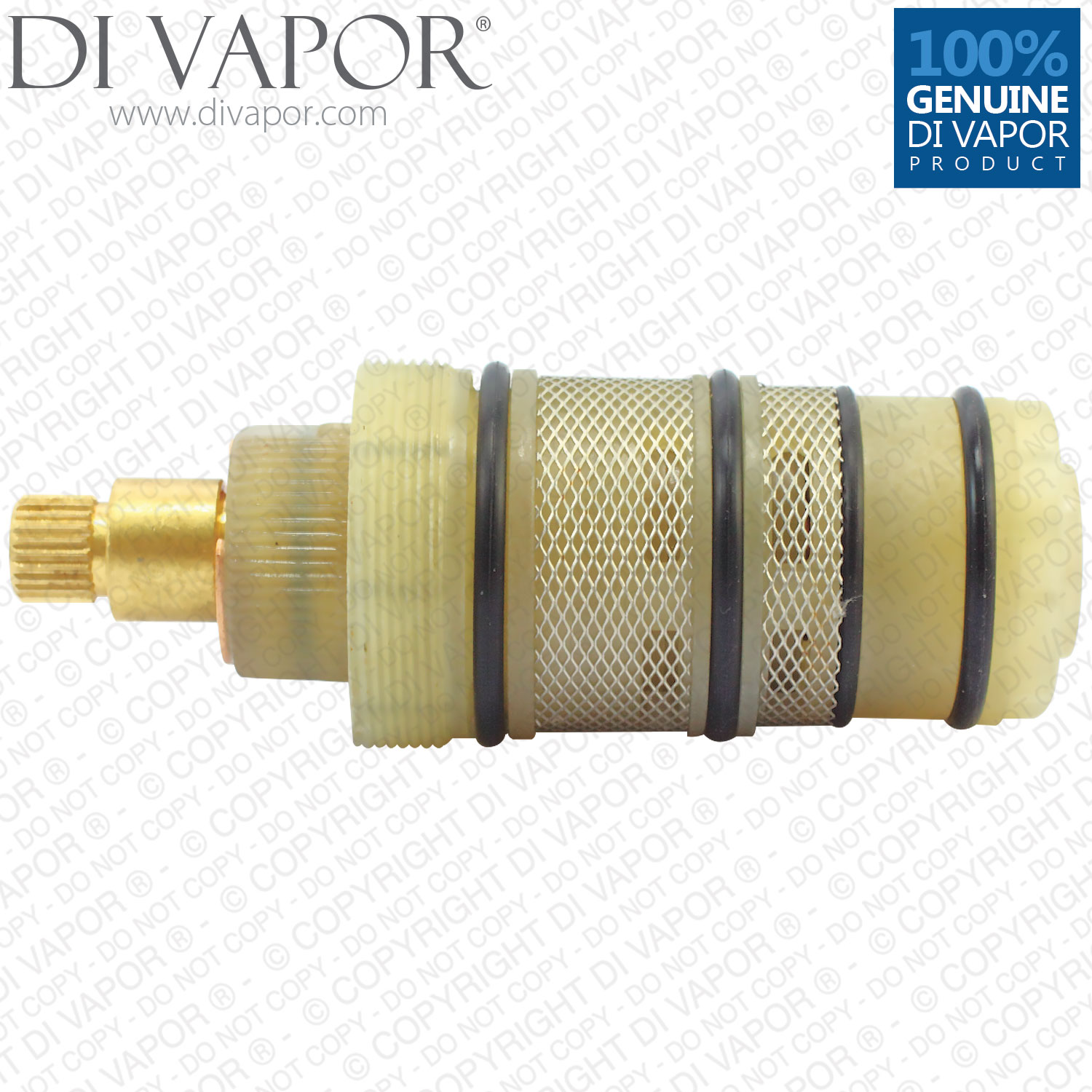

Thermostatic Cartridge for Triton 83313720 | Luca | Tesla | Minuto | Brillio | Sema | Nirala (Plastic Screw In Cartridge)
Send a photo of your item and we'll help confirm it.
Summary

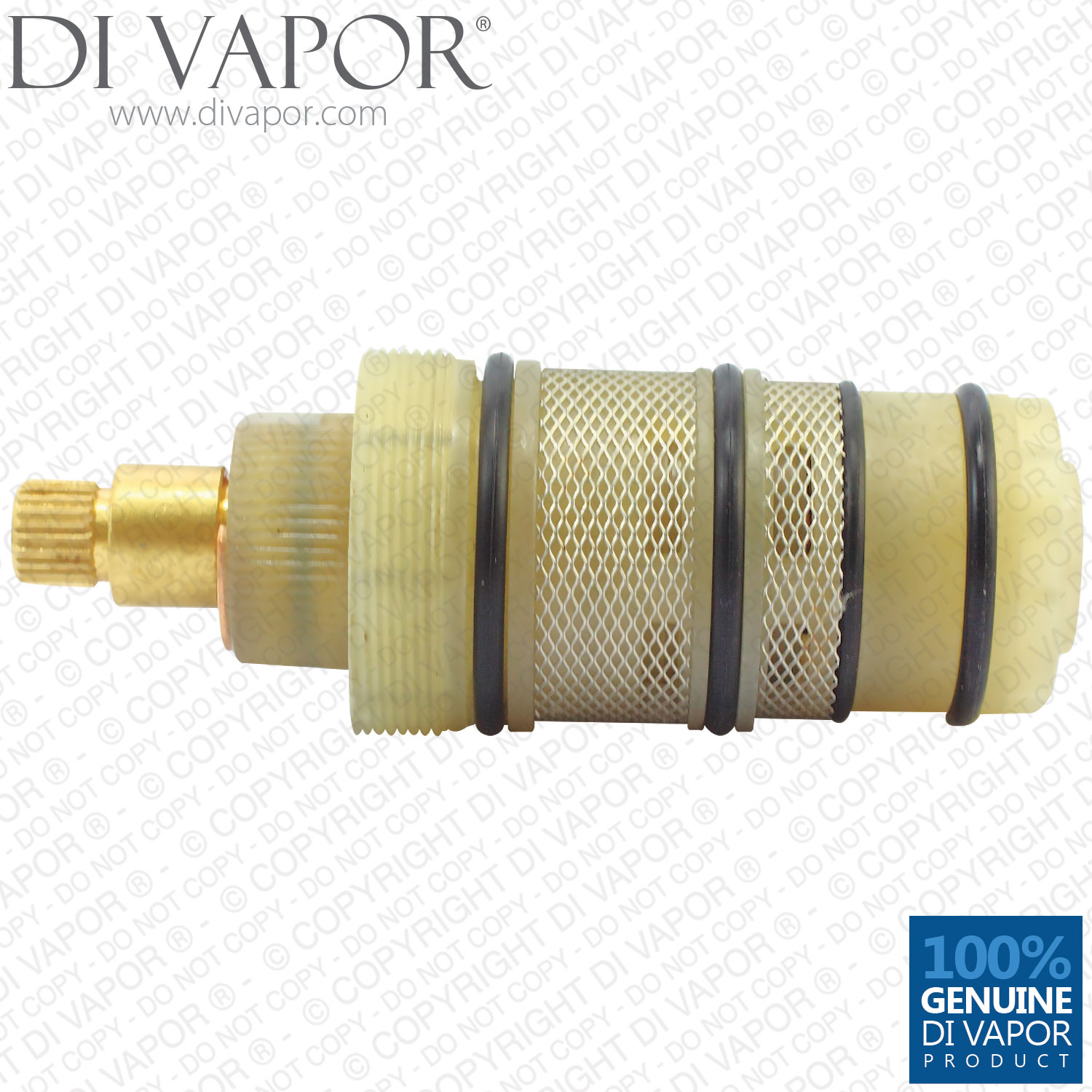

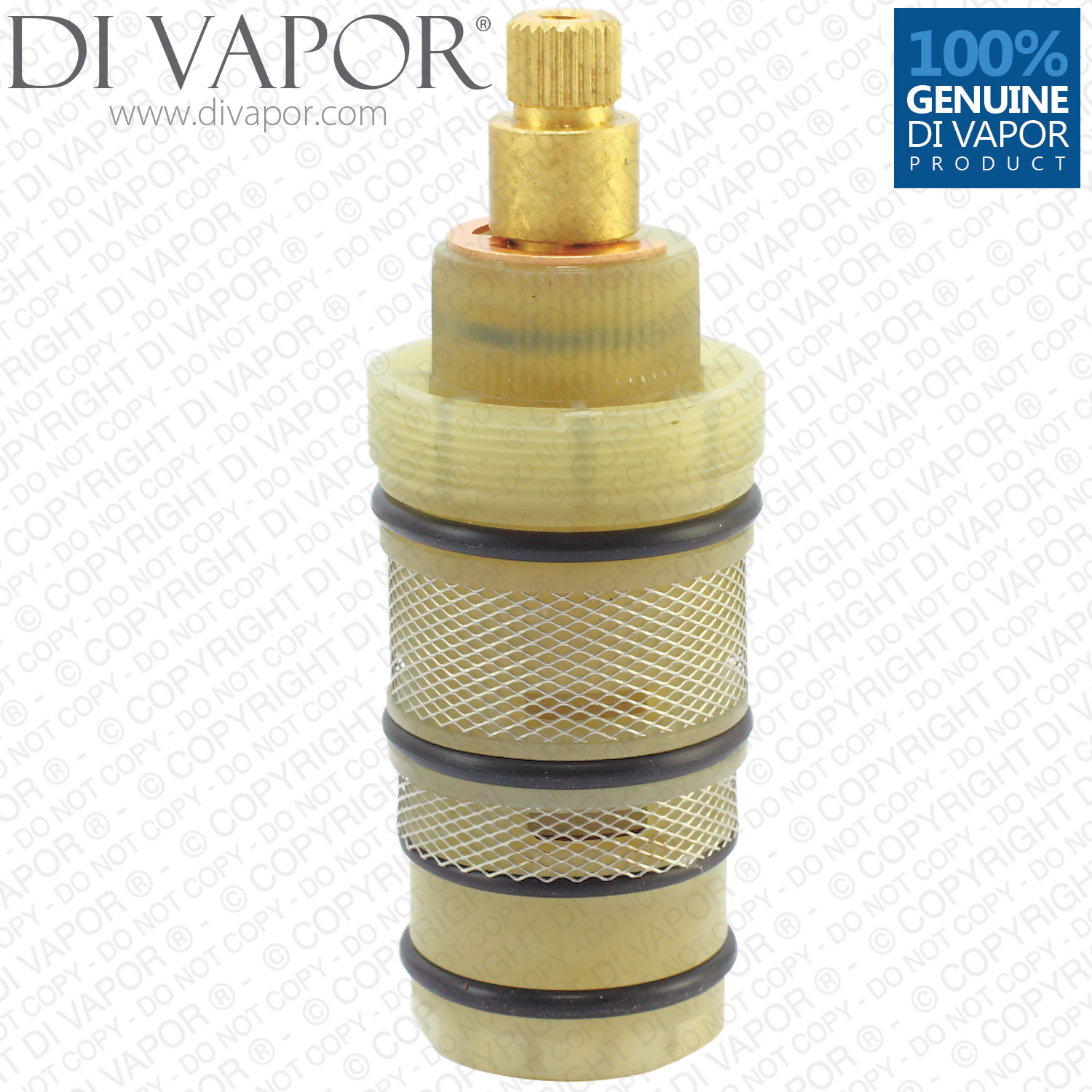

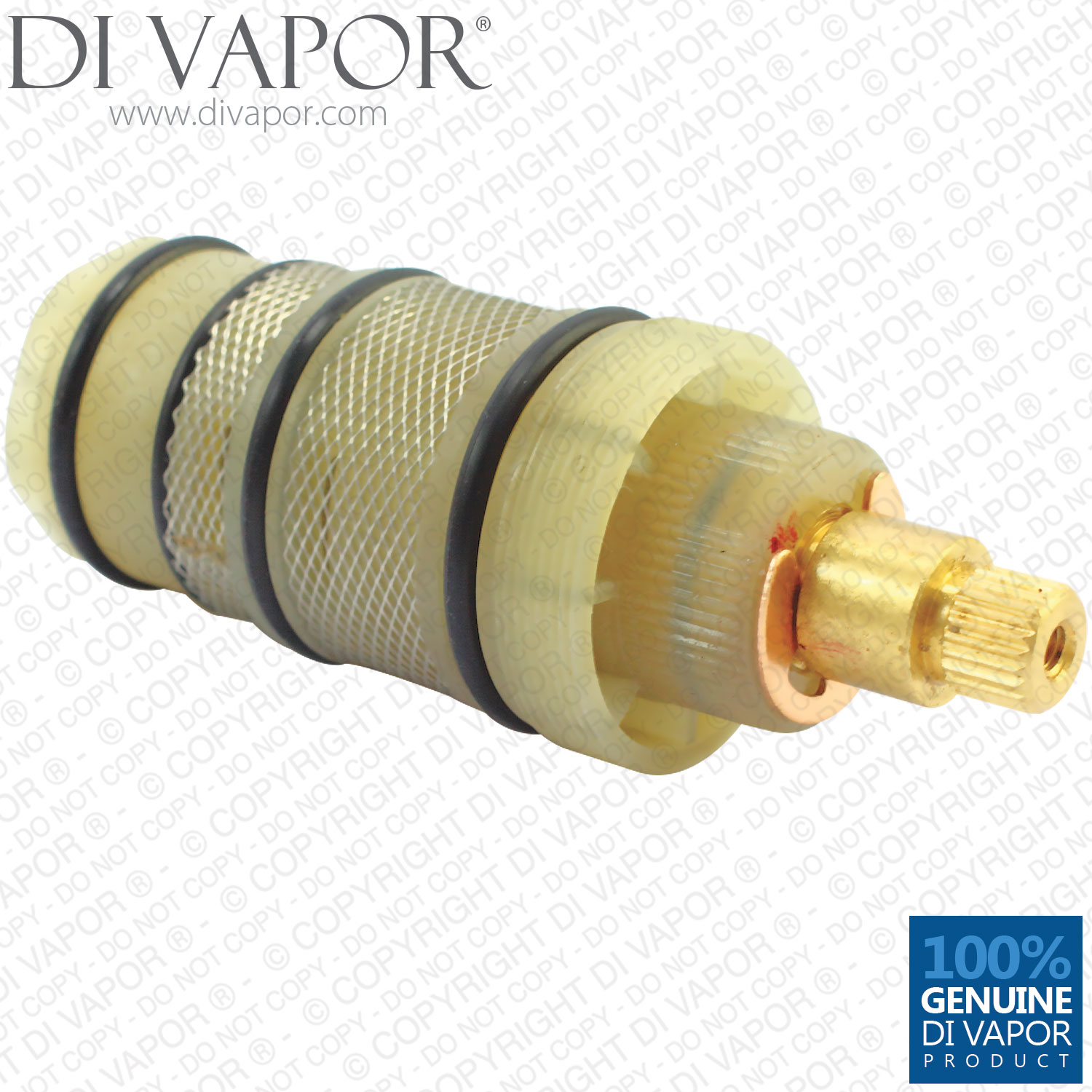

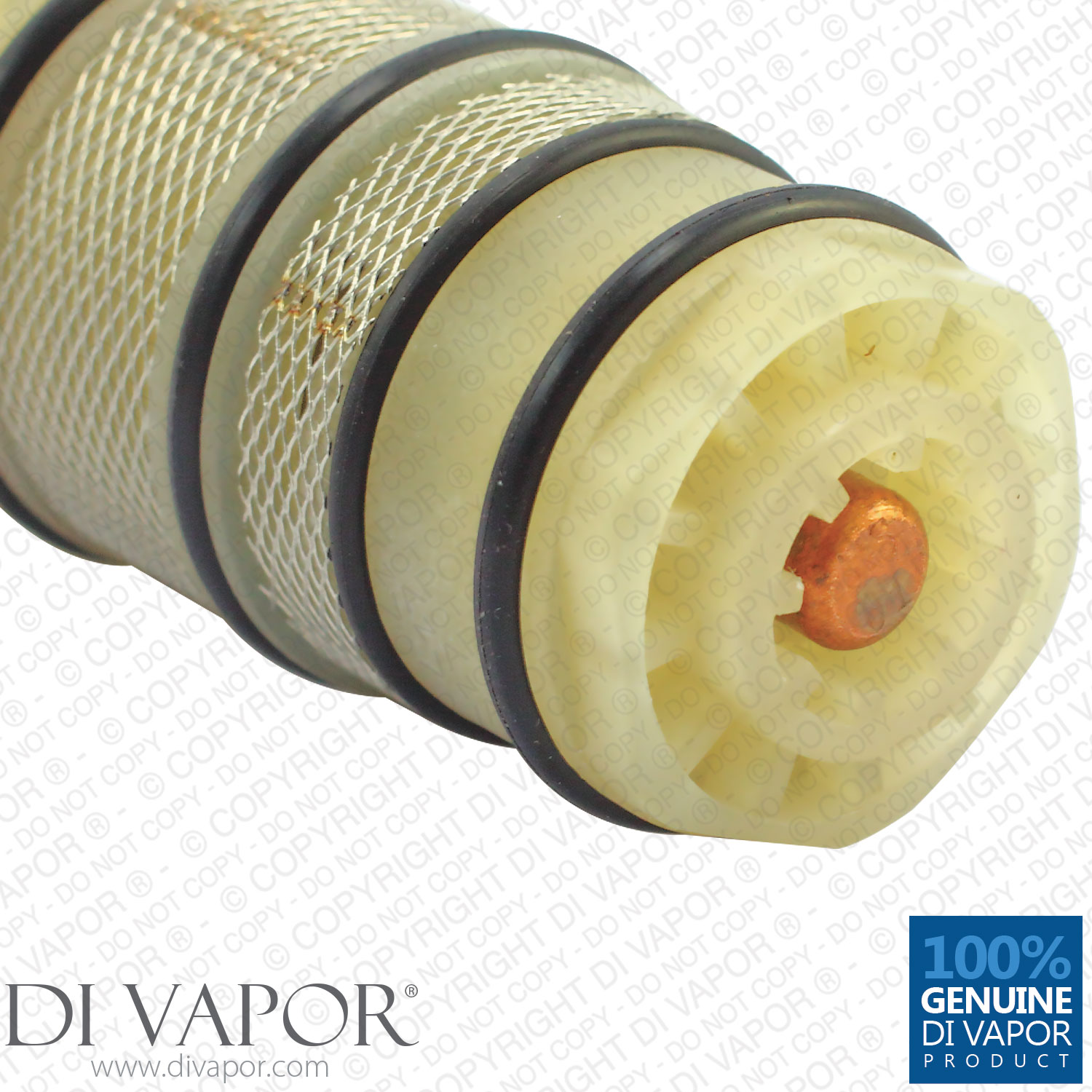

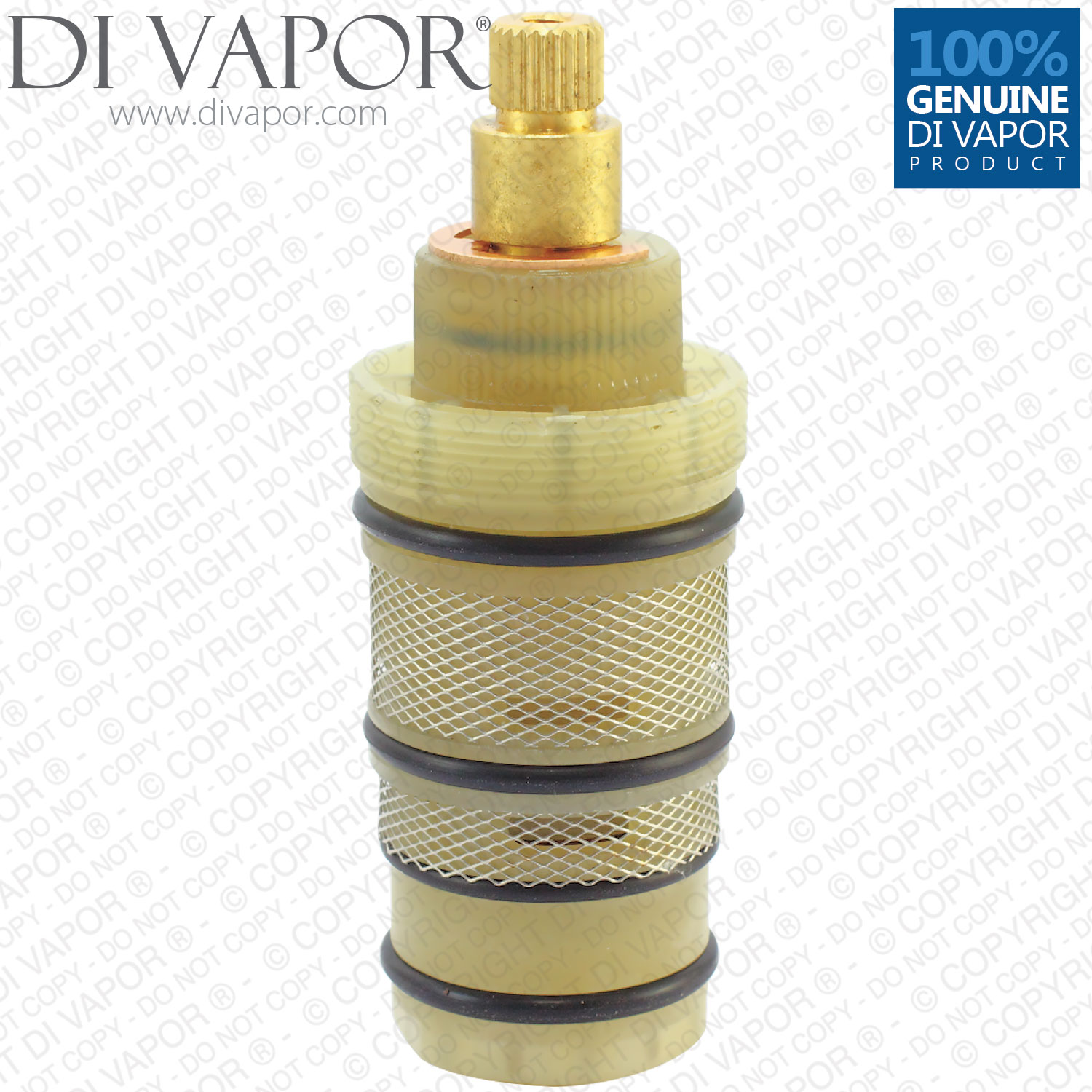

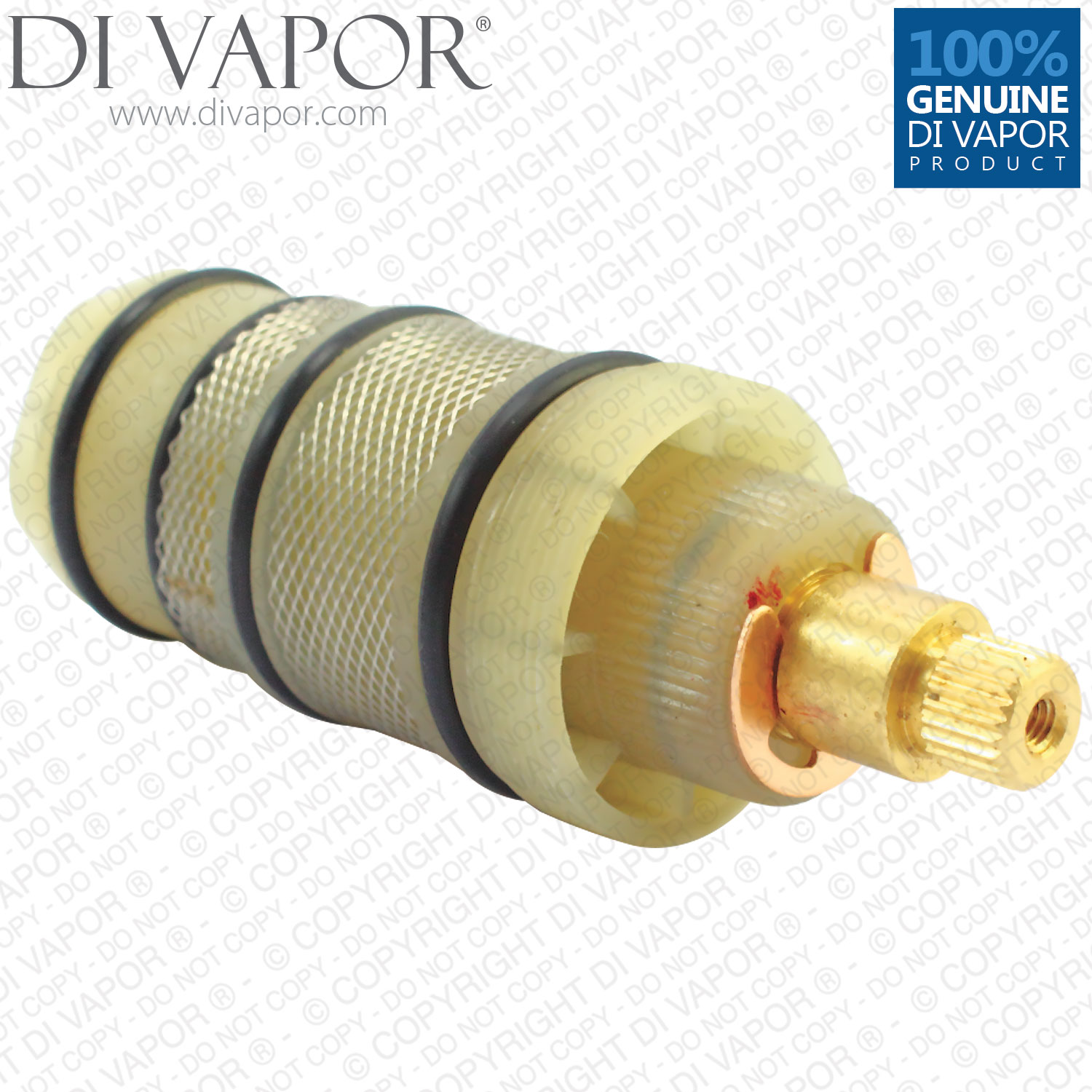

This is a screw in thermostatic cartridge for Triton 83313720 which is used for many different Triton shower mixer valves which use the 83313720 cartridge. This cartridge is for the below shower models manufactured after April 2010 (NOT before April 2010).
Triton 83313720 General Information

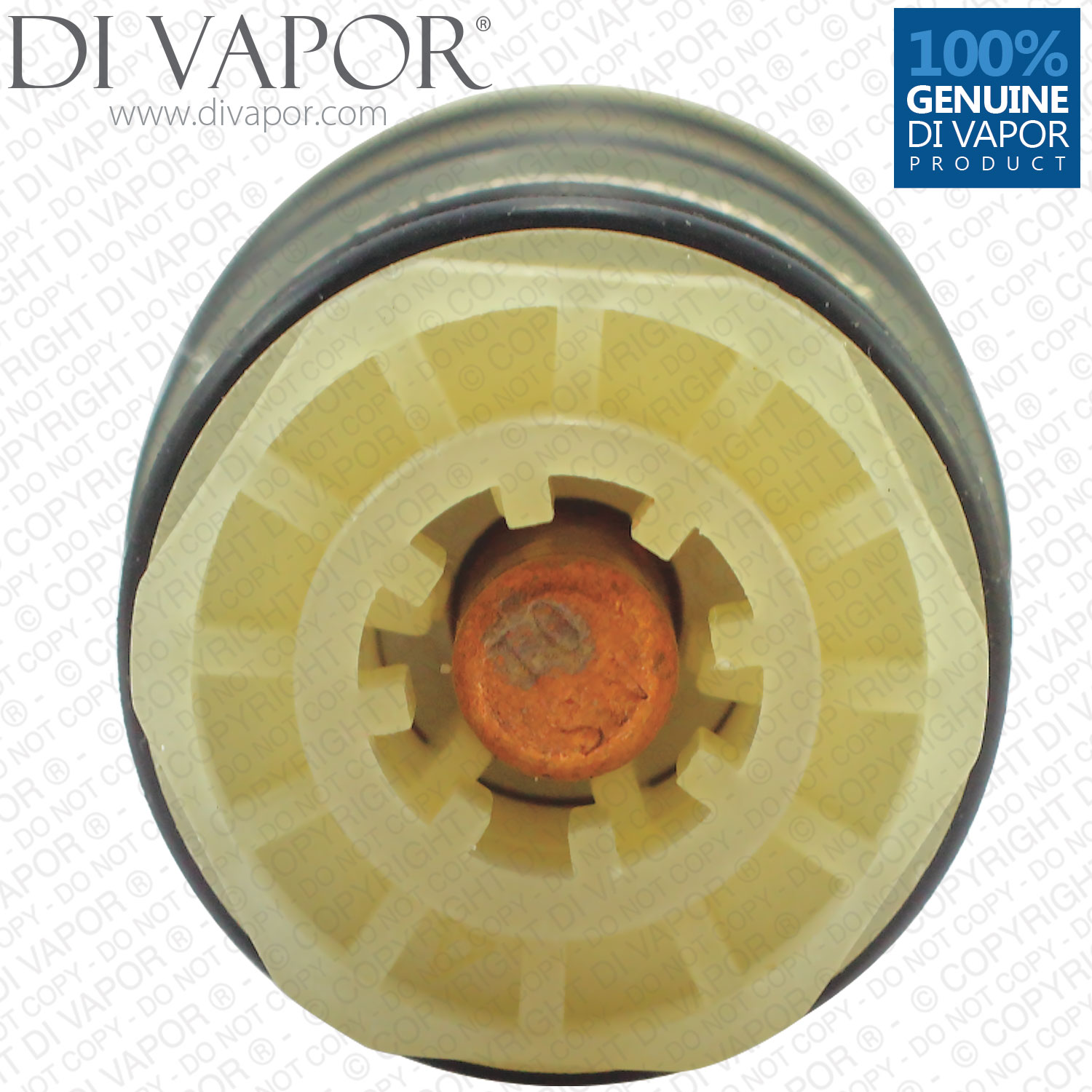

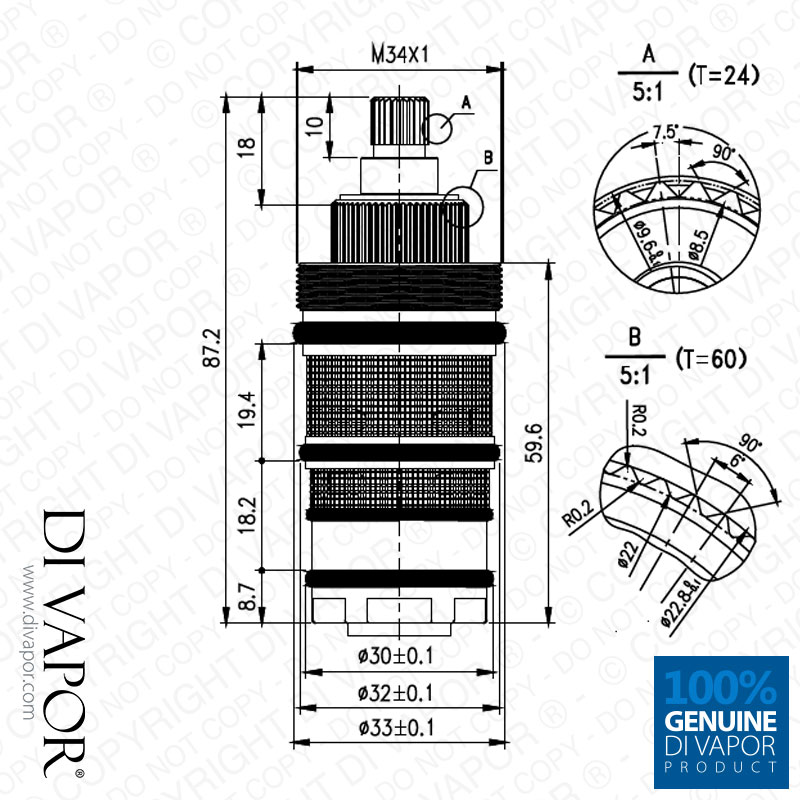

Please do check the spline and the number of teeth on the thermostatic cartridge that you have removed from the mixer valve, comparing it against the technical diagram in the product photos section above. This is important as there are two generations of this cartridge, pre and post April 2010.
We dispatch this cartridge the same day if ordered before 4pm. We deliver worldwide.
The Triton 83313720 is used on the following models:
- Triton Minuto Thermostatic Shower Bar Mixer Valve
- Triton Calida Thermostatic Shower Bar Mixer Valve
- Triton Brillio Thermostatic Shower Bar Mixer Valve
- Triton Naro Thermostatic Shower Bar Mixer Valve
- Triton Nirala Thermostatic Bar Mixer
- Triton Sema Thermostatic Shower Bar Mixer Valve (January 2011)
- Triton Licata Thermostatic Shower Bar Mixer Valve
- Triton Amaro Thermostatic Shower Bar Mixer Valve
- Triton Luca Shower Bar Mixer
- TESLA thermostatic bar mixer shower
Measurement of the Triton 83313720
Technical Information
| Number of Splines | The upper spline has 24 teeth while the lower larger spline has 60 teeth. For more detailed information refer to the technical diagram in the images section. |
|---|---|
| Total Length | 87.2mm |
| Width at Widest Point | 34mm |
| Width of body at Bottom | 30mm |
| Number of Filters | 2 |
| Material | Plastic |
| Colour | Cream / Brown |
If you are experiencing inconsistent water temperature, incorrect water temperature, the thermostatic handle on the shower bar is stiff or if water flow is low when the shower is receiving good pressure, replacing the thermostatic cartridge could fix the problem.
Other reasons for the above problems could be:
- Problems with the boiler / shower bar not receiving hot water
- Unbalanced pressure entering the shower bar
- Non return valves faulty
- Debris blocking water flow
