Thermostatic Cartridge for Porcelanosa Noken NK Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
Replacement thermostatic cartridge for Porcenelosa Noken NK Shower Valves

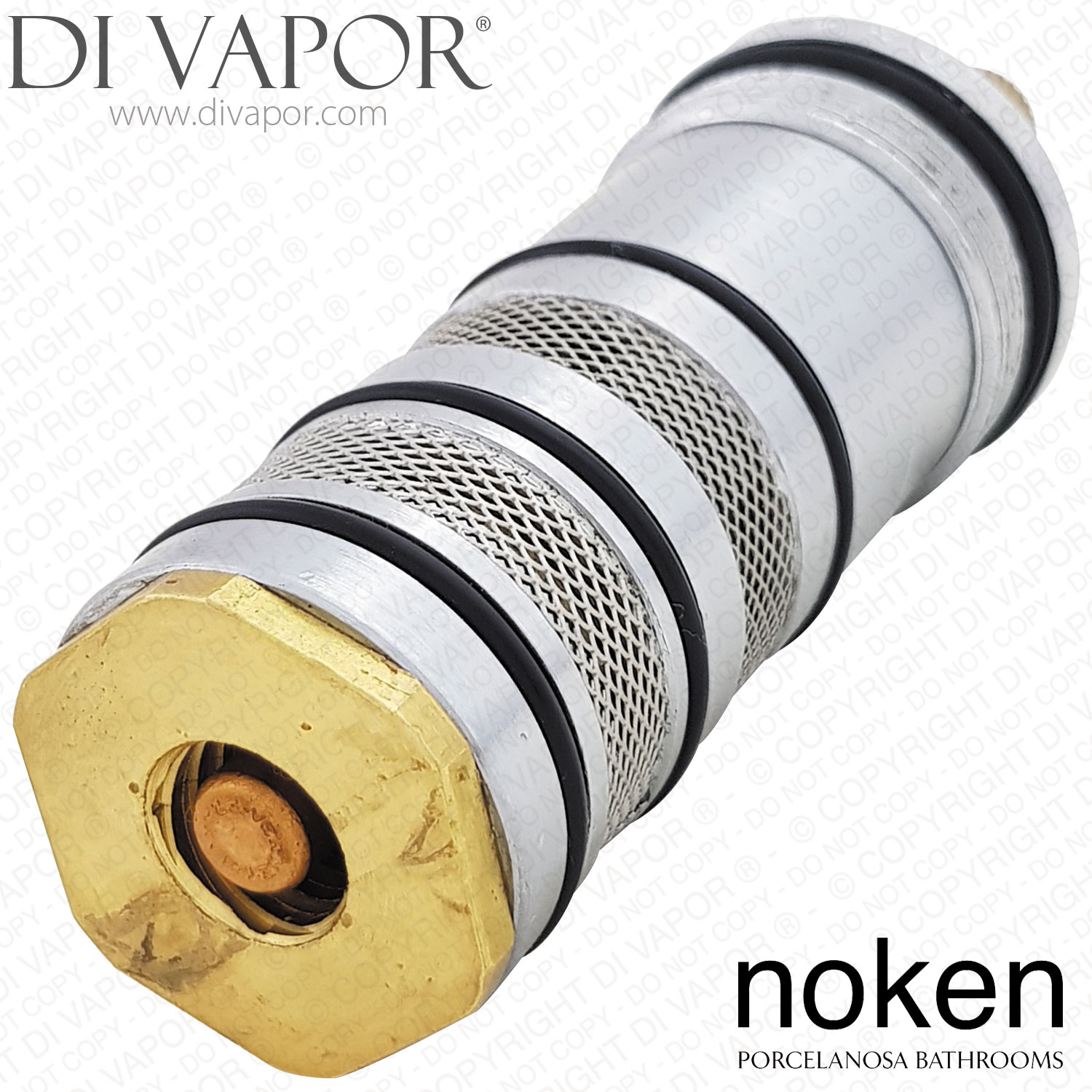

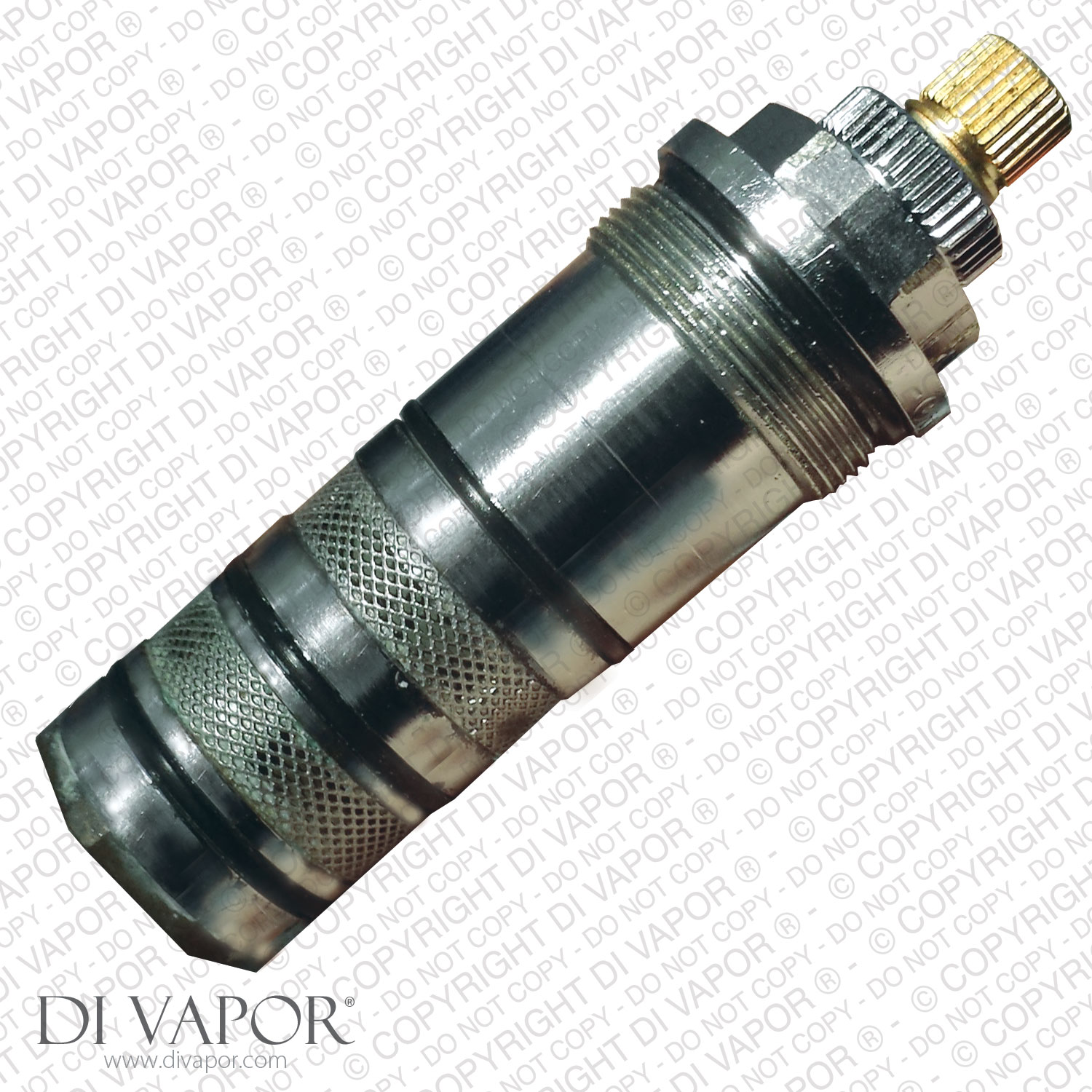

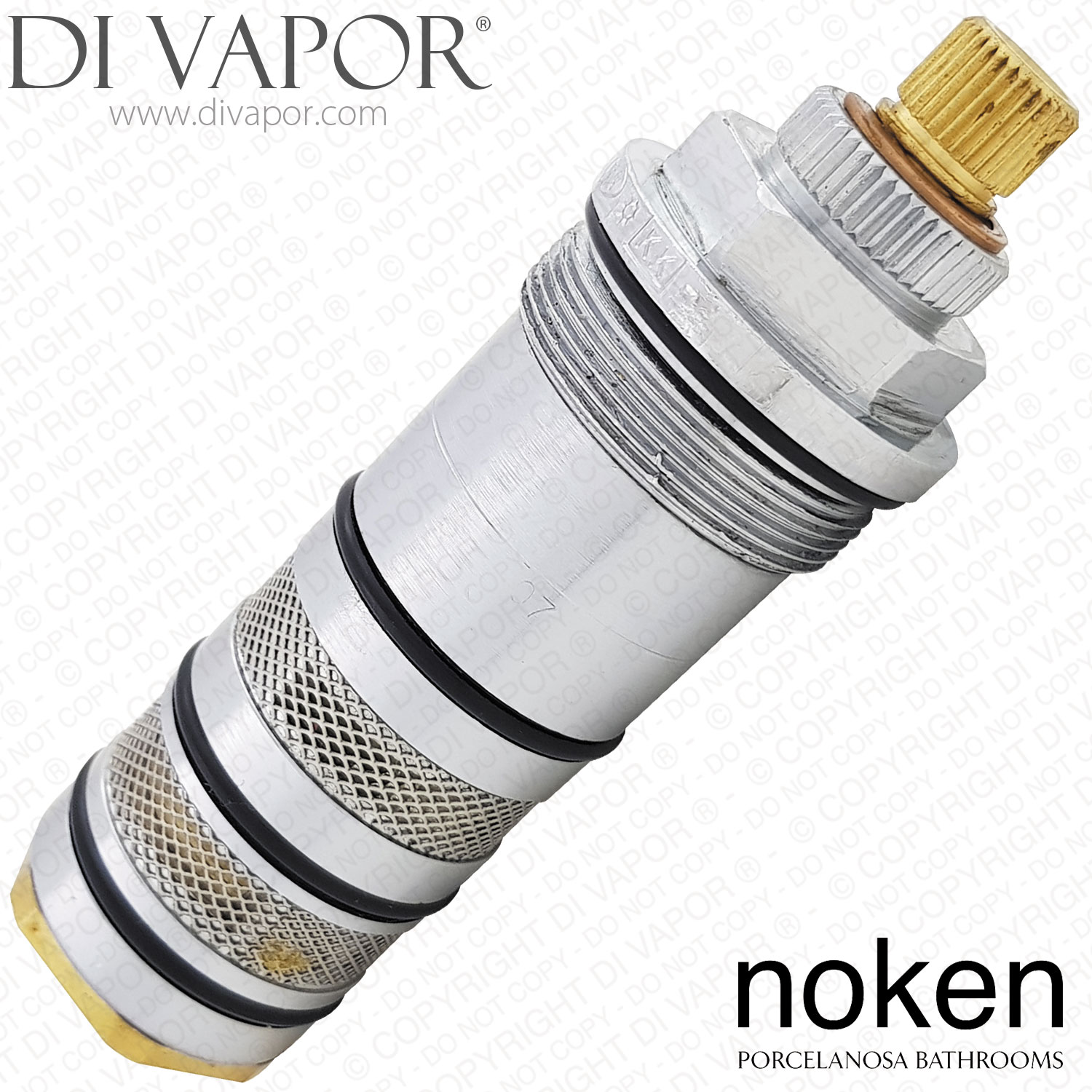

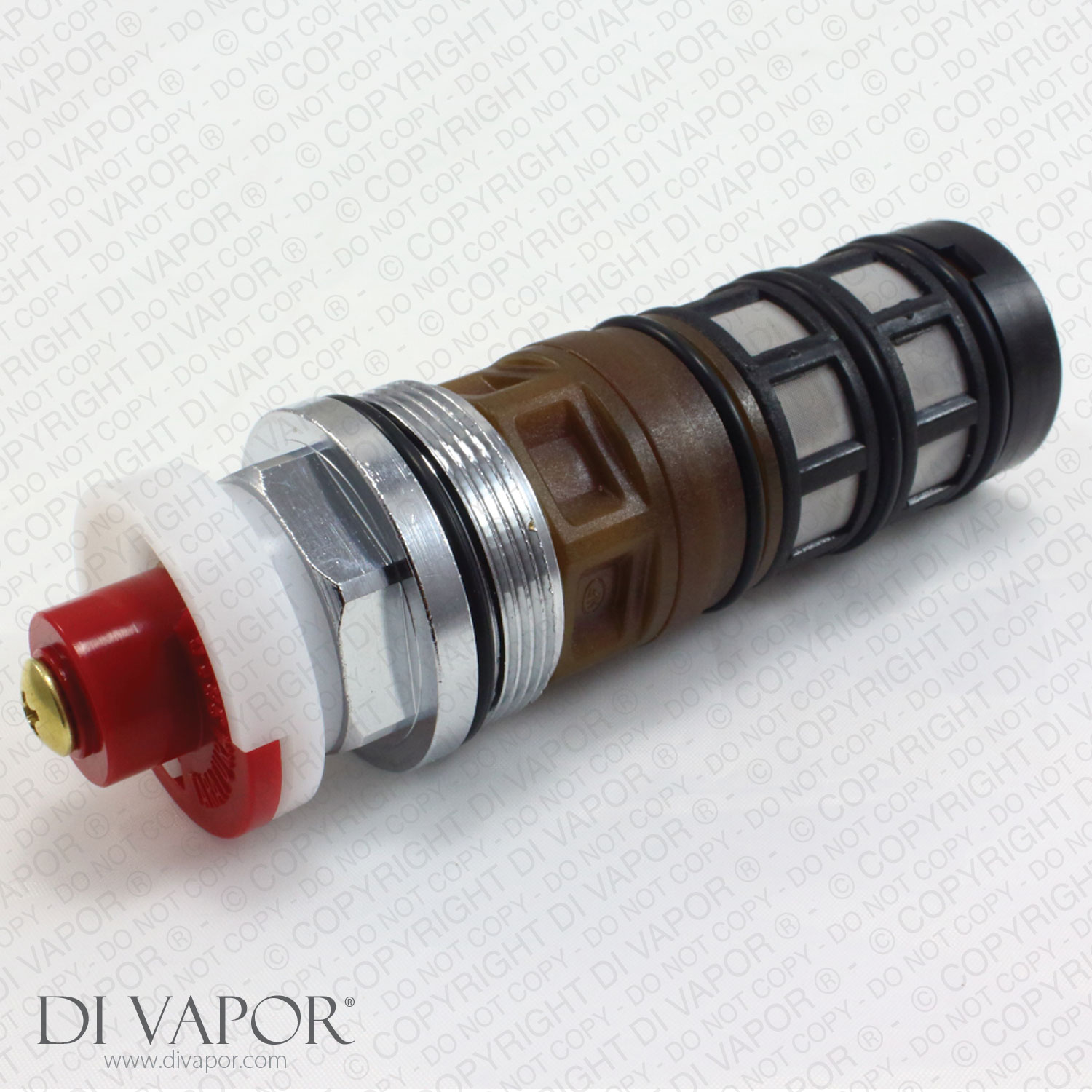

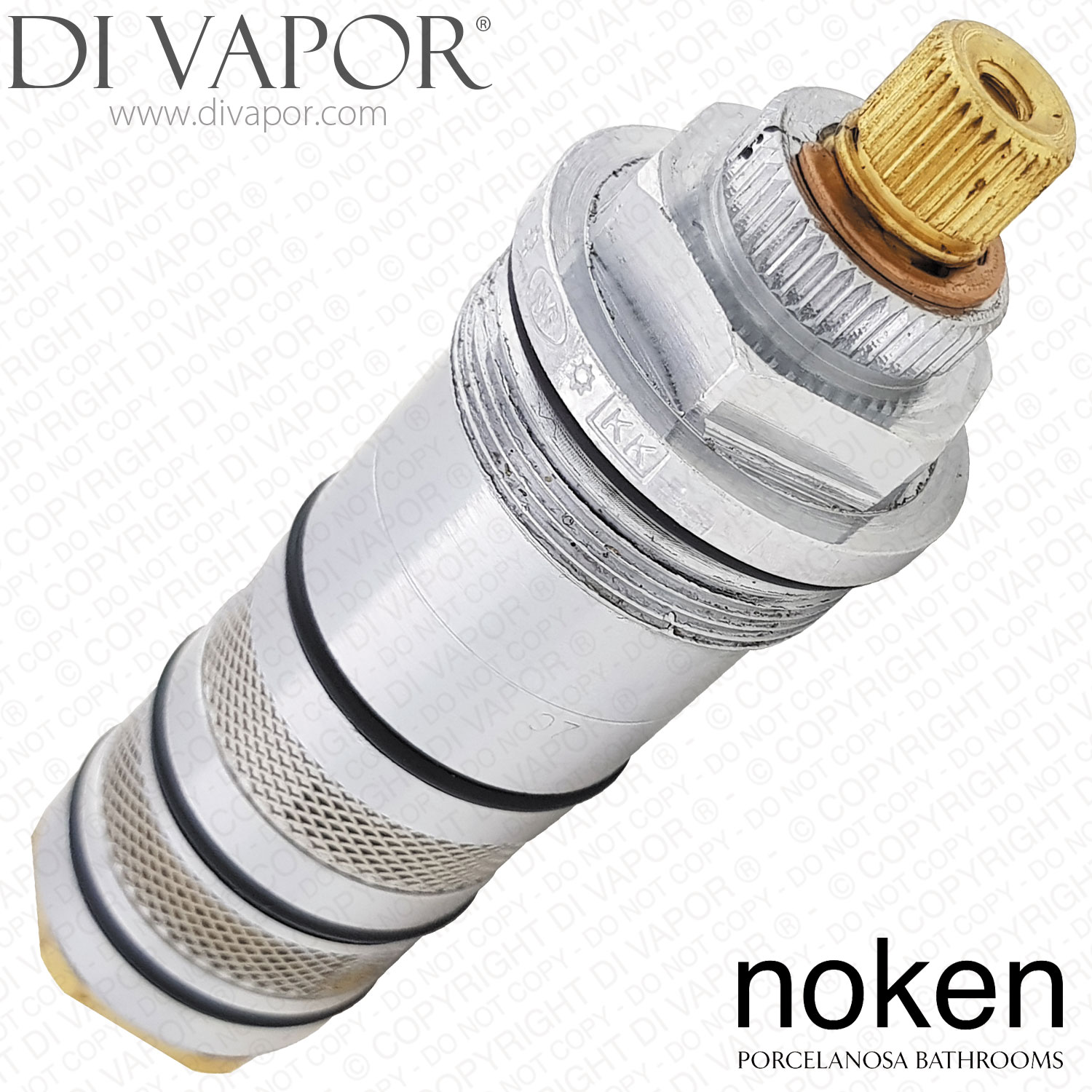

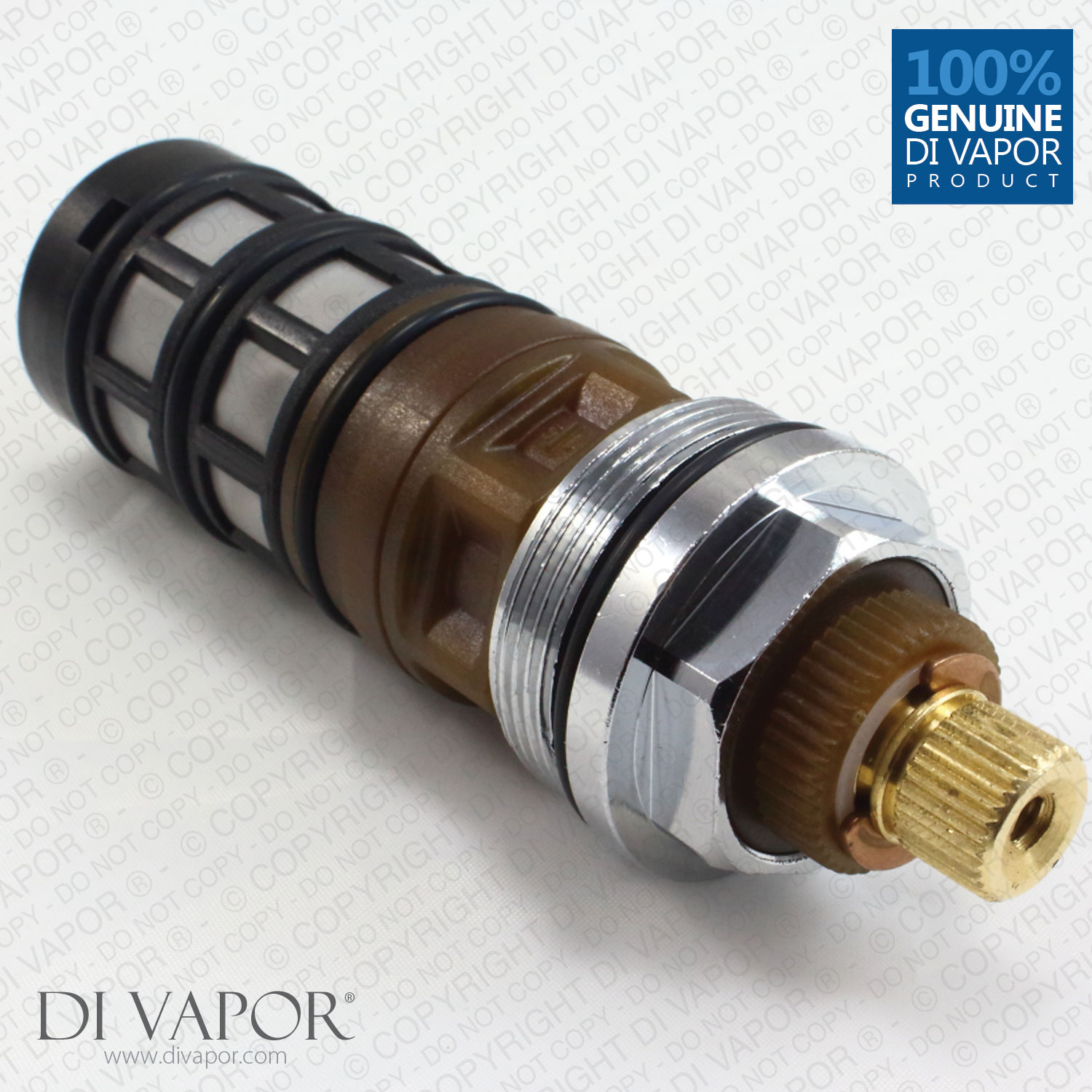

Important Note! You may have a brass / metal version of this cartridge that needs replacing. This is a new polymer version which replaces the old metal version. The metal cartridge in the product images is for illustration purposes only to show which cartridge the new plastic polymer version replaces. You will receive the new plastic version (with the red temperature stop ring).
This cartridge will fit the following shower valves:
- Porcenelosa Noken Shower Mixer Valves (often the front of the shower valve will say 'NK Porcenelosa',
Used in the following (yet not restricted to):
- N296010800
- NK Shower System B N45011127
- NK Future Shower Mixer N42010015
Cartridge Measurements and Information
| Total Length | 112mm (11.2cm) Including the top red stop ring and domed bolt. |
|---|---|
| Width at o'rings | 30.6mm on bottom o'ring. 31mm on the third o'ring up (the one which is on the brown part of the cartridge). |
| Width of silver thread | 32.75mm |
| Colour | Red, black, silver, brown, white |
| Material | Plastic body. Metal connection thread. |
| Number of o'rings | 4 |
