Thermostatic Cartridge for Mode Spa Twin & Triple Shower Valves (Round & Square Handles) - SPA335T
Send a photo of your item and we'll help confirm it.
Summary
Thermostatic Cartridge for Mode Spa Twin & Triple Shower Valves (Round & Square Handles) - SPA335T
| Cartridge Total Length | 119.2mm (i.e. 11.92cm). This could be measured as 120mm or 12cm if not using callipers. |
|---|---|
| Diameter At Widest Metal Point | 47.6mm |
| Number of O Rings | 4 |
| Material | Brass |
| Type | Screw in (screws into the shower valve and has a thread on top of the cartridge which allows a fixing nut or plate to connect onto). |
| Gauze Filters | 2 |
| Number or Teeth | 24 |
- Diameter of toothed spindle which the temperature control handle connects onto: 9.4mm (0.94cm)
- Distance from nut part on cartridge to top of spindle head: 30.9mm
Mode Spa thermostatic cartridge is used in the following shower valve models:
- SPASET03
- SPASET04
- SPASET05
- SPASET11
- SPASET12
- SPASET16
Other Mode Spa Shower Spares

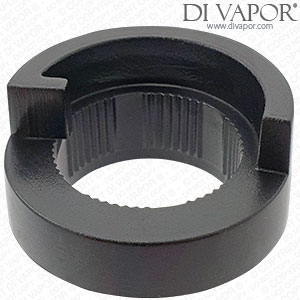

- SPA234R Temperature Stop Ring
- SPA323T Square Temperature Control Handle
- SPA345F Square Flow Control Handle
- SPA534F Round Flow Control Handle
Have a query about the Mode Spa thermostatic cartridge?
+ Please contact us through our shower and tap spare part identifier.
+ You can also chat with us via WhatsApp (07754 173340).
Di Vapor's friendly and helpful spares experts are always ready to respond to your messages.
