Plastic Screw in Thermostatic Cartridge Plastic Screw in Thermostatic CartridgeWhite Plastic Screw in Thermostatic CartridgeThermostatic CartridgeThermostatic Cartridge for Concealed Shower

Plastic Nylon Screw in Thermostatic Cartridge for Exposed and Concealed Shower Valves and Mixer Bars

Part Number: PSTSC-CART
Out of stock - Ask a Question now
Price: £140.00
Price includes VAT
Stock Arrival Notification
Name:
Email:
-- or --
Phone:
Request Stock Date
Wrong Item? Click to see More
Product description

SUMMARY

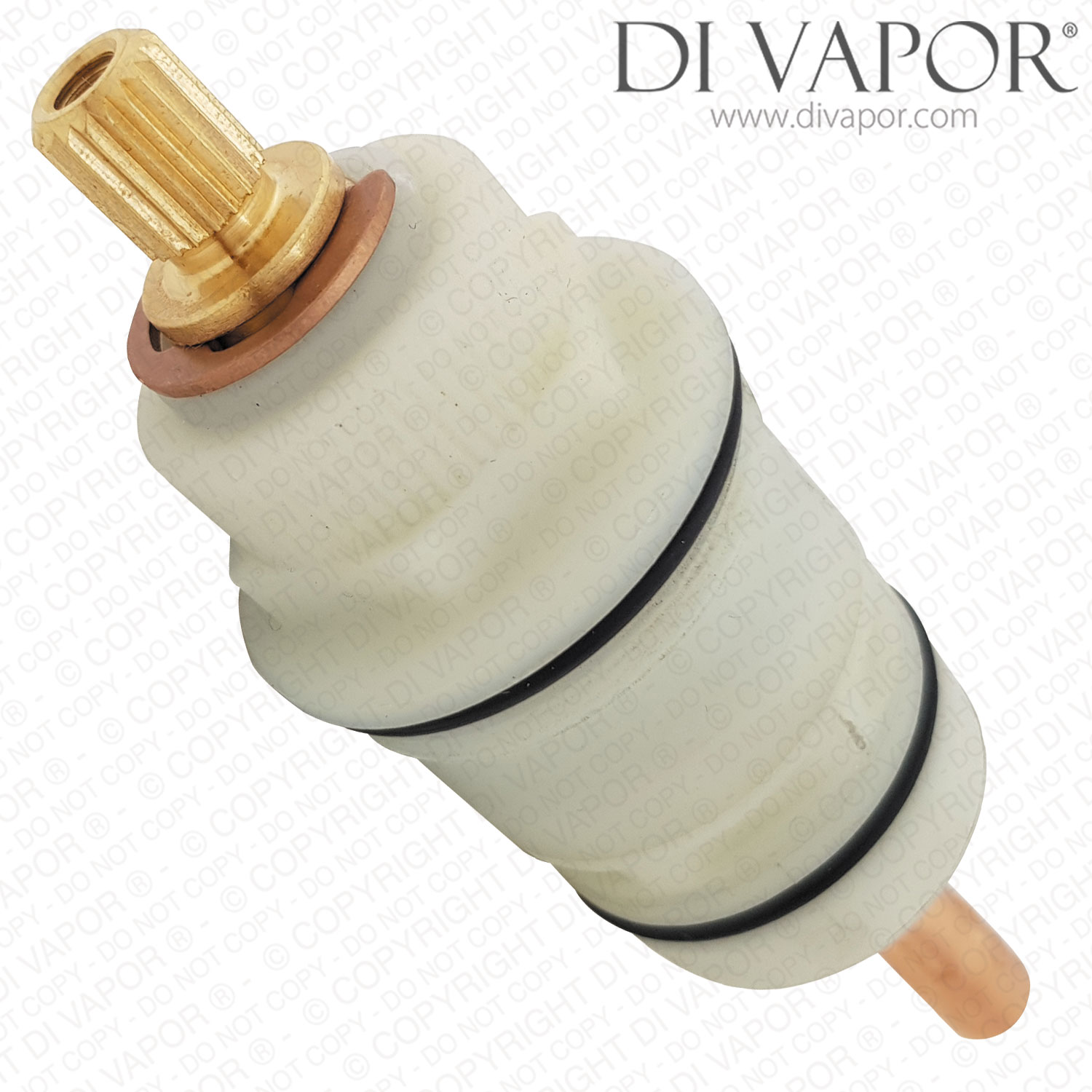

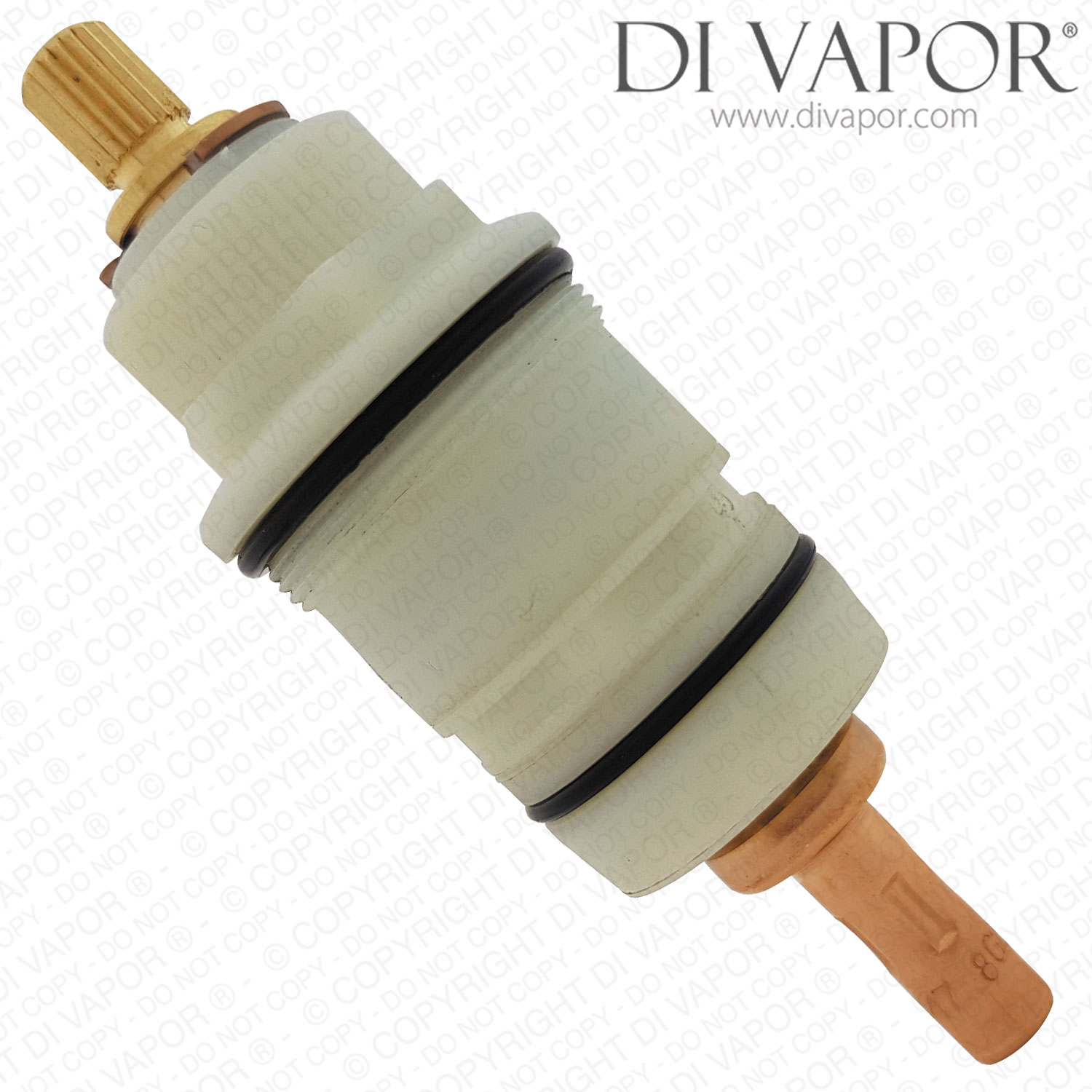

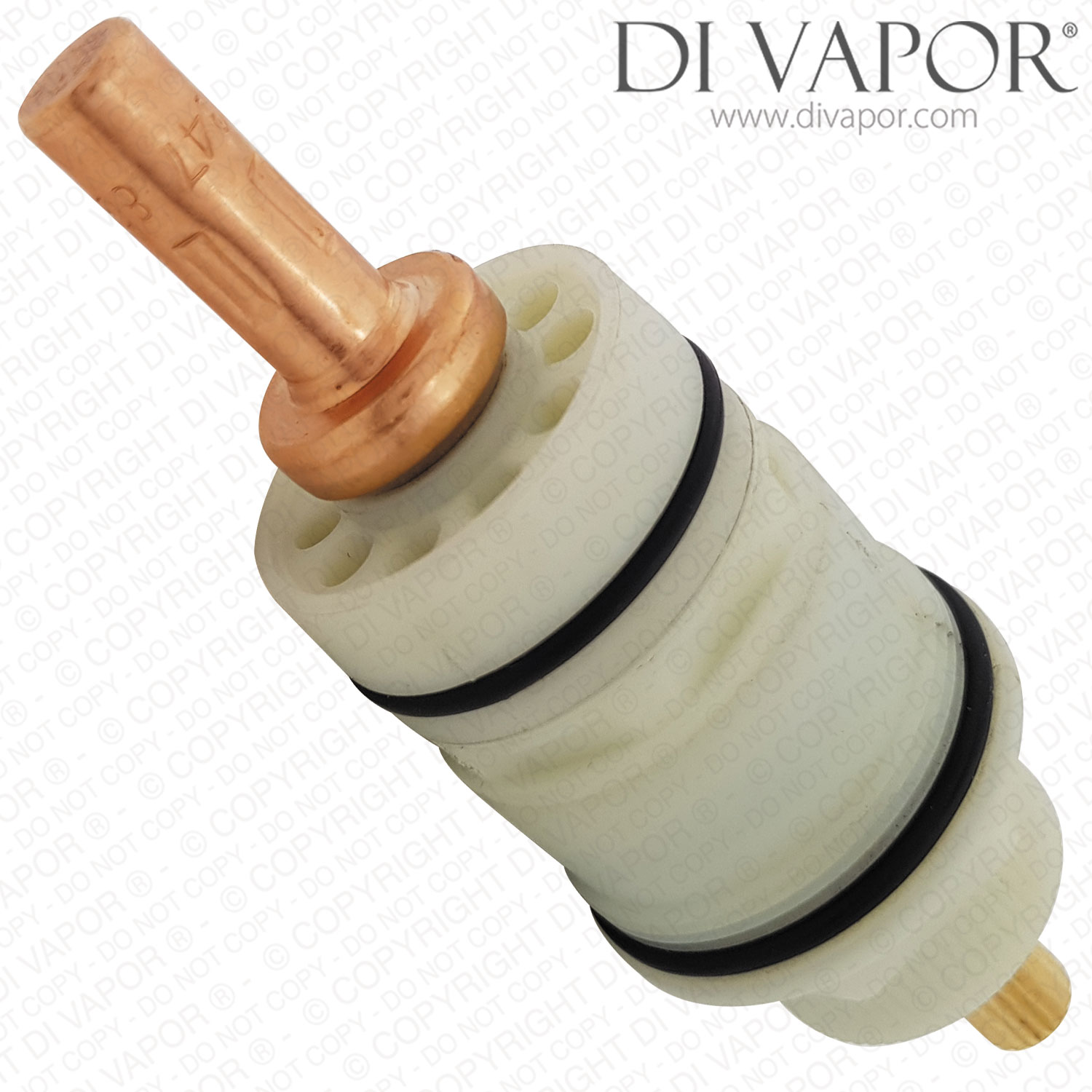

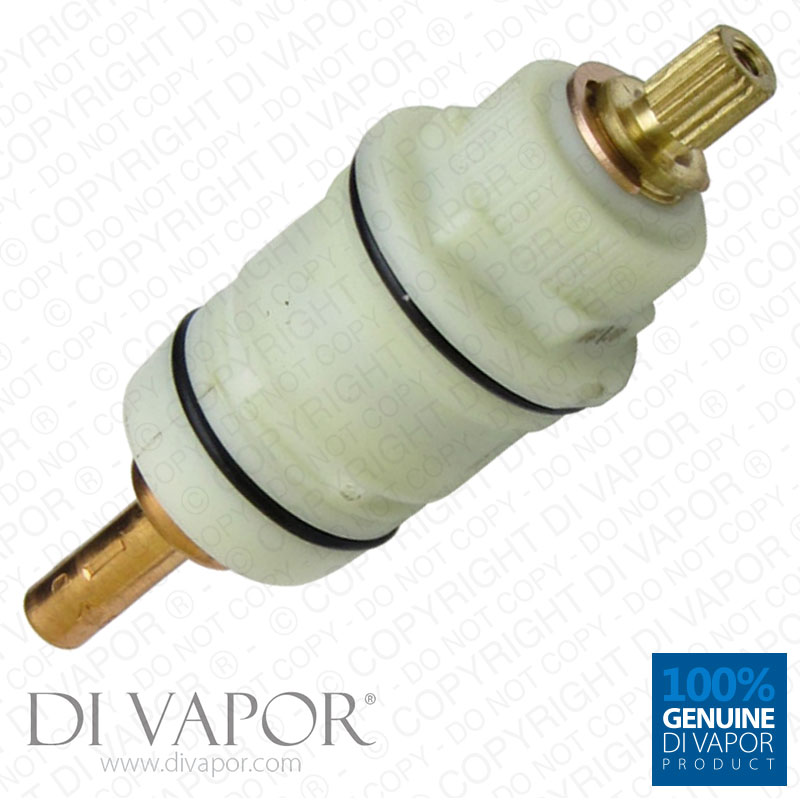

Replacement white plastic nylon screw in thermostatic cartridge.

This shower thermo cartridge comes with silicone grease

This cartridge can be used as a replacement for earlier (older) brass models. The brass version is no longer manufactured. This is the replacement for it.

Type: Screw fitting. Below the top o'ring there is a thread which screws into the shower valve body.
Cartridge Length: 92mm
Diameter: 31.45mm (at the widest point)
Diameter at Top O'Ring: 30.2mm
Diameter at Bottom O'Ring: 27mm
Diameter of top Spindle (which the temperature handle connects onto): 7.65mm
Diameter of white plastic spline (which the temperature stop ring connects onto): 22.65mm
Number of Teeth on Handle Splindle: 20
Type: Screw. Below the top o'ring there is a thread which screws into the shower valve body.
Cartridge Material: Plastic Nylon with brass spindle and Vernet 0847 copper thermostat element
Number of O-rings: 2
Tiers of Splines: 1
Number of Gauze Filters: 0

Generally, if the performance of the shower mixer valve begins to deteriorate (usually after a number of years) the problem will be with the thermostatic cartridge and therefore the cartridge will need replacing.

This plastic nylon screw cartridge is very durable, however with the abrasive nature of calcified lime scale, even the plastic cartridges can deteriorate and need replacing.
