N25437SJ Temperature Stop Ring for M8-07 Thermostatic Cartridge
Send a photo of your item and we'll help confirm it.
Summary

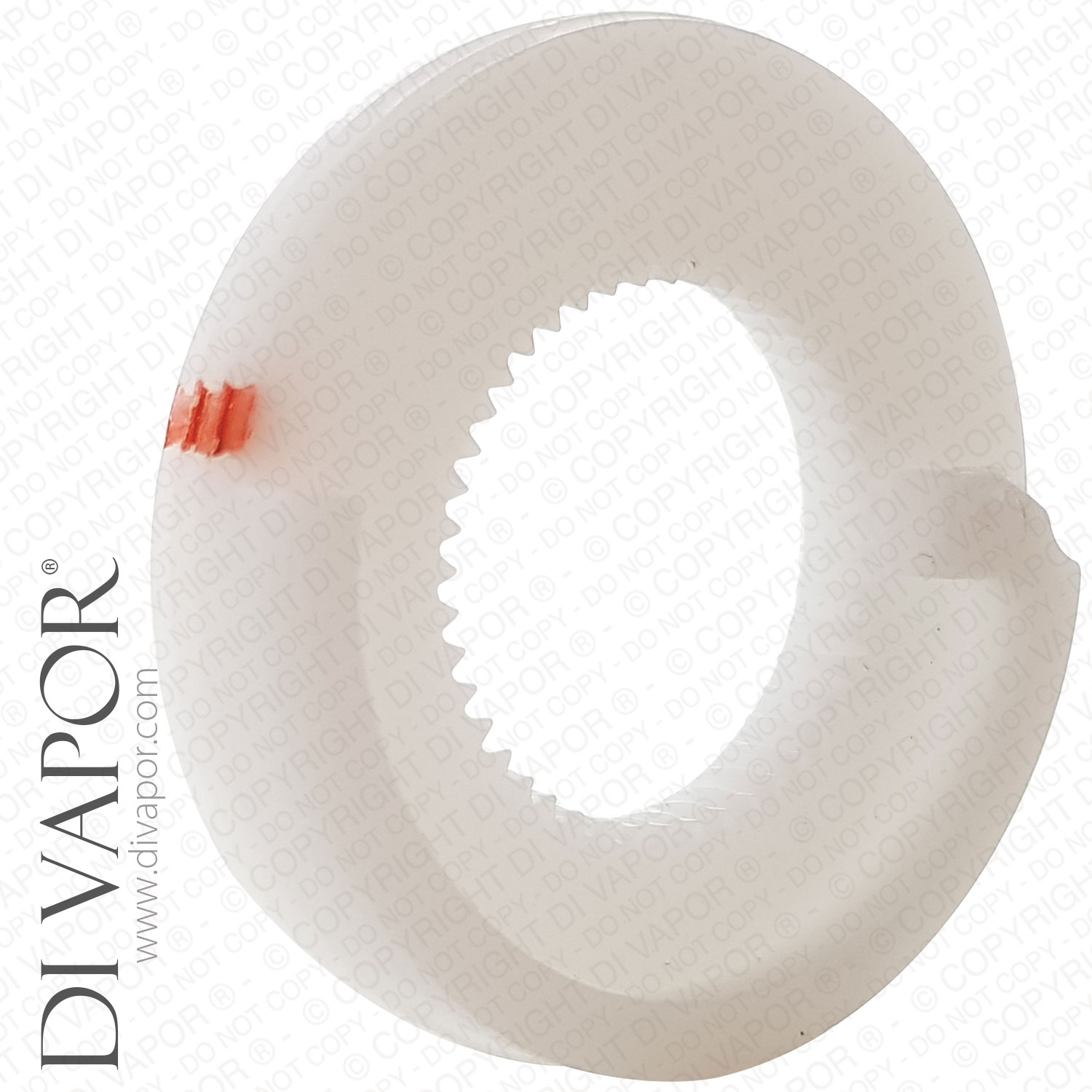

N25437SJ Temperature Stop Ring for M8-07 Thermostatic Cartridge
The N25437SJ is a temperature stop ring for the M8-07 thermostatic cartridge. It is used on the temperature-control side of the cartridge assembly and locates on the second toothed spline to provide the mechanical stop position for the temperature handle.
This part is for the M8-07 cartridge family and should be checked against the cartridge spline before ordering. It is not the stop ring for the M12HJ8 cartridge, which has its own YV2225B8 temperature stop ring.
Technical Details
| Part type | Temperature stop ring |
|---|---|
| Part number | N25437SJ |
| Cartridge application | M8-07 thermostatic cartridge |
| Stop ring location | Second toothed spline on the cartridge |

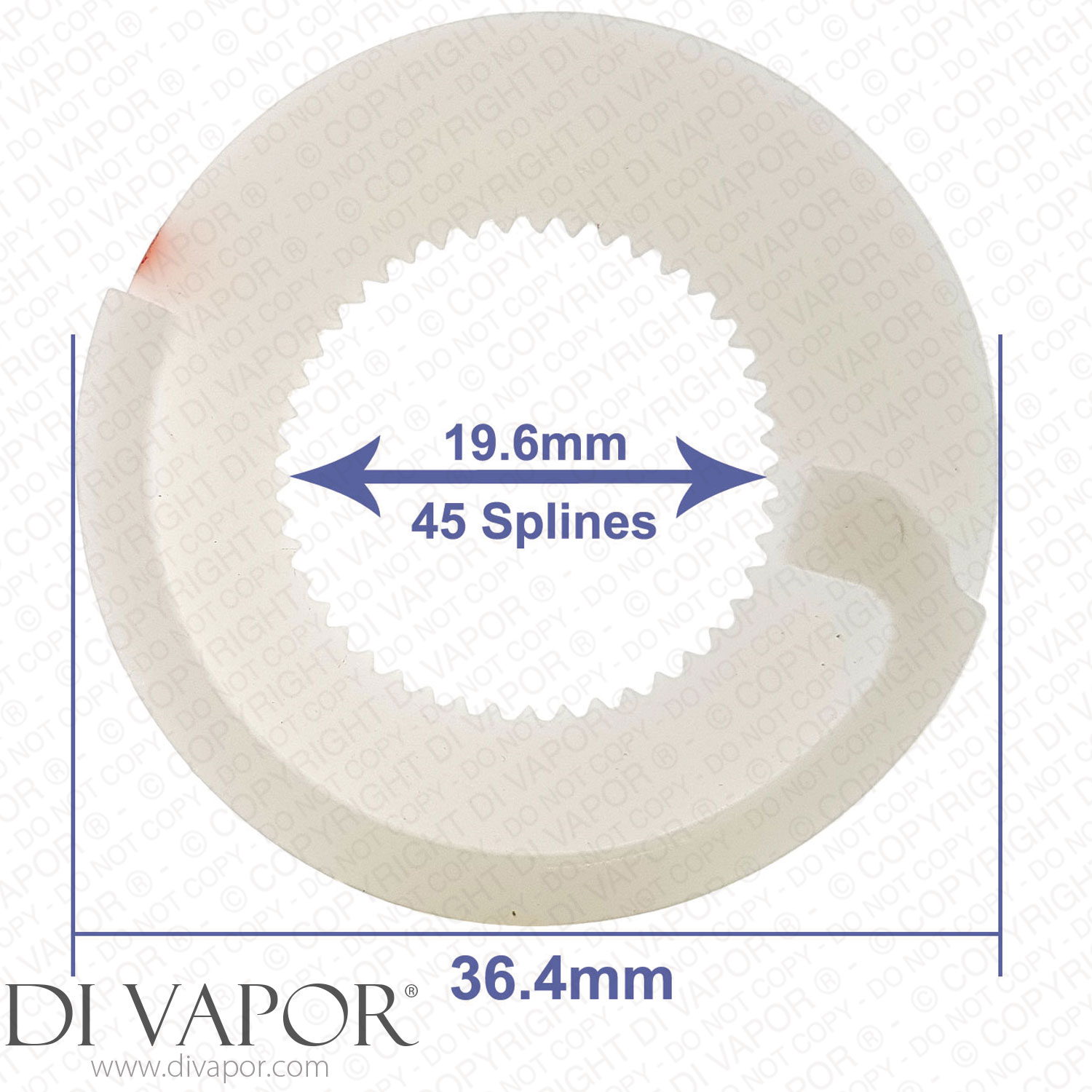

| Second toothed spline | 45 teeth |
| Second toothed spline width | 20mm |
| Associated cartridge type | Brass screw-in thermostatic cartridge for 3/4 inch and 1/2 inch shower mixer valves |
Cartridge Application
- Brass Screw in Thermostatic Cartridge M8-07
- Brass Screw in Thermostatic Cartridge M8-07 Flat Bottom Version
Before You Order
Check the cartridge body and the second toothed spline before ordering. The M8-07 cartridge uses a 45-tooth second spline with a 20mm width for the temperature stop ring. If the cartridge is not clearly identifiable, compare the cartridge body style, spline arrangement, thread diameter and overall measurements before fitting.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Brass Screw in Thermostatic Cartridge M8-07
- M12HJ8 Thermostatic Shower Cartridge For Concealed Shower Valves
- Brass Screw in Thermostatic Cartridge M8-07 Flat Bottom Version
- Cartridge Head Spline Adapter - 20 Spline Internal to 16 Spline External
- CG78210D Shower Valve Temperature Control Handle - 7.6mm / 20 Splines
- FDL BF8152 3/4" Anti-Clockwise Open Cartridge
- BF8151 3/4" Clockwise Open Cartridge
