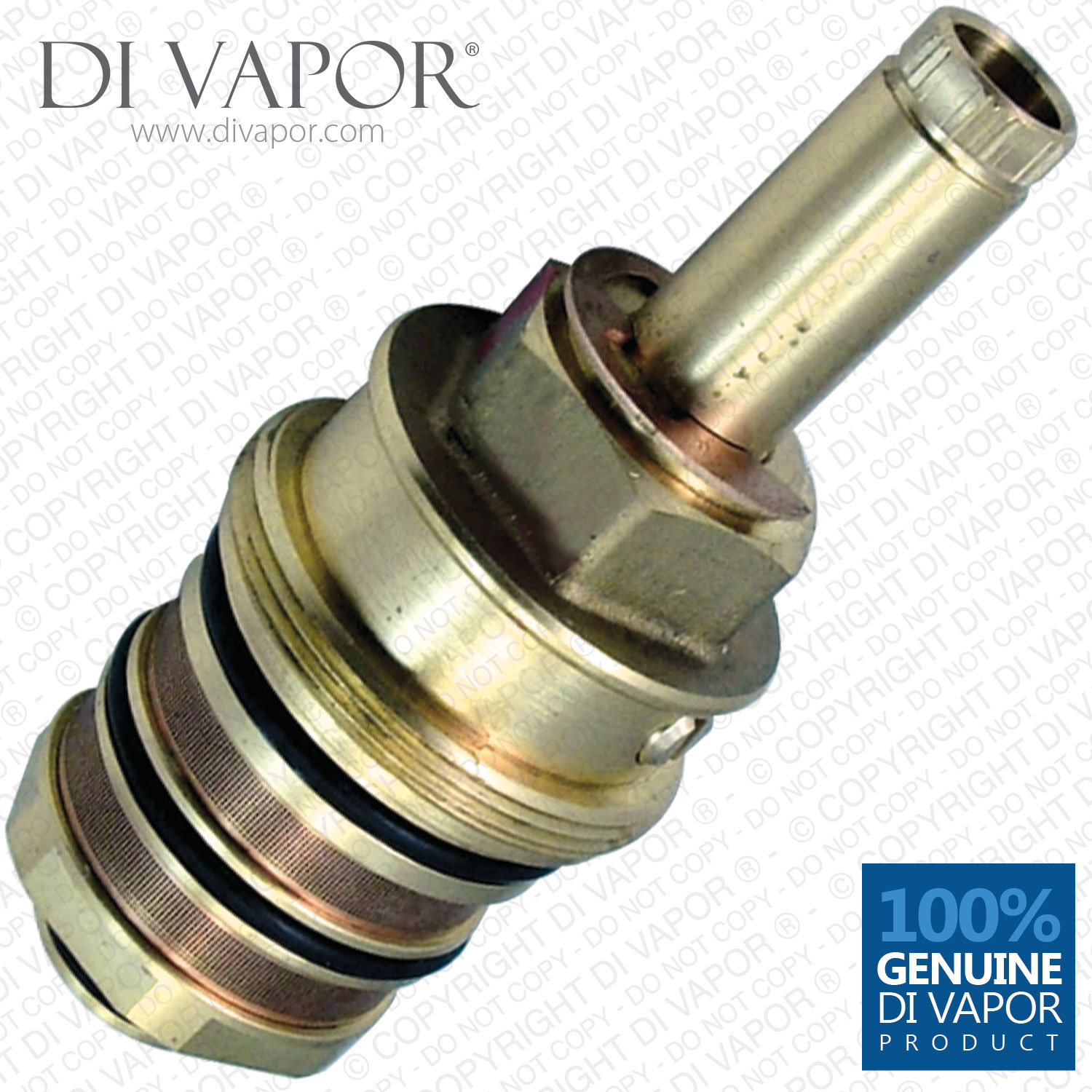

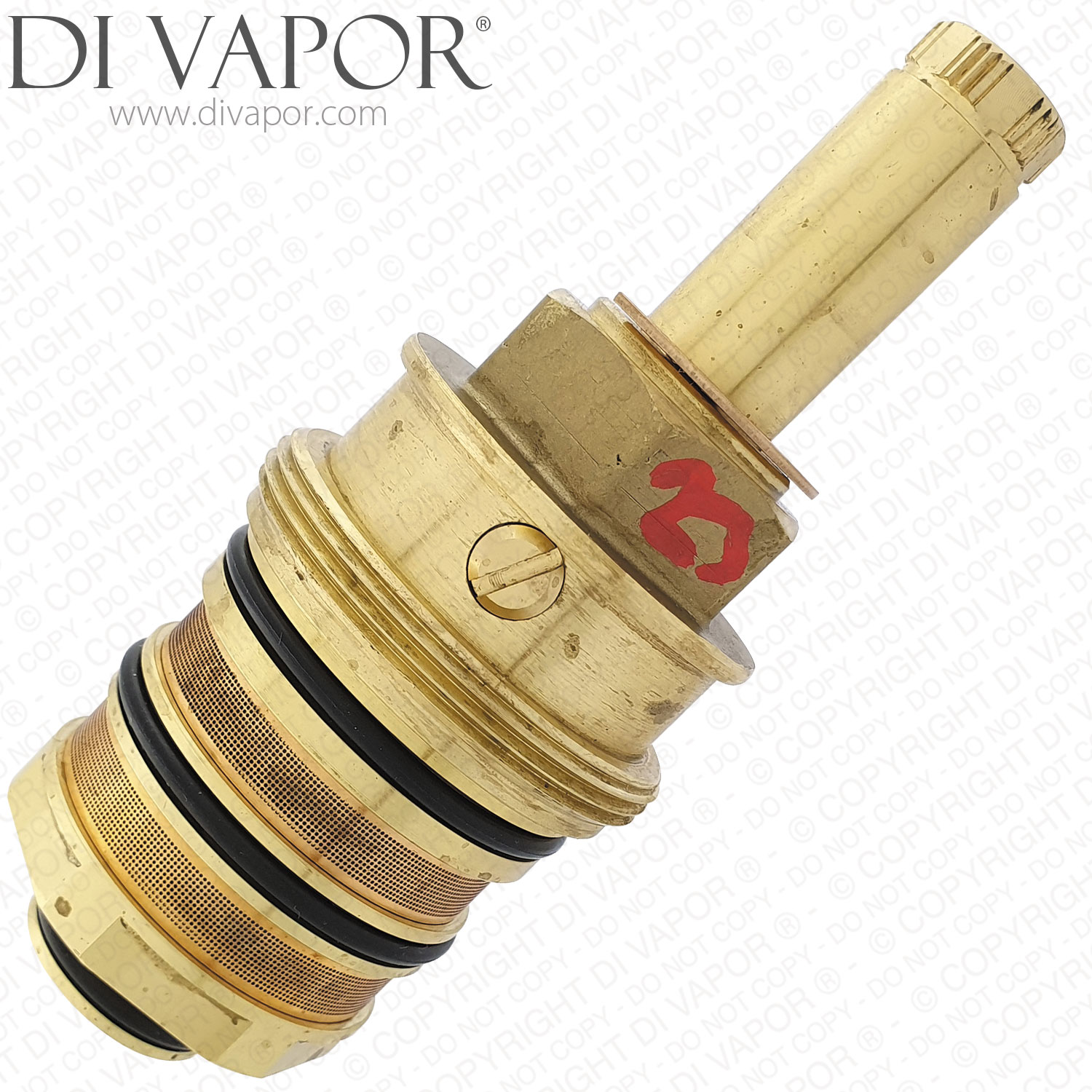

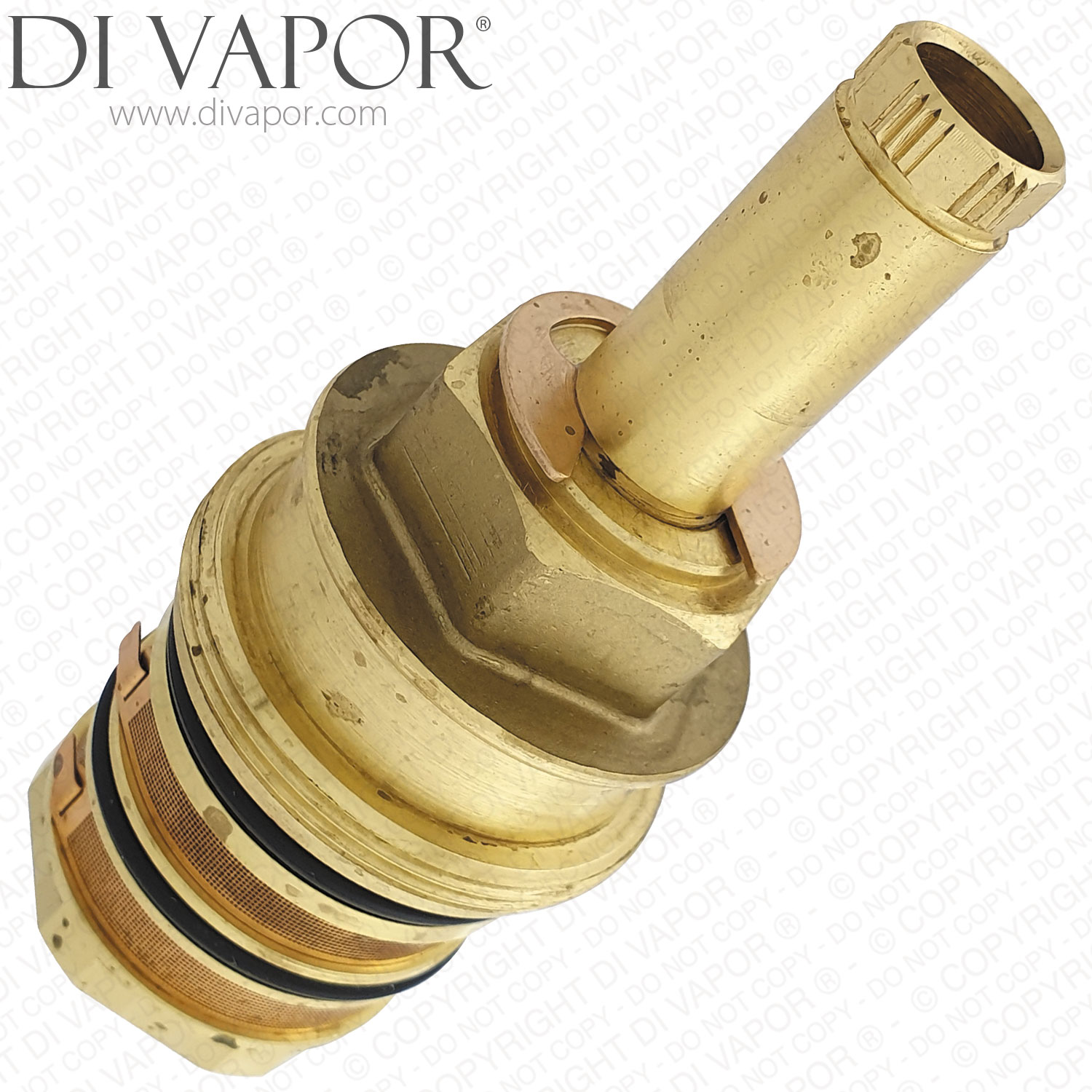

Meynell SPSL0011J Thermostatic Cartridge for Grange V8 Shower Mixer Valves
SUMMARY
This Meynell SPSL0011J thermostatic cartridge assembly is used in Grange V8 shower mixer valves and forms the temperature-control core of the valve. It contains the thermostatic element within the assembly and is fitted as a complete cartridge rather than as a separate element only.
If the original cartridge is stiff, has poor temperature control, will not regulate correctly or no longer responds properly to the control handle, replacing the cartridge can restore normal thermostatic operation.
Technical Details
- - Diameter: 47.5mm
- - Overall length: 116.21mm
- - Material: brass
- - 2 gauze filters
- - 3 O-rings
- - 1 spline tier
- - 10 teeth
- - Grub screw hole: yes
Used In
- - Grange V8 shower mixer valves
Before you order check
- - The exact part code on your old cartridge is SPSL0011J where visible
- - The diameter overall length spline detail and grub screw arrangement match your original cartridge
- - The old seals filters and control interface match this complete cartridge assembly
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
Applying silicone grease to the O-rings during installation helps protect the seals and supports smoother fitting into the valve body.
