KLUDI 7480900-00 Thermostatic Shower Valve Cartridge Replacement
Send a photo of your item and we'll help confirm it.
Summary

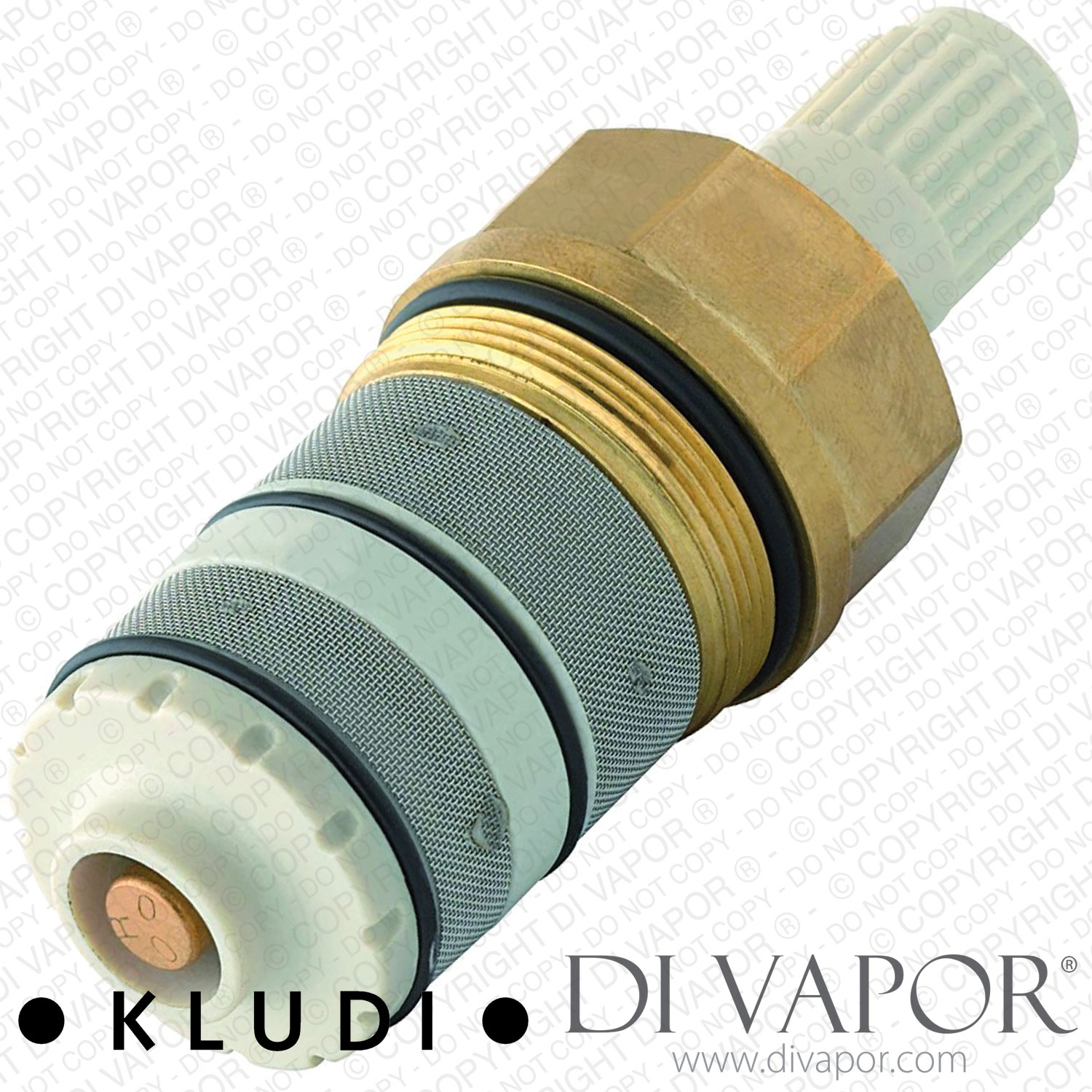

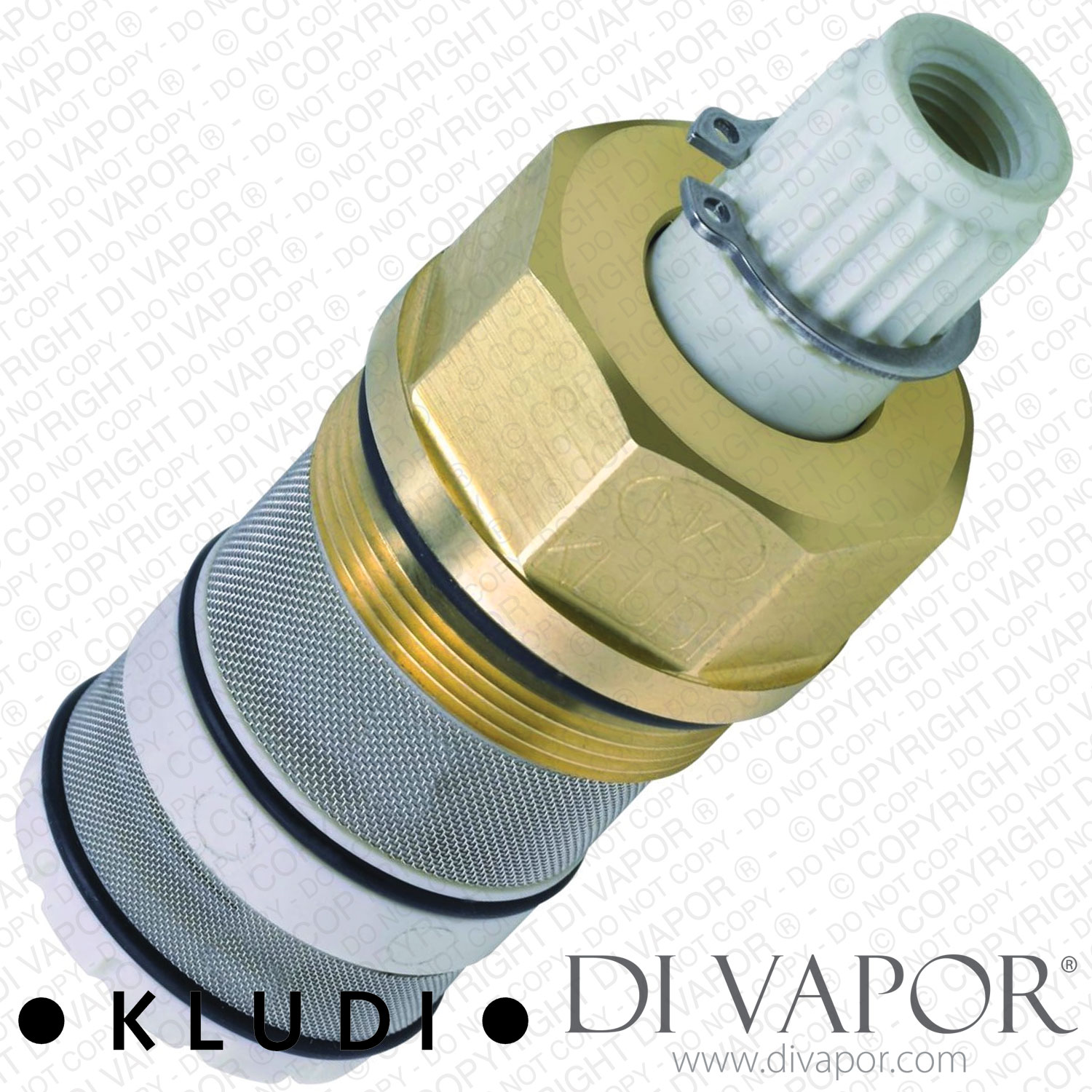

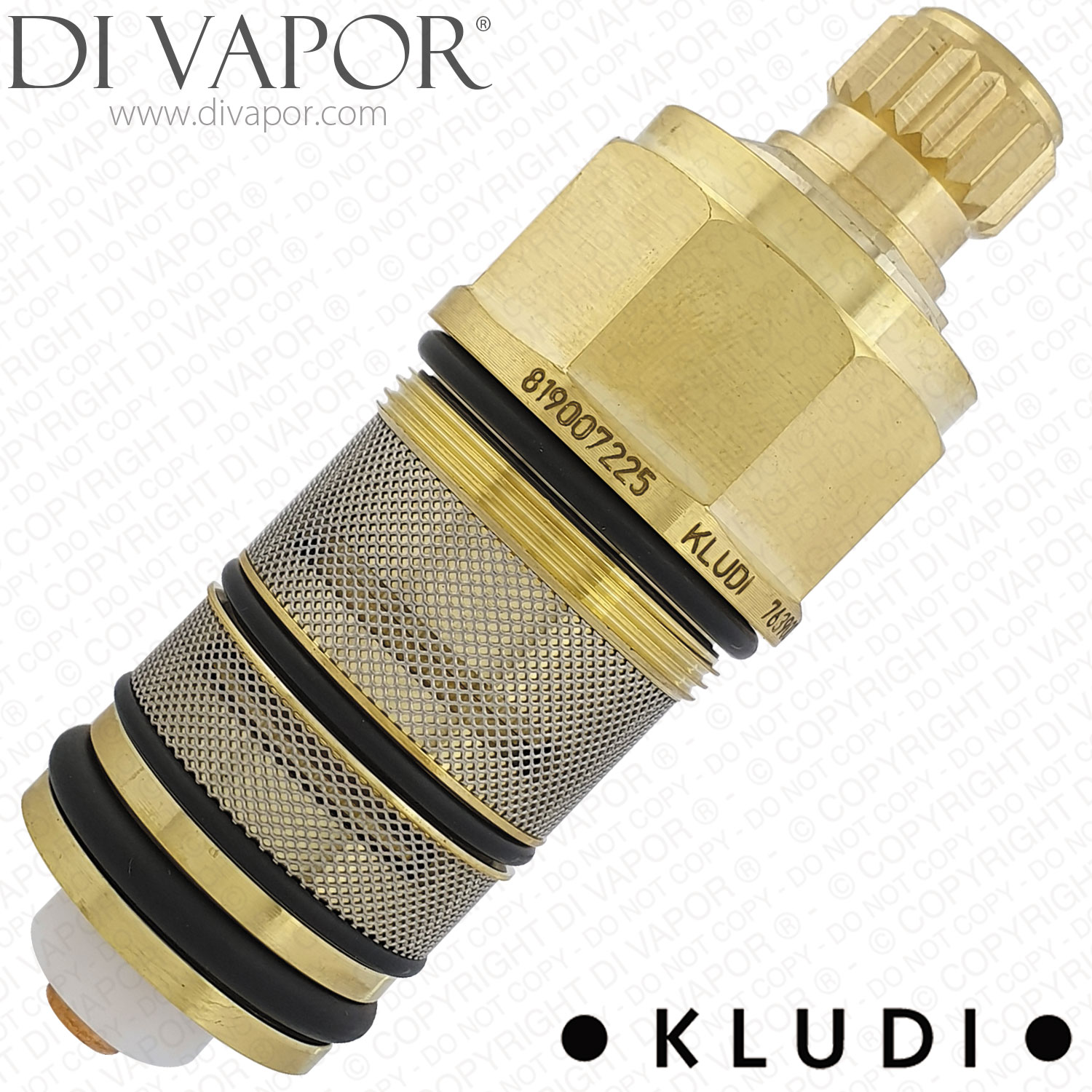

KLUDI 7480900-00 is a thermostatic temperature control unit for selected concealed KLUDI thermostatic bath/shower mixers. It regulates mixed water temperature inside the valve body and is specified for KLUDI 35156, KLUDI 35158 and KLUDI FLEXX.BOXX THM 88066 installations.
This brass unit uses a wax sensor to react to temperature change. Replacing a worn unit can help restore stable outlet temperature control and reduce symptoms such as temperature drift poor regulation or delayed thermostat response.
Technical Details
| KLUDI code | 7480900-00 |
|---|---|
| Superseded code referenced for this spare | 7587000-00 |
| Part type | thermostatic temperature control unit |
| Application | concealed thermostatic bath/shower mixer |
| Material | brass |
| Thermostatic element | wax sensor |
| Diameter | 30 mm |
| Overall length shown on the KLUDI technical drawing | 90 mm |
- Additional body dimension shown on the KLUDI technical drawing: 49 mm
| Maximum operating temperature | 90 C |
|---|---|
| Maximum test pressure | 25 bar |
| Maximum operating pressure | 10 bar |
| Recommended operating pressure | 3 - 5 bar |
| Pressure regulator recommended for operating pressures above | 5 bar |
| Maximum recommended stored hot water temperature | 65 C |
| Standard | DIN EN 1111 |
Before you order check
- Check the original unit is 7480900-00 or that your spare-parts information specifies 7480900-00 as the replacement for 7587000-00
- Check your concealed valve body is KLUDI 35156, KLUDI 35158 or KLUDI FLEXX.BOXX THM 88066
- Check the original unit diameter is 30 mm and compare the overall length and body shape with your removed part
- Check whether your installation uses the 35156 body with shut-off valve or the 35158 body without shut-off valve
Confirmed Compatible Models
- KLUDI 35156 concealed thermostat mixer body DN 15 with shut-off valve
- KLUDI 35158 concealed thermostat mixer body DN 15 without shut-off valve
- KLUDI FLEXX.BOXX THM 88066

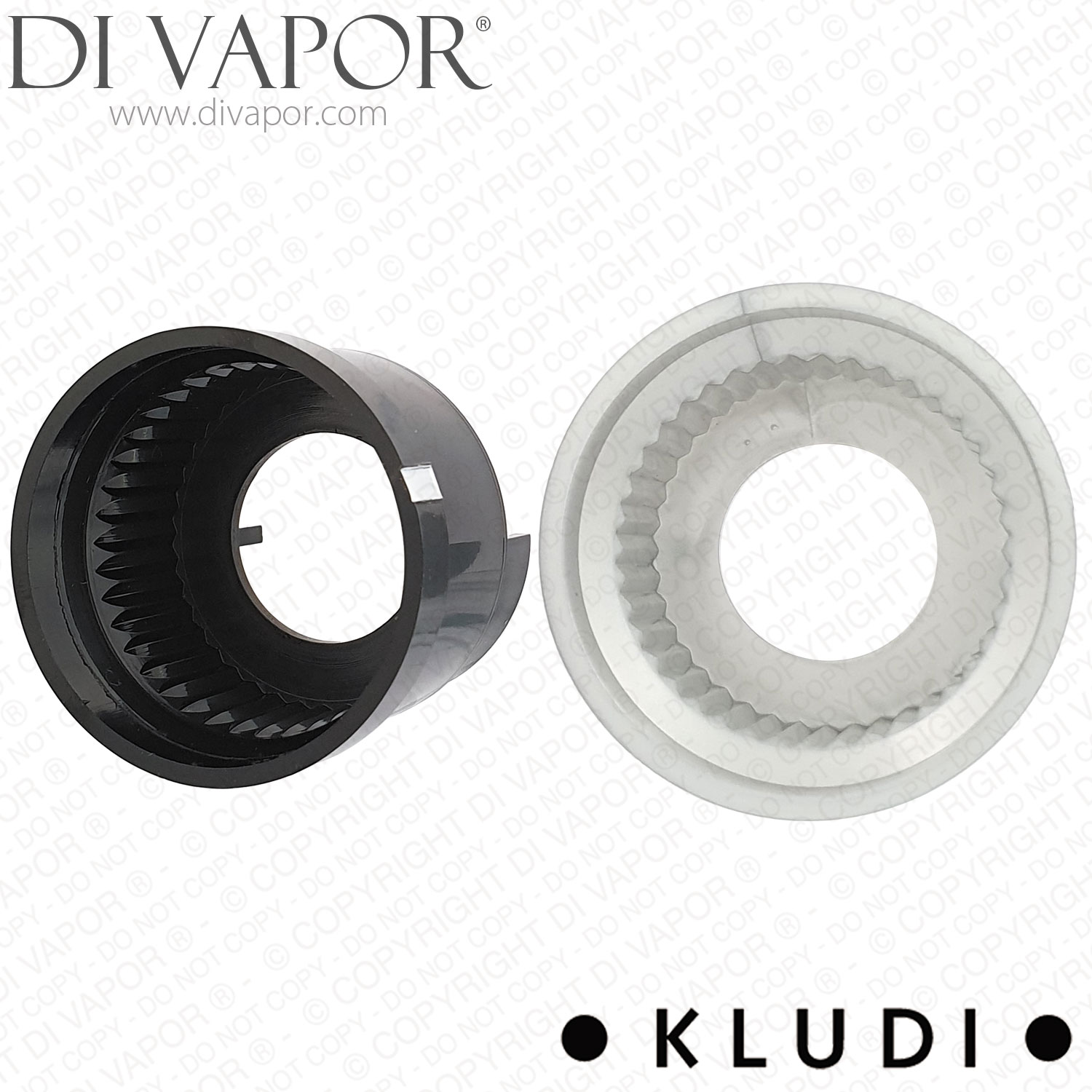

Related Spares You May Need
