INTA BO700084 Thermostatic Cartridge for Intaflo Shower Valves

SUMMARY

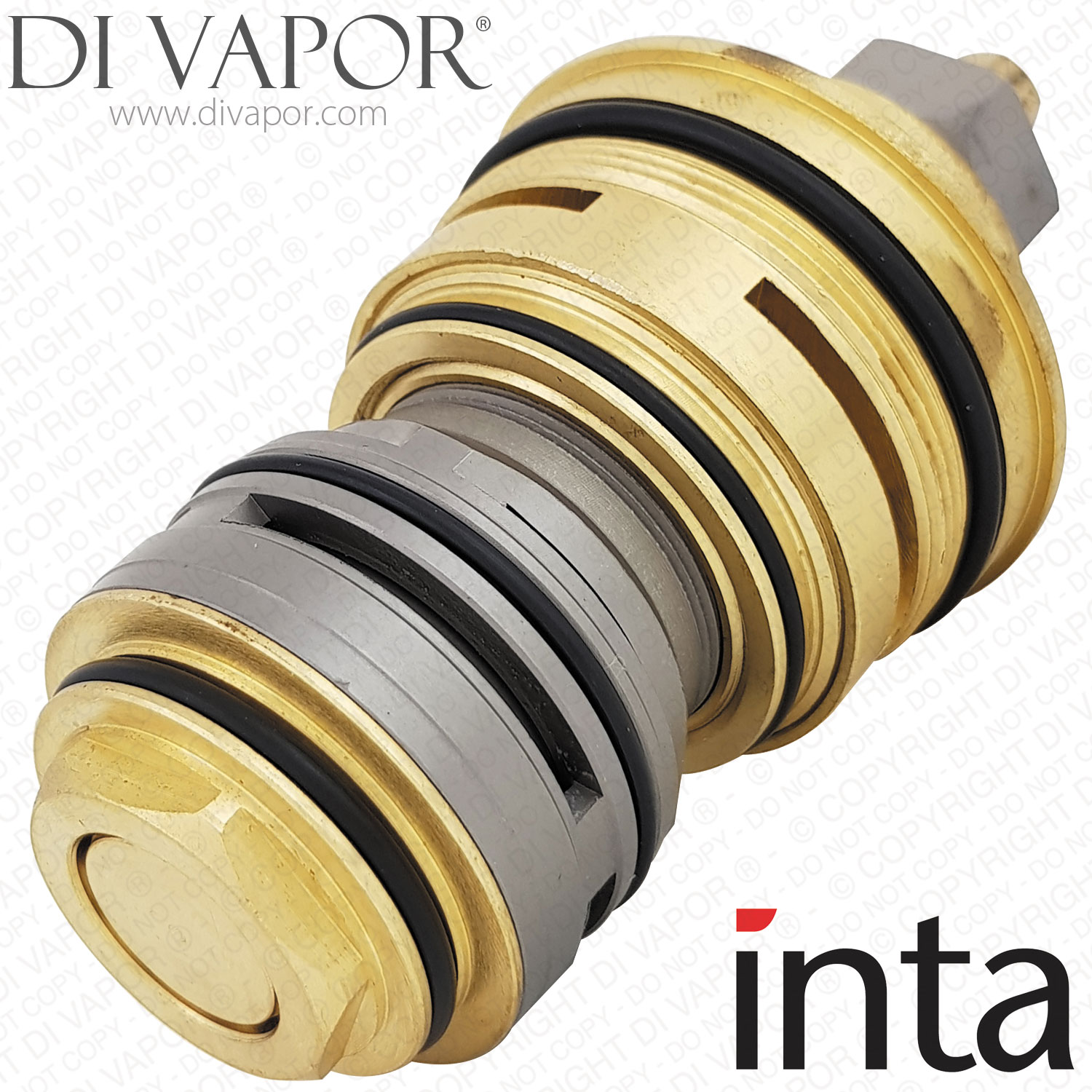

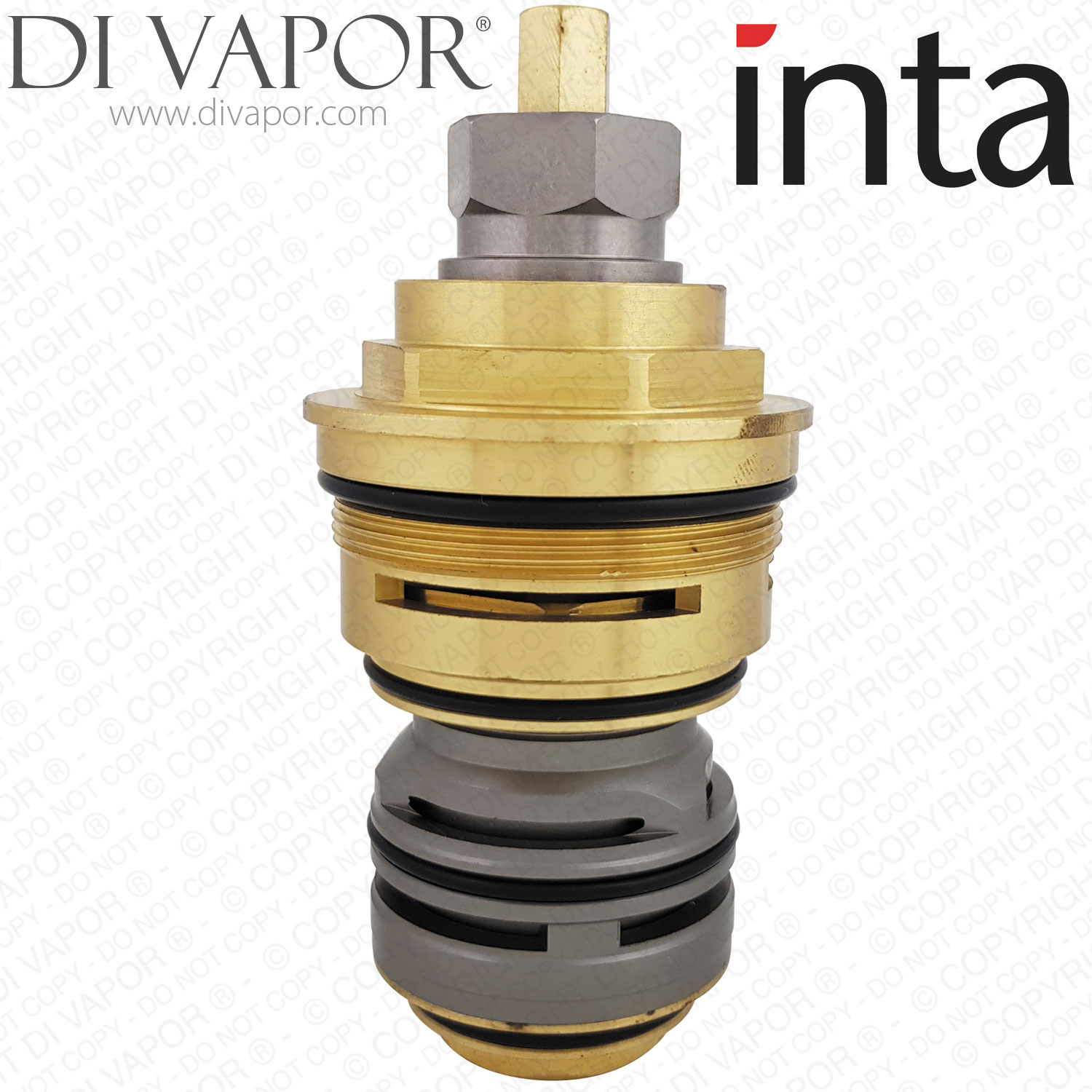

INTA BO700084 is a thermostatic cartridge for selected Inta Intaflo concealed shower valves. It is also shown as BO-700084.

This cartridge sits inside the thermostatic shower valve and controls the blended hot and cold water temperature delivered to the outlet. Replace the cartridge where the existing part is identified as BO700084 or BO-700084, and check the removed cartridge, valve model and measurements before ordering.

Technical Details

- - Part type: thermostatic cartridge

- - Code shown: BO700084 / BO-700084

- - Part Number: IN-BO700084

- - Total length: 122.3mm

- - Diameter: 59.4mm

- - Function: thermostatic temperature control and hot/cold water blending inside the shower valve

- - Valve context: Inta Intaflo concealed thermostatic shower valves

50015CP Valve Data

- - Valve type: Traditional thermostatic concealed dual control shower

- - Operating pressure range: 0.4 to 5 bar

- - Temperature stability: +/- 2 degrees C

- - Factory pre-set temperature: 38 degrees C with max temperature stop

- - Inlet connections: 15mm compression elbows

- - Outlet connection: G 1/2" F BSP

Fitting and Checking Notes

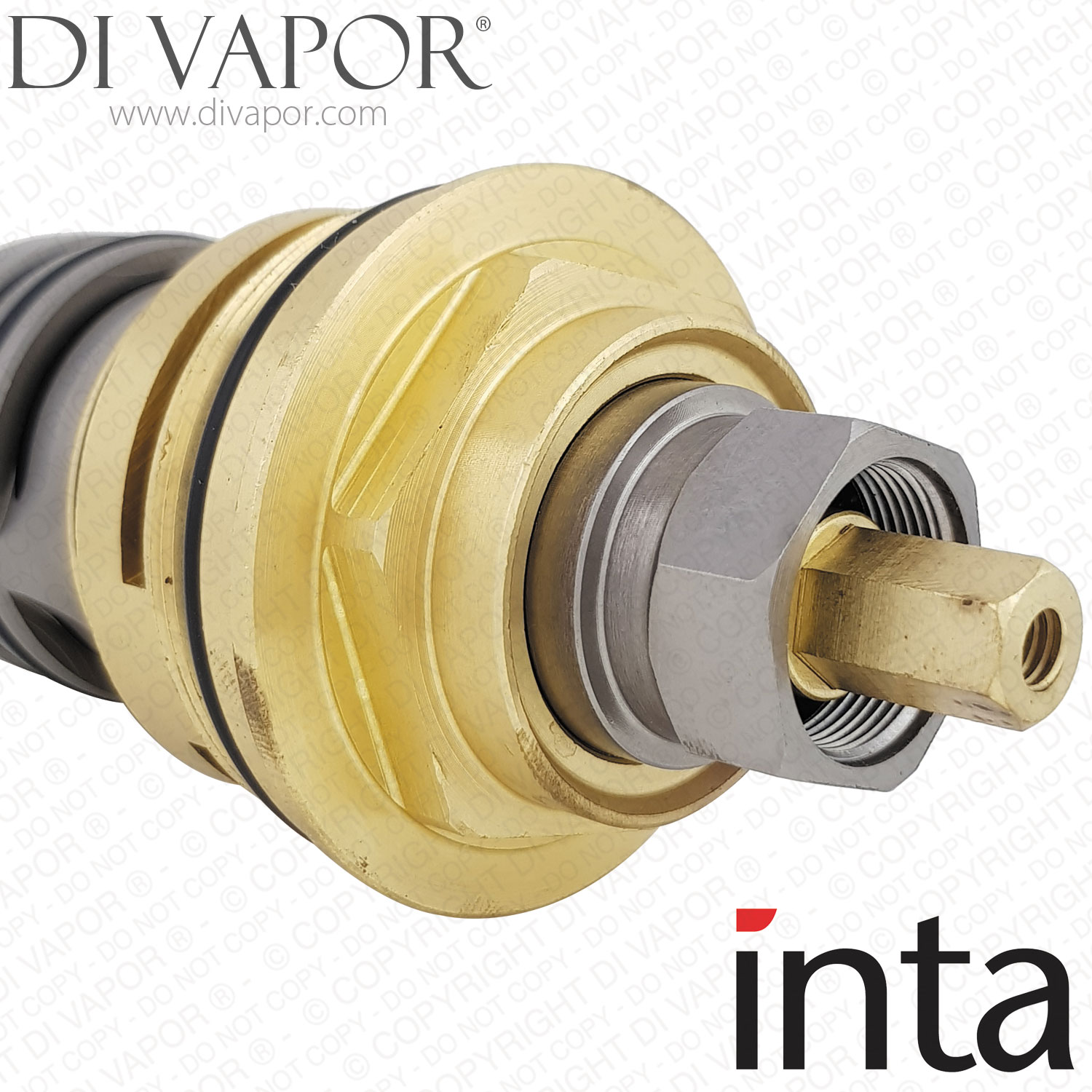

Isolate the hot and cold water supplies before removing the cartridge. On concealed installations, remove the control knobs and concealing plate to expose the cartridge hexagon, unscrew the cartridge with a suitable spanner, fit the new cartridge, then recalibrate the valve after installation.

Do not identify this cartridge by size alone. The 122.3mm length and 59.4mm diameter should be used as checking details alongside the BO700084 / BO-700084 code and the confirmed shower valve model.

Confirmed Shower Valve Models

- - Inta 30015CP Modern Concealed Shower Valve Spare Parts

- - Inta 50015CP Traditional Concealed Shower Valve Spare Parts

- - Inta 70015CP Minimalistic Concealed Shower Spare Parts

Troubleshooting Checks

- - Symptom: showering temperature is not hot enough. Likely cause: hot water supply temperature or air in the pipework. Solution: check that the hot supply is above 60 degrees C and check for air locks.

- - Symptom: flow from the shower valve is low. Likely cause: dirty filters or low supply pressure. Solution: check that the filters are clean and confirm that the supply pressure is above 0.2 bar.

- - Symptom: no flow of water. Likely cause: the valve may have fail-safed or the check valves may be closed. Solution: check hot and cold water flow to the valve and check the check valves.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved for applying to thermostatic cartridge O-rings during installation.

- - 150mm Universal Shower Hose - NXT734 for connecting a shower elbow or valve to a shower handset.
