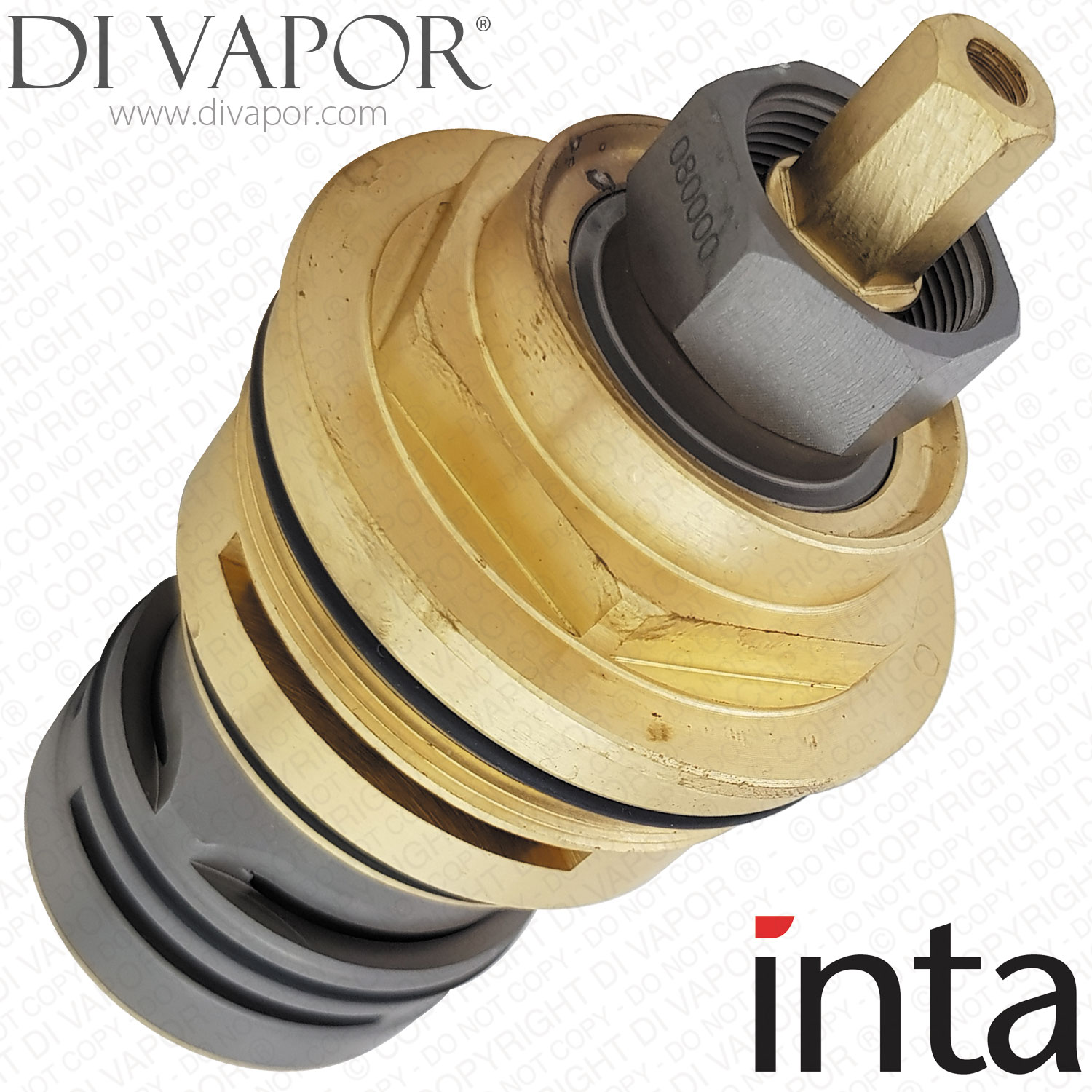

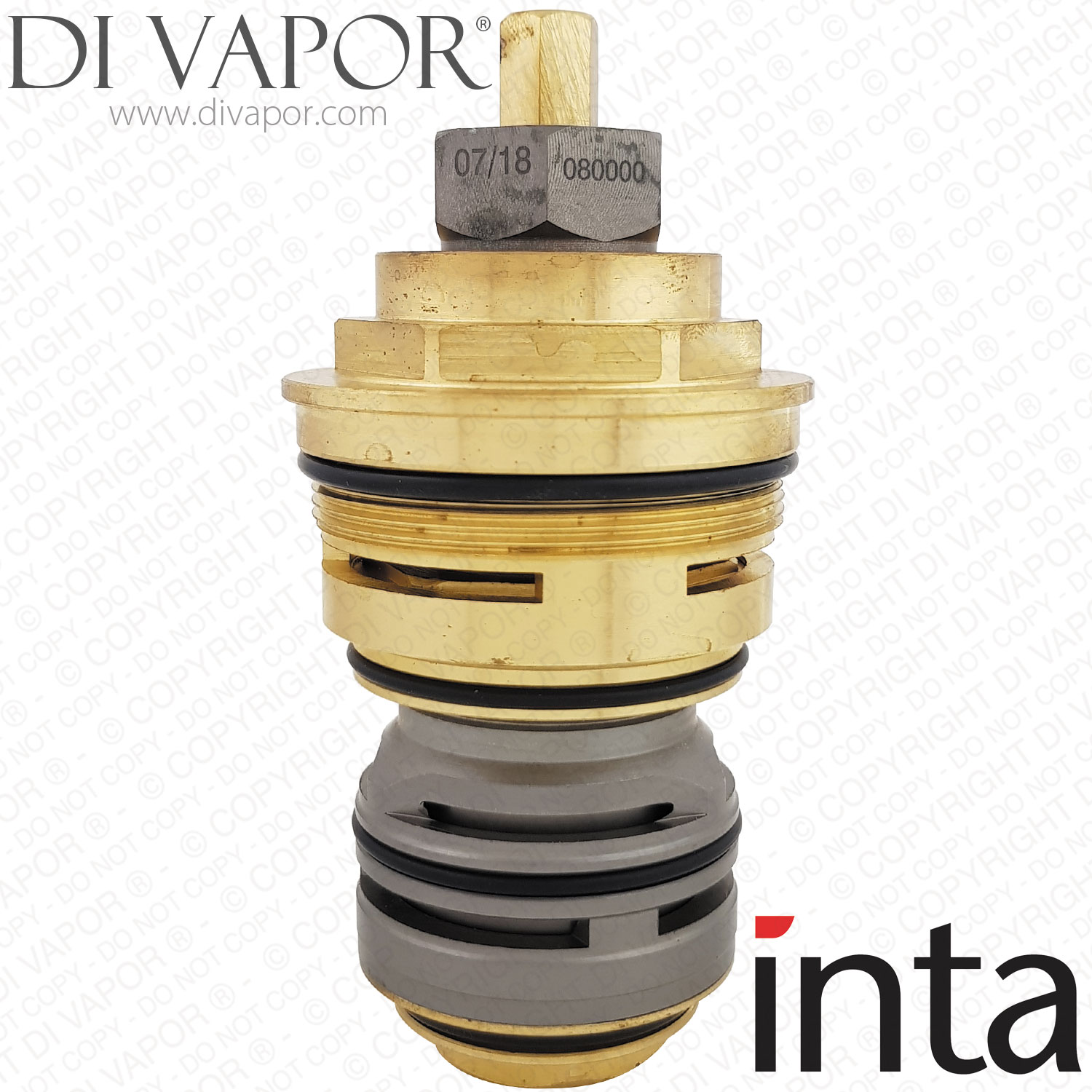

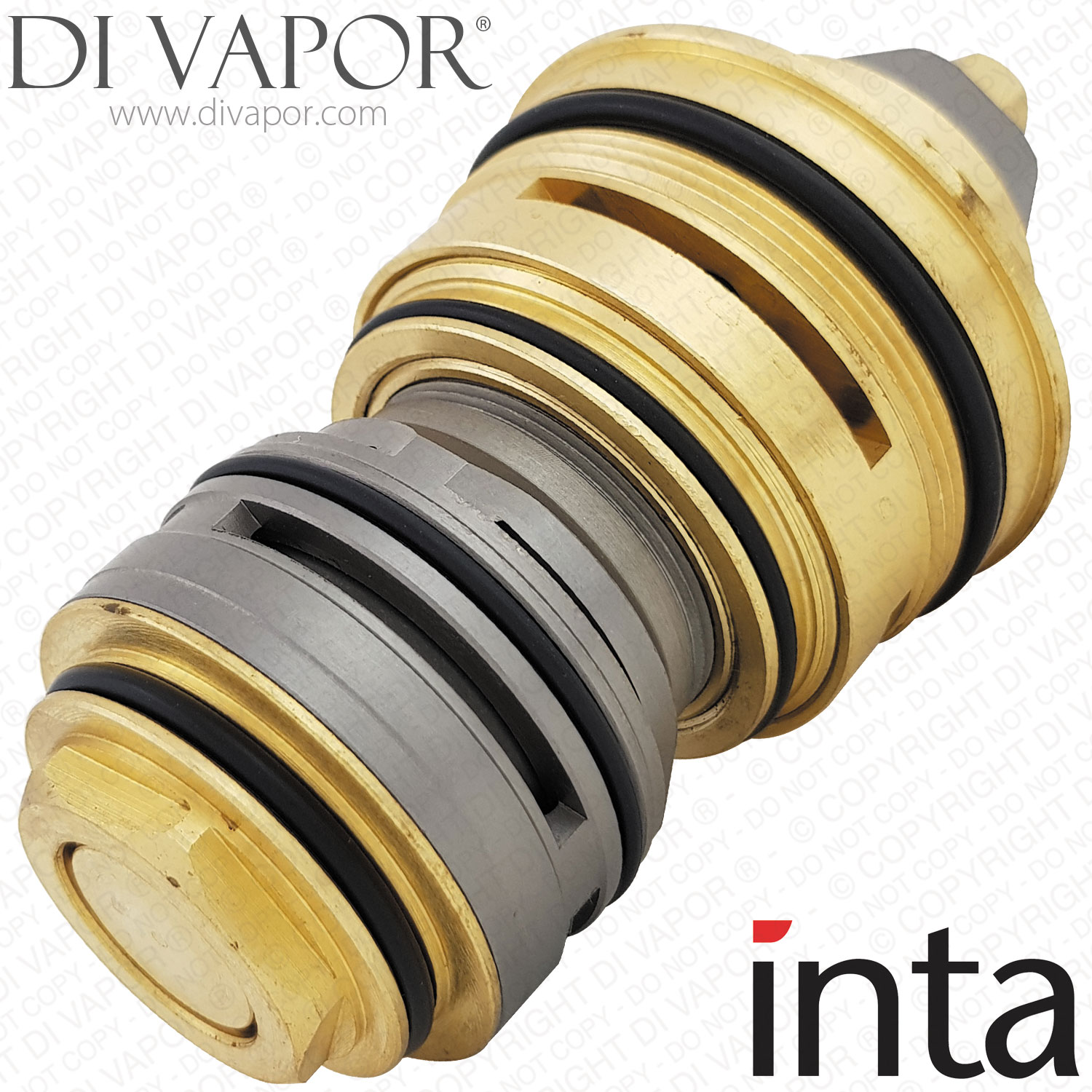

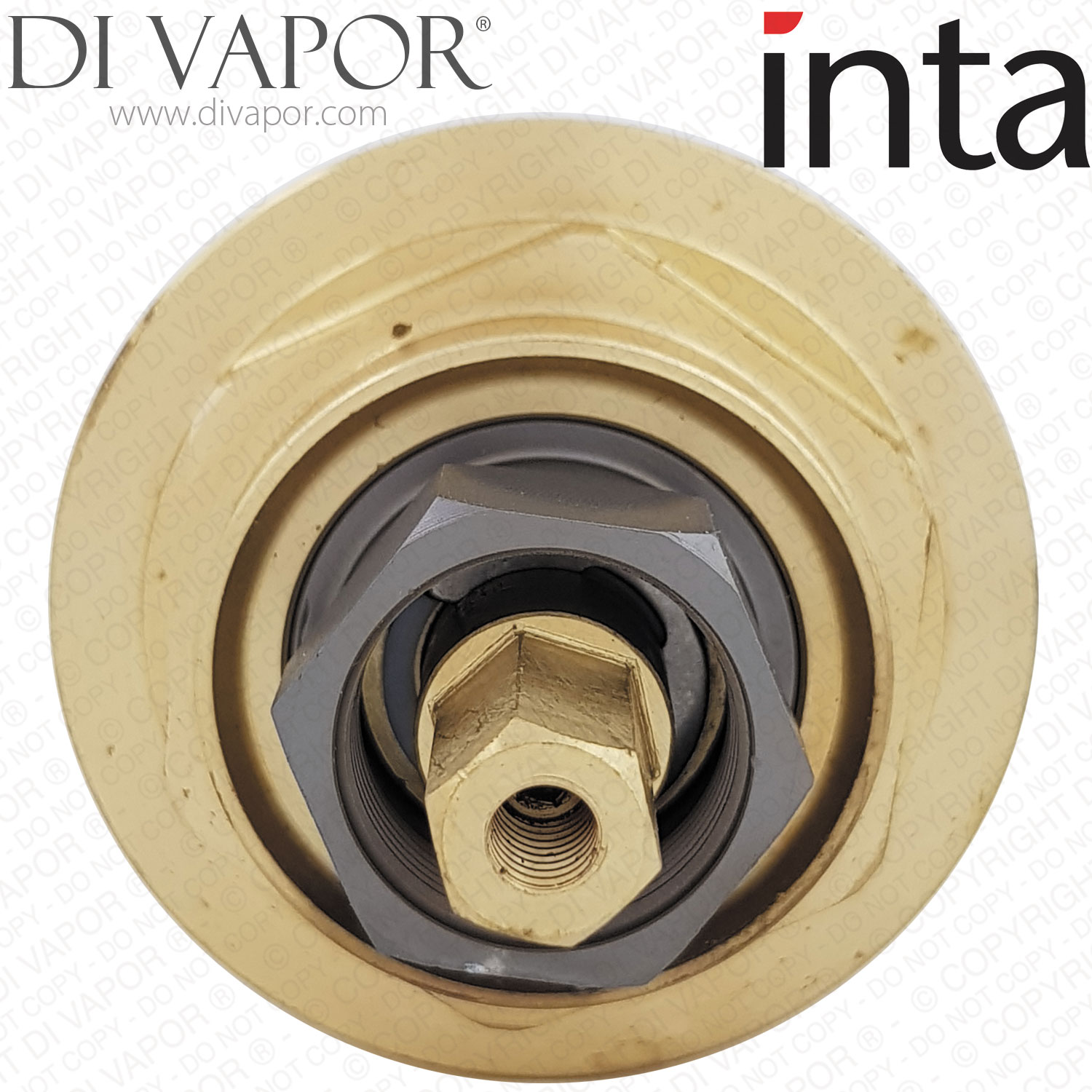

INTA BO700083 Thermostatic Cartridge for Intaflo & Duo Shower Mixer Valves

SUMMARY

INTA BO700083 Thermostatic Cartridge for Intaflo & Duo Shower Mixer Valves (BO-700083)

The INTA BO700083 is a thermostatic shower cartridge used in Inta and Intaflo exposed thermostatic shower mixer valves. The cartridge controls and stabilises the mixed water temperature inside the shower valve.

This cartridge is used to restore temperature control where the shower is no longer regulating correctly, is difficult to calibrate, or is affected by temperature fluctuation after other supply and filter checks have been completed.

Technical Details

- - Part type: thermostatic shower cartridge

- - Main code: BO700083

- - Di Vapor Part Number: IN-BO700083

- - Code variant shown: BO-700083

- - Approximate total length: 116mm

- - Approximate widest diameter: 56.5mm

- - Cartridge style: screw-in thermostatic temperature cartridge

Check the existing cartridge code, valve model and dimensions before ordering. For exposed Inta valves, isolate the hot and cold supplies before removing the controls and unscrewing the cartridge, then recalibrate the shower after fitting.

Confirmed Compatible Models

- - Inta 50014CP Traditional Exposed Shower Valve Spare Parts

- - Inta 30014CP Modern Exposed Shower Valve Spare Parts

- - Inta 70014CP Minimalistic Exposed Shower Spare Parts

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - 150mm Universal Shower Hose - NXT734

Symptoms and Checks

- - Symptom: shower temperature is too hot, too cold or unstable

- - Likely cause: cartridge calibration issue, blocked filters, supply imbalance or worn thermostatic cartridge

- - Solution: check supplies and filters first, then replace and recalibrate the cartridge if the cartridge is confirmed as the fault

If the existing part cannot be identified with confidence, use the Find a Part service and send clear photos of the cartridge, valve and measurements before ordering.
