Hudson Reed A3290 Thermostatic Cartridge for Tec Sequential Concealed and Exposed Thermostatic Shower Valves (Ultra)
SUMMARY

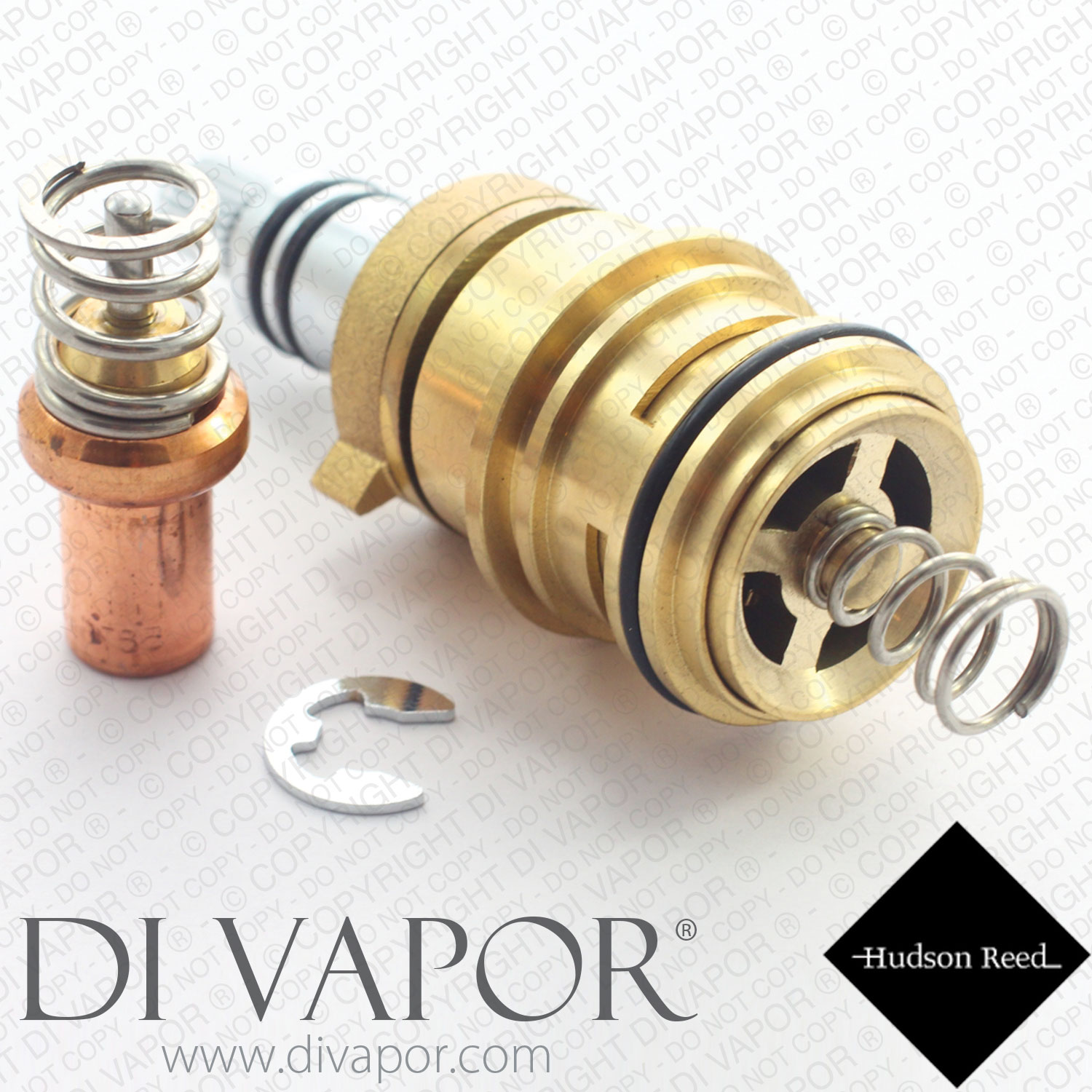

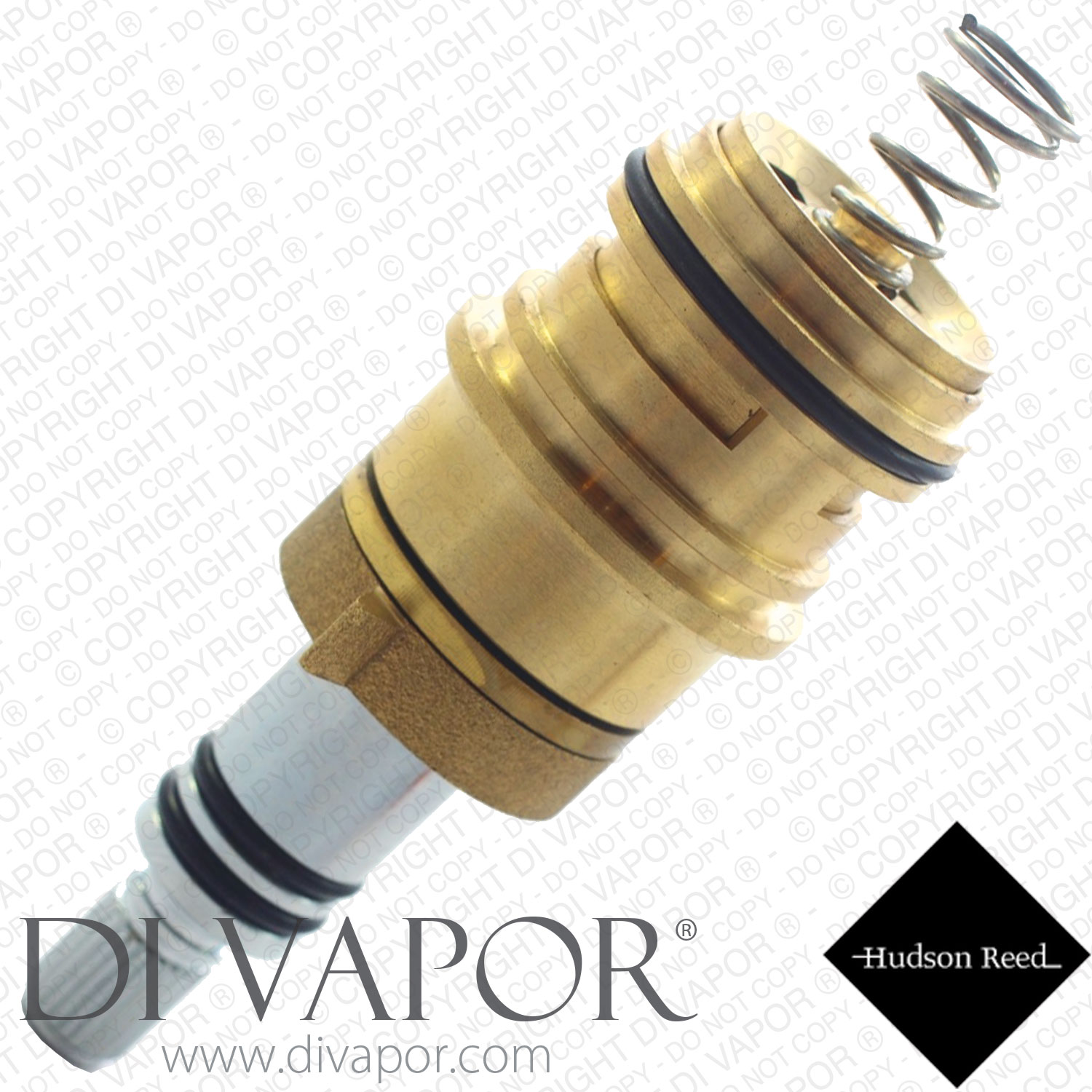

Hudson Reed A3290 Thermostatic Cartridge for Tec Sequential Concealed and Exposed Shower Valves (ULTRA)
The HUD-A3290-CT thermostatic shower cartridge is used in Hudson Reed A3290 Tec sequential shower valves, including concealed and exposed installations.
The cartridge regulates the mixed water temperature within the valve. The Tec sequential control turns the water on and adjusts the temperature through one handle, starting with cold water and gradually blending in hot water as the control is turned anti-clockwise.
Technical Details
- - Part Number: HUD-A3290-CT
- - Part type: Thermostatic shower valve cartridge
- - Shower valve reference: A3290
- - Application: Concealed and exposed sequential thermostatic shower valves
- - Valve control arrangement: Single control for flow and temperature
Confirmed Compatible Models
- - Hudson Reed A3290 Tec Sequential Concealed and Exposed Thermostatic Shower Valve
- - Hudson Reed A3290-A3218 Tec Sequential Concealed Shower Valve with Cloudburst Fixed Head
- - Hudson Reed A3290-A3241 Tec Sequential Concealed Shower Valve with Sheer Round Fixed Head
Before Ordering
Compare the removed cartridge, spindle adaptor and handle fitting with the product photographs. Some Tec sequential arrangements require a separate spindle adaptor, so keep the original parts for comparison and check the installed control arrangement before ordering a cartridge or handle.
Fitting and Temperature Checks
Isolate the hot and cold water supplies before removing the old cartridge. Apply a small amount of suitable silicone grease to the cartridge O-rings during installation, then check for leaks and confirm the shower temperature before use. If the shower remains too hot, too cold or unstable, check the supply temperature and pressure as well as the cartridge and control adjustment.
Related Spares You May Need
- - TACSIL 3g Silicone Grease - TAC86 - For lubricating cartridge O-rings during installation
- - Hudson Reed SP350 Tec Crosshead Handle Pair - For the matching 20-spline control arrangement; check the existing spindle adaptor before ordering
- - Ultra SA3290SPIN Spindle for SAR00 Thermostatic Cartridges - Discontinued spindle for matching SAR00 control arrangements
- - Hudson Reed SA3290SPIN2 A3290 / SAR00 24-Spline Spindle - Check the existing spindle length and handle fitting before ordering
If you are unsure which part you need, use the Di Vapor part identification service for help.
