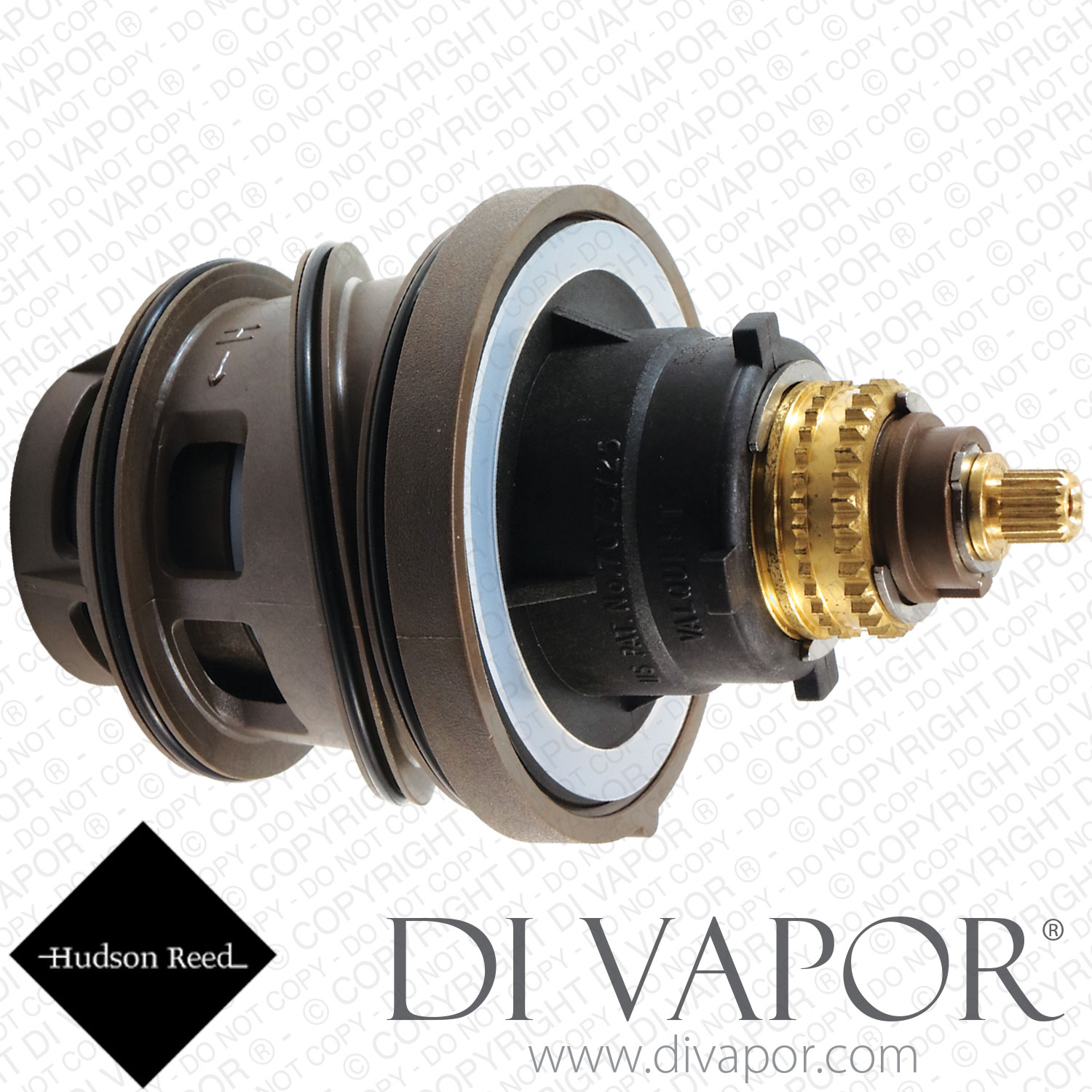

Hudson Reed A3192 Thermostatic Shower Cartridge (Ultra)

SUMMARY

Hudson Reed A3192 Thermostatic Shower Cartridge (Ultra)


This thermostatic cartridge is the replacement spare for the Hudson Reed Tec Dual Shower Valve.

The Hudson Reed A3192 cartridge is made from WRAS approved engineered polymer – a material where hard water minerals are less likely to stick. It is TMV compliant equipped with thermal protection as an anti-scald function. It can be used in high and low pressure systems.

Frequently Asked Questions: Hudson Reed Replacement Thermostatic Cartridge for A3091 Valve

Question: The screws on the handle are removed but I cannot remove it from the valve.
Answer: A3091 handles can get stuck on the valve because of calcification or corrosion. You can try pulling the handle out with extra force. If it refuses to budge, use WD-40 and see if it loosens.

Question: Shower water flow rate is reduced to a trickle. Is the cartridge the problem?
Answer: Check if the water supply pipes to the shower are unclogged and that water supply to the shower is consistent.
– If there are no clogs and water supply is okay, the Hudson Reed shower cartridge might be starting to die.

Technical Details

- - Part type: Thermostatic shower cartridge assembly

- - Part Number: HUD-A3192-CT

- - Body material: Engineered polymer

- - Control arrangement: Separate temperature and water flow controls

- - System suitability: High- and low-pressure systems

Used In

- - Hudson Reed A3192 Modula Dual Concealed Thermostatic Shower Valve

Before Ordering

A3192 shower valves have been supplied with different cartridge versions. Compare the removed cartridge with the product photographs, paying particular attention to the body shape, seal positions and control spindle. Check the original spindle diameter and spline count, and confirm the cartridge version before ordering.

Troubleshooting

Symptom: Water dripping from the shower head when the valve is turned off. Likely cause: Debris obstructing shut-off or an incorrect flow-control setting. Solution: Check for debris and adjust the flow control as described in the valve instructions.

Symptom: Reduced flow or difficulty reaching the required temperature. Likely cause: A blockage, unsuitable water supply conditions or incorrect control settings. Solution: Check the water supplies and valve adjustment before replacing the cartridge.

Installation and Servicing

Isolate the water supplies before servicing. Clean the valve body and apply a thin coating of suitable silicone grease to the cartridge O-rings. After installation, reset the temperature and flow controls in accordance with the valve instructions. Check for leaks, confirm that the shower shuts off fully and recommission the valve before use.

Related Spares You May Need

- - TACSIL 3g Silicone Grease for Cartridge O-Rings and Seals - Part Number: TAC86

If you need help choosing the right part, use the Di Vapor part identification service.

We carry many Hudson Reed shower spares from cartridges to valves. Please check it out. We might have exactly what you need.
