Hansgrohe 94562000 Thermostatic Cartridge

SUMMARY

Hansgrohe 94562000 Thermostatic Cartridge

The Hansgrohe 94562000 thermostatic cartridge is a screw-in shower valve cartridge used to regulate the mixed outlet temperature in a thermostatic shower valve.

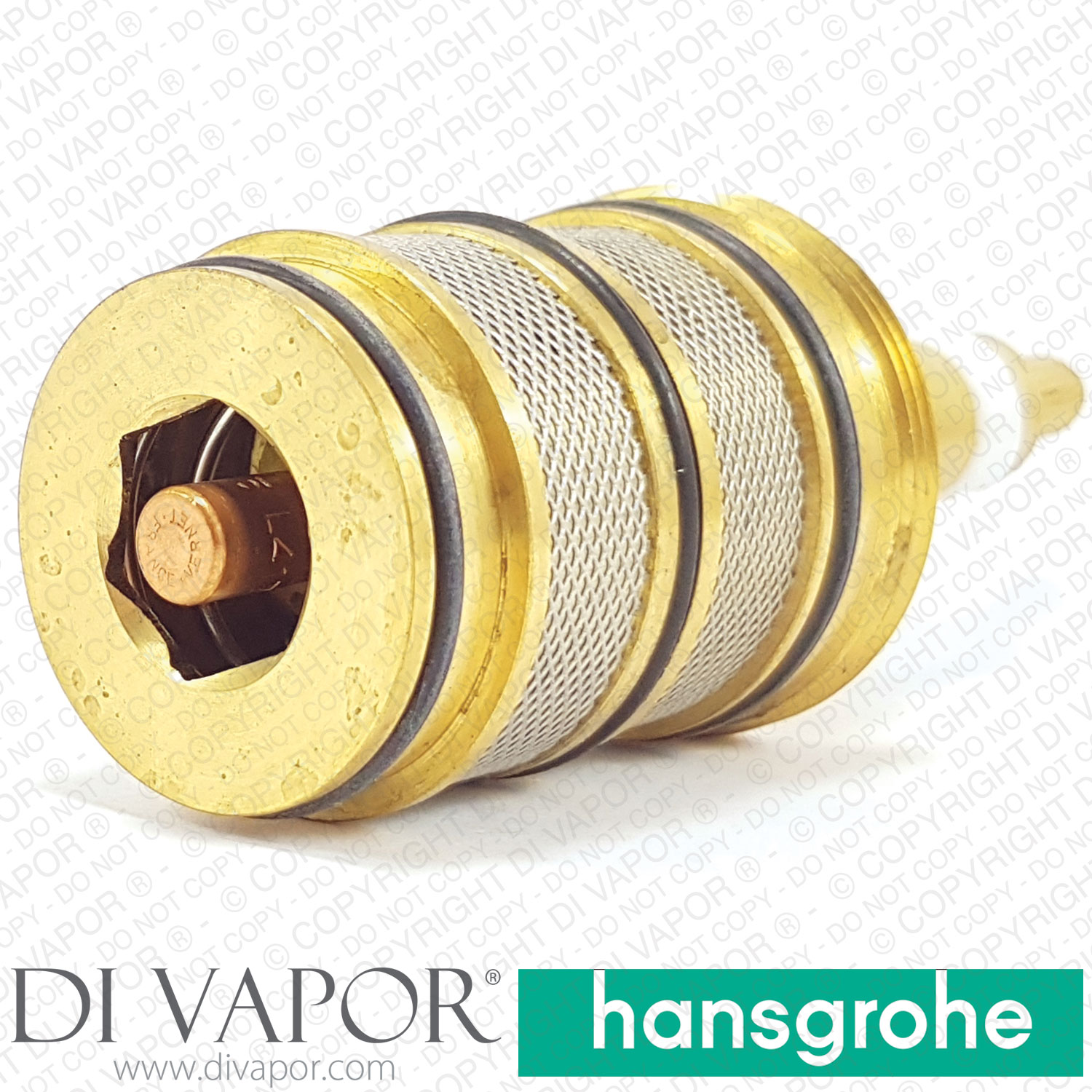

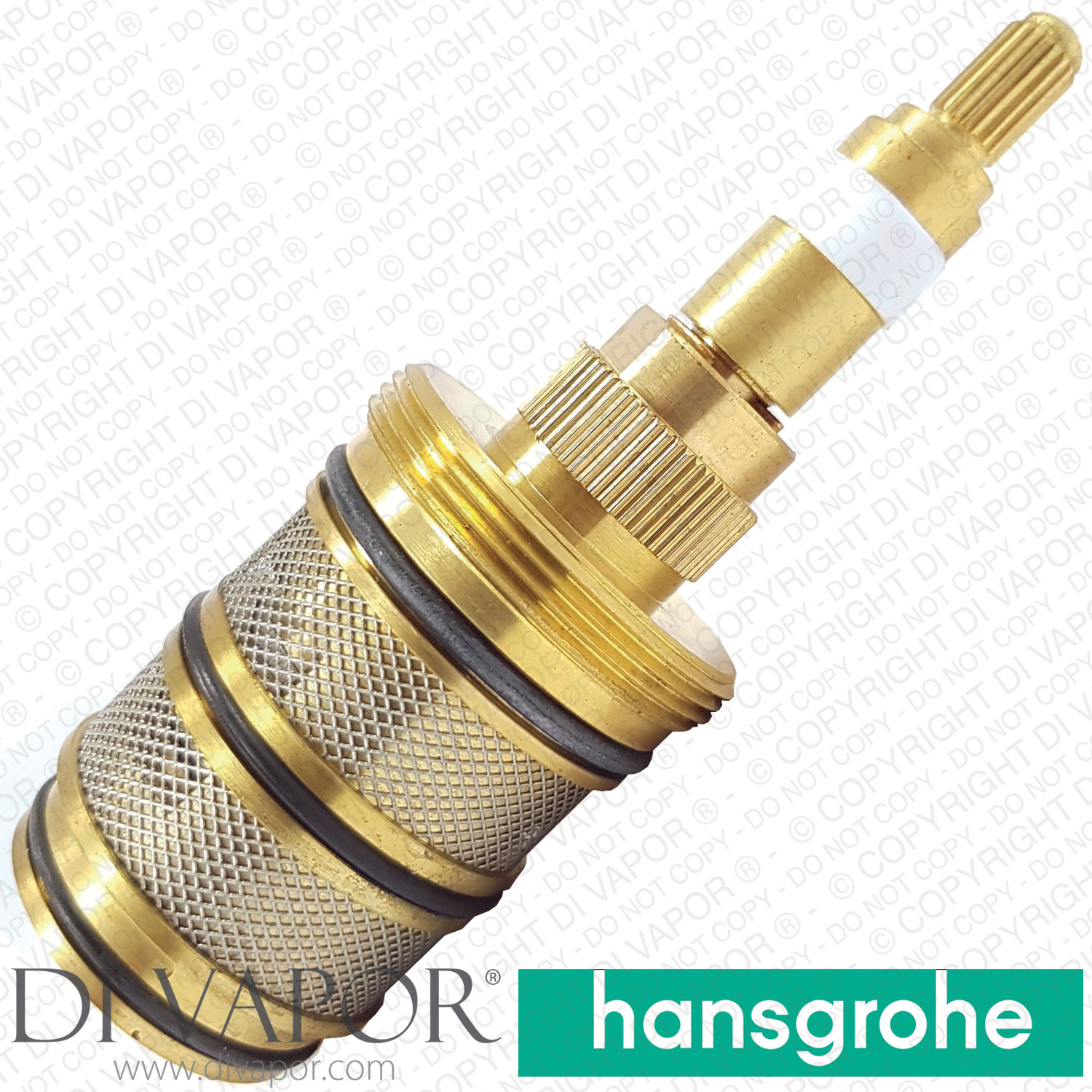

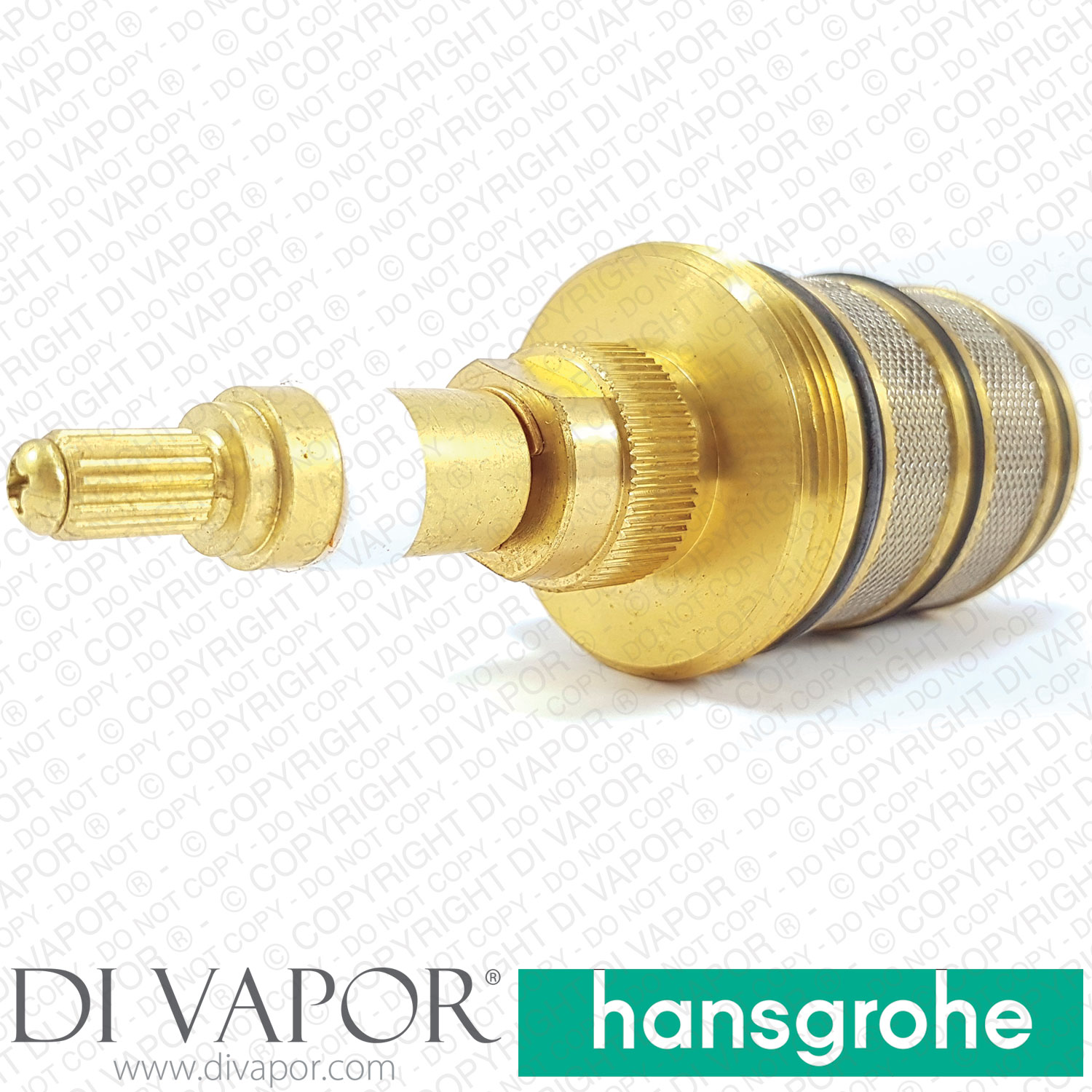

This brass and white cartridge uses a Vernet France Wax Element 5204 and has three o-rings, two filters and a 20-tooth top spline. It should be checked carefully against the cartridge being removed before ordering, especially the overall length, thread width, o-ring positions and top spline details.

Technical Details

- - Total cartridge length: 112.7mm from the top of the spindle to the bottom of the metal body, excluding the wax thermostat element

- - Width at widest point: 41.8mm at the thread

- - Width at top o-ring: 40mm

- - Width at middle o-ring: 38.8mm

- - Width at bottom o-ring: 35mm

- - Number of o-rings: 3

- - Number of filters: 2

- - Material: brass

- - Colour: brass and white

- - Installation type: screw-in

- - Element: Vernet France Wax Element 5204

- - Width of top spline: 7.6mm

- - Number of teeth on top spline: 20

Common Fault Symptoms

- - Symptom: shower temperature is unstable or difficult to control

- - Likely Cause: worn or scaled thermostatic cartridge

- - Solution: compare the removed cartridge with the 94562000 dimensions and spline details before replacing

- - Symptom: shower cannot reach the selected temperature

- - Likely Cause: thermostat element or internal seals are no longer responding correctly

- - Solution: replace the thermostatic cartridge and lubricate the o-rings during installation

Installation Note

Apply WRAS-approved silicone grease to the o-rings before fitting the cartridge. Do not force the cartridge into the valve body if the thread, o-ring positions or spline details do not match the removed part.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
