Crosswater AC4T01ASAS Thermostatic Cartridge
SUMMARY

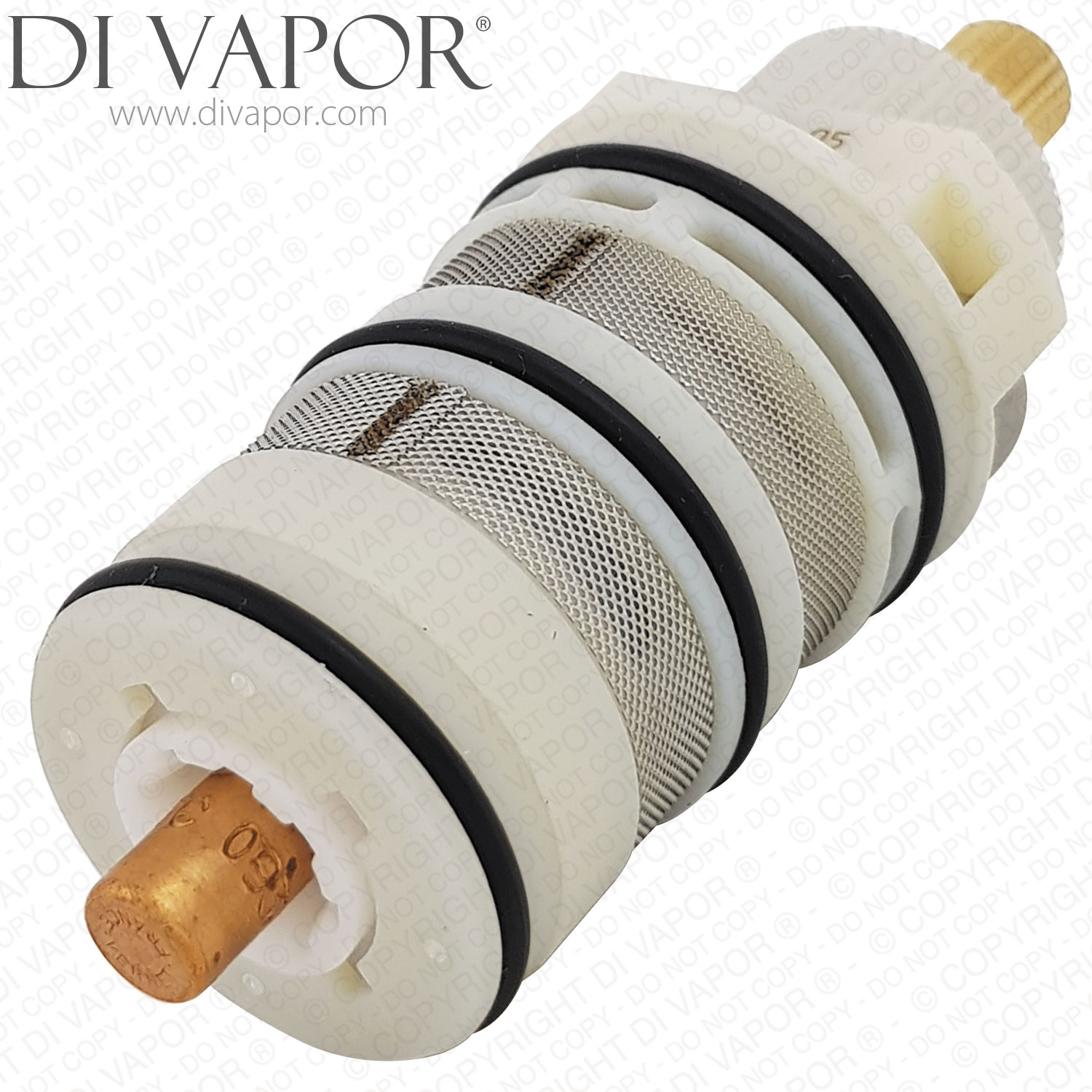

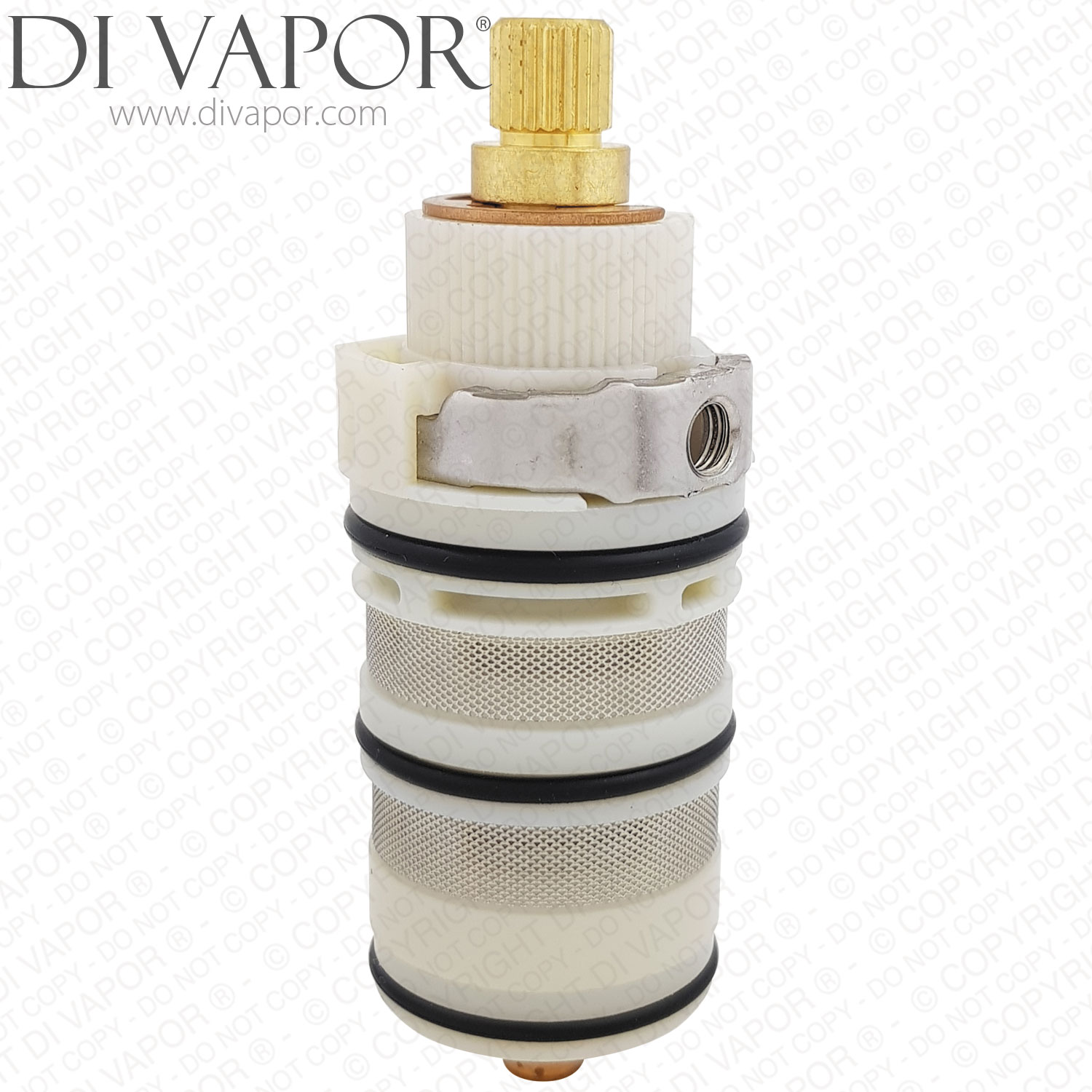

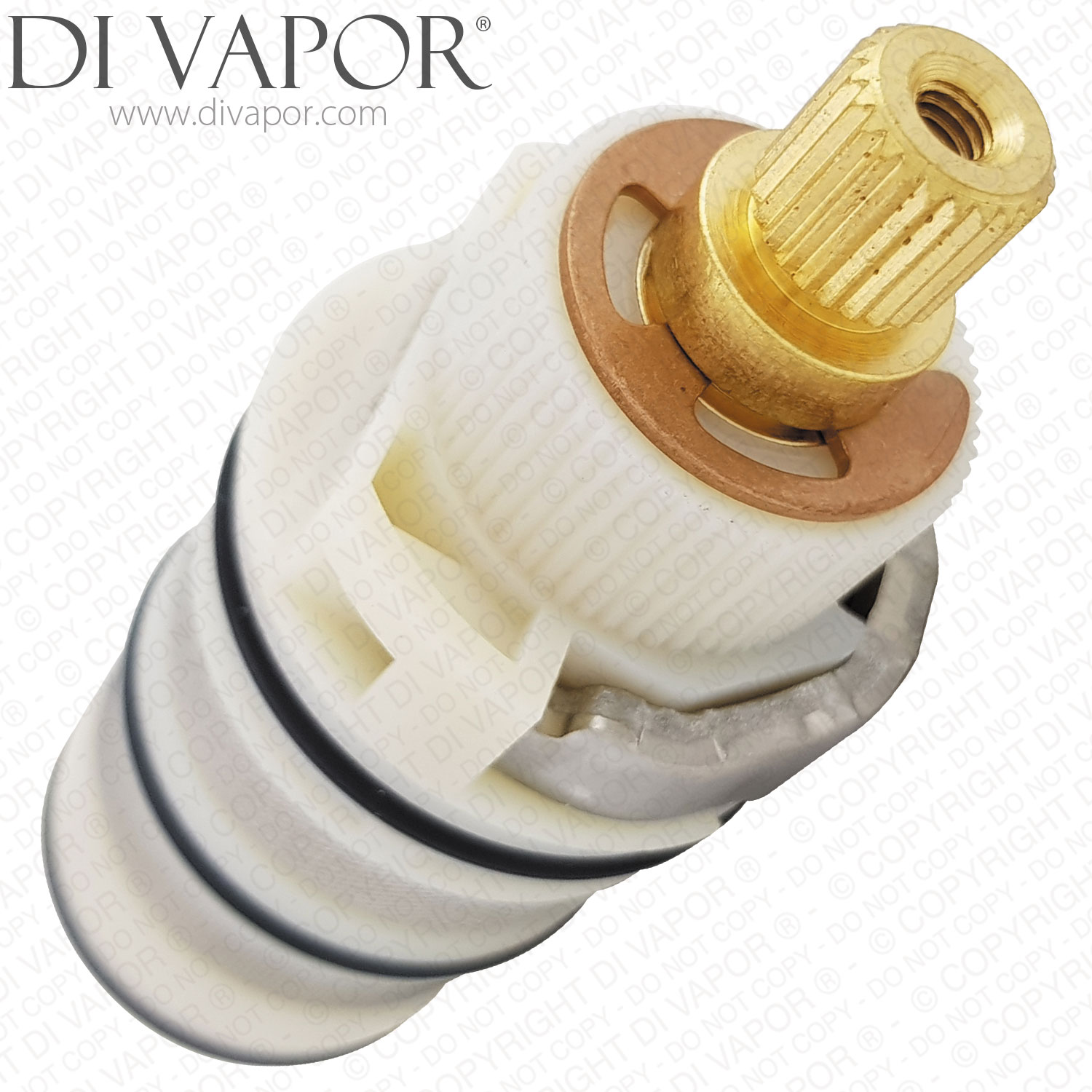

Crosswater AC4T01ASAS Thermostatic Cartridge for RM530WC+ Design Shower
Crosswater AC4T01ASAS thermostatic cartridge for the RM530WC+ Design exposed shower valve with Dial fixed head and pencil handset. This shower is also known as the Crosswater Dial multifunction bar valve.
The temperature handle operates this cartridge to regulate the blend of hot and cold water. Water flow and selection between the fixed head and handset are controlled by a separate flow/diverter cartridge.
Technical Details
- - Part number: AC4T01ASAS
- - Cartridge type: thermostatic temperature control
- - Fitting: push-in with retaining screw
- - Body: white plastic
- - Length excluding the wax thermoelement at the bottom: 81mm
- - Diameter at the widest part: 33.5mm
- - Spline diameter: 9.5mm
- - Spline count: 24
- - Seals: 3 O-rings
- - Gauze filters: 2
Confirmed Compatible Models
- - Crosswater Dial Multifunction Shower Bar Valve
Before You Order
Compare the body shape, dimensions, spline and retaining hole of your existing cartridge with this part before ordering. Check the cartridge itself as well as the shower model, as other thermostat assemblies are also listed for RM530WC+.
Fitting and Temperature Checks
Isolate the hot and cold water supplies before removing the temperature handle, stop ring and cartridge retaining screw. Lightly lubricate the seals with silicone grease and align the cartridge retaining hole with the hole in the valve body before securing it. Refit the stop ring with its stop at the 12 o'clock position, refit the handle and check the temperature setting before use.
If the shower runs only hot or only cold after installation, check that the inlet supplies are connected correctly. If it will not get warm enough, check the temperature stop setting before replacing the cartridge.
Related Spares You May Need
The following are separate service parts and accessories for the RM530WC+ Design shower. Check the existing fittings when ordering a hose, holder or handle.
- - Crosswater AC4D01ASAS Diverter Cartridge
- - Crosswater A018310200 Diverter Handle for RM530WC+
- - Crosswater B20000200 Shower Hose for RM530WC+
- - Crosswater C0700130004 Handset Holder for RM530WC+
- - Crosswater C10002400 Handset for RM530WC+
- - TACSIL 3g Cartridge Silicone Grease - TAC86
If you are unsure which part you need, use our part identification service.
