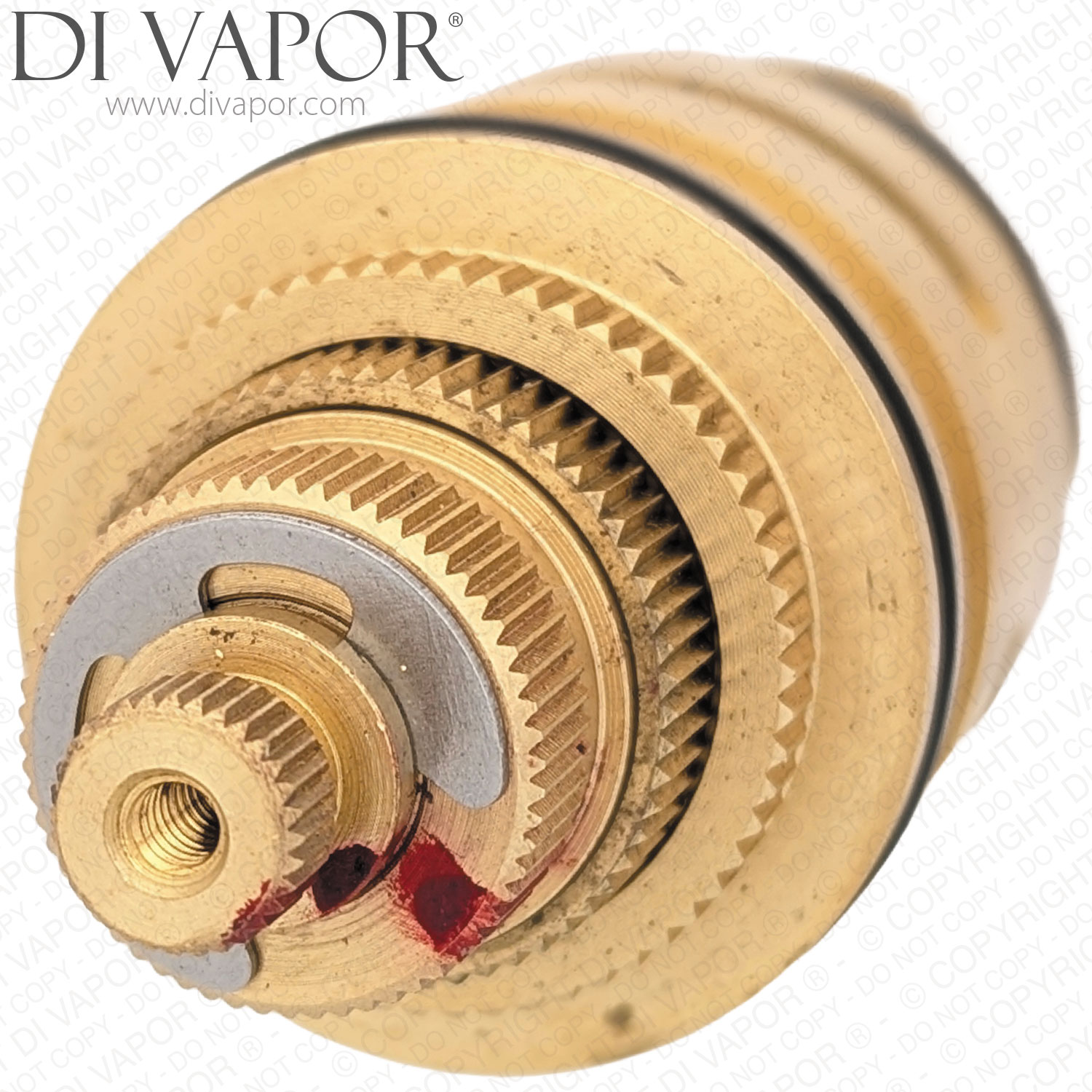

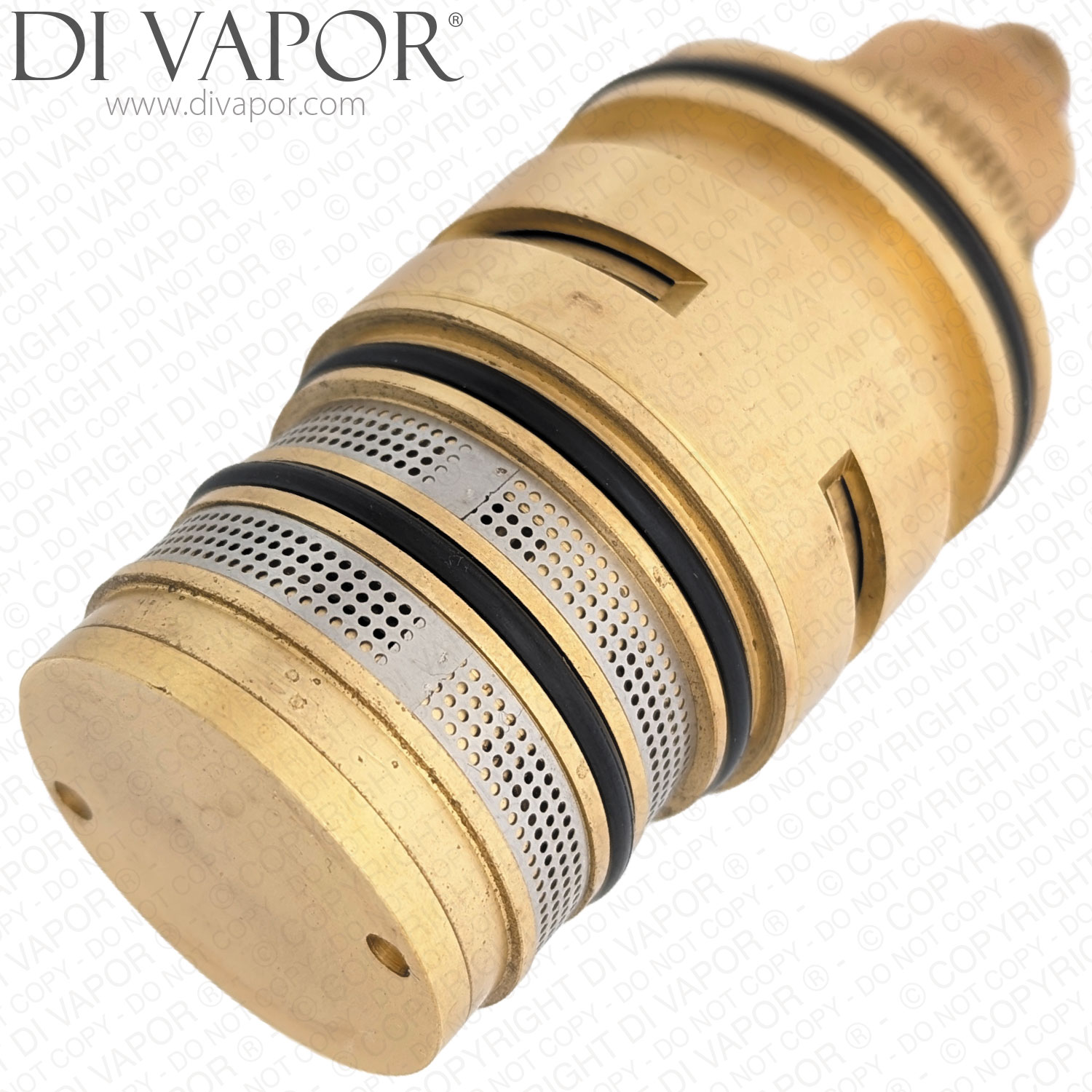

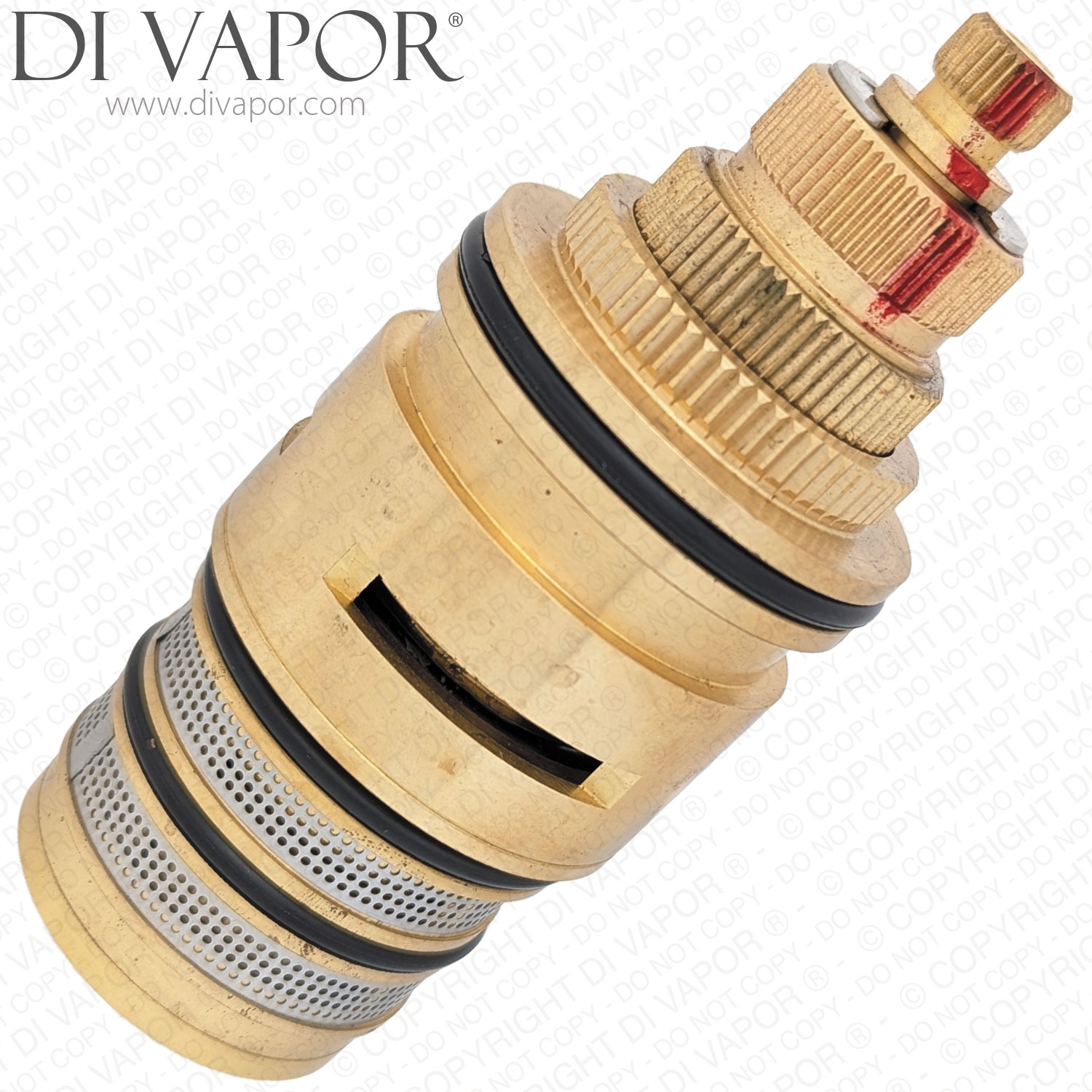

Concentric Thermostatic Shower Cartridge Replacement - 686LU - 32 Spline
Part number: 686LU
Out of stock - Ask a Question now
Price: £164.99
Sale: £120.00
You save: £44.99 (27%)
Price includes UK VAT (Region: UK▼)
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Cartridge Measurements:
| Total Length | 102.8mm |
|---|---|
| Diameter at Widest Point | 43.86mm |
| Diameter at Stop Ring Splines | 33.8mm |
| Top Spline Teeth / Diameter | 32 (10.38mm) |
| Second Tier of Splines Diameter | 22.66mm |
| Third Tier of Splines Top Spline Diameter | 27.86 |
| Fourth Tier of Splines Top Spline Diameter | 34.48 |
| Diameter at Top O'ring | 44.67mm |
| Diameter at Middle O'ring | 41.04mm |
| Diameter at Bottom O'ring | 38.92mm |
