Burlington VQT1 Clyde, Claremont, Anglesey, Birkenhead, Severn Temperature Control Cartridge - VQT1CTX
SUMMARY

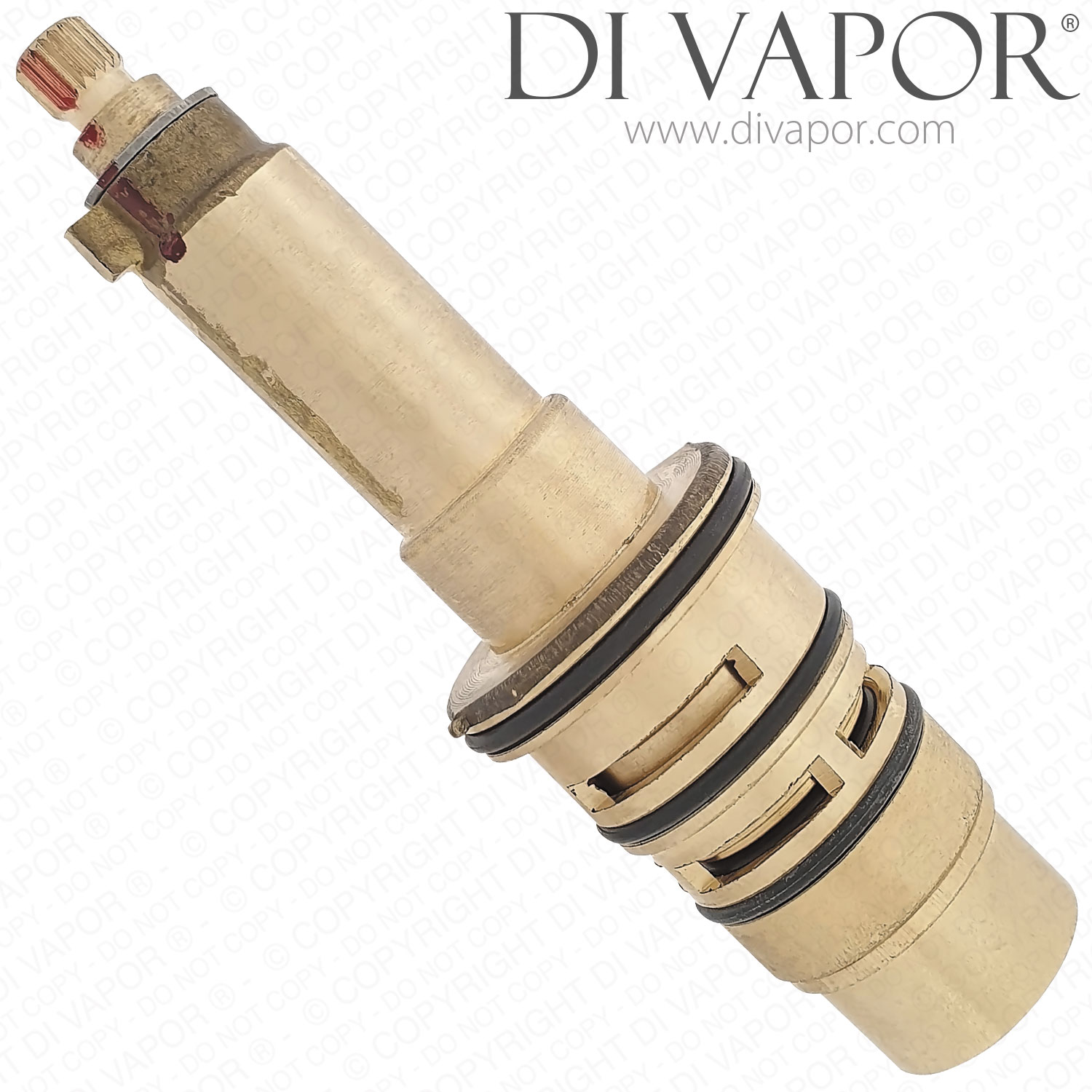

Burlington VQT1CTX is a thermostatic temperature control cartridge for Burlington VQT1 shower valves listed for the Clyde, Claremont, Anglesey, Birkenhead and Severn ranges. It is the temperature-regulating cartridge inside the shower valve and is used to help control mixed outlet temperature from the hot and cold water supplies.
This cartridge is the part to check when the shower temperature is difficult to regulate, runs too hot, runs too cold, fluctuates during use or will not calibrate correctly. Always compare the old cartridge, valve model and part code before ordering, especially where the valve has been serviced previously.
Technical Details
- - Part Number: VQT1CTX
- - Part type: thermostatic temperature control cartridge
- - Application: Burlington VQT1 shower valves
- - Approximate cartridge diameter: 33.36mm
- - Approximate cartridge length: 116.65mm
- - Approximate overall length: 120mm
- - Approximate width: 34.5mm

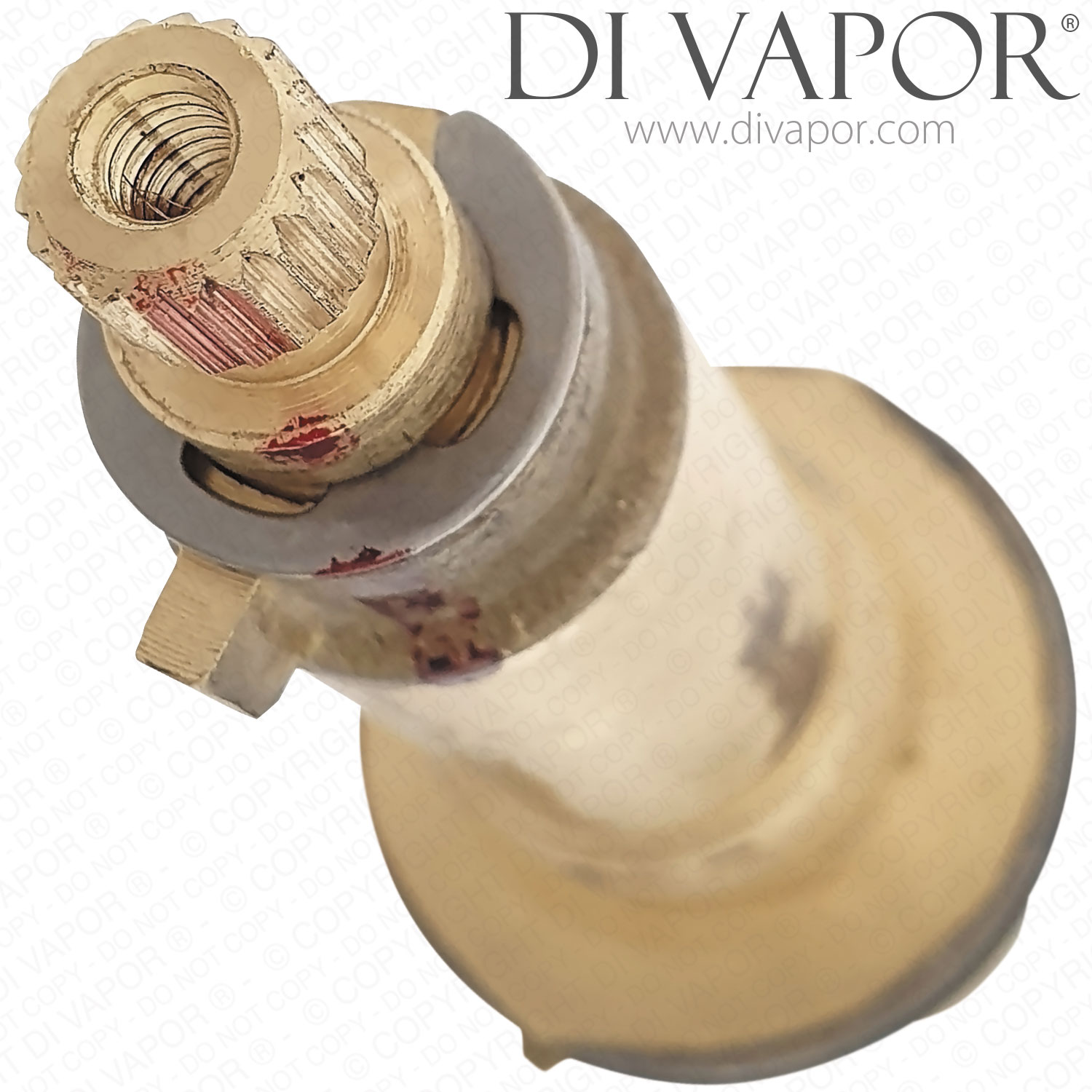

- - Approximate spindle width: 7.8mm
- - Spline detail: 20 teeth

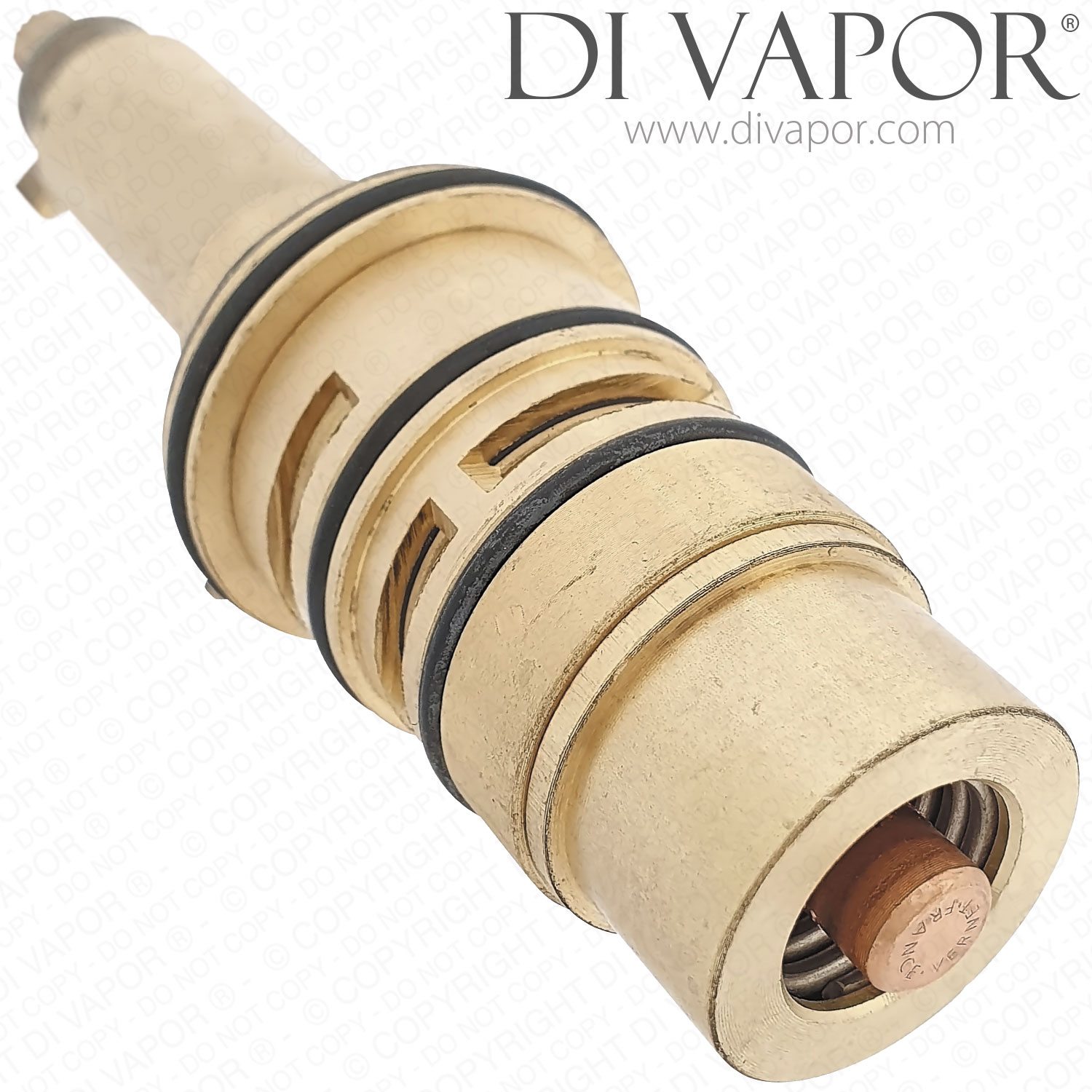

- - Seal detail: 3 o-rings
- - Material detail found for the cartridge body: brass
- - Spline format: long spline with one spline tier
- - Grub screw hole: not present
Installation Notes
Remove the temperature control handle and retaining parts carefully, then withdraw the thermostatic cartridge from the valve body. Clean the valve housing before fitting the cartridge, apply a suitable silicone grease to the o-rings only, and ensure the locating detail is seated correctly before tightening the retaining ring or retaining nut.
Confirmed Compatible Models
- - Burlington H92-BI Clyde Concealed Thermostatic Valve Overflow Filler Slider Rail Kit Spare Parts
- - Burlington H391-CL Wye Exposed Thermostatic Valve Claremont Shower Spare Parts
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Burlington SP726 Thermostatic Control Metal Block for Trent Severn Eden and Spey Shower Valves
- - Burlington SP702 Cover Plate for V4 SF1S SF3S BF1S BF2S and BF3S
- - Burlington SP164 Spline Adapter
- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)
- - Burlington SP315 Shower Valve On/Off Flow Bottom Cartridge - BL-SP315
- - Burlington SP313 On/Off Shower Flow Cartridge (Top Cartridge) - BL-SP313
Before You Order Check
Match the old cartridge to VQT1CTX and check the shower valve model before ordering. If the shower has poor temperature control after fitting, also inspect filters, check valves, supply pressure balance and hot water temperature, as these can affect thermostatic performance.
