Burlington V25 SPABU0015 Thermostatic Cartridge Replacement for Trent, Clyde, Stour and Avon Concealed and Exposed Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
Burlington V25 SPABU0015 Thermostatic Cartridge Replacement for Trent, Clyde, Stour and Avon Concealed and Exposed Shower Valves

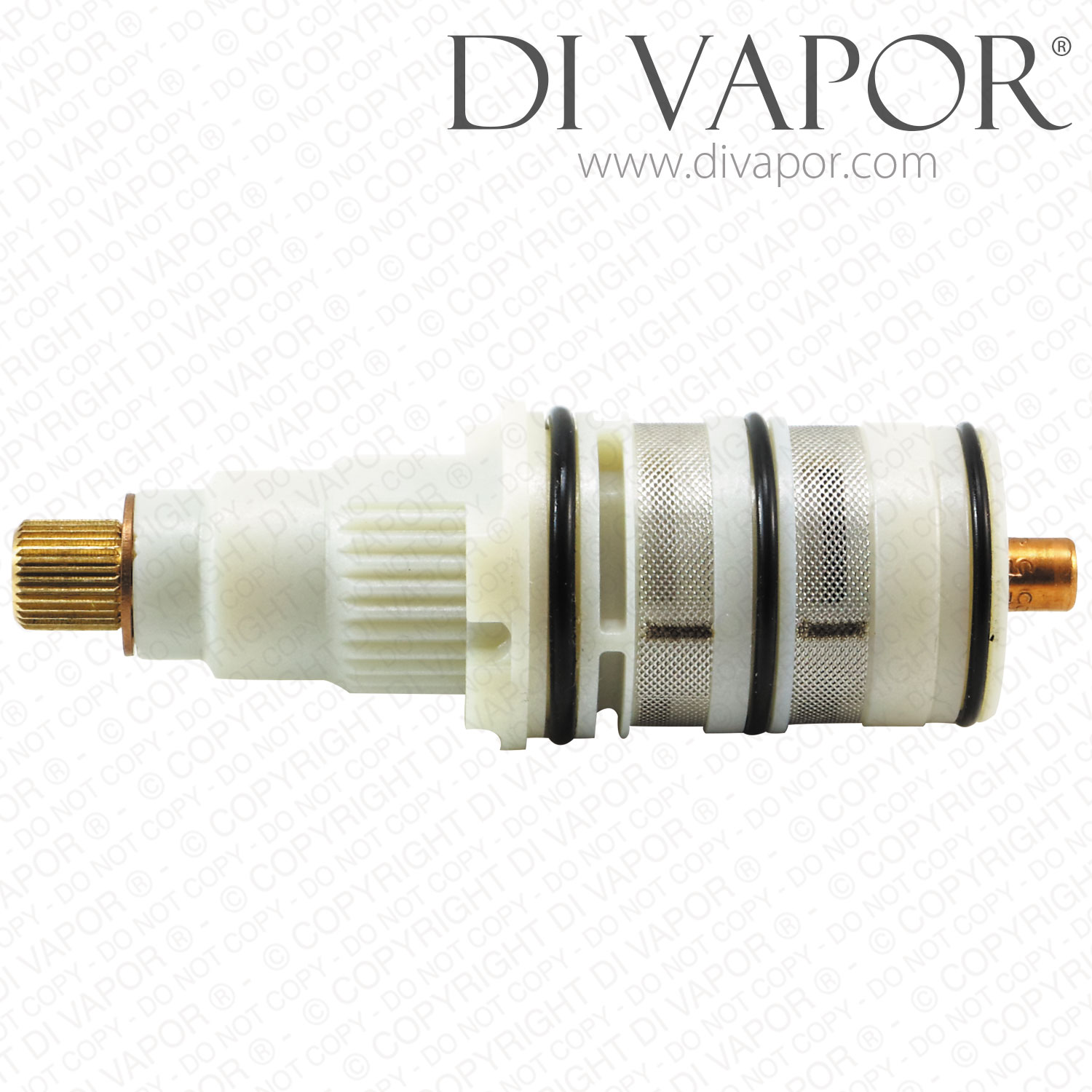

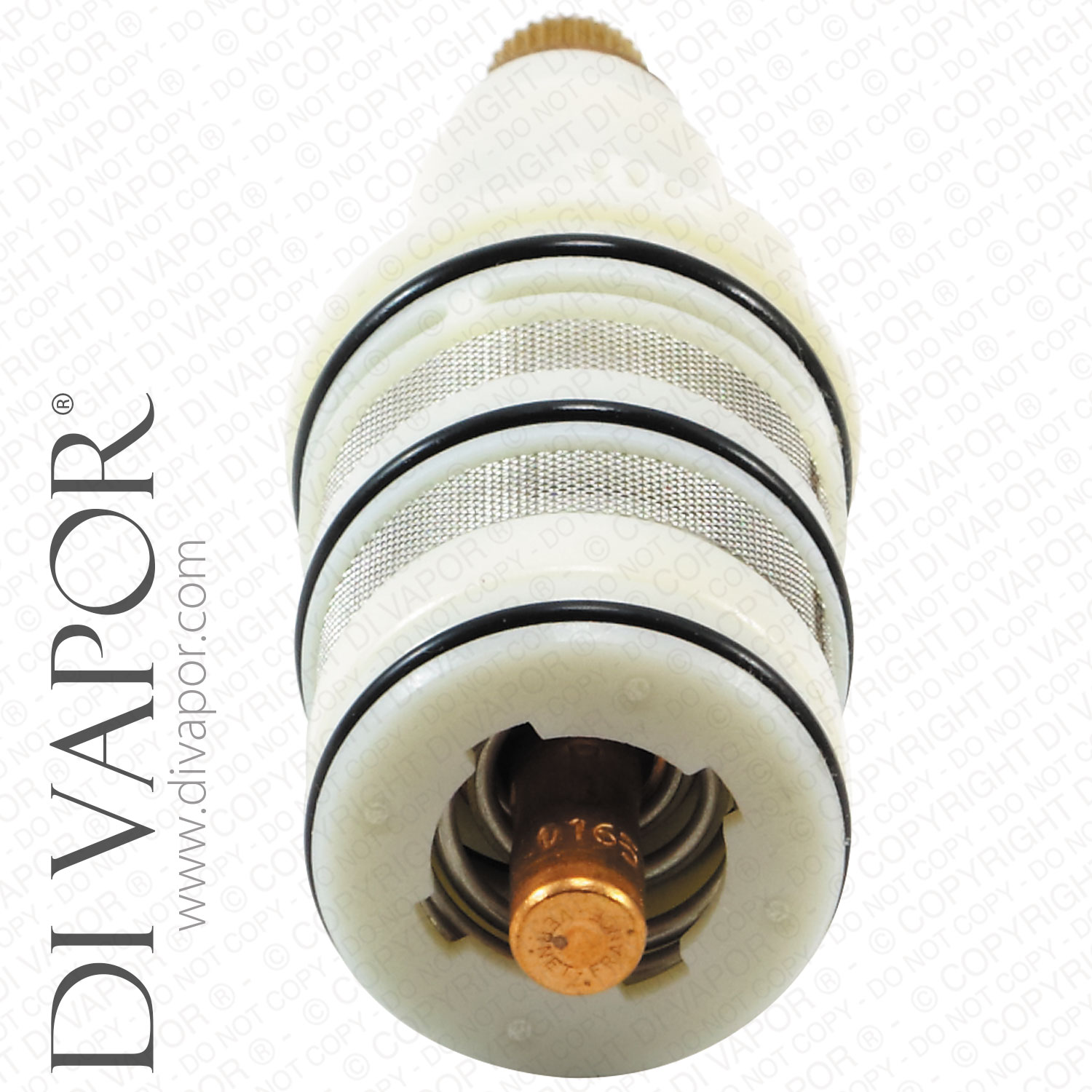

The Burlington V25 SPABU0015 thermostatic cartridge is a replacement temperature control cartridge for selected Burlington Trent, Clyde, Stour and Avon concealed and exposed shower valves. It sits inside the shower valve body and controls the blended water temperature by reacting to changes in the hot and cold water supply.
This cartridge is used when the shower is no longer regulating temperature correctly, runs too hot or too cold, or becomes difficult to adjust through the temperature control handle. Check the existing cartridge shape, code and valve range before ordering, as cartridge dimensions alone should not be used to confirm fitment.
Technical Details
| Brand | Burlington |
|---|---|
| Cartridge code | V25 |
| Additional code | SPABU0015 |
| Di Vapor Part Number | BR-AF3SV25 |
| Part type | thermostatic shower cartridge / temperature control cartridge |
| Cartridge diameter | 32mm |
| Spline count | 24 splines |
| Spline diameter | 9.6mm |
| Overall length | 94.2mm |
| Connection type | push-in |
| O-rings | 3 |
| Material | plastic / nylon |
| Colour | white |
Confirmed Compatible Models
- Burlington Trent concealed and exposed shower valves
- Burlington Clyde concealed and exposed shower valves
- Burlington Stour concealed and exposed shower valves
- Burlington Avon concealed and exposed shower valves
Installation and Checking Notes
Isolate the hot and cold water supplies before removing the old cartridge. Clean the inside of the valve body before fitting the replacement cartridge and lightly grease the cartridge O-rings with a suitable silicone grease to help the cartridge seat correctly and protect the seals during installation.
