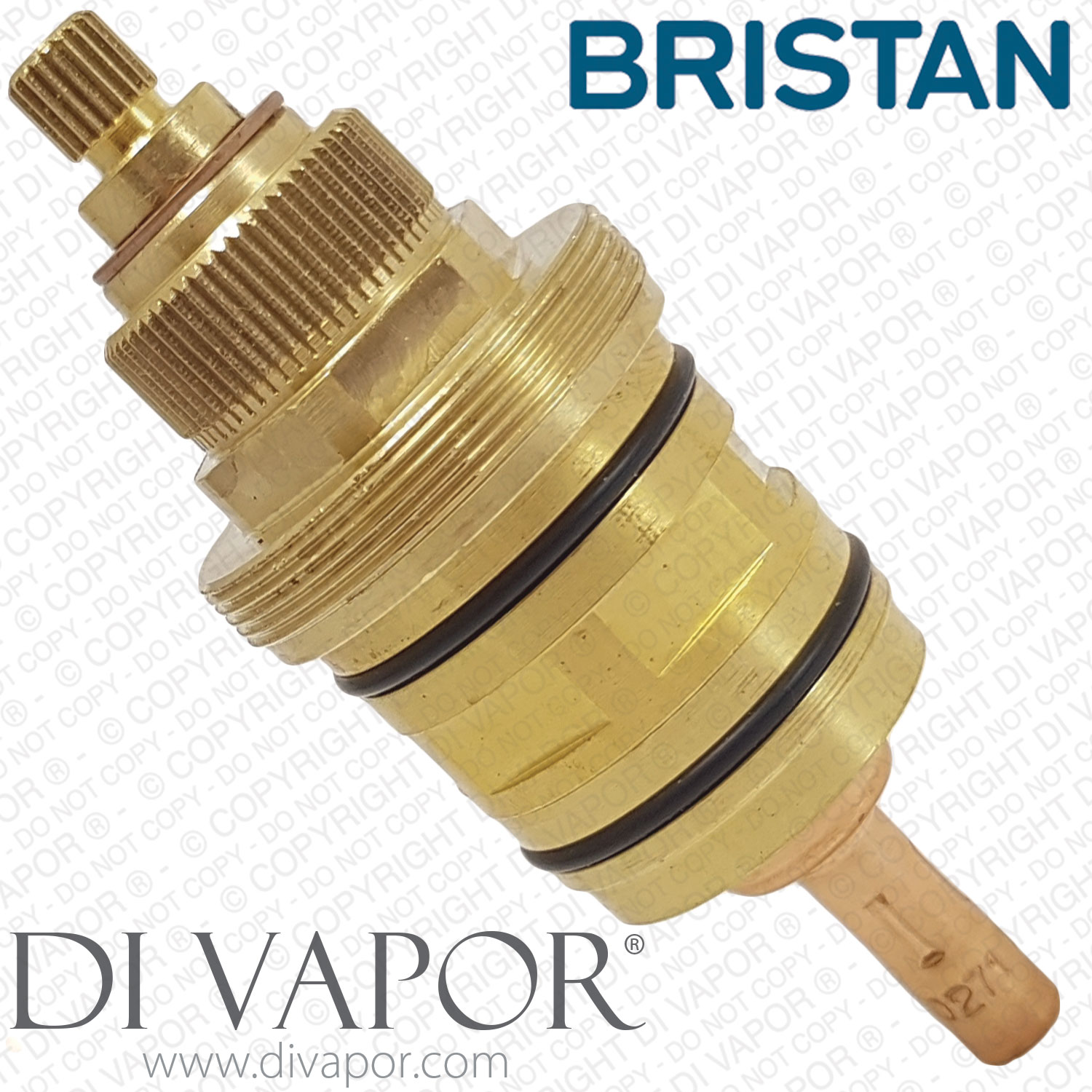

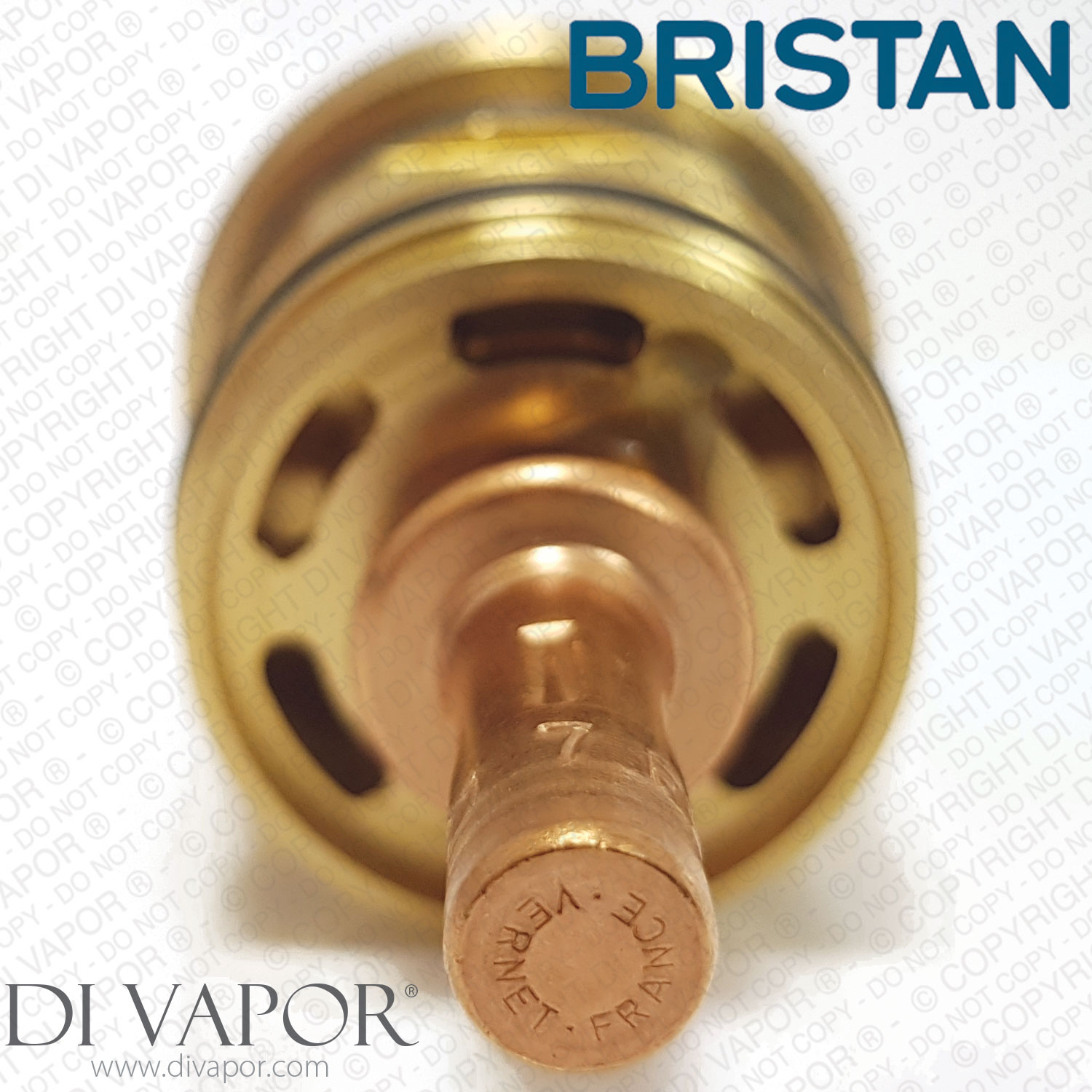

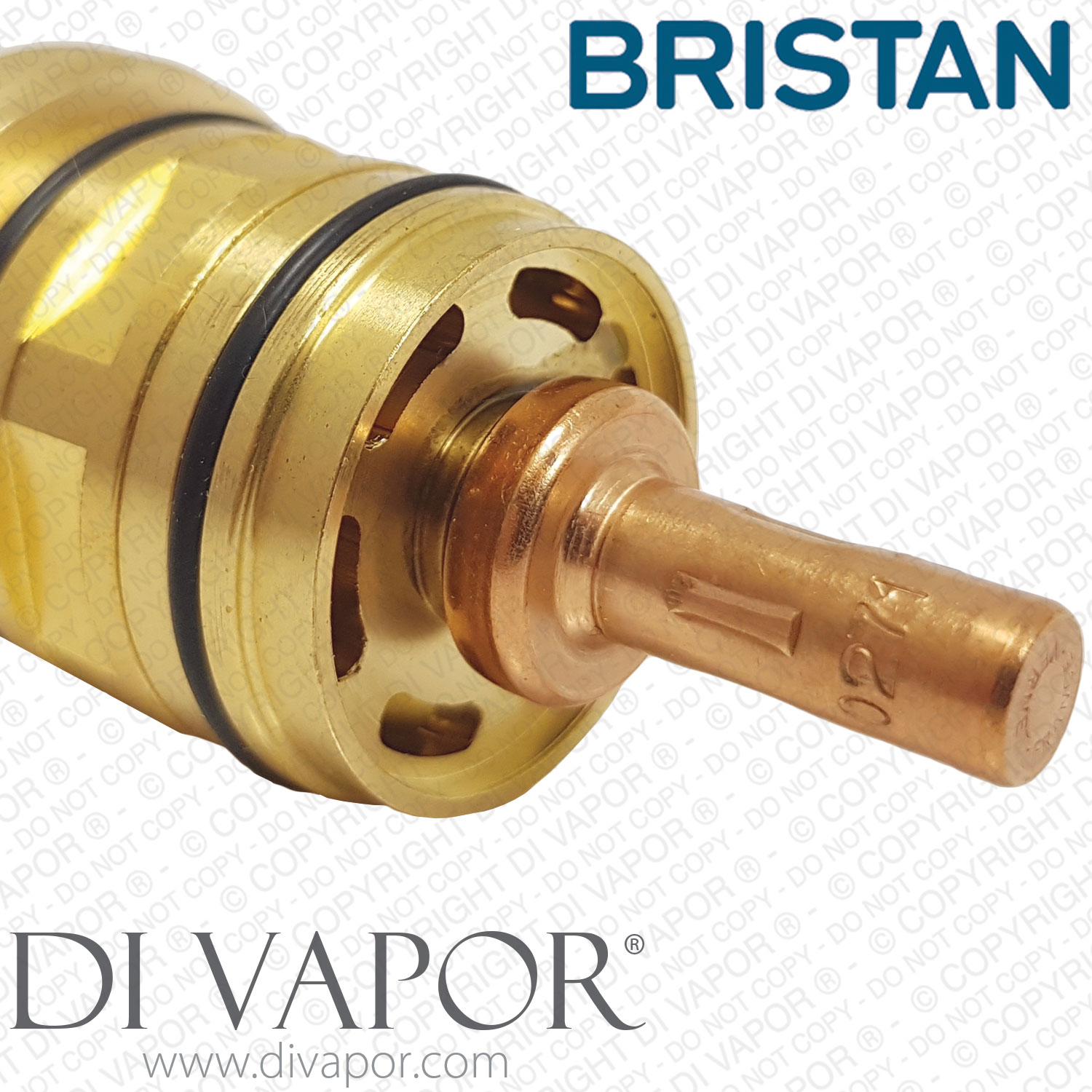

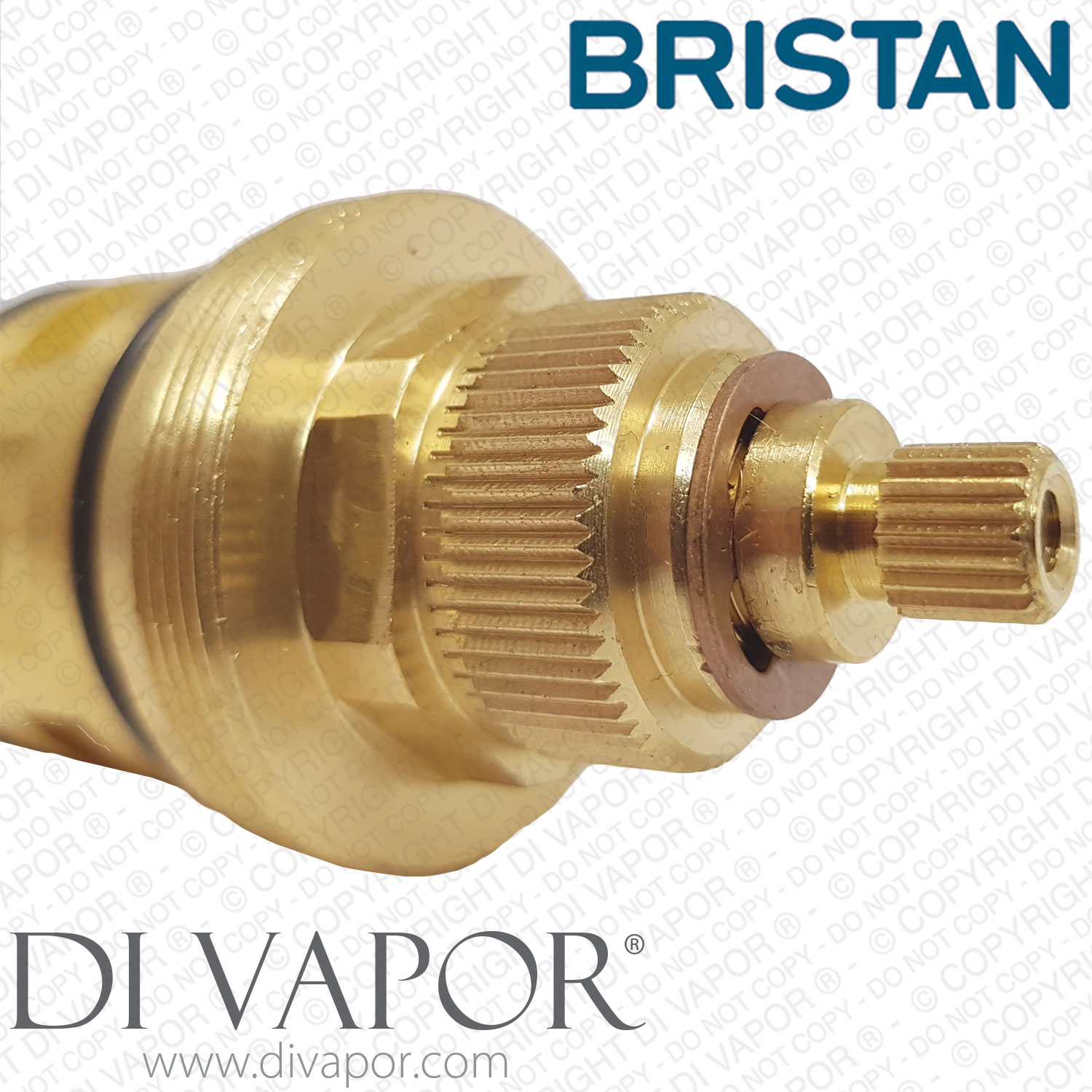

Bristan 00650372 Screw Thermostatic Cartridge (Threaded) for Easitherm Controlled Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
This cartridge is in immediate stock. Bristan 00650372 Screw Thermostatic Cartridge (Threaded) for Easitherm Controlled Shower Valves
| Screw Thread Diameter | 35.6mm |
|---|---|
| Temperature Stop Ring Diameter | 22.7mm |
| Top Spline Diameter | 7.6mm |
| Used in | J CSHUAR C amongst other Quest and Artisan exposed valves |
| Frequently Asked Questions | Bristan Shower Cartridge 00650372 |
Question: How do I remove the thermostatic cartridge from the shower?
Answer: Here is the process for removing the Bristan 00650372 thermostatic cartridge from the Easitherm:
1. Remove the screw cap.
2. Use a hexagonal key to undo the grub screw and remove the temperature handle.
3. Use a screwdriver to undo the screws and remove the flow control handle.
4. Use an adjustable spanner to remove the retaining ring.
5. Slide out the stop ring.
6. Use a box spanner to remove the Bristan 00650372.
Note: Coat the O-ring of the replacement cartridge with plumber’s silicone grease before installing it.
Question: I can only change the water temperature using the flow control knob, not the temperature knob. Do I need a new Bristan shower cartridge 00650372?
Answer: Difficulty regulating water temperature can be one of the signs the thermostatic cartridge has become faulty. It seems you might need to replace the shower cartridge.
Is the Bristan 00650372 the shower cartridge you are looking for?
- Please use our Find a Part so we can help you identify the right spare part for your Bristan shower.
