Brass Screw-Fit with Threads Shower Thermostatic Cartridge (GF78917)

SUMMARY

Brass Screw-Fit with Threads Shower Thermostatic Cartridge (GF78917)

IMPORTANT - Please note, the pitch of the thread on this cartridge is very specific. Please make sure that if you are buying this cartridge that it is exact like for like.

Cartridge Measurements:

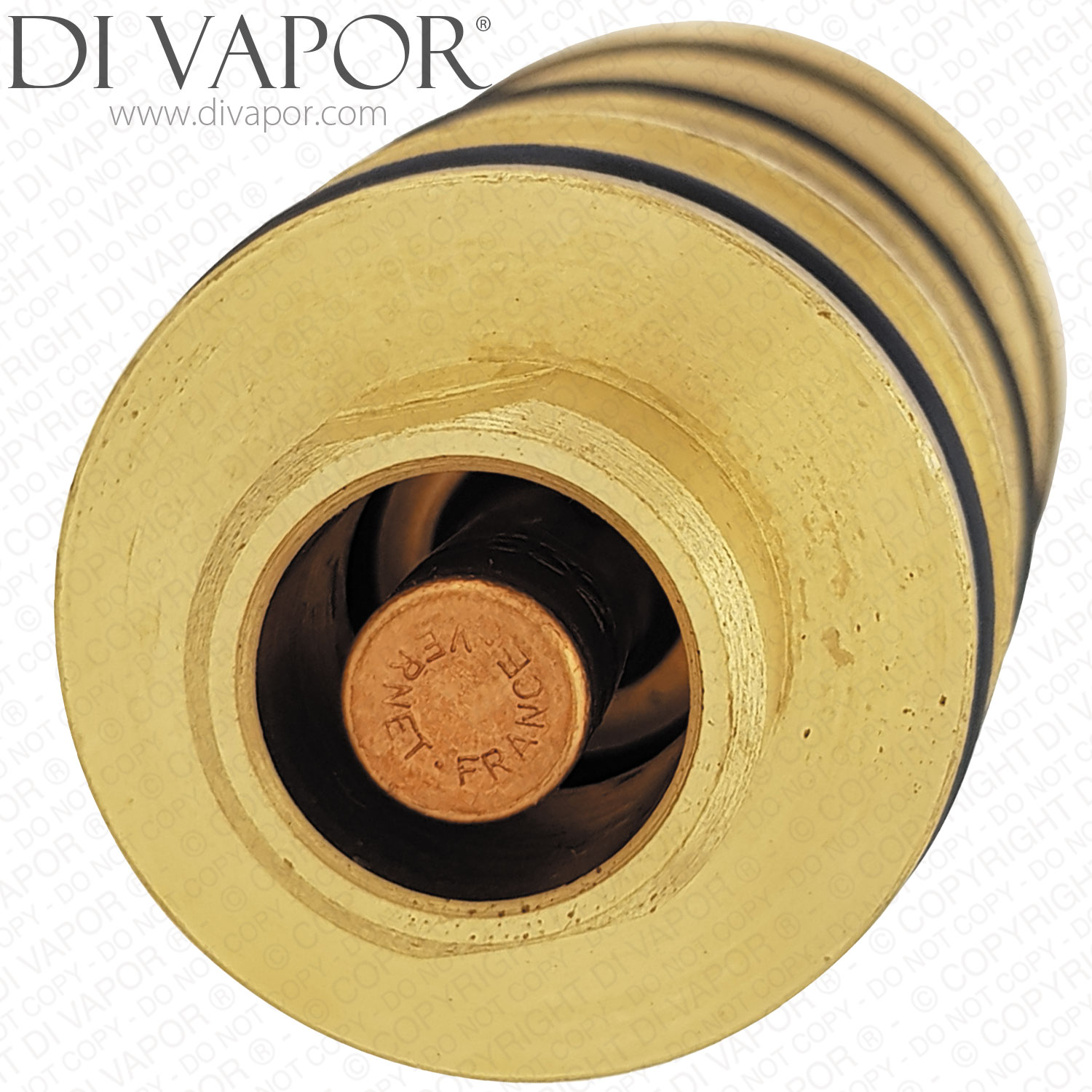

Total Length: 93.4mmmm (including wax thermostat at bottom)
Diameter at Widest Point: 33.9mm
Diameter at Thread: 33.8mm
Stop Ring Spline Diameter: 22.7mm
Top Spline Diameter: 9mm
Top Spline Teeth / Notches: 24
Diameter at Top O'ring (Below Thread): 33.1mm
Diameter at Middle O'ring: 32mm
Diameter at Bottom O'ring: 30mm
Fitting Type: Screw Fit
Colour: Brass
