BB12526X Thermostatic Cartridge for Better Bathrooms EcoCube Concealed Dual Control Shower Valve with Diverter (12526)

SUMMARY

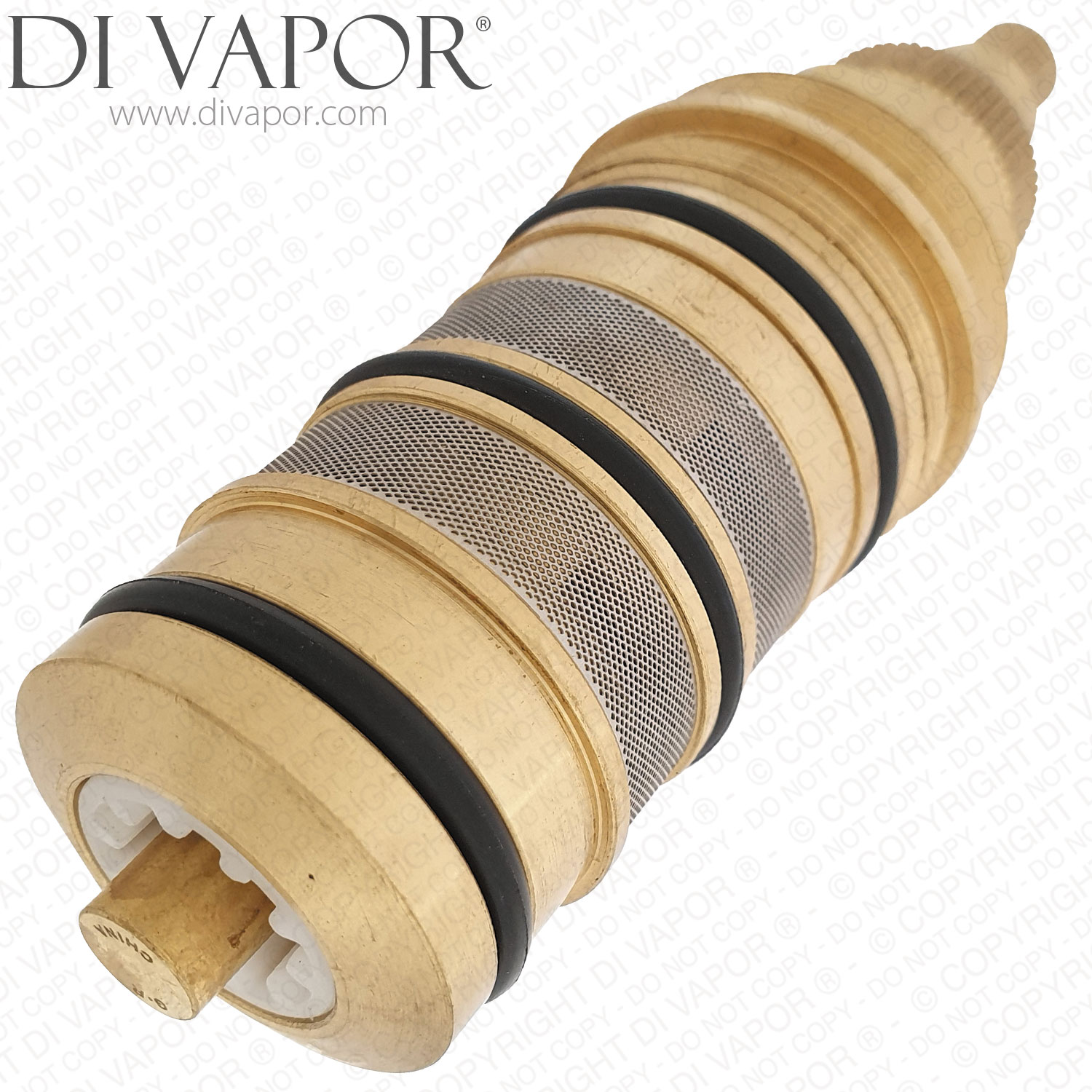

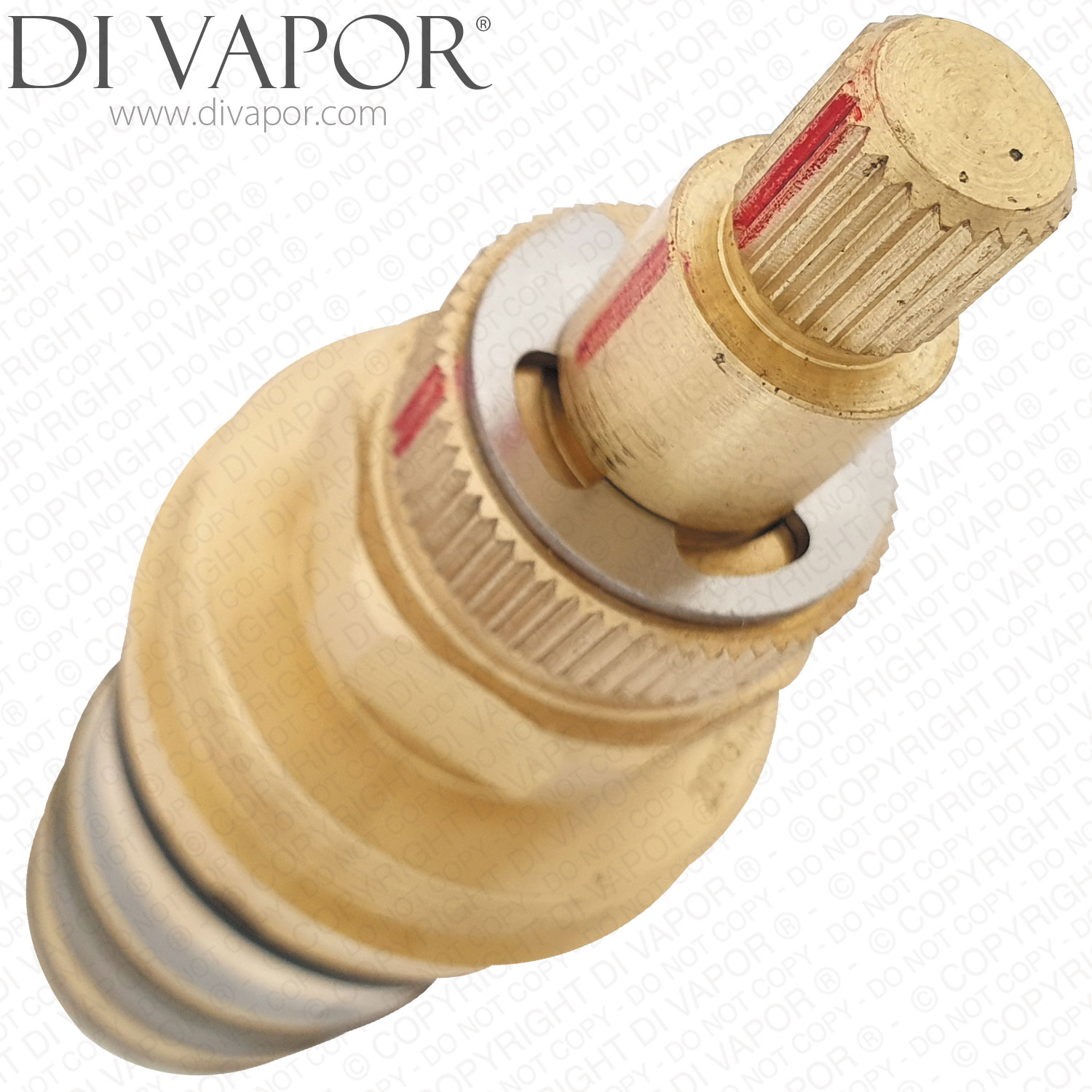

BB12526X is a thermostatic cartridge for the Better Bathrooms EcoCube 12526 concealed dual control thermostatic shower valve with diverter. This cartridge sits inside the shower valve body and controls the thermostatic mixing function so the valve can regulate the blend of hot and cold water.

The EcoCube 12526 valve is a concealed square-style thermostatic shower mixer with separate controls for flow or diverter operation and temperature adjustment. Replace the thermostatic cartridge when the valve no longer holds a stable showering temperature after checks for supply pressure, debris, limescale and correct hot and cold pipe orientation have been completed.

Technical Details

- - Part number: BB12526X

- - Part type: thermostatic cartridge

- - Valve application: Better Bathrooms EcoCube 12526 concealed dual control shower valve with diverter

- - Valve style: concealed thermostatic shower mixer

- - Valve controls: separate flow or diverter control and temperature control

- - Valve finish: chrome

- - Valve construction: brass body with copper material noted for the complete valve

- - Valve dimensions: 200mm height x 130mm width x 117mm depth

- - Valve inlet and outlet details from installation data: 1/2 inch male inlets and 3/4 inch female outlet

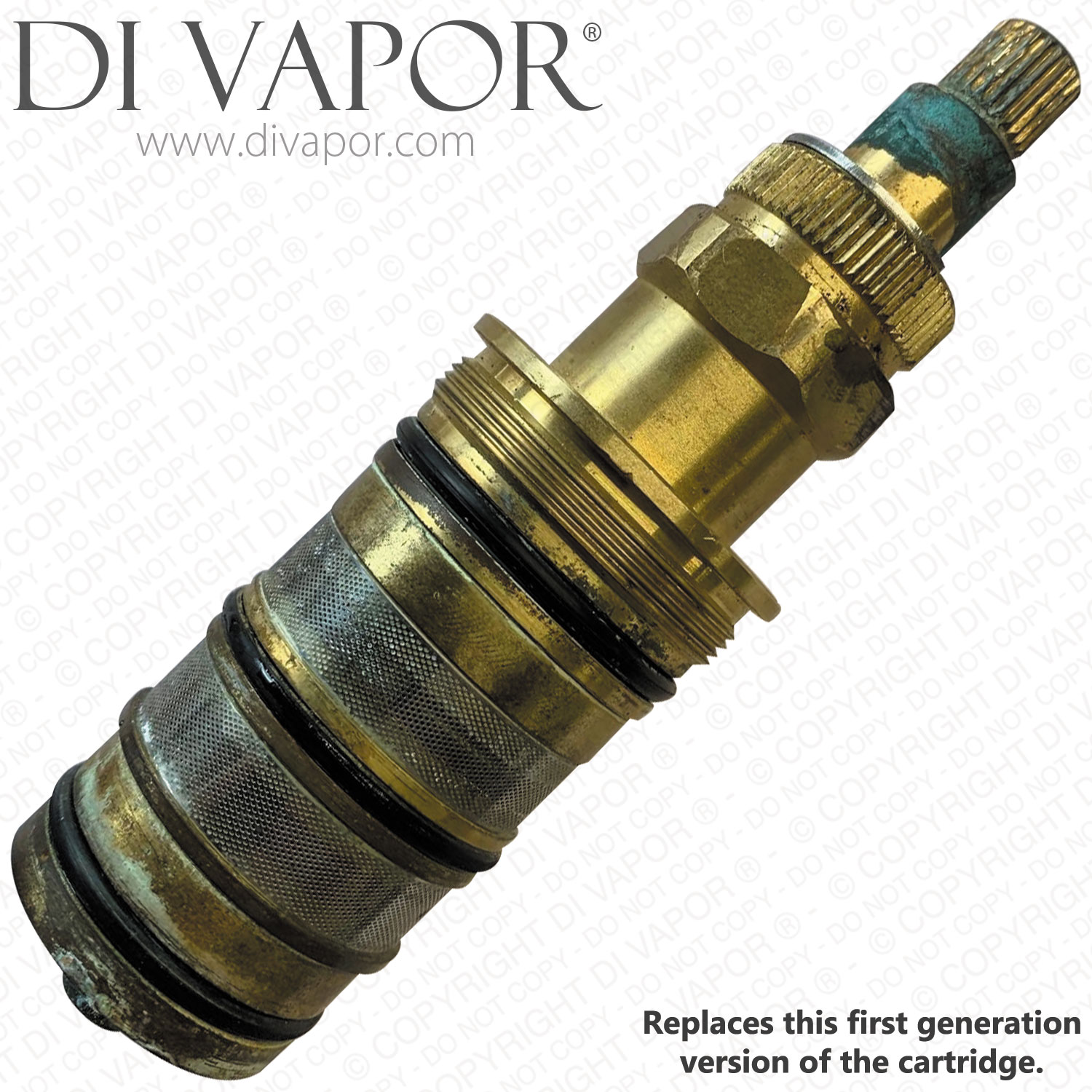

Before ordering, compare the existing cartridge, handle spline connection, stop ring and valve layout with the product photos. The installation data notes that hot supply should be on the left and cold supply on the right, and that poor flow or unstable temperature can also be caused by blocked filters, debris, limescale or supply pressure issues.

Confirmed Compatible Models

- - Better Bathrooms EcoCube Concealed Dual Control Shower Valve with Diverter 12526

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Temperature Stop Ring - GS6672

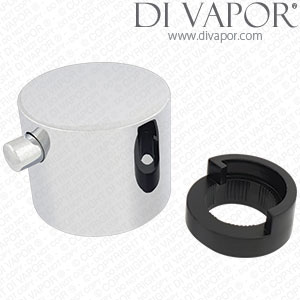

- - Better Bathrooms Shower Valve Flow Control Handle

- - Square Shower Valve Temperature Control Handle (38285YC) - 24 Spline

- - Better Bathrooms Shower Valve Flow Cartridge - Clockwise Open - 80mm - 24 Spline

- - Better Bathrooms Shower Valve Flow Cartridge - Anti-Clockwise Open - 80mm - 24 Spline - BB66566

- - 50mm x 50mm Square Shower Valve Flow Control Handle (3867G3) - 24 Spline
