Summary

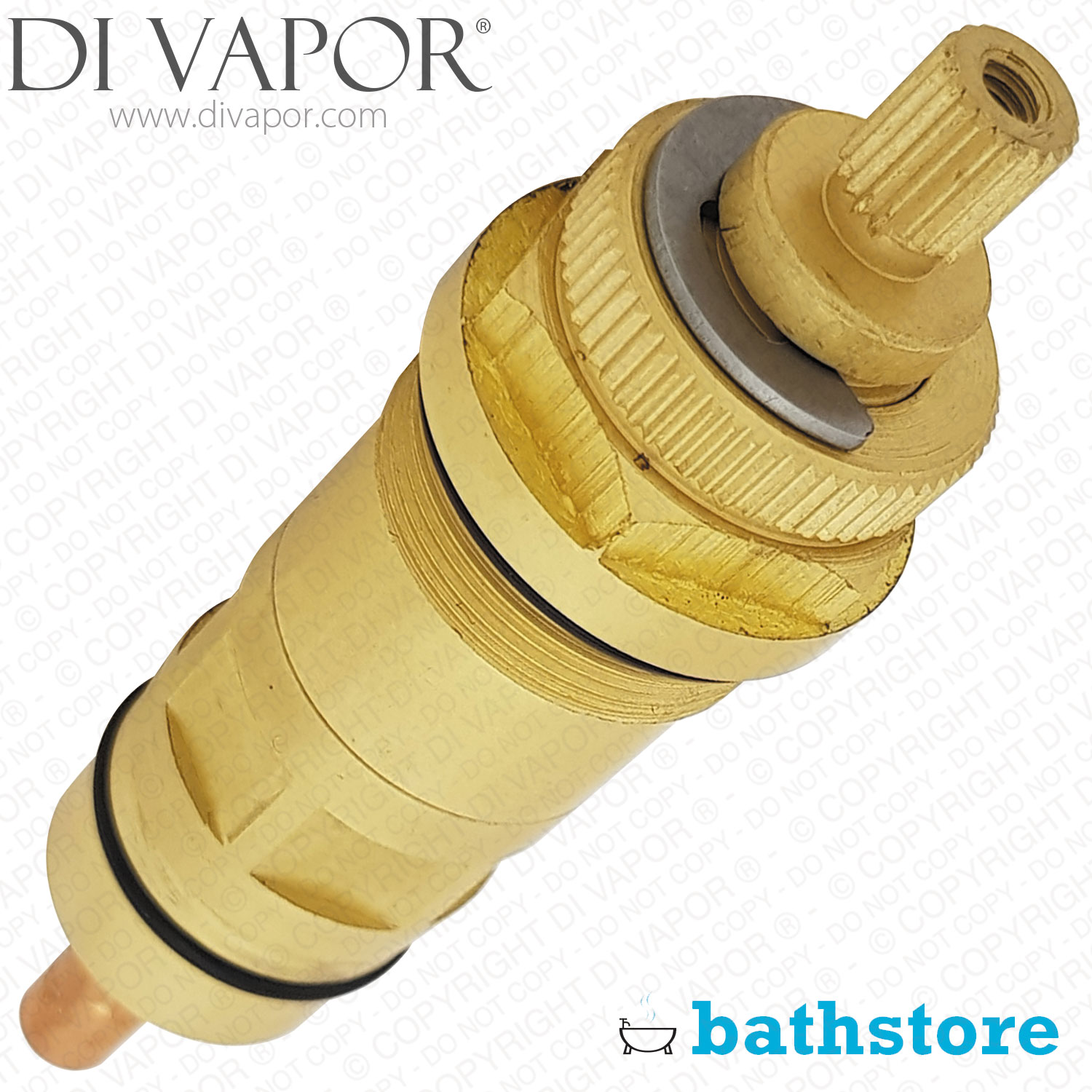

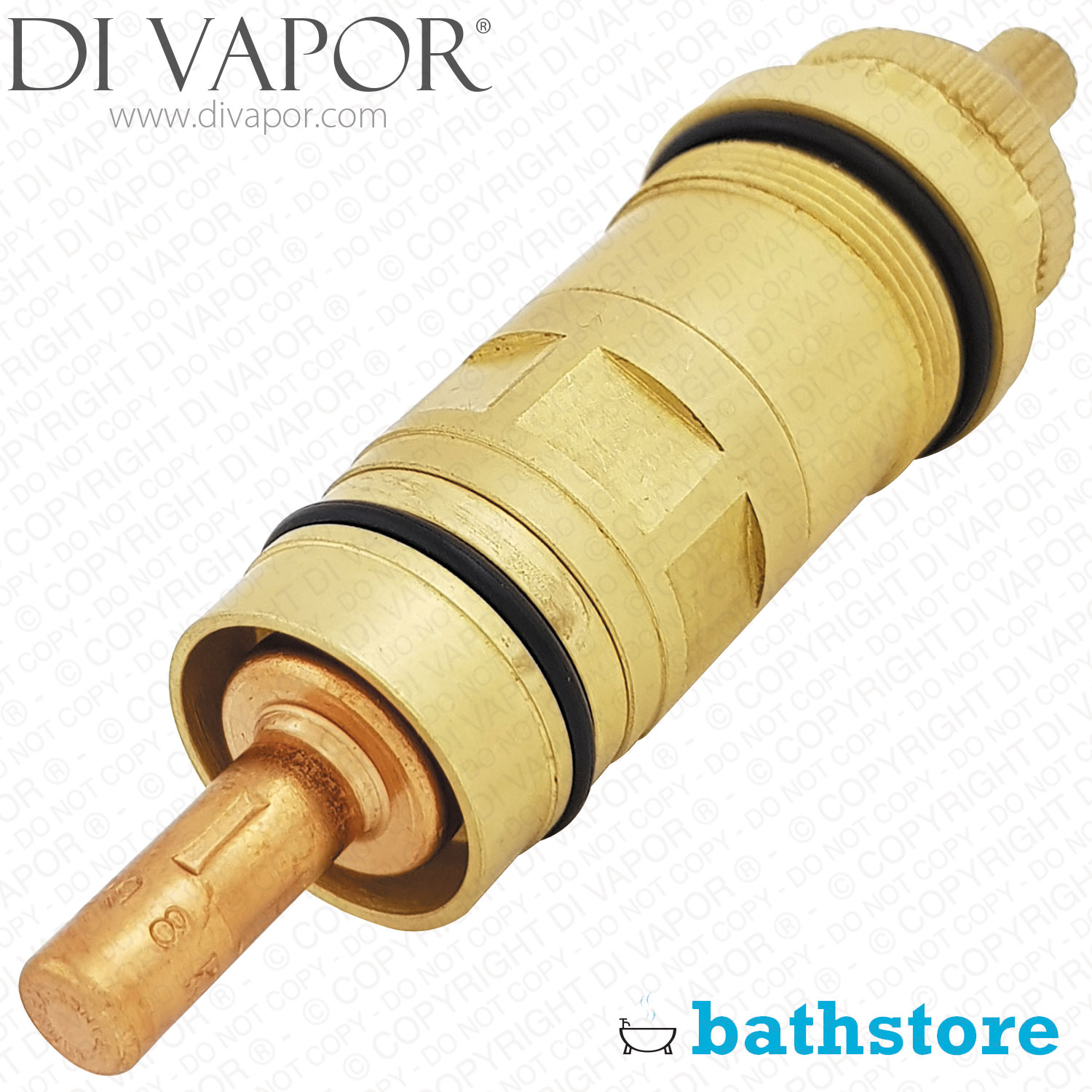

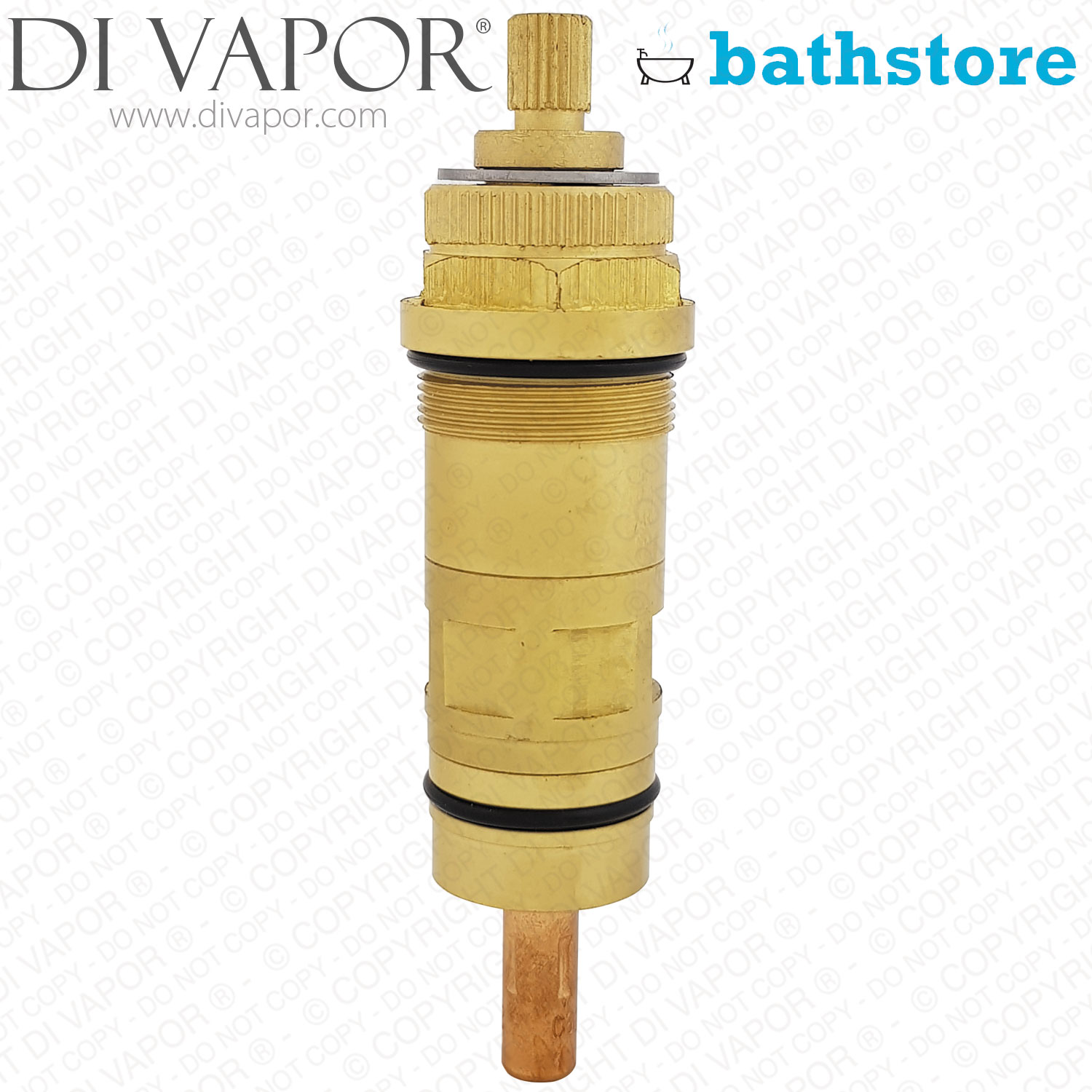

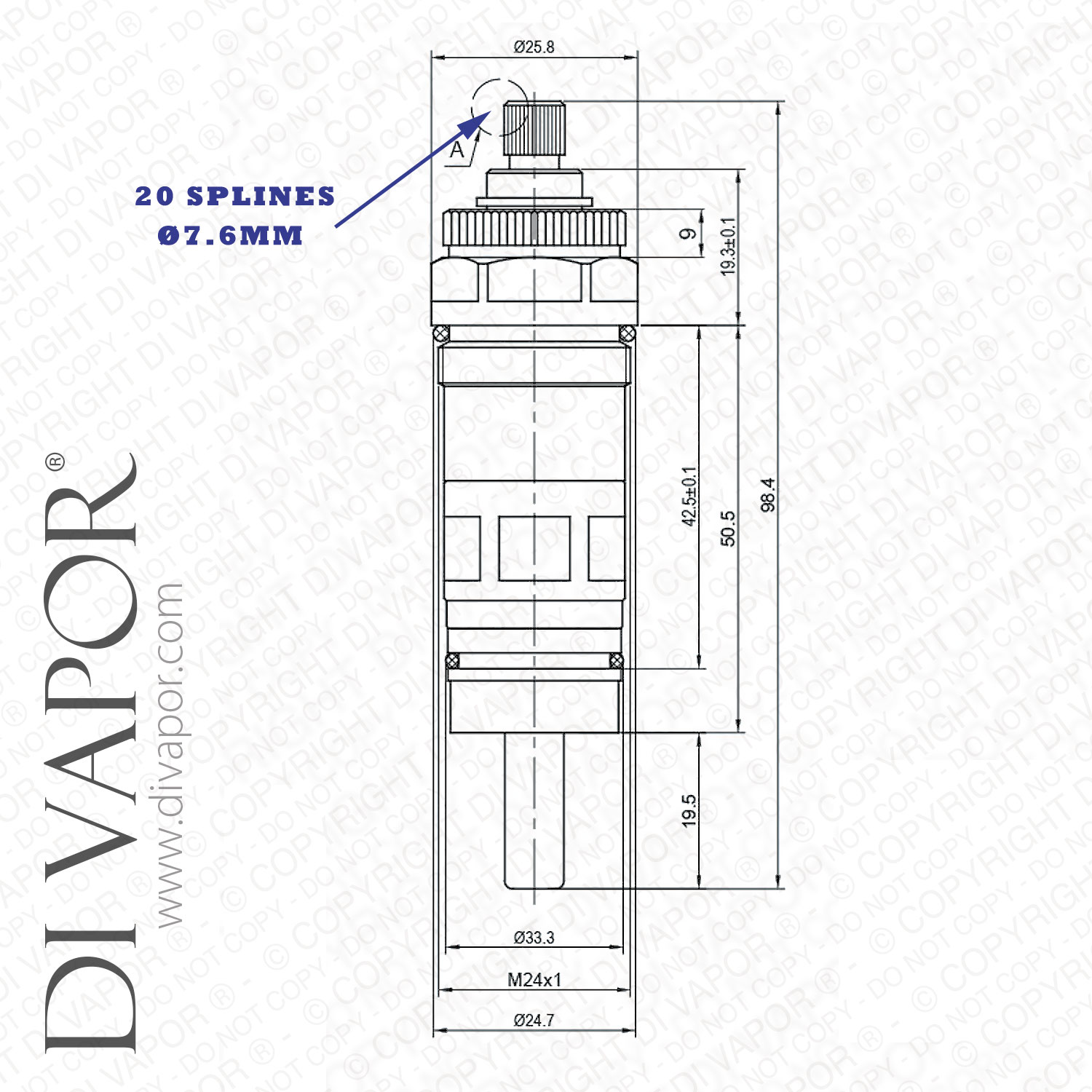

Bathstore 90098292718 Thermostatic Cartridge for 20007015010 and Bathstore Blade Bar Valves (20 splines)

Frequently Asked Questions: Bathstore 90098292718 Thermostatic Cartridge

Question: How do I open the Bathstore 20007015010 and replace the cartridge?

Answer: These are the steps for installing the Bathstore 90098292718 thermostatic cartridge in the Thermostatic Bar Valve:

1. The screw cap is under the temperature control handle. Remove this and undo the screw. Remove the handle.

2. Remove the spline adapter and the stop ring. (Please take note of the position of the stop ring’s stop part.)

3. Unscrew the old cartridge with a spanner.

4. Grease the O-rings of the replacement Bathstore thermostatic shower cartridge 90098292718. Only use silicone lubricant made for plumbing purposes. Please jump to the bottom of the page to see the available plumber’s silicone grease.

5. Insert the cartridge in the Bathstore shower mixer bar valve. Set it in place by turning the spanner clockwise. Be careful to not overtighten.

6. Restore the stop ring with the stop pointing at 12:00.

7. Restore the spline adapter, the handle, the screw and screw cap.

Question: Our 20007015010 shower is stuck on cold. Is the temperature cartridge faulty?

Answer: To diagnose if your shower needs a new Bathstore 90098292718 thermostatic cartridge:

1. Check your shower’s hot and cold feeds. The shower should be getting a steady inflow of hot and cold water.

2. If the feeds are okay, the Bathstore shower cartridge might have stopped functioning. A replacement cartridge is a likely solution.

Question: Clicking sound every time the temperature handle is turned. What does this mean?

Answer: There is a possibility the thermostatic cartridge is broken. This Bathstore 90098292718 is the thermostatic cartridge replacement for the Bathstore 20007015010 bar shower.

If you have a different shower valve and are looking for shower spares, please contact us via our Find a Part service. We will personally respond to your queries and assist you in the best way we can.

Feel free to browse through Di Vapor’s vast catalogue of Bathstore spares:

• Shower cartridges
• Shower door handles
• Shower valves

All shower repair supplies purchased before 3:00 PM will be shipped out on the same working day.
