Bathstore 90000014070 Thermostatic Cartridge for Metro Valves
Send a photo of your item and we'll help confirm it.
Summary

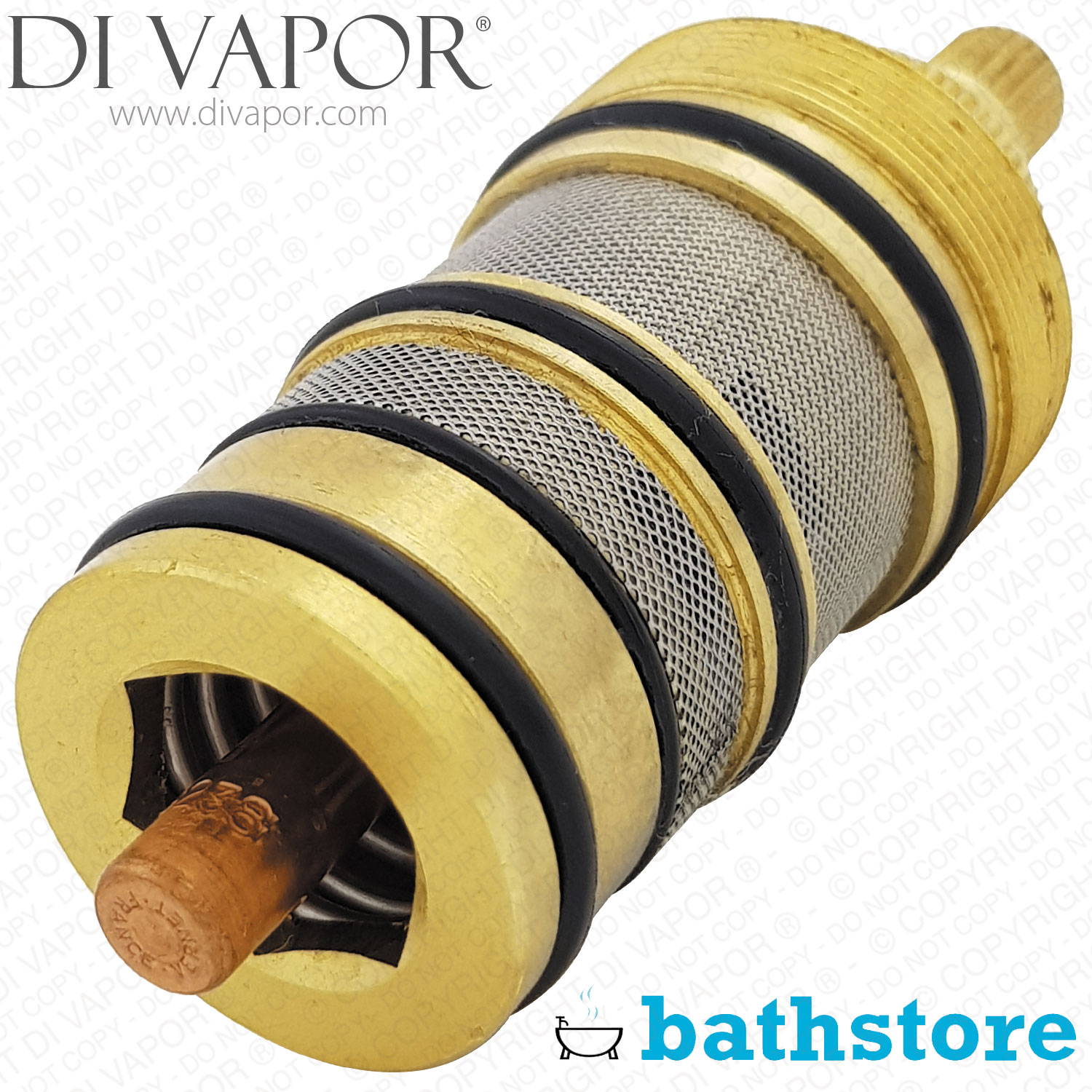

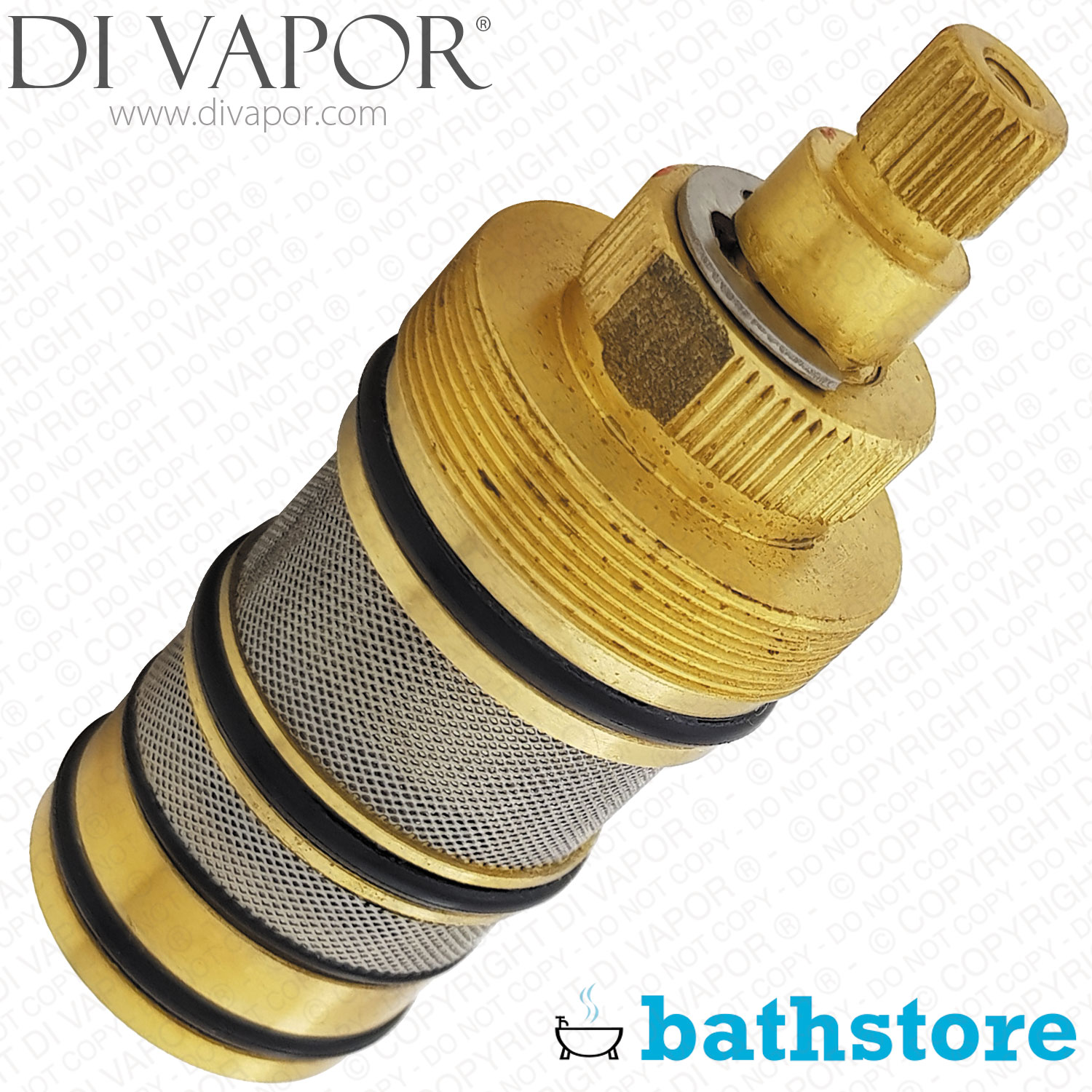

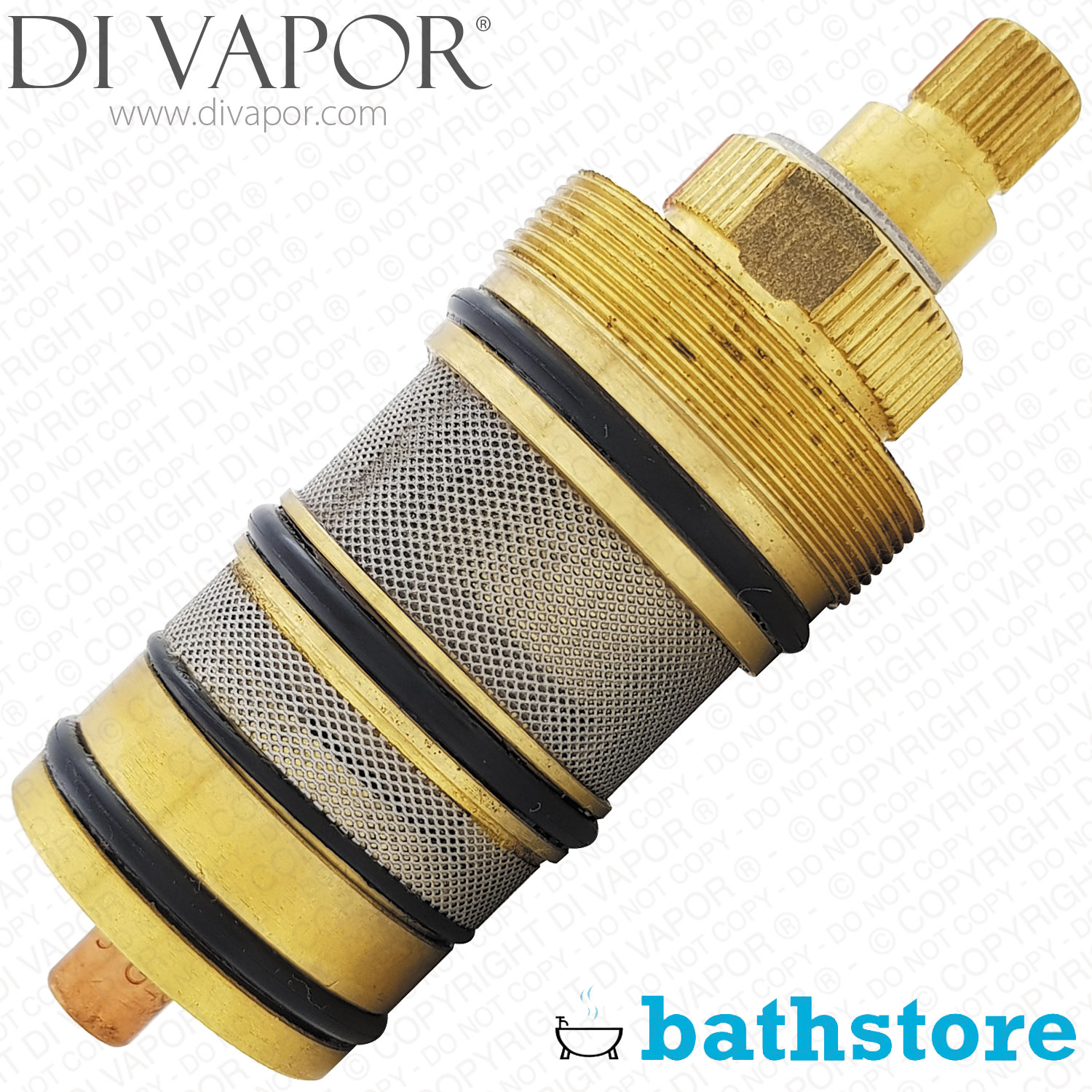

Bathstore 90000014070 Thermostatic Cartridge for Metro Valves.
This Bathstore cartridge spare measures:
| Total Length | 83mm and 91mm to the end of the thermostat element. |
|---|---|
| Max Diameter | 33.3mm for top o ring and 33.7mm for thread |
| Bottom O Ring Diameter | 30.1mm |
| Number of Gauze Filters | 2 |
| Number of Spline Tiers | 3 |
| Cartridge Material | Brass |
| Number of O'Rings | 4 |
| Number of Teeth on Handle Spindle | 24 |
| Installation Type | Screw (Threaded Valve) |
Frequently Asked Questions: Bathstore 90000014070 Metro Shower Valve Thermostatic Cartridge
Question: Our shower is a Bathstore but I’m not sure of the model. Can you help me determine if the Bathstore 90000014070 is the replacement cartridge?
Answer: Yes, we can help you. This Bathstore spare part is the cartridge used in Metro valves. To get in touch with us, please drop us a message with a photo of the shower valve you need to repair. We will exert every effort to help you identify the shower spare/s you need.
Question: Dirt is present in the Bathstore Metro shower valve which does not give hot water. Will replacing the cartridge be the answer?
Answer: You can first check if other taps in the bathroom are exhibiting the same issue. If it is not, then you can proceed to check whether dirt or blockage is present in the hot water supply pipe. The pipe might need to be flushed to remove dirt or airlocks. If that aspect has no blockage, then a Bathstore 90000014070 cartridge spare might be needed.
Question: Shower help needed! I have a Bathstore Metro and it’s only giving extra hot water temperature. Do I need a new temperature cartridge?
Answer: There must be no clogs in the cold water supply and your shower valve must have constant feed of cold water. If this is the case, the cartridge might have seized. This is the thermostatic cartridge your shower needs.
Shower Repair Tips with the Bathstore 90000014070
- You can cycle the shower from hot to cold a few times after the new Bathstore 90000014070 has been fitted. You can read more about this in our Thermostatic Cartridge Troubleshooting Guide.
- Use silicone grease made for plumbing on the O-rings of the new Bathstore cartridge spare before fitting it in the valve. This will help the replacement cartridge squeeze in the valve better, and thus, it can seal properly. (Please scroll down to the last section to see the available silicone plumbing grease.)
We supply many Bathstore spare parts such as:
+ Bathstore Metro non-return valve housing
+ Bathstore shower door handles
+ Bathstore shower door rollers
These are in stock and ready for shipping.
