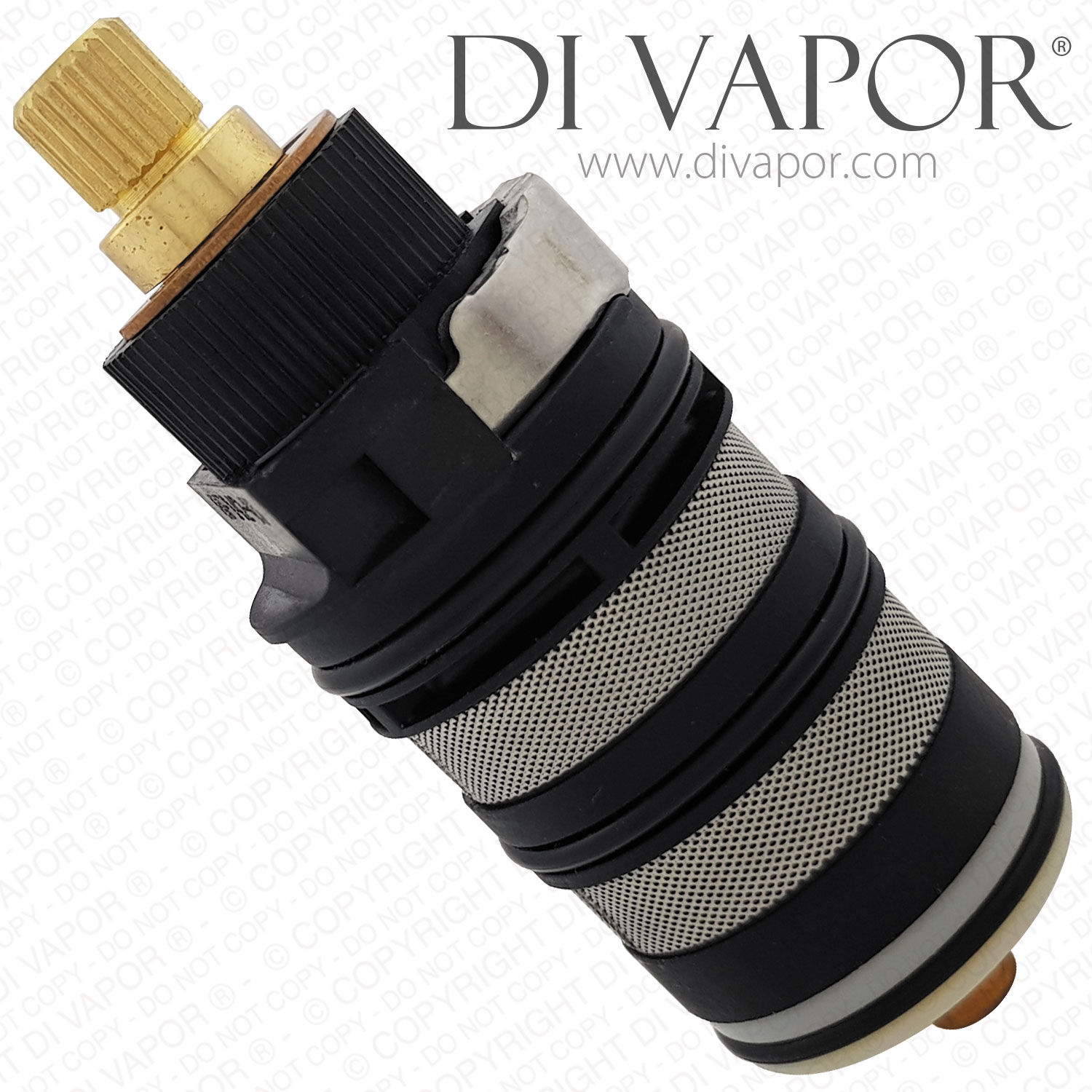

Art Of Bath Thermostatic Cartridge Replacement

SUMMARY

Art of Bath Thermostatic Cartridge Replacement for Art of Bath Shower Panels. Top of the range quality cartridge made in France.

Total Cartridge Length (including thermostat element): 89mm

Length of cartridge from top of spline to bottom of polymer body: 82mm

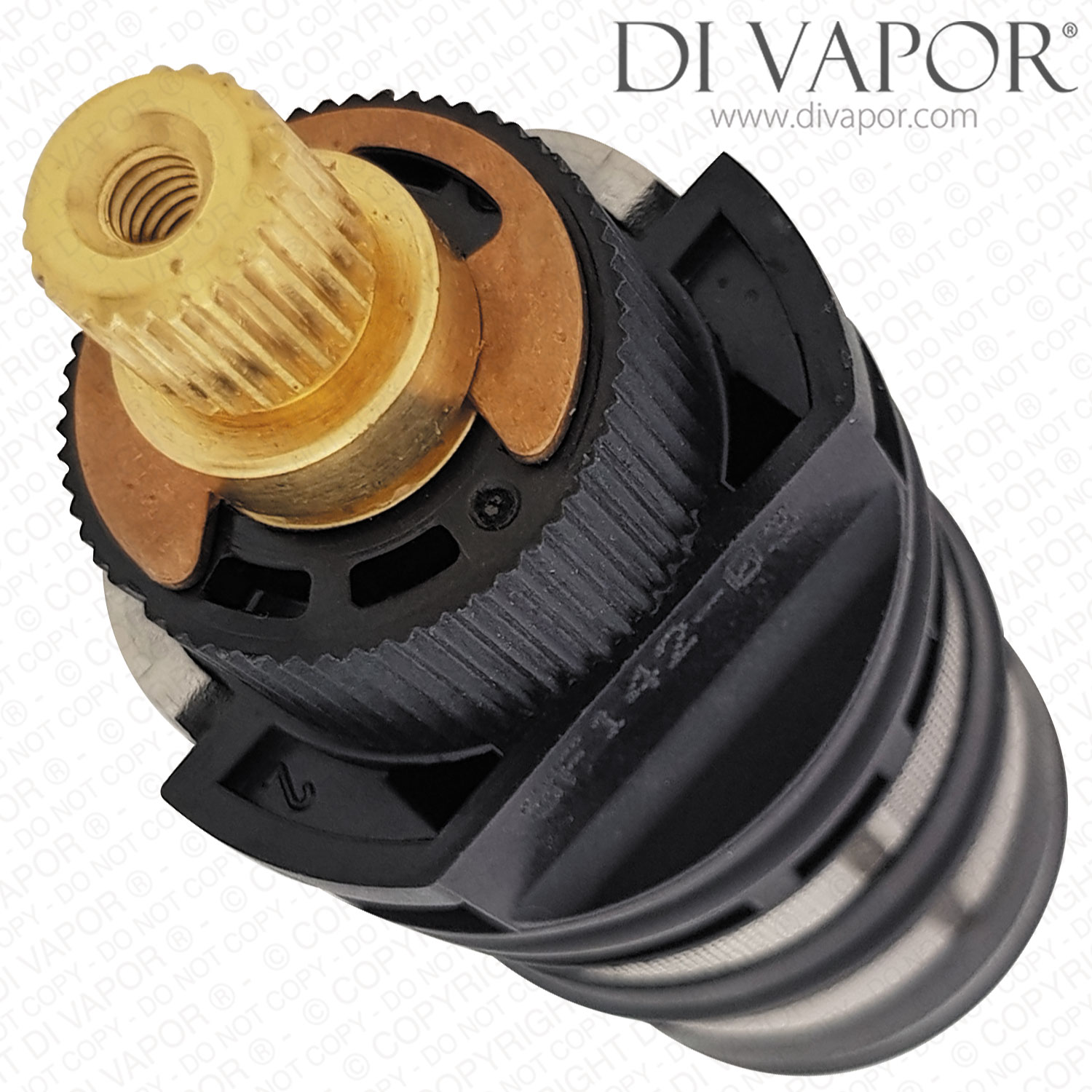

Number of teeth on top spindle spline (which the temperature handle connects onto): 24

Width of top spindle spline (which the temperature handle connects onto): 9.5mm

Diameter of second Tier of Splines (which the temperature stop ring connects onto): 22.8mm

Diameter at Top O-ring: 33mm

Diameter at Middle O-ring: 32mm

Diameter at Bottom O-ring: 30mm

Number of O'Rings: 3

Material: Plastic / Polymer

Type: Push Fit (Held in with a grub screw)

Gauze Filters: 2

Wax Element: Vernet (France) (at the bottom of the cartridge on the wax thermostat element, it will read . Vernet . France . ).
