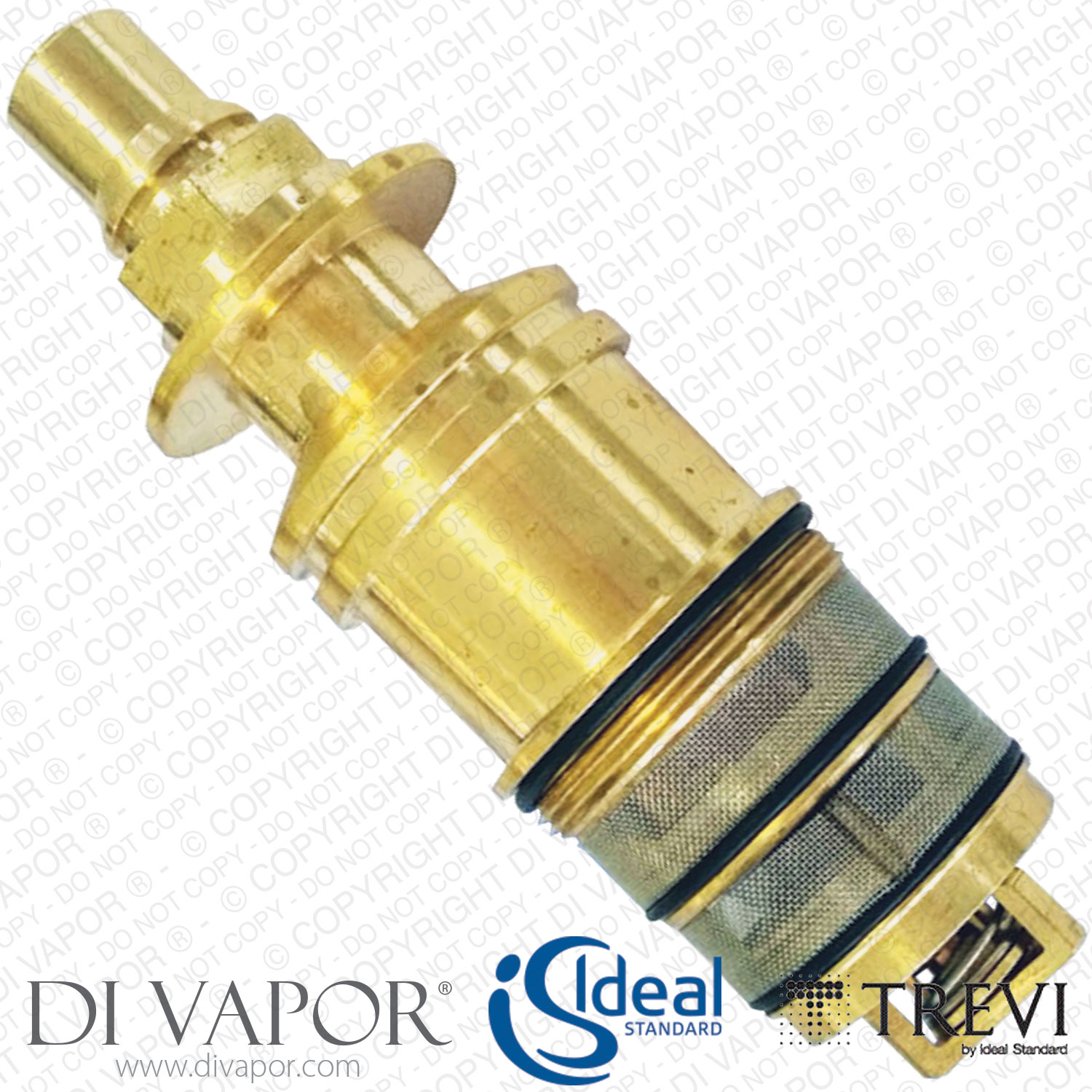

A963855NU Ideal Standard / Trevi Boost Thermostatic Cartridge for A5699AA, A5701AA and A5700AA Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
Ideal Standard A963855NU Trevi Boost Venturi Thermostatic Cartridge for A5699AA A5700AA and A5701AA Shower Valves
Ideal Standard A963855NU is a Trevi Boost Venturi thermostatic cartridge used for temperature control in selected Trevi Boost shower mixer valves. Ideal Standard documentation describes the part as the New Trevi Boost Venturi Cartridge and as a Boost cartridge venturi.
The cartridge regulates the mixing of hot and cold water inside the Trevi Boost valve to control the shower outlet temperature. Restricted flow can be caused by blocked cartridge filters or a non-return valve fault, while water remaining excessively hot can indicate a restricted cold supply or a seized cartridge.
Technical Details
| Part code | A963855NU |
|---|---|
| Manufacturer alternative code format | A 963 855 NU |
| Part type | Trevi Boost Venturi thermostatic cartridge |
| Manufacturer description | New Trevi Boost Venturi Cartridge / Boost cartridge venturi |
| Approximate cartridge diameter | 42.45mm |
| Approximate total length | 137.44mm |
| Locating pins | 2 |
| Grub screw hole | No |
| Long spline | No |
| Application | temperature control within A5699AA A5700AA and A5701AA Trevi Boost shower valves |
Before Ordering
Check the exact shower valve model code before ordering rather than identifying the cartridge from dimensions alone. A963348AA is associated with an earlier Trevi Boost generation and should not be assumed to be interchangeable with A963855NU.
Confirmed Compatible Models
- Ideal Standard Trevi A5699AA Boost Exposed Shower Mixer
- Ideal Standard Trevi A5700AA Boost Shower Mixer Built-In Chrome Kit
- Ideal Standard Trevi A5701AA Boost Shower Mixer Built-In Chrome Kit / Fix
Related Spares You May Need
- TAC86 TACSIL 3g WRAS Approved Silicone Grease
- Ideal Standard A963284NU G3/4 Headwork
- Ideal Standard A951645NU11 3/4 Inch On/Off Ceramic Disc Cartridge
- Ideal Standard A961095NU M5x5 Temperature Handle Screw
- Ideal Standard A961810NU Seal Kit
- Ideal Standard A961889NU Temperature Adjustment Unit
- Ideal Standard A963851AA Volume Handle
- Ideal Standard A963852AA Temperature Control Handle - Chrome
- Ideal Standard E4745AA Trevi 135cm Flexible Shower Hose
- Ideal Standard F960840AA D=22mm Connecting Nipple
- Ideal Standard A860415NU 15mm Non-Return Valve
- Ideal Standard A860607NU O-Ring 37.77 x 2.62
- Trevi A960588NU Cold 3/4 Inch Non-Return Valve
- Trevi A960589NU Hot 3/4 Inch Non-Return Valve
- Trevi A963426AA Shroud Cover Sleeve
- Trevi A963427NU Temperature Adjustment Carrier and Handle Extension
- Ideal Standard A963432NU Volume Control Handle Carrier Assembly
- Ideal Standard A963510NU Sealing Frame
- Ideal Standard A963853AA Escutcheon with Thermostatic Marker
- Ideal Standard A963651NU 1/2 Outlet Nipple
- Ideal Standard B9436AA Idealrain S1 Rainshower 100mm with Angle Arm
- 150mm Universal Shower Hose - NXT734
Not sure this is the right part? Use our part identification service and we can help identify it.
