A960587NU Trevi / Ideal Standard 3/4 Inch DO8 Thermostatic Cartridge Assembly
SUMMARY

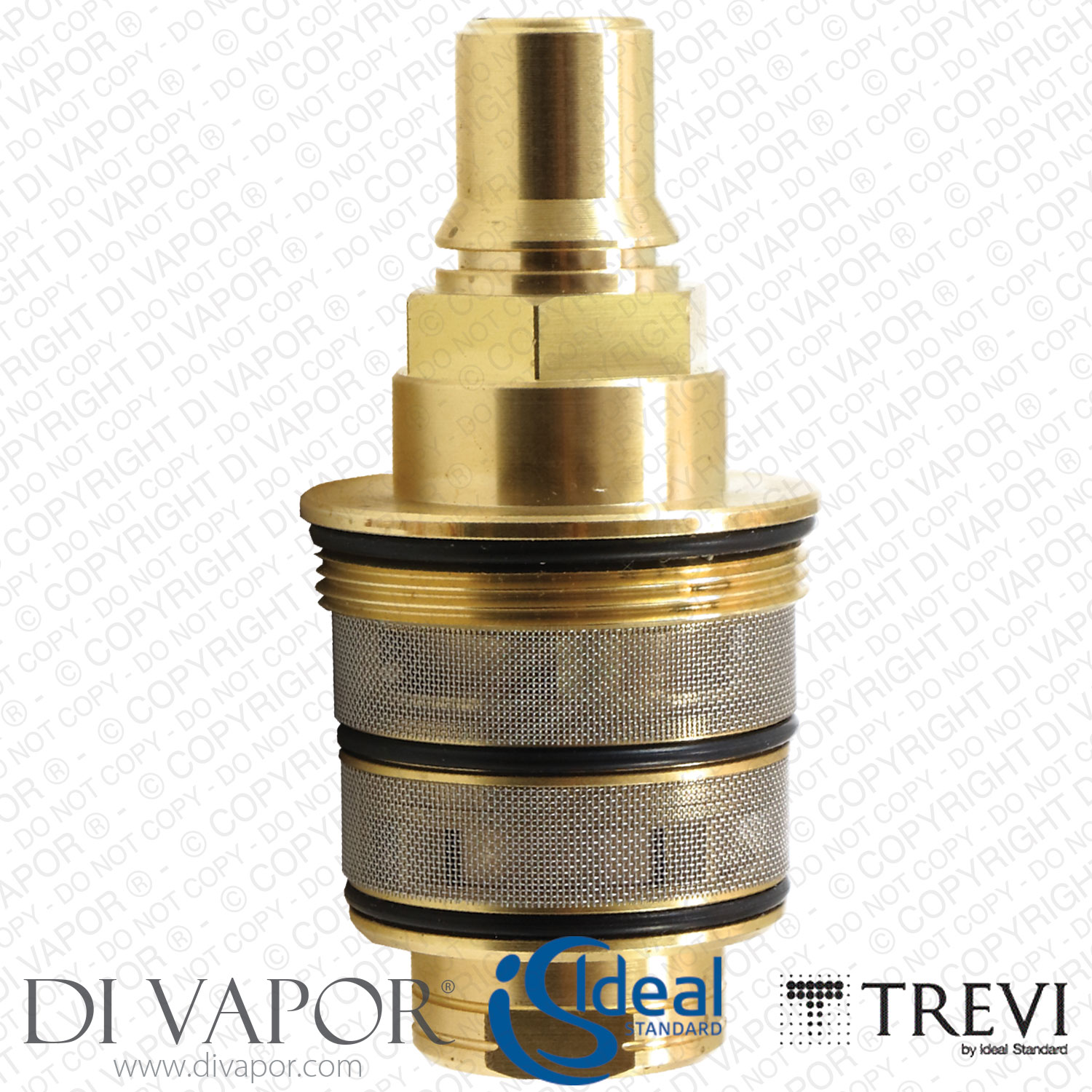

Ideal Standard Trevi A960587NU 3/4 Inch DO8 Thermostatic Cartridge for Shower and Bath Mixers
The Ideal Standard Trevi A960587NU is a 3/4 inch DO8 thermostatic cartridge assembly used in selected Ideal Standard and Sottini thermostatic shower valves, bath fillers and bath/shower mixers. It fits inside the mixer body and provides thermostatic temperature control.
This cartridge regulates the mixed water temperature. It is separate from the on/off flow cartridge used in the dual-control mixers listed below, so temperature-control and water shut-off faults require different checks.
Technical Details
- - Part code: A960587NU
- - Component: thermostatic temperature-control cartridge assembly
- - Nominal designation: 3/4 inch DO8
- - Fitting type: screw-in cartridge
- - Cartridge removal tool: 24 mm across-flats spanner, as specified for the documented ITV and Active installations
Confirmed Compatible Models
- - Ideal Standard A5322AA ITV in-line exposed thermostatic shower valve
- - Sottini A4299AA Rosita dual-control two-taphole deck-mounted thermostatic bath/shower mixer
- - Ideal Standard A4053AA Active dual-control two-taphole thermostatic bath filler
- - Ideal Standard A4054AA Active dual-control two-taphole thermostatic bath/shower mixer
- - Ideal Standard Active A3969NU - A4105AA concealed thermostatic shower installation
For the Active A3969NU - A4105AA installation, this cartridge is fitted in the concealed valve body behind the faceplate and handles, not in the trim assembly itself.
Before Ordering and Fitting
Check the exact mixer model and compare the existing cartridge before ordering. The nominal size and spanner size do not establish fitment on their own. Temperature or flow problems can also be caused by blocked filters, so inspect the filters before deciding that the thermostatic cartridge needs changing.
Isolate the hot and cold water supplies before dismantling the mixer. Follow the instructions for your particular model when refitting the cartridge, temperature carrier and handle, then check for leaks and carry out the temperature-setting and commissioning procedure.
Not sure which cartridge you need? Use the Di Vapor part identification service for help.
Related Spares You May Need
The following parts are model-specific. Match each item to your installation; they are not all used in every mixer listed above.
Cartridge Servicing and Control Components
- - A963427NU thermostatic temperature adjustment carrier and handle extension
- - A963587NU thermostatic cartridge filters for the listed Rosita and Active bath mixers
- - A961810NU seal kit for the ITV and Rosita assemblies
- - A860415NU non-return valve
- - A960462NU on/off ceramic flow cartridge for the listed Rosita and Active mixers
- - A963432NU volume-control handle carrier for the flow-control side of the listed Rosita and Active mixers
- - A962998NU M4 screw pair for the handle fixings on the listed Rosita and Active mixers
- - TAC86 TACSIL 3g cartridge silicone grease
Active Control Handles and Cap
- - A860455AA Active temperature-control handle
- - A860425AA Active handle cap
- - A860454AA Active volume-control handle - discontinued
Active A3969NU - A4105AA Concealed Shower Components
- - A960045AA chrome faceplate
- - A961957NU backplate screw set
- - A961623NU plastic backplate O-ring
- - A960588NU cold-side non-return valve assembly
- - A960589NU hot-side non-return valve assembly
- - A963426AA cartridge shroud cover sleeve
- - A963434NU Idealtherm extension kit
A5322AA ITV Components
- - A962587AA chrome escutcheon pair
- - A962570NU 4 litre per minute flow reducer
- - A962571NU 8 litre per minute flow reducer
Bath Mixer Seals and Outlet Components
- - A963154NU O-ring for the listed Rosita and Active bath fittings
- - A960412NU flow straightener and key for the listed Active bath fittings
A4299AA Rosita Bath/Shower Mixer Components
- - S960164AA chrome shower station
- - B960514AA chrome diverter knob
- - EEM134901AA chrome shower hose bracket
A4054AA Active Bath/Shower Mixer Components
