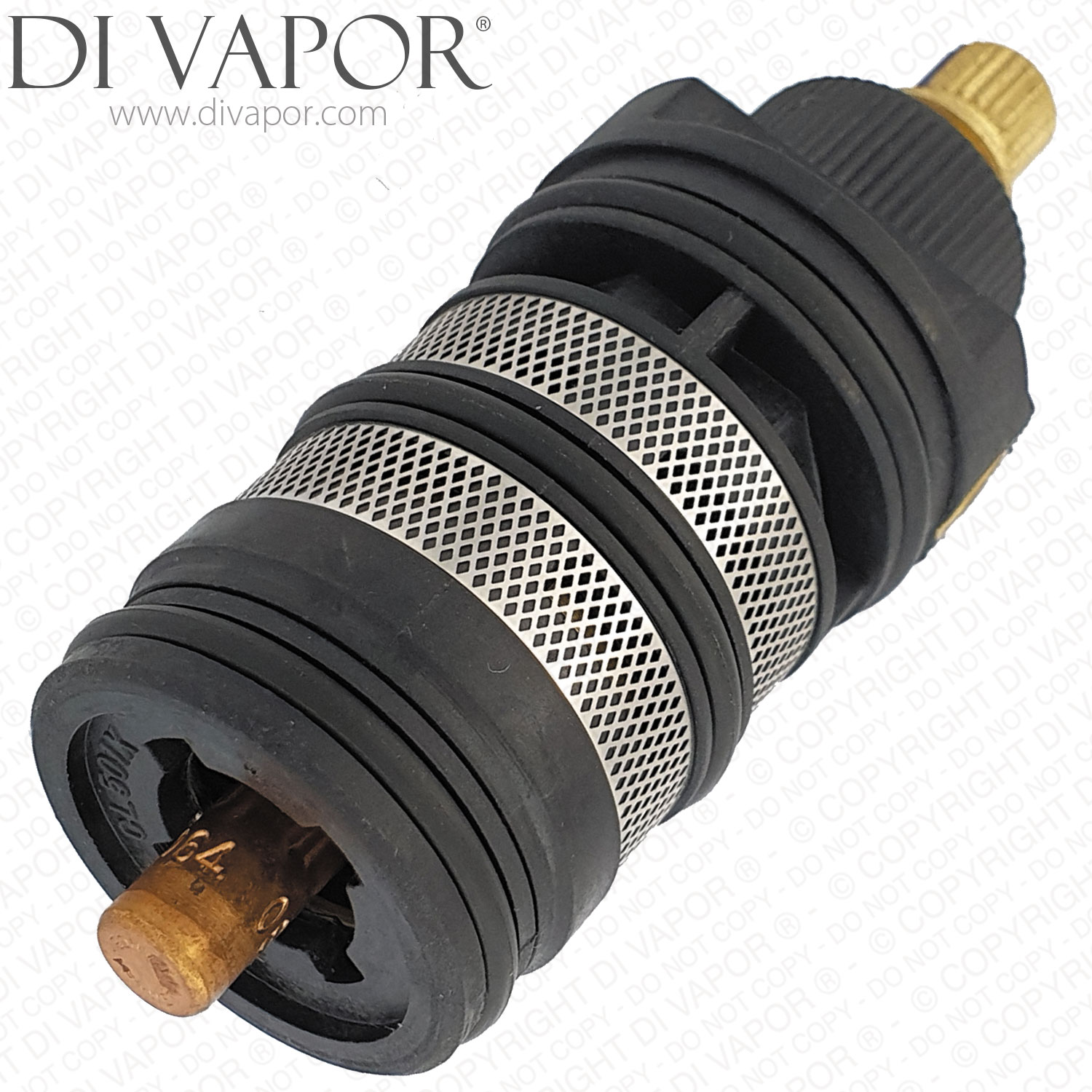

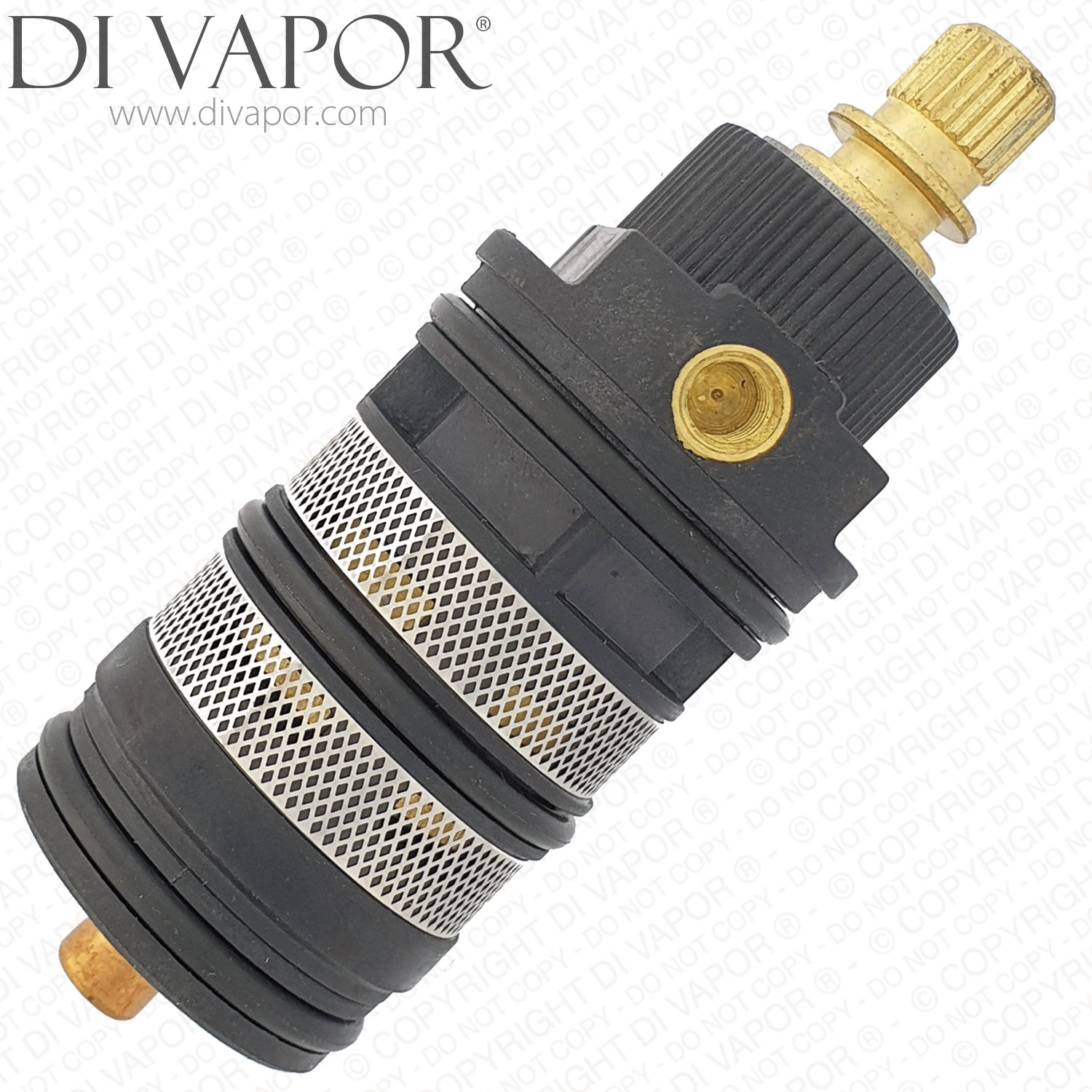

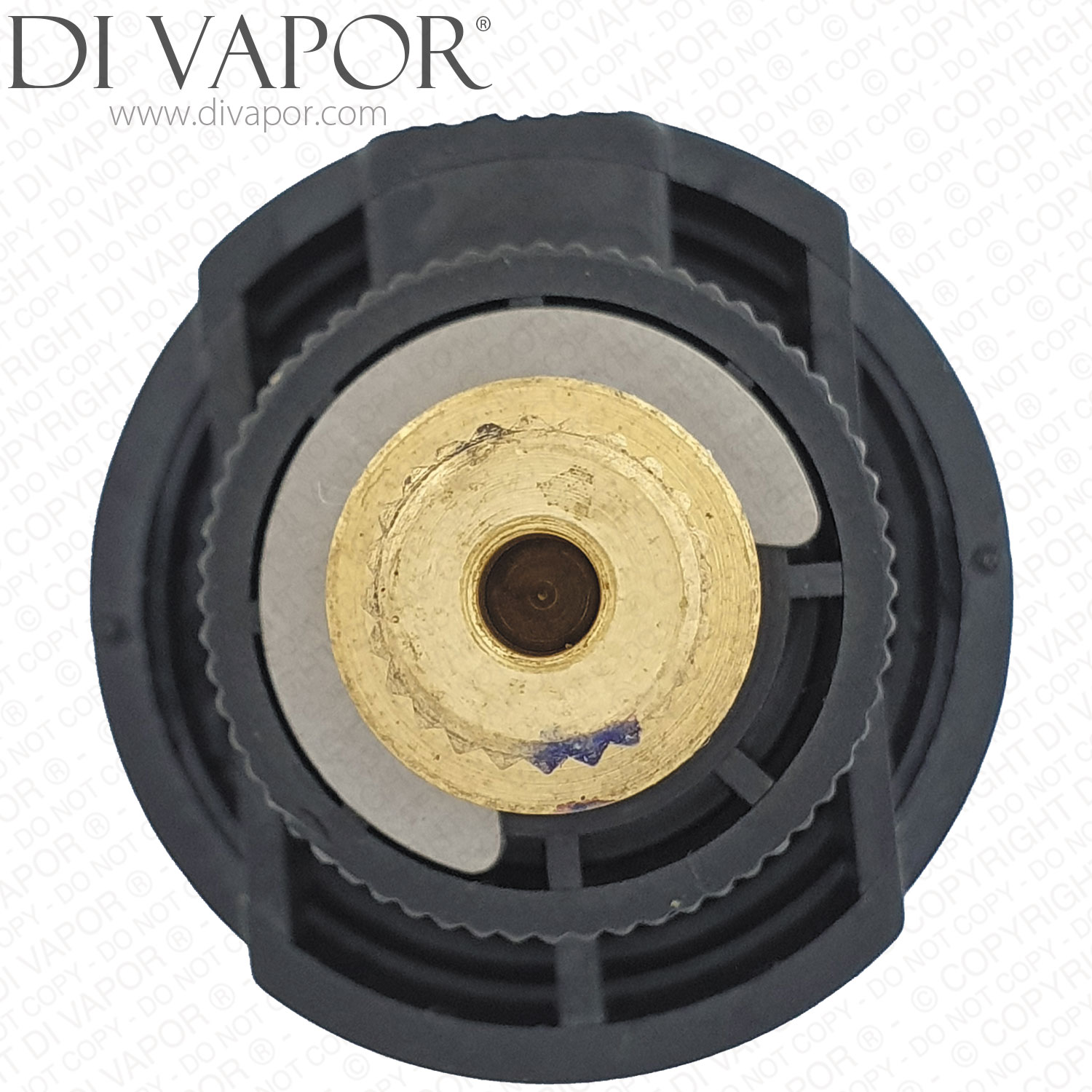

25629RV Thermostatic Cartridge
Part Number: 25629RV
Price: £79.98
SALE: £55.83
You save: £24.15 (30%)
Price includes VAT
IN STOCK
Product description
SUMMARY
25629RV Thermostatic CartridgeCartridge Measurements:
Total Length: 89.5mm (including wax thermostat at bottom)
Total Length: 83mm (excluding wax thermostat at bottom)
Diameter at Widest Point: 33.8mm
Diameter at Stop Ring Splines: 22.3mm
Top Spline Diameter: 9.6mm
Top Spline Teeth / Notches: 24
Diameter at Top O'ring: 33mm
Diameter at Middle O'ring: 31.8mm
Diameter at Bottom O'ring: 31.8mm
Fitting Type: Push Fit with M5 (5.7mm) Grub Screw (Grub Screw Not Included)
Colour: Black Plastic
