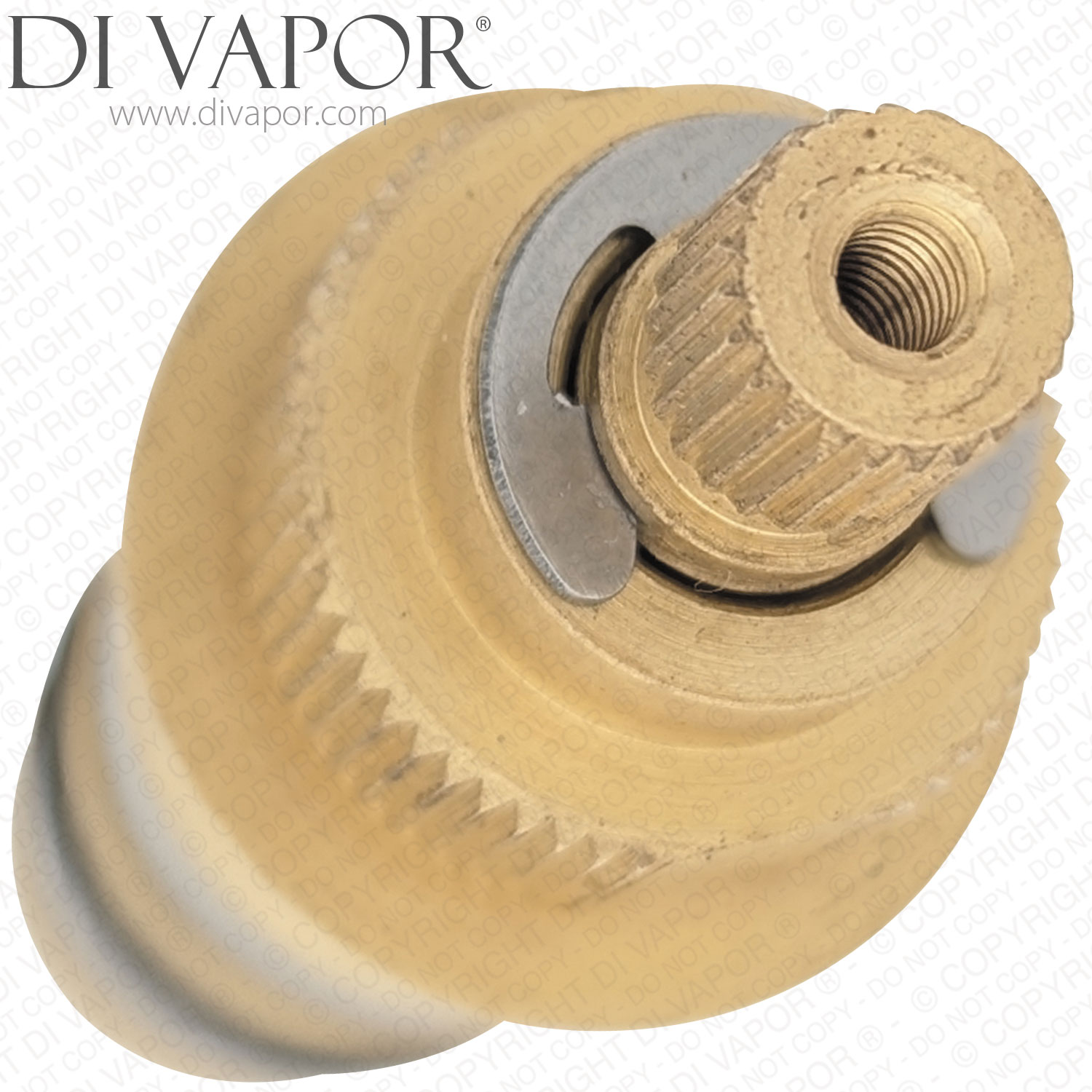

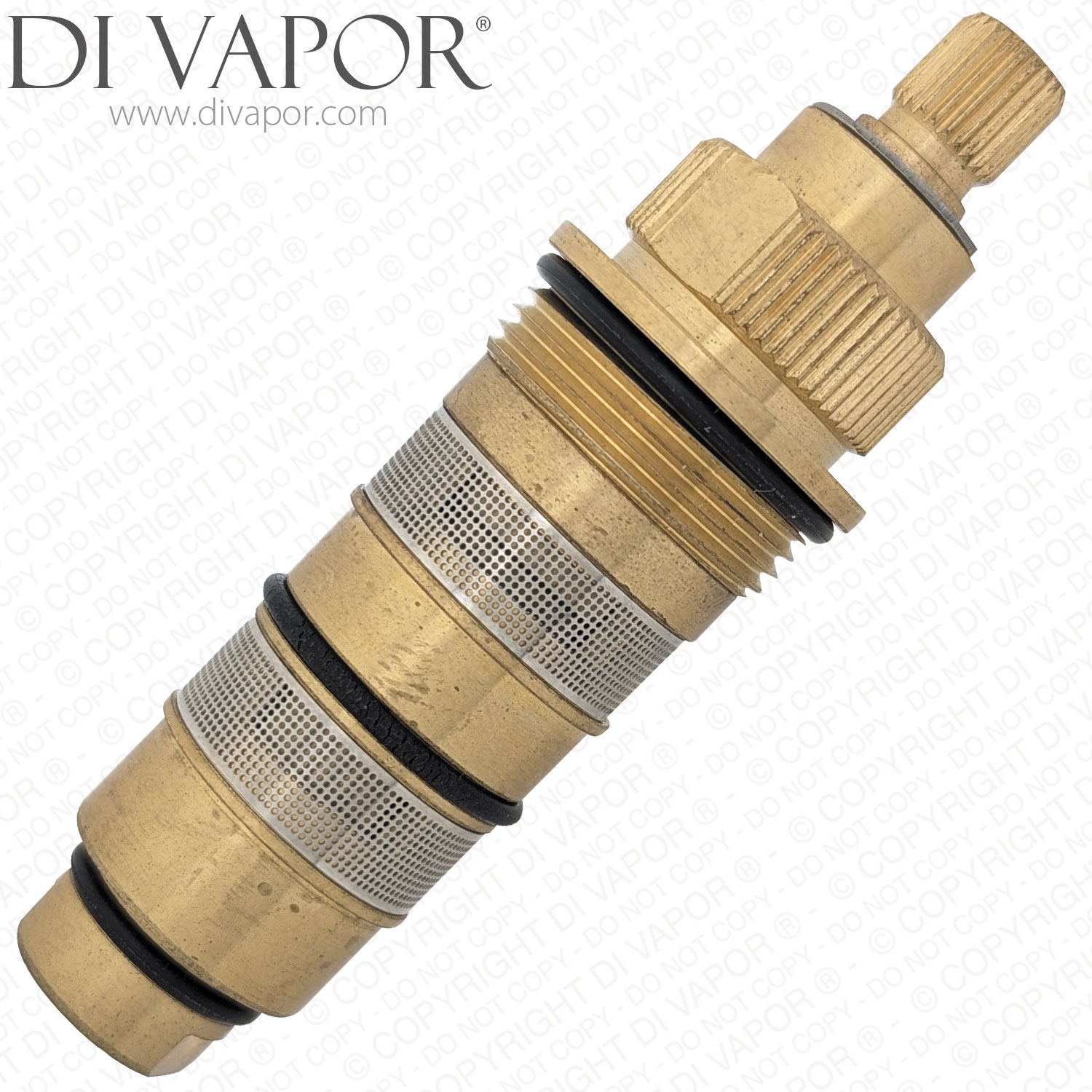

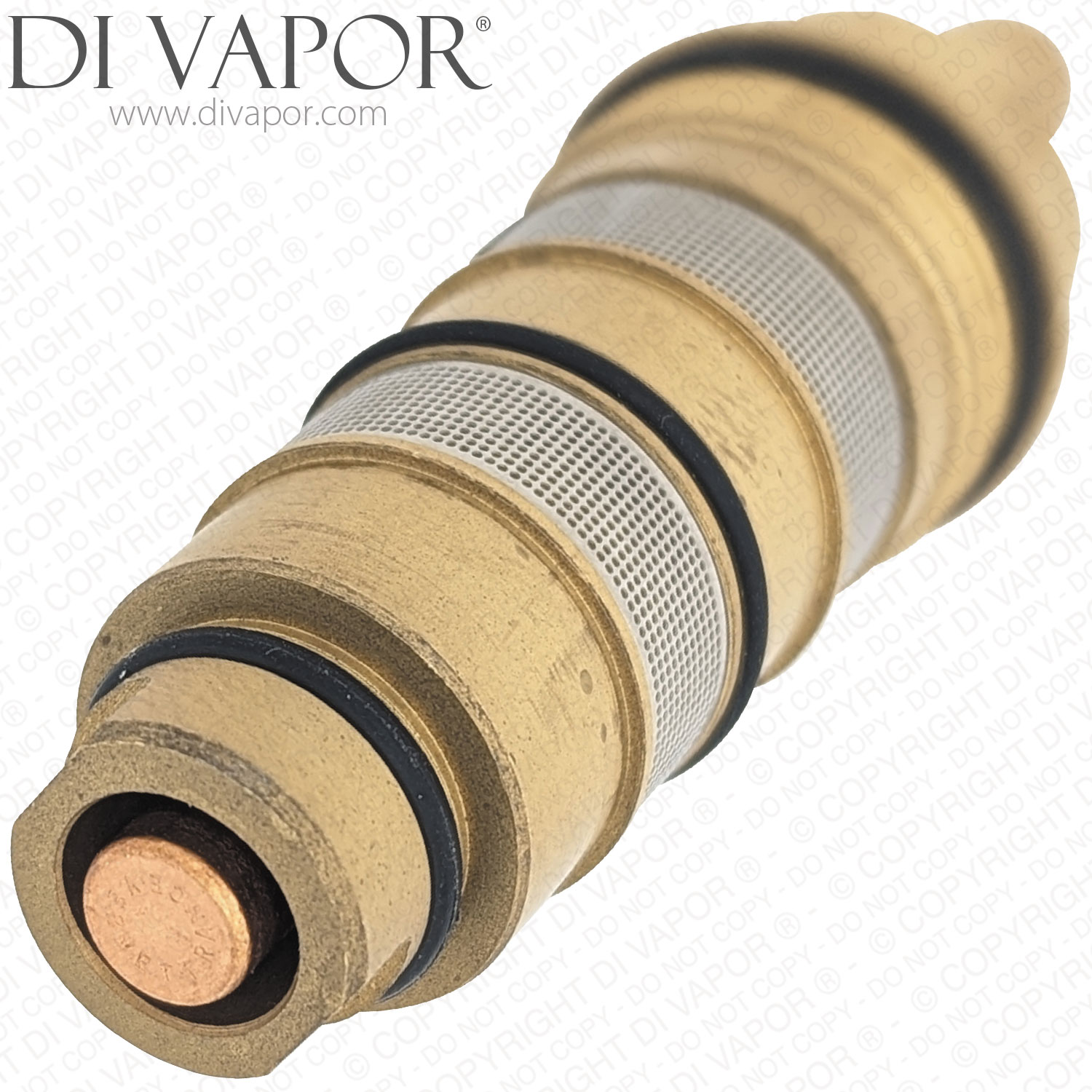

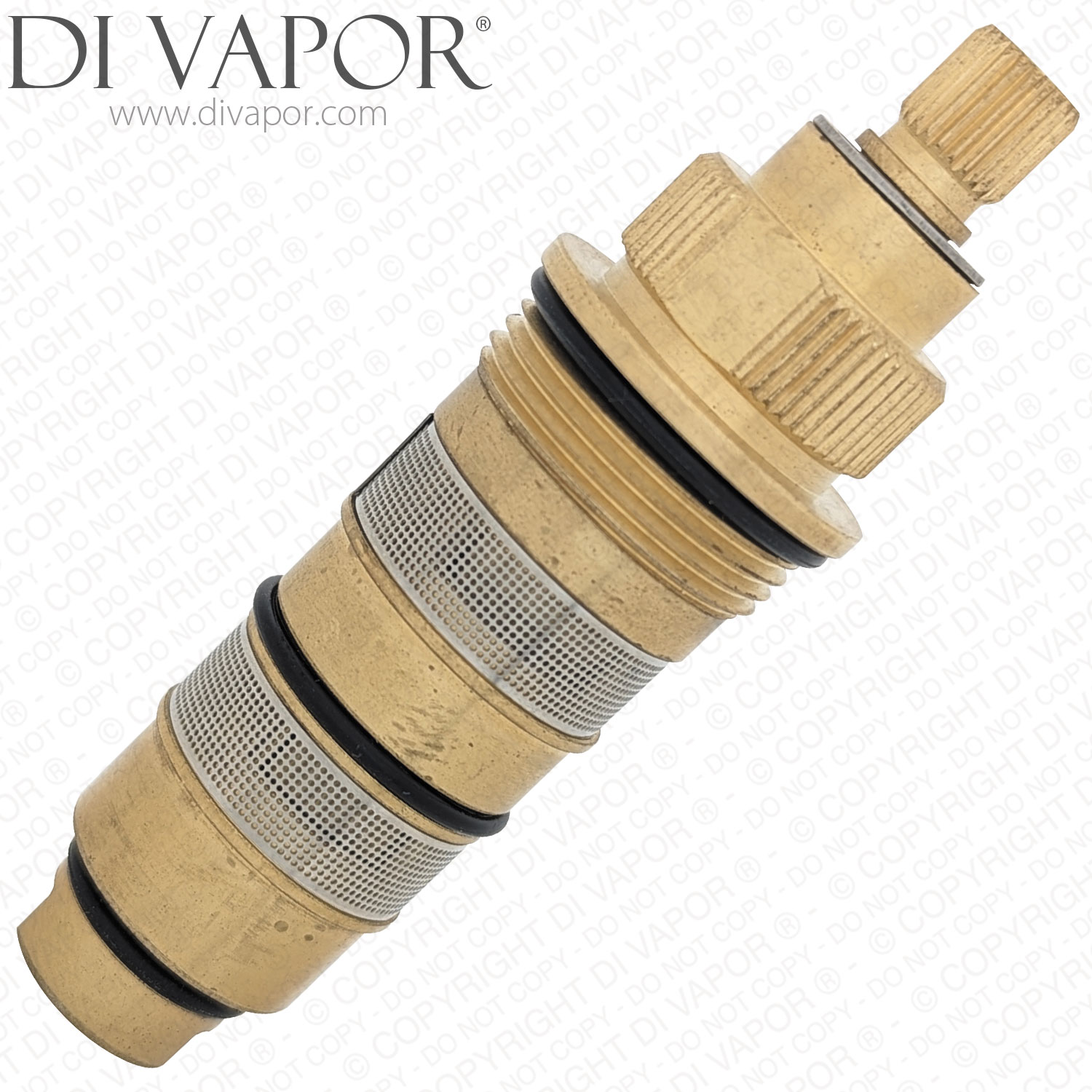

24 Spline Shower Valve Thermostatic Cartridge - DVF6332
Part number: 3LP3E
Price: £60.00
Sale: £48.98
You save: £11.02 (18%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Cartridge Measurements:
| Total Length | 91.50mm (including wax thermostat at bottom) |
|---|---|
| Diameter at Widest Point | 28.54mm |
| Diameter at Stop Ring Splines | 22.82mm |
| Top Spline Diameter | 9.15mm |
| Top Spline Teeth / Notches | 24 |
| Diameter at Top O'ring | 27.20mm |
| Diameter at Middle O'ring | 23.70mm |
| Diameter at Bottom O'ring | 17.15mm |
| Fitting Type | Screw Fit (Fitting thread diameter: 25.88mm) |
| Colour | Brass |
