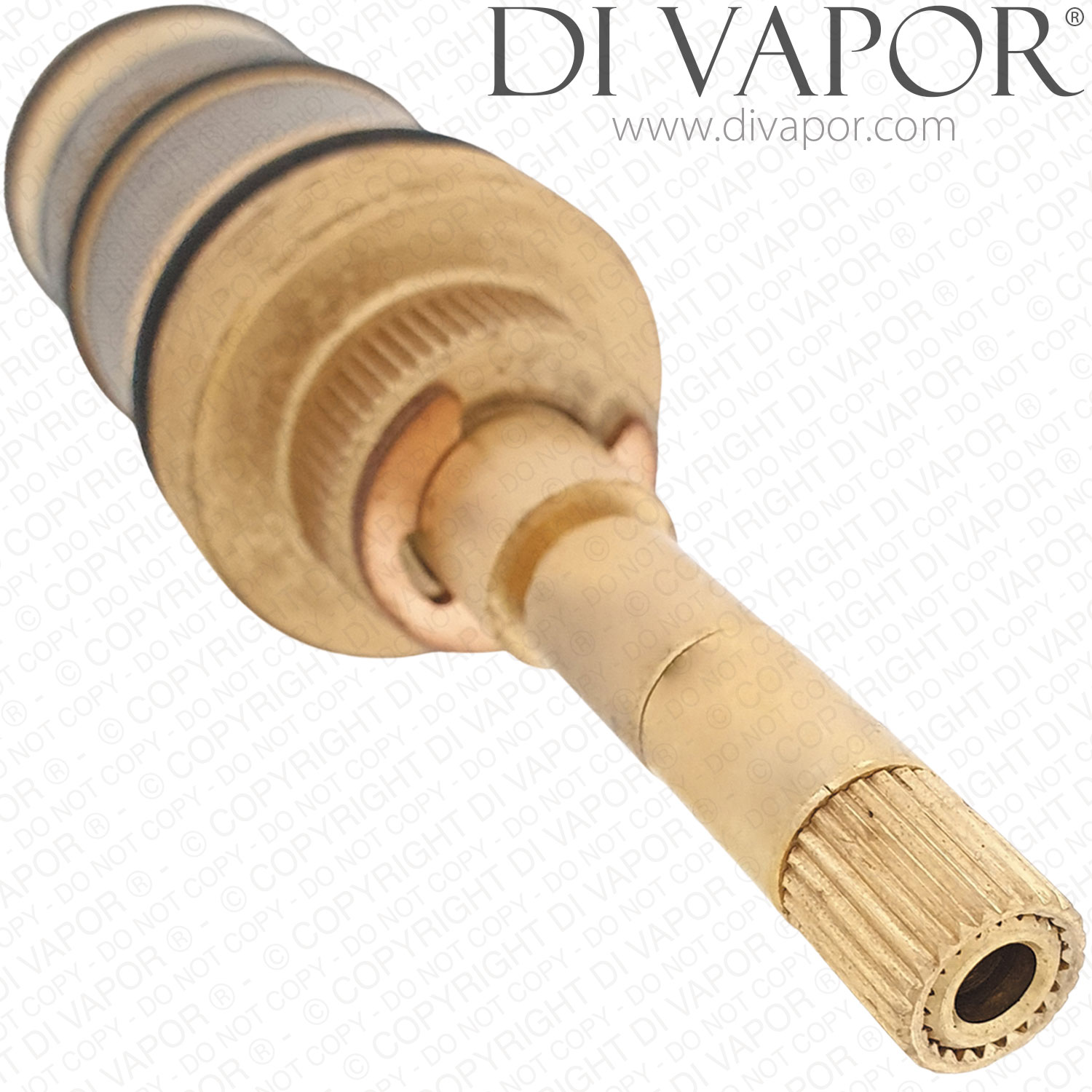

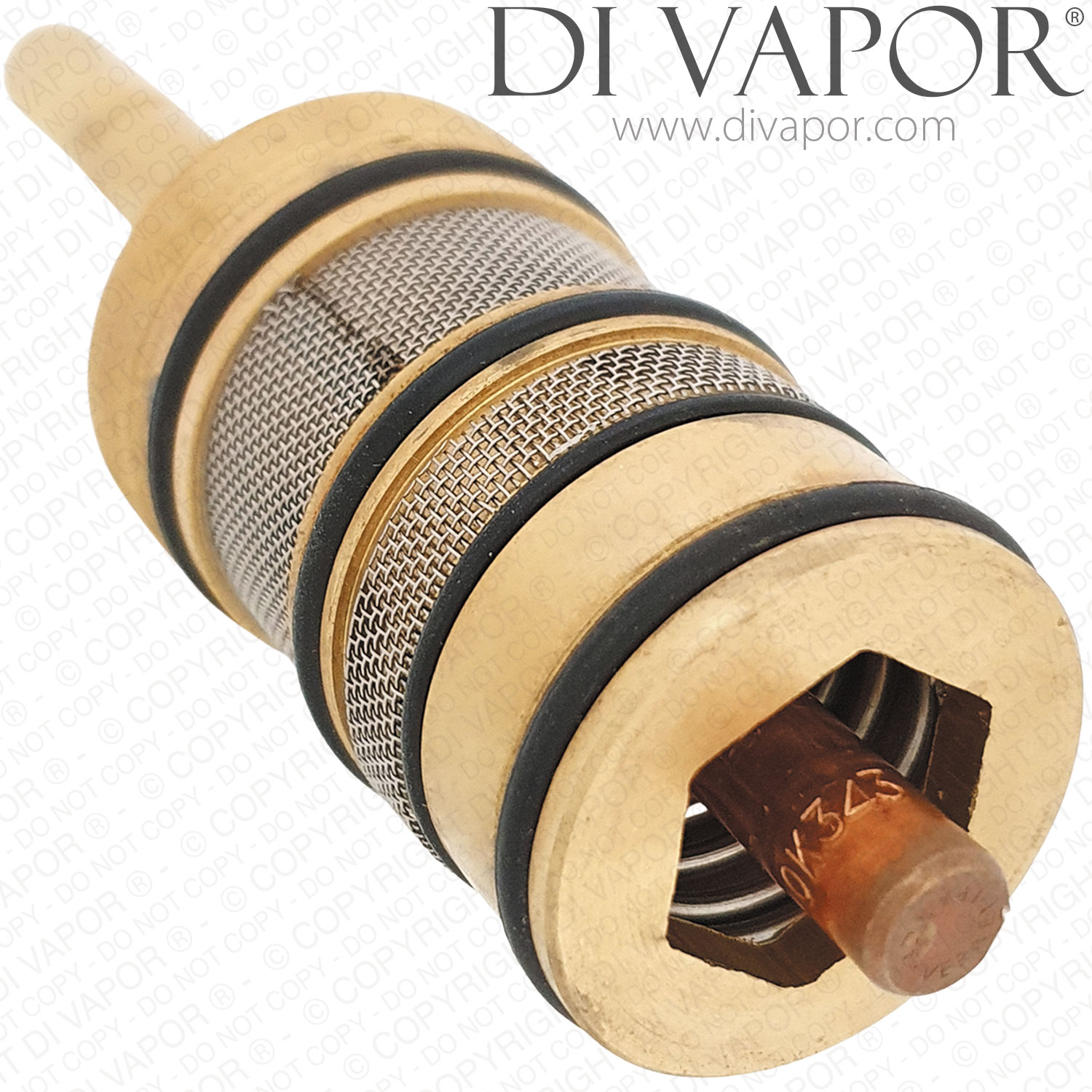

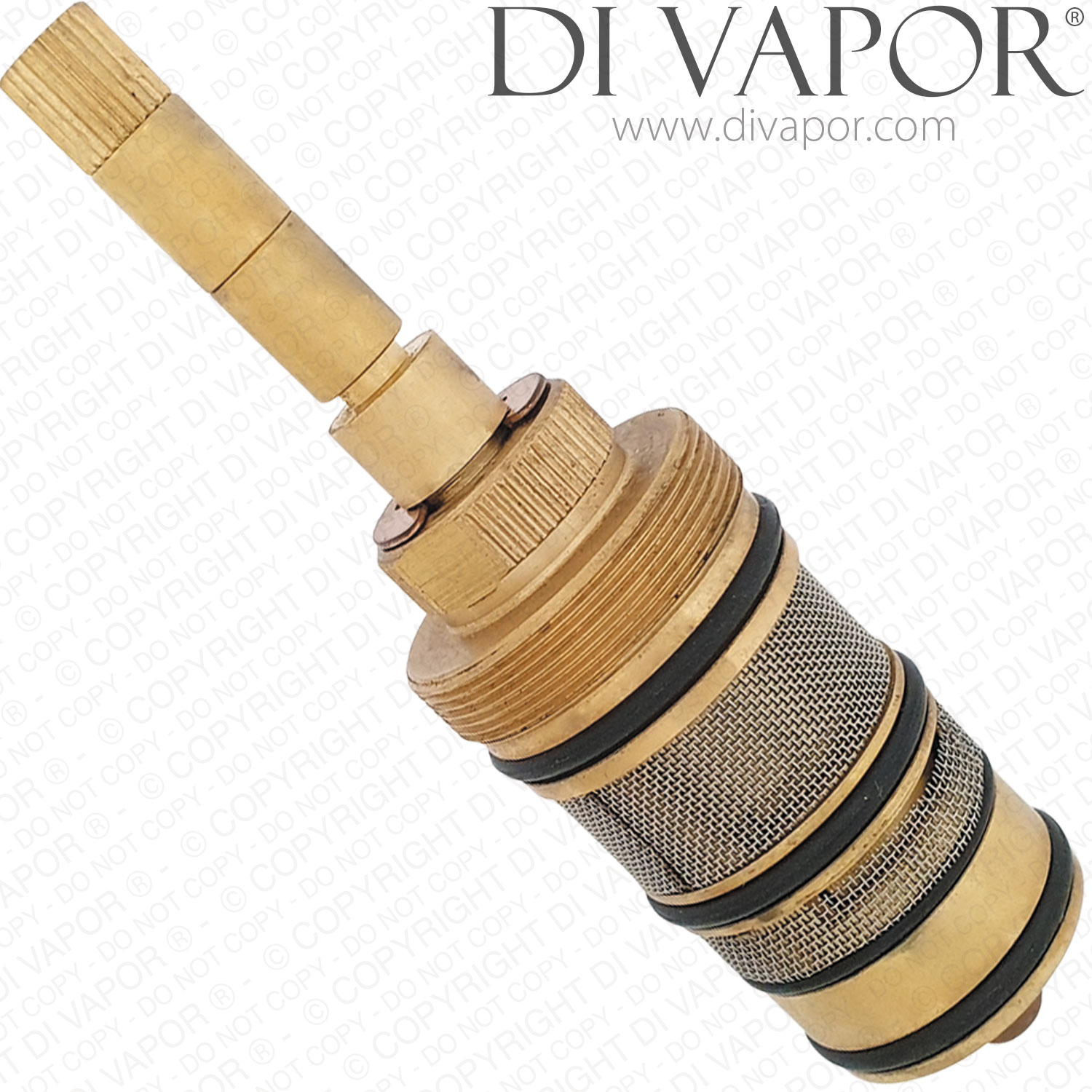

114mm Screw-In Thermostatic Cartridge - 24 Spline - 48mm Spindle Length
Part number: X58455
Only 2 left in stock.
Price: £145.00
Sale: £98.87
You save: £46.13 (32%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
114mm Screw-In Thermostatic Cartridge - 24 Spline - 48mm Spindle Length
Cartridge Measurements:
| Total Length | 114mm (excluding wax thermostat at bottom) |
|---|---|
| Diameter at fitting thread Point | 33.9mm |
| Diameter at Stop Ring Splines | 22.7mm |
| Top Spline Diameter | 9.66mm |
| Top Spline Teeth / Notches | 24 |
| Diameter at Top O'ring | 33.4mm |
| Diameter at second from top O'ring | 31.9mm |
| Diameter at Bottom O'ring | 30.1mm |
| Fitting Type | Screw fit |
