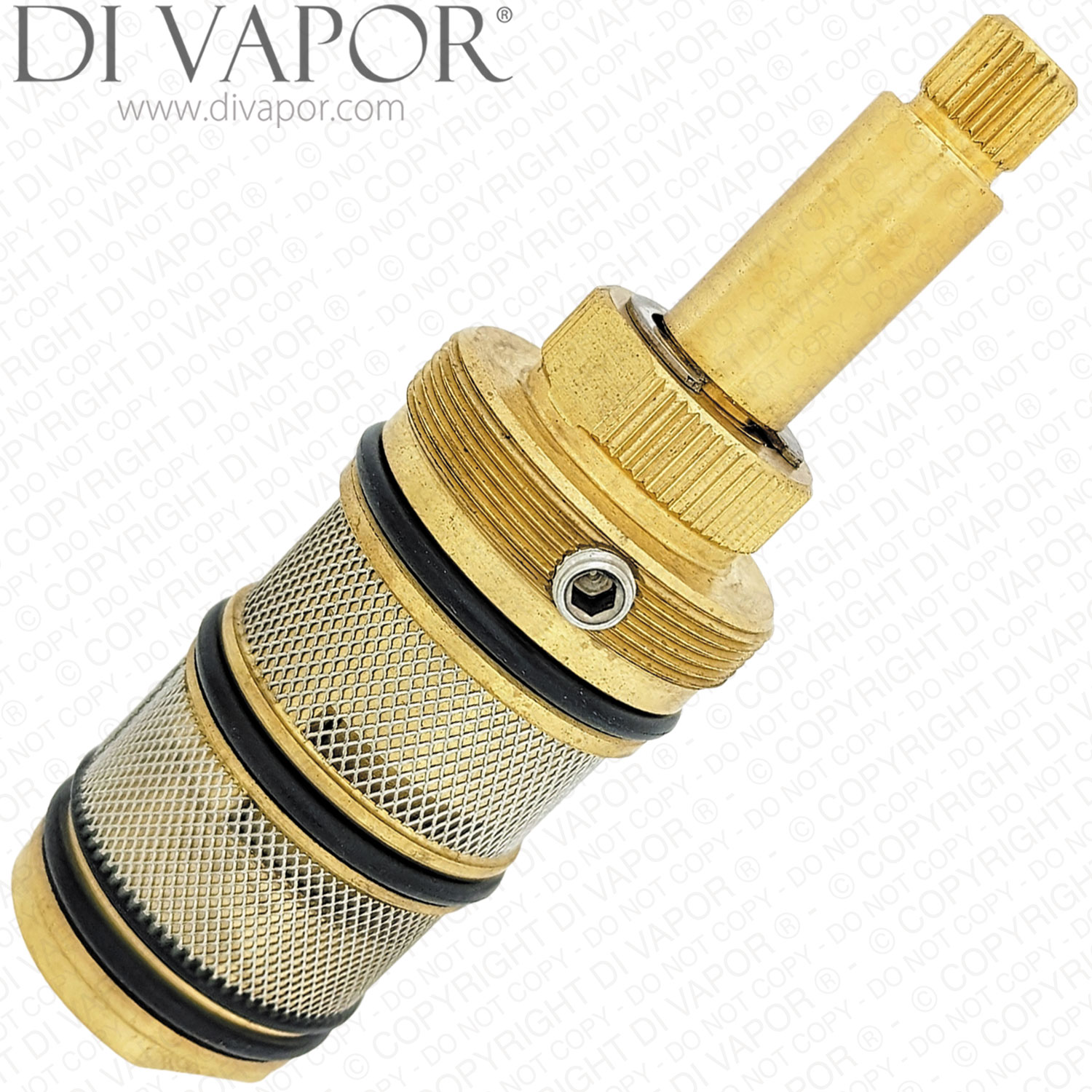

102mm Screw-In Thermostatic Cartridge - 24 Spline (Also Works as Push Fit)
Part number: GF64618
Only 4 left in stock.
Price: £129.00
Sale: £99.87
You save: £29.13 (23%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

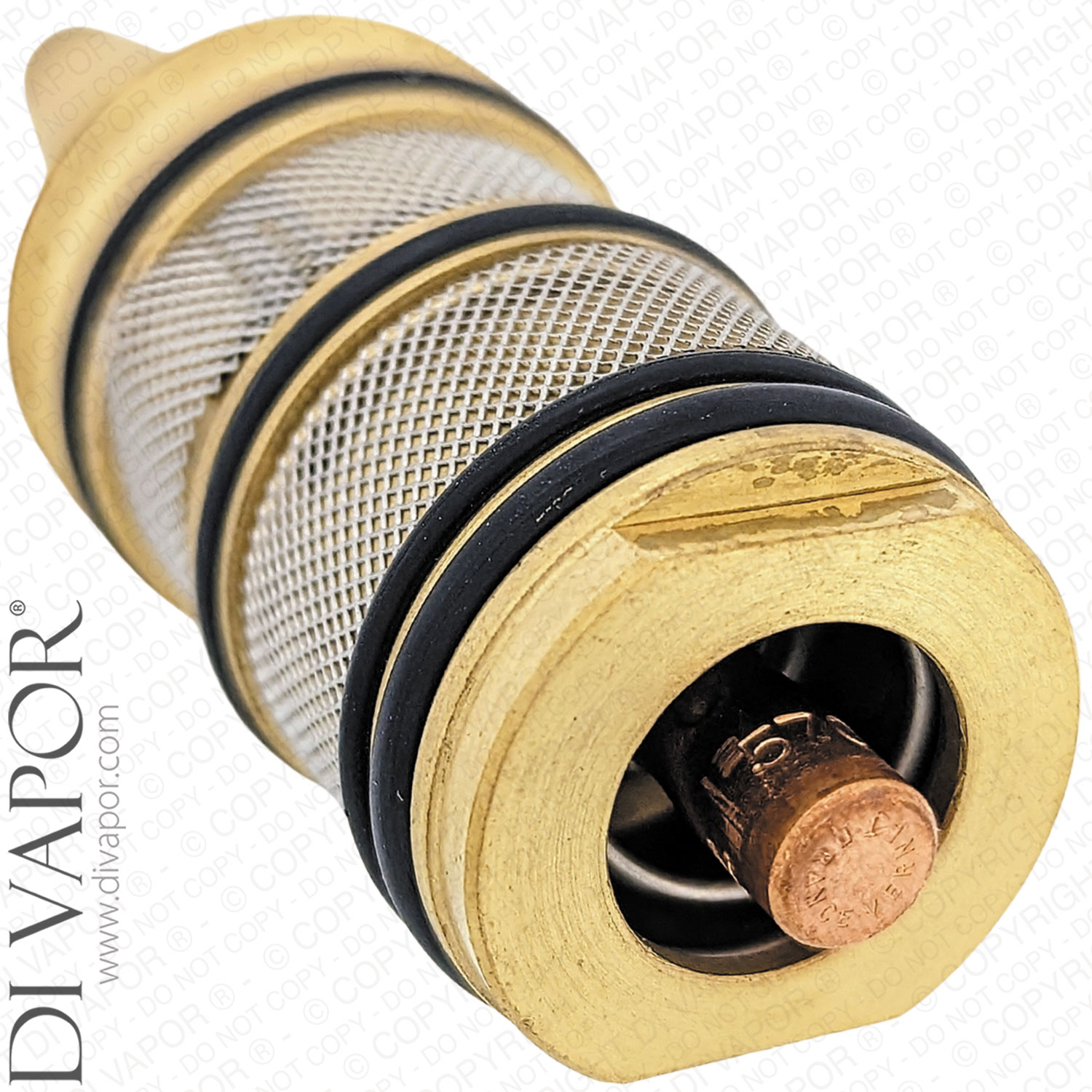

GF64618 Thermostatic Cartridge
Cartridge Measurements:
| Total Length | 107mm (including wax thermostat at bottom) |
|---|---|
| Total Length | 102mm (excluding wax thermostat at bottom) |
| Diameter at Widest Point (Fitting Thread) | 33.8mm |
| Diameter at Stop Ring Splines | 23mm |
| Spindle Length | 34mm |

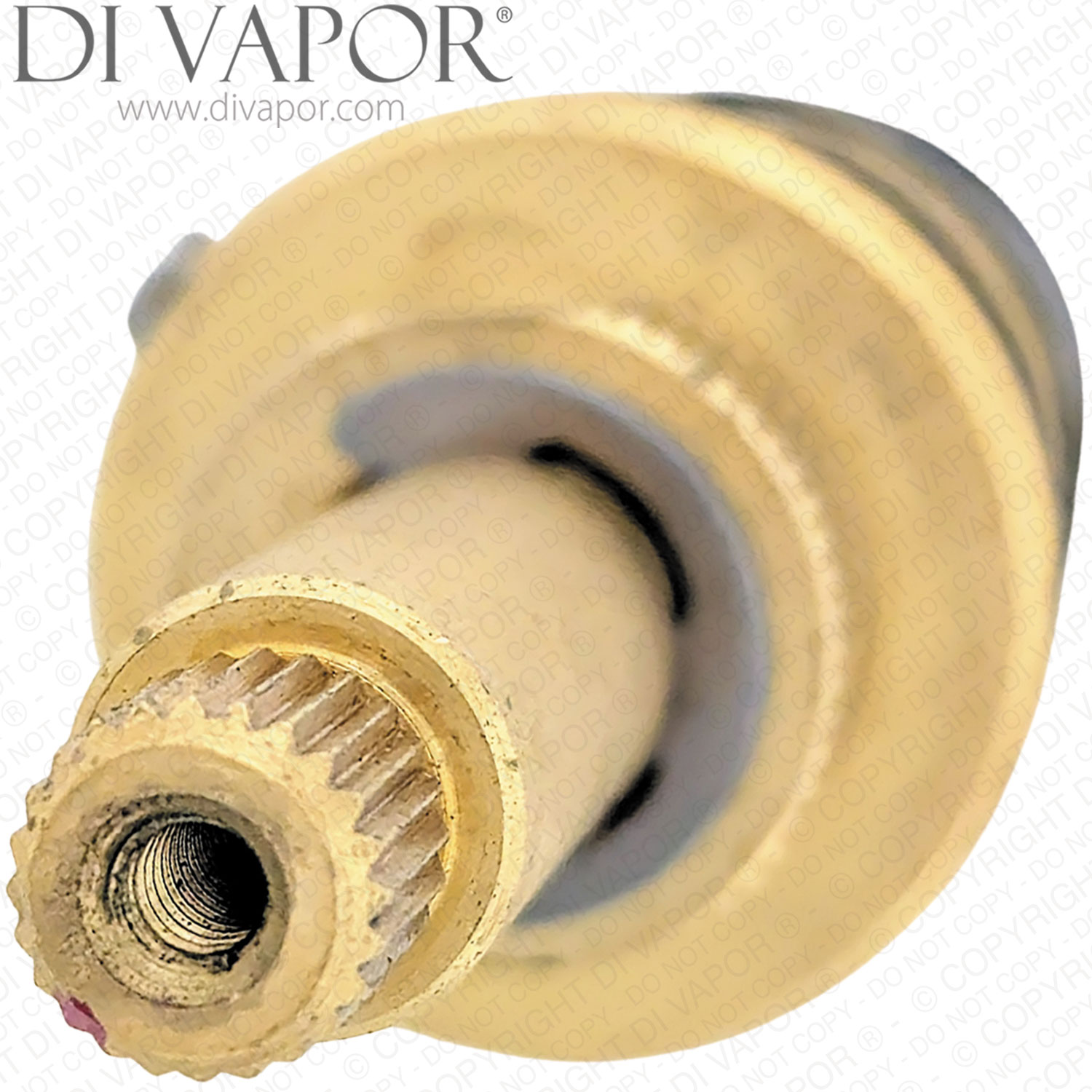

| Top Spline Diameter | 9.6mm |
| Top Spline Teeth / Notches | 24 |
| Diameter at Top O'ring | 33.2mm |
| Diameter at Middle O'ring | 31.8mm |
| Diameter at Bottom O'ring | 30.1mm |
| Fitting Type | Screw-in as well as push fit with M5 (5.7mm) Grub Screw (Grub Screw Not Included) |
| Colour | Brass |
