STERN TUBULAR L AISI316 Wall Mounted Tap - Mains Operated

SUMMARY

9V Transformer

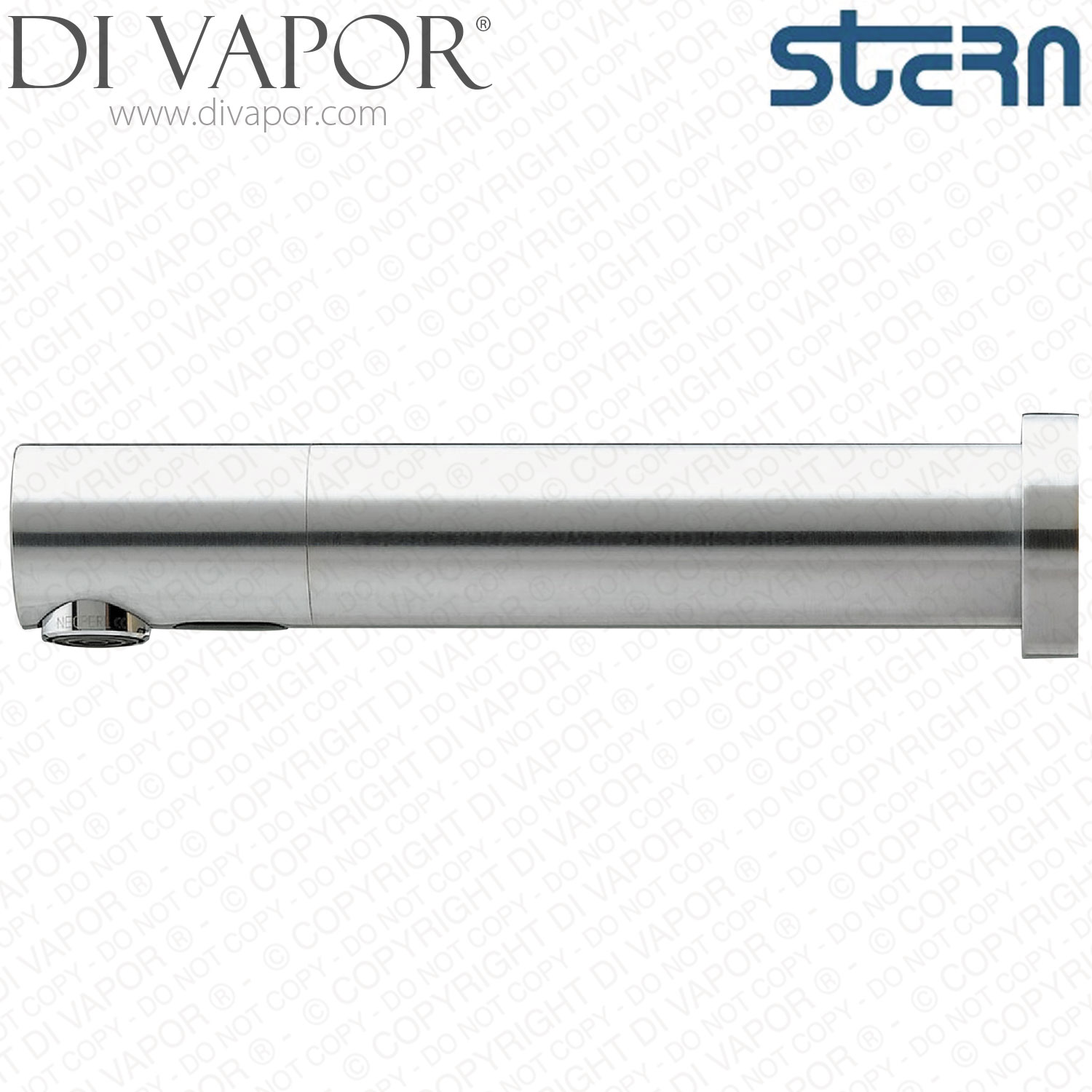

The STERN TUBULAR L AISI316 350124 is a mains-operated wall-mounted electronic sensor tap for cold or premixed water installations. It is the stainless steel AISI316 version of the Tubular L / Tubular LE style tap and is operated by an infra-red sensor with water flow controlled through a solenoid valve.

This 350124 tap is supplied for 9V transformer operation and is intended for commercial washroom and sanitary installations where touch-free operation is required. Check the existing tap model code, power arrangement and site water pressure before ordering, especially when replacing a battery-operated or different Tubular Series variant.

Technical Details

- - Brand: STERN

- - Product code / Part Number: 350124

- - Product type: wall-mounted electronic sensor tap

- - Model style: TUBULAR L / Tubular LE AISI316

- - Power: 9V transformer mains-operated configuration

- - Body material / finish: AISI316 stainless steel version

- - Water supply: cold or premixed water

- - Operation: infra-red sensor with solenoid-controlled water flow

- - Connection approval detail: 15mm spigot

- - Recommended working pressure: 0.5 bar to 8.0 bar

- - Maximum working pressure: 8.0 bar

- - Maximum hot water temperature: 70°C

- - Sensor range: self-adjusting with remote adjustment available from 80mm to 300mm

- - Security time: 90 seconds with adjustment available by Stern remote control

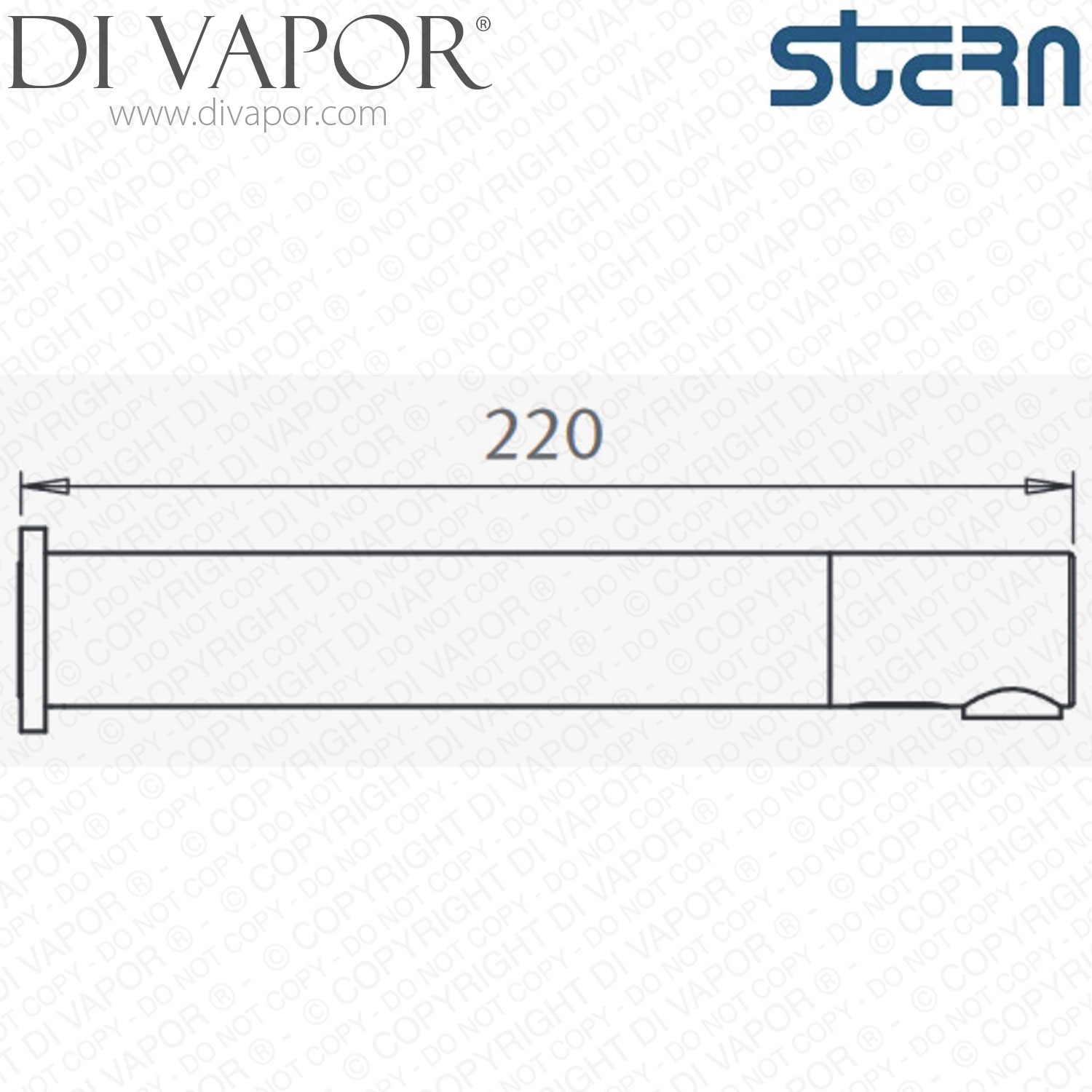

- - Long spout Tubular L size reference: 220mm

Installation and Checking Notes

Flush the supply lines before installation to prevent dirt, scale, Teflon tape or metal particles entering the solenoid valve or aerator. Keep the sensor area clear of reflective surfaces and check that the basin, spout position and sensor range suit the installation before final fitting.

If flow is reduced after installation, check the stainless steel filter and aerator for debris. If the tap does not open, does not close or runs intermittently, inspect the power connection, sensor range, solenoid valve, diaphragm and site pressure before replacing parts.

Related Spares You May Need

- - STERN TUBULAR L AISI316 Wall Mounted Tap - Battery Operated - battery-operated version of the STERN TUBULAR L AISI316 wall-mounted tap.

- - STERN 07230017 Interoperable Solenoid Valve with Housing - 075000 - solenoid valve assembly used for electronically controlled Stern sanitary systems.

- - Stern 07231008 Solenoid Housing Kit for Tubular B, E, LB, and LE - solenoid housing kit for Stern Tubular B, E, LB and LE installations.

- - Stern 06522042 Transformer - transformer for Stern electronic tap installations using the mains-powered configuration.

- - Stern 07100005 13B Remote Control with 13 Keys - service remote for adjusting Stern electronic sensor product settings including sensor range, security time, flow time and reset.

- - Stern 06530008 Battery Box with Male Connector - battery box accessory for Stern battery-powered arrangements; the battery itself is not included.
