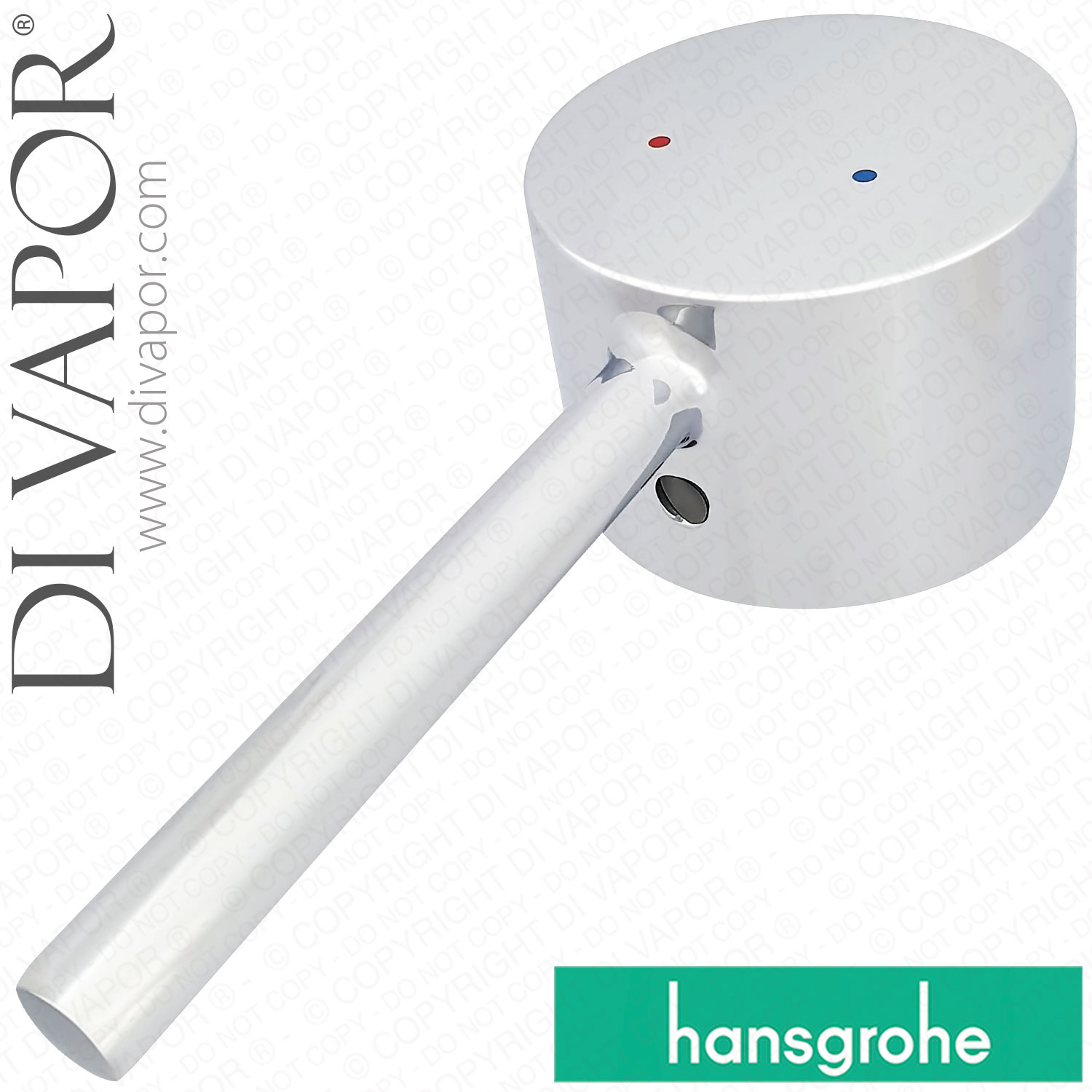

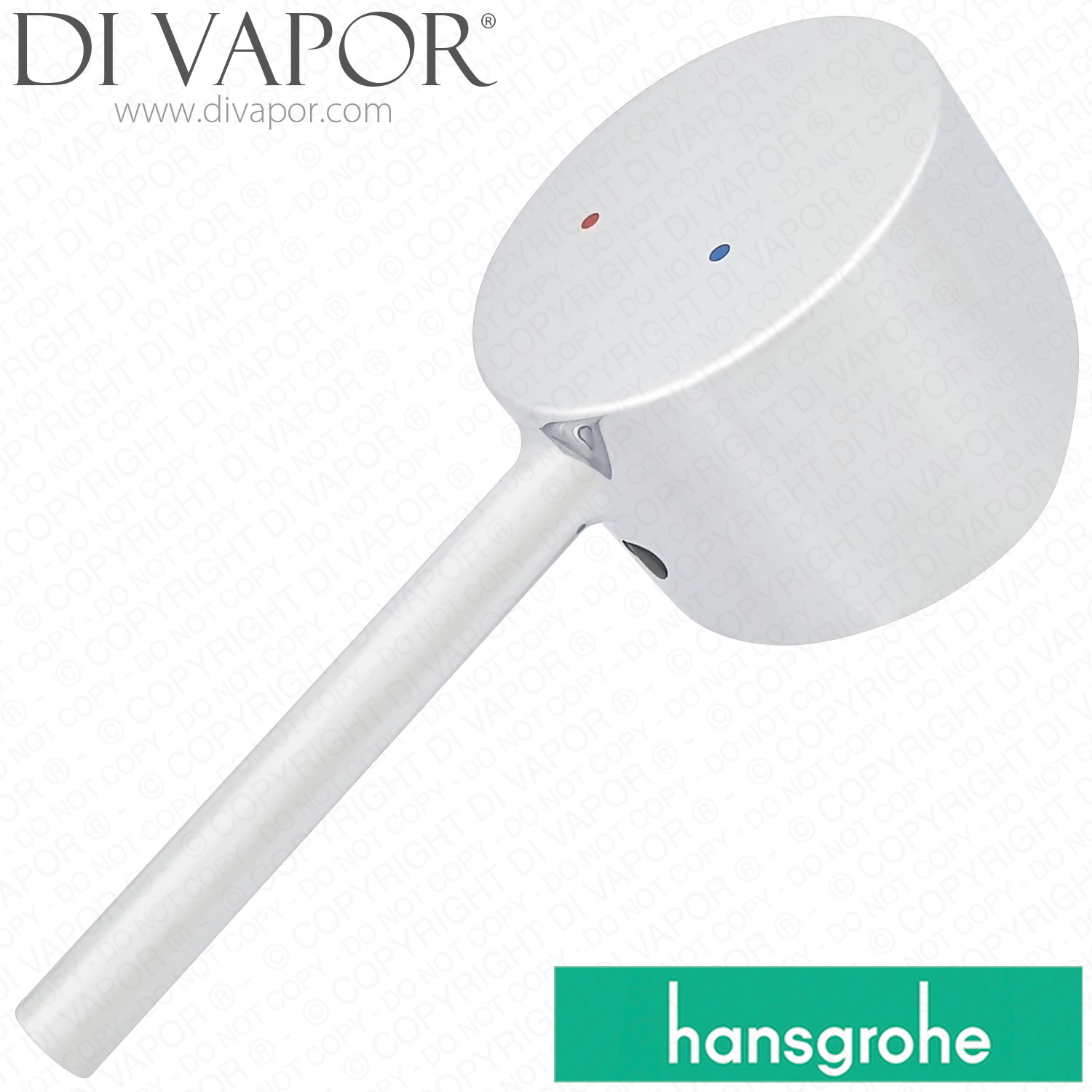

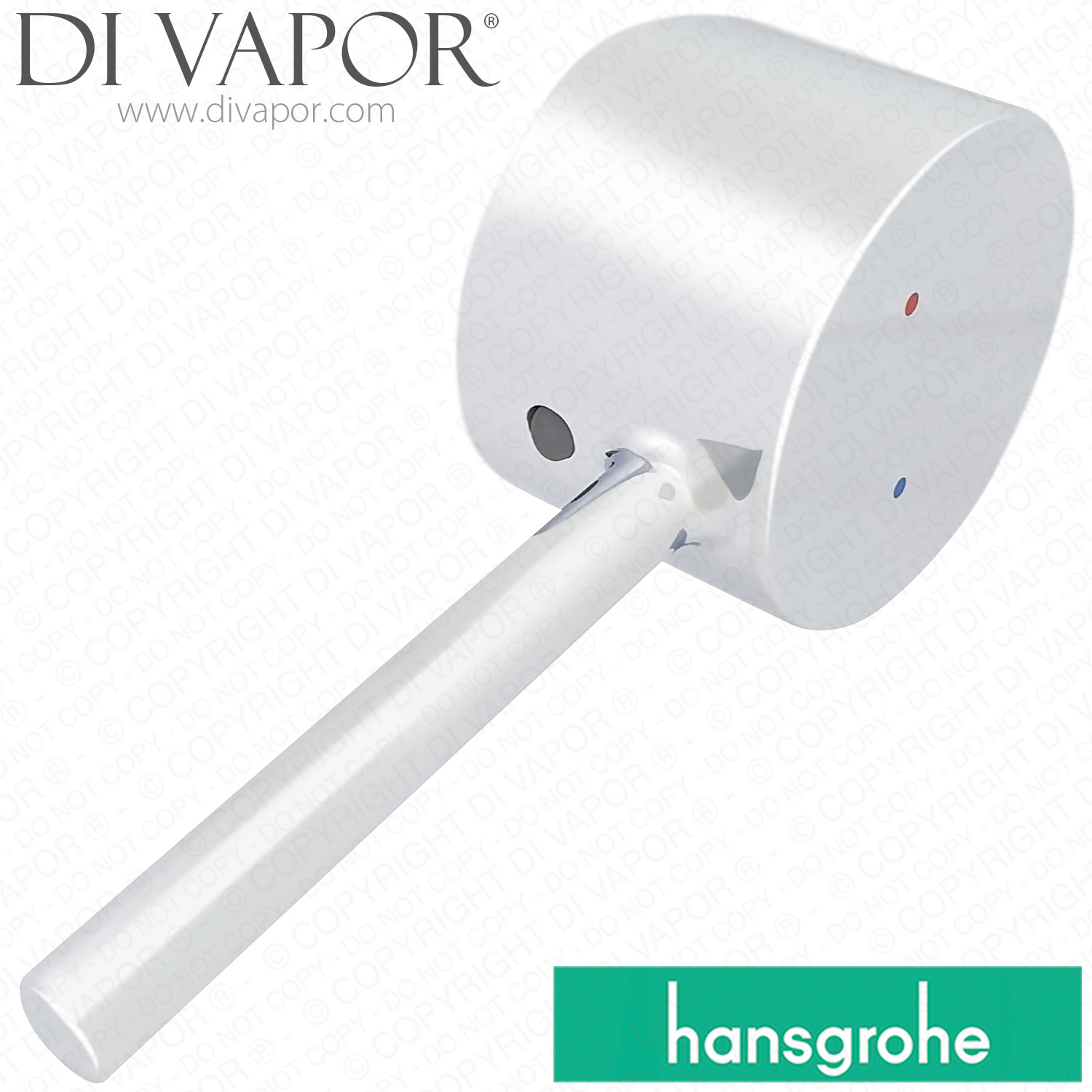

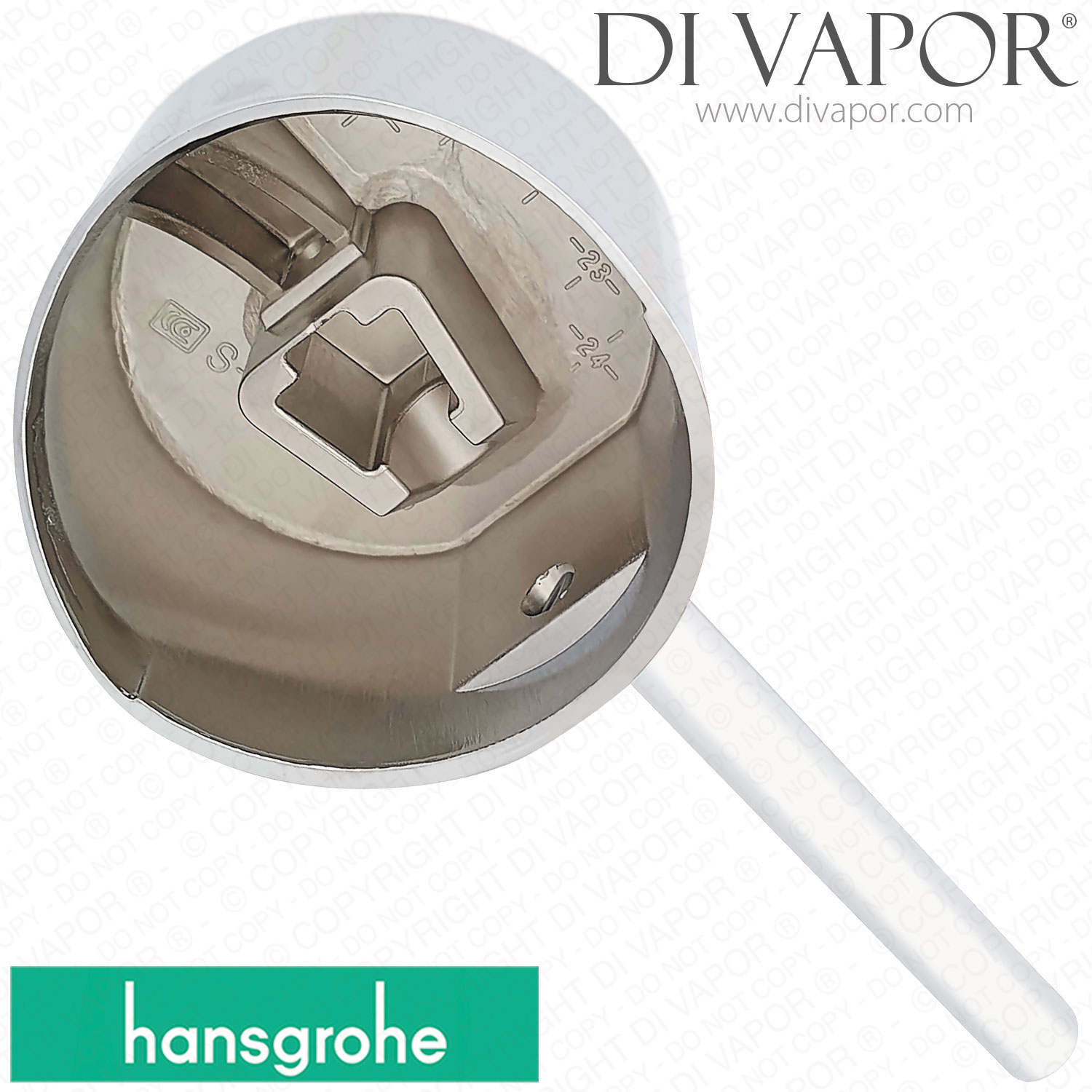

Hansgrohe 10490000 Handle for Axor Starck Valves
SUMMARY
Hansgrohe 10490000 Handle for Axor Starck Valves
Diameter of handle at round part: 51mm
The Hansgrohe 10490000 is a chrome pin-style operating handle used on selected AXOR Starck and AXOR Starck X bath and shower mixers together with specific Pharo shower panels and Hansgrohe Talis kitchen mixers.
The handle fits onto the mixer operating spindle and provides manual control of the water flow and mixed temperature. It can be used to replace a damaged, loose or cosmetically deteriorated handle after the exact mixer article number and production period have been checked.
Technical Details
- - Manufacturer code: 10490000.
- - Finish: Chrome.
- - Handle style: Cylindrical control handle with pin lever.
- - Diameter across the round handle body: 51mm.
- - EAN: 4011097432601.
- - The Hansgrohe 96338000 grey rubber screw cover cap is separately numbered and should not be assumed to be supplied with the handle.
Confirmed Fitment
- - AXOR Starck concealed shower mixer 10616000 production 11/2001 to 05/2011.
- - AXOR Starck concealed shower mixer 10616000 production 06/2011 to 04/2012.
- - AXOR Starck concealed shower mixer 10616000 production from 05/2012.
- - AXOR Starck concealed bath and shower mixer 10416000 production 11/2001 to 04/2010.
- - AXOR Starck concealed bath and shower mixer 10416000 production 05/2010 to 05/2011.
- - AXOR Starck concealed bath and shower mixer 10416000 production 06/2011 to 07/2012.
- - AXOR Starck concealed bath and shower mixer 10416000 production 08/2012 to 12/2015.
- - AXOR Starck concealed bath and shower mixer 10416000 production from 01/2016.
- - AXOR Starck X shower mixer 10601000 production 11/2002 to 04/2009.
- - AXOR Starck X shower mixer 10601000 production 05/2009 to 12/2016.
- - AXOR Starck concealed shower mixer variant 10616003.
- - AXOR Starck concealed bath and shower mixer variant 10416003.
- - AXOR Starck concealed bath and shower mixer variant 10416007.
- - AXOR Starck X exposed single-lever bath mixer 10402000 production 04/2005 to 04/2009.
- - AXOR Starck X exposed single-lever bath mixer 10402000 production 05/2009 to 11/2020.
- - AXOR Starck X floor-standing single-lever bath mixer 10406000 production 05/2005 to 11/2008.
- - AXOR Starck X floor-standing single-lever bath mixer 10406000 production 12/2008 to 01/2022.
- - AXOR Starck X floor-standing single-lever bath mixer 10406007 production 01/2019 to 08/2020.
- - AXOR Starck X concealed single-lever bath mixer 10445000 production 05/2010 to 07/2011.
- - AXOR Starck X concealed single-lever bath mixer 10445000 production 08/2012 to 01/2021.
- - AXOR Starck X concealed single-lever shower mixer 10645000 production 05/2011 to 04/2012.
- - AXOR Starck X concealed single-lever shower mixer 10645000 production from 05/2012.
- - Pharo Lift 2 M 20 shower panel 26870000 production 04/2004 to 02/2009.
- - Pharo Lift 2 M 20 shower panel 26870000 production 03/2009 to 09/2009.
- - Pharo Lift 2 M 20 shower panel 26870000 production 10/2009 to 09/2014.
- - Pharo Lift 2 M 20 shower panel 26870000 production 10/2014 to 12/2015.
- - Pharo Lift 2 shower panel family 26871XXX.
- - Raindance S exposed shower panel 27005000 production 04/2006 to 09/2009.
- - Raindance S exposed shower panel 27005000 production 10/2009 to 12/2016.
- - Croma 100 shower panel with single-lever mixer 27105000 production 04/2007 to 12/2013.
- - Hansgrohe Talis S Variarc kitchen mixer 14865000.
- - Hansgrohe Talis M52 single-lever kitchen mixer 14870000 production 09/2002 to 10/2009.
- - Hansgrohe Talis M52 window-installation kitchen mixer 14872000 production 07/2006 to 06/2009.
- - Hansgrohe Talis M52 kitchen mixer with device shut-off valve 14875000 production 09/2002 to 02/2010.
- - Hansgrohe Talis M52 window-installation kitchen mixer 14877000 production 07/2006 to 06/2009.
Before Ordering
Check the complete mixer or shower-panel article number and its production period before ordering. Do not identify this handle from the 51mm diameter alone because visually similar Hansgrohe and AXOR controls can use different internal fittings.
Related Spares You May Need
- - Hansgrohe 96338000 Grey Rubber Screw Cover Cap for selected mixer installations using this handle.
- - Hansgrohe 97108000 Spline Adapter for Handle for selected Pharo Lift 2 applications.
- - Hansgrohe 97195000 Shower Head for selected Pharo shower-panel systems in which this handle is used.
