INTA ID8112 Pushtap Non-Concussive Self Timed Tap Cartridge with Gasket
Part number: IN-ID8112
Only 1 left in stock.
Price: £101.52
Sale: £91.37
You save: £10.15 (10%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

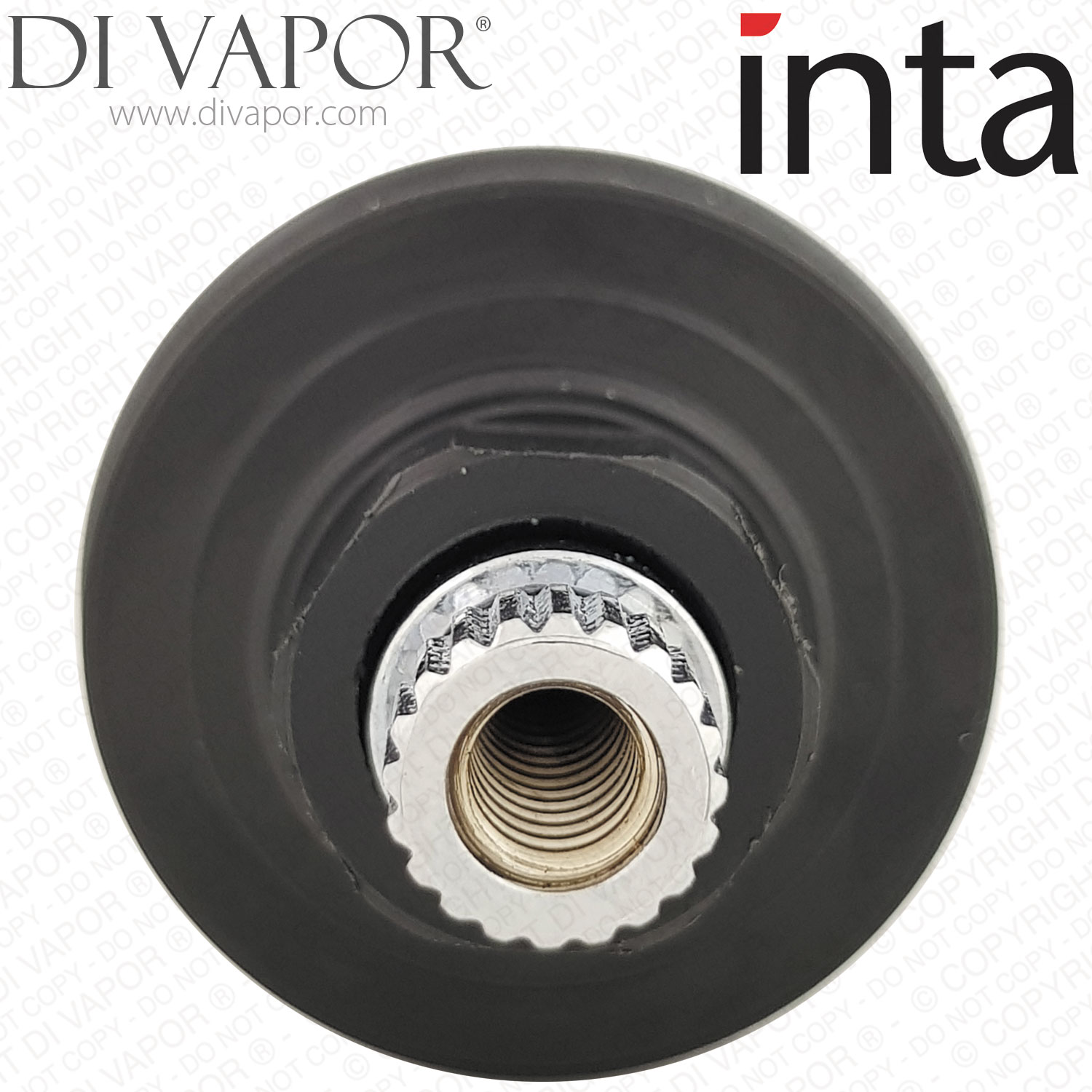

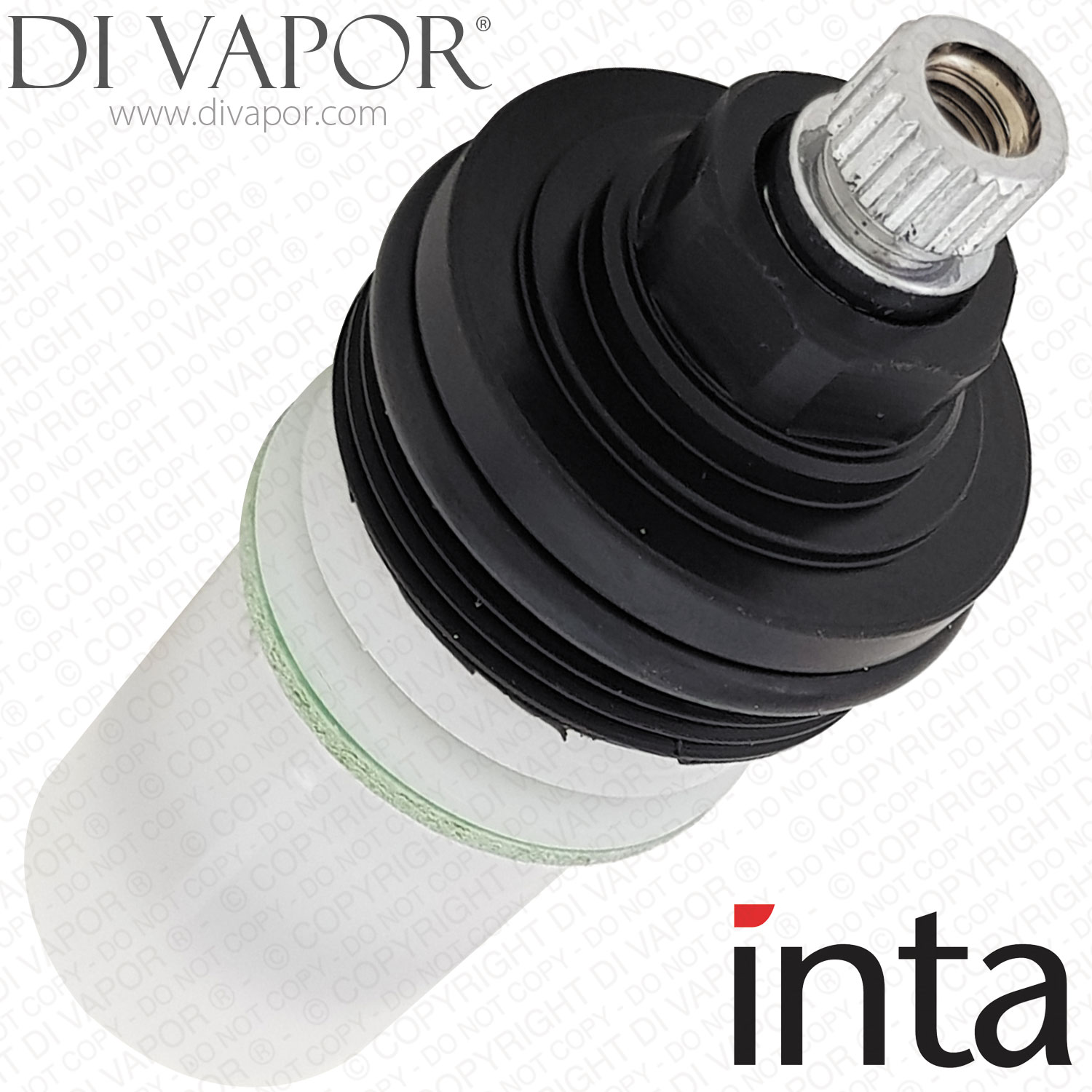

This Inta ID8112 cartridge is a non-concussive self-timed control cartridge supplied with a gasket for selected Inta timed-flow taps and shower controls.
It starts water flow when the control is pressed and then closes automatically after approximately 15 seconds. On the listed host products the same control is also rotated to adjust mixed water temperature.
Technical Details
- Current product listing states 15 seconds at 1 bar pressure.
- Host product technical data states an operating pressure range of 0.5 to 5 bar dynamic.
- NC230CP basin tap technical data states max basin thickness 45mm and G1/2 flexible tail inlet connections.
- NC140CP exposed shower control technical data states G 3/4 inch female BSP inlet connections at the valve body, 15mm compression outlet connection, and max inlet temperature 65 degrees C.
- The surrounding sleeve page for Inta ID08112MIX Outer Cartridge Sleeve for NC230CP refers to ID811225, so check the code on the removed assembly and the host product before ordering.
Models and Systems Used In
- Inta NC230CP Non Concussive Basin Mounted Manual Mixer Tap
- Inta NC140CP Exposed Timed Flow Shower Control with Temperature Adjustment
- Inta NC145CP Concealed Timed Flow Shower Control with Temperature Adjustment
- Inta SF2104CP Sola Temp Controlled Non Concussive Monobloc Tap
Before Ordering Check
- Check ID8112 against the removed cartridge and the host product spare page.
- Check whether you also need the outer sleeve and O-rings if the surrounding cartridge housing is worn, seized, or damaged.
