INTA ID0004 Delay Pushtap Non-Concussive Self Timed Tap Cartridge

SUMMARY

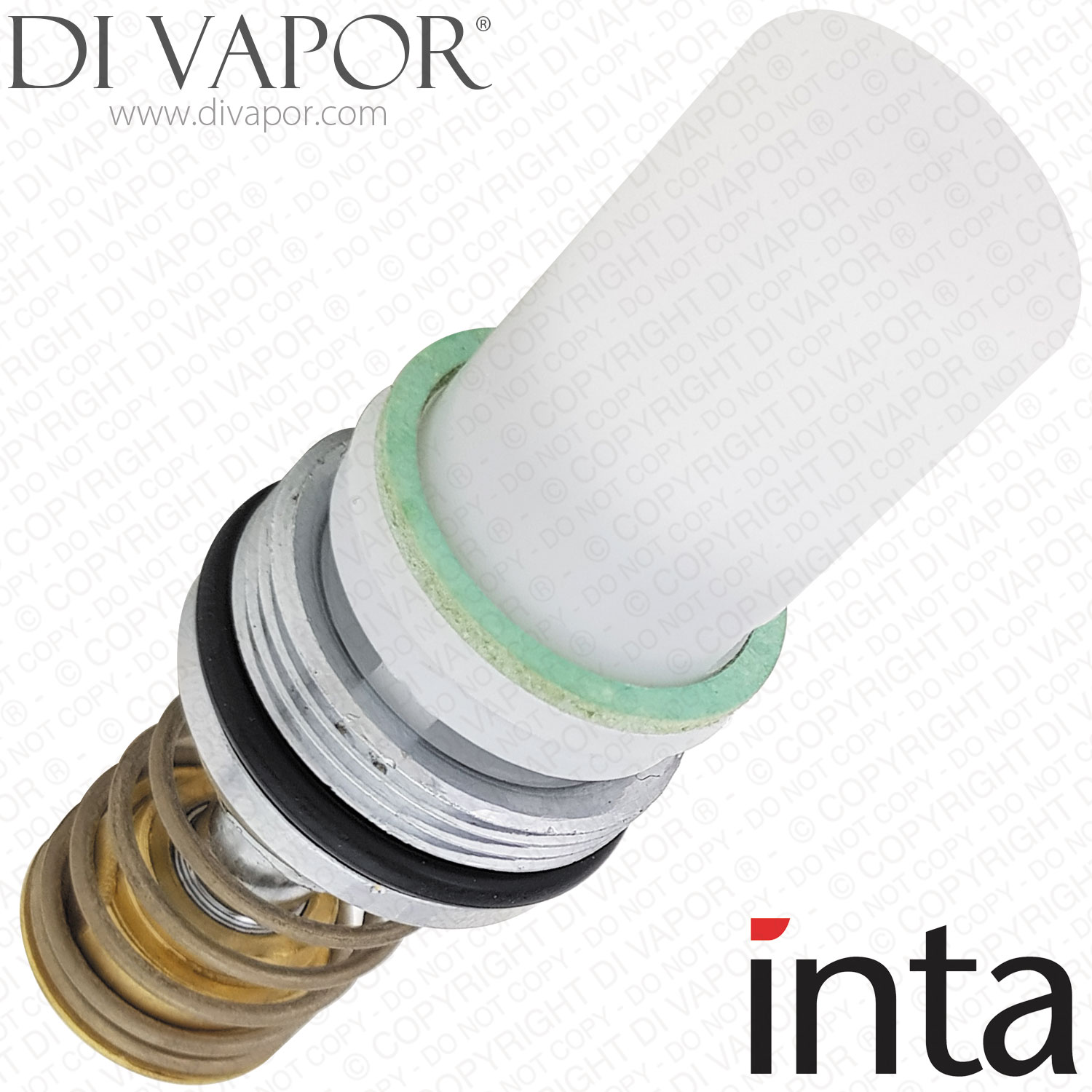

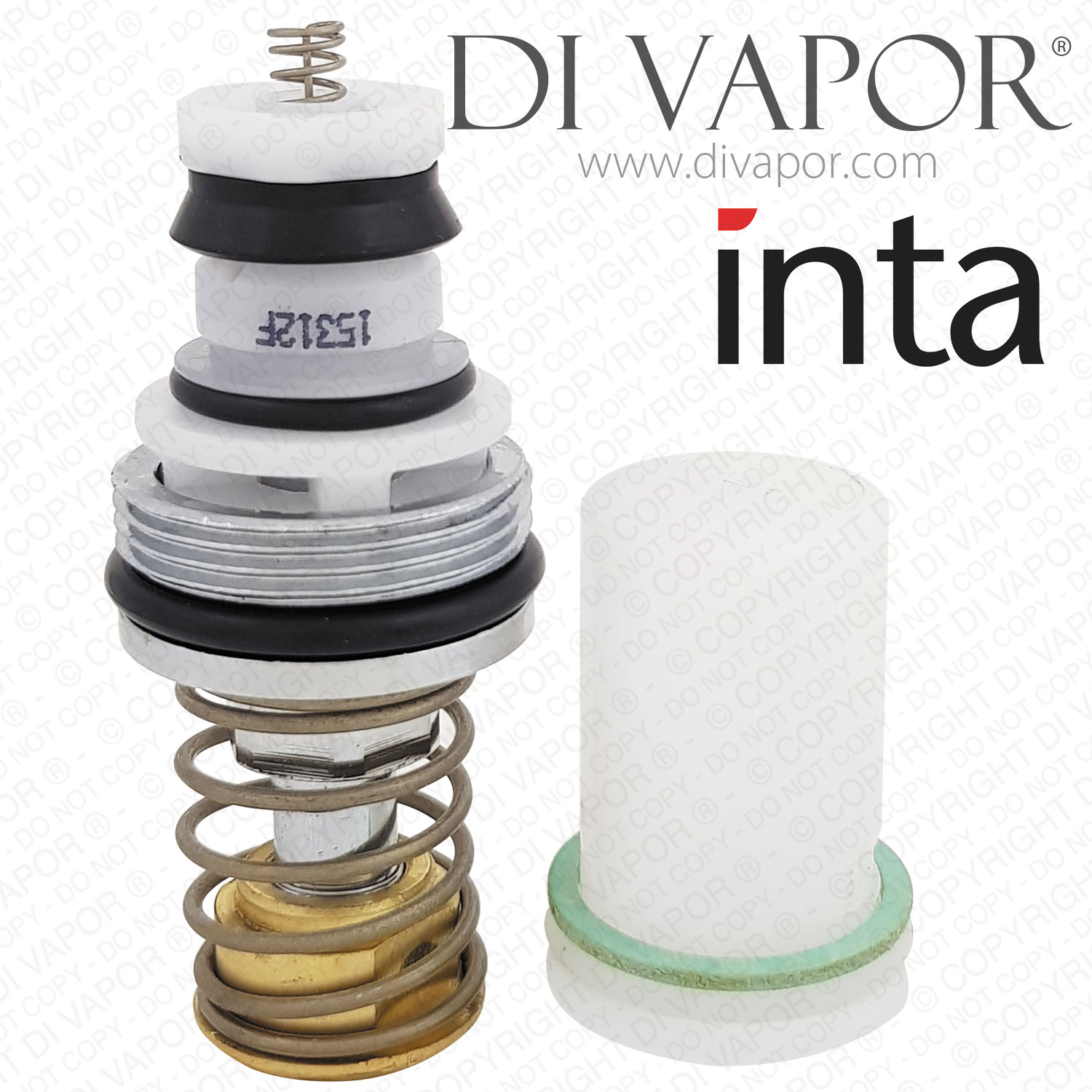

Inta ID004 Non-Concussive Cartridge

Note: The threaded fixing collar is now made from a black hardened polymer instead of the previous alloy metal, now discontinued.

The INTA ID0004 Delay Pushtap cartridge is a non-concussive self-closing timed-flow tap cartridge used in Inta knee-operated valve assemblies. It is used to restore the timed shut-off action in the valve when the tap no longer closes correctly, runs for too long, shuts off too quickly or fails to deliver a controlled timed flow.

This cartridge is listed by Di Vapor with Part Number INTA-ID004. The current construction has a black hardened polymer threaded fixing collar, replacing the previous alloy metal collar version, which is now discontinued.

Technical Details

- - Part type: non-concussive self-closing timed-flow tap cartridge

- - Title code: ID0004

- - Part Number: INTA-ID004

- - Application: Inta knee-operated non-concussive valve components

- - Current collar construction: black hardened polymer threaded fixing collar

- - Previous collar construction: alloy metal collar, now discontinued

- - Associated valve flow time: 15 +/- 3 seconds at 3 bar

- - Associated valve maximum inlet pressure: 5 bar

- - Associated valve minimum inlet pressure: 0.1 bar

- - Associated valve maximum inlet temperature: 65 C

- - Associated valve inlet and outlet connections: 15 mm compression

Confirmed Compatible Models

- - Inta LO810CP Exposed Knee Operated Non-Concussive Valve Component Tap Spare Parts

- - Inta LO820CP Concealed Knee Operated Non-Concussive Valve Component Tap Spare Parts

Installation and Checking Notes

Before ordering, check that the existing valve is the Inta LO810CP exposed or LO820CP concealed knee-operated non-concussive valve component. Isolate the water supply before removal, flush pipework where required and inspect the existing cartridge, rubber seal and valve body for debris or wear before fitting the replacement cartridge.

Related Spares You May Need

- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031): used on O-rings and cartridge seals during tap and shower cartridge servicing.
