Grohe 33590003 Eurostyle Chrome Single-Lever Shower Mixer (1/​2 Inch) Spare Parts

SUMMARY

Spares for Grohe 33590003 Eurostyle Chrome Single-Lever Shower Mixer

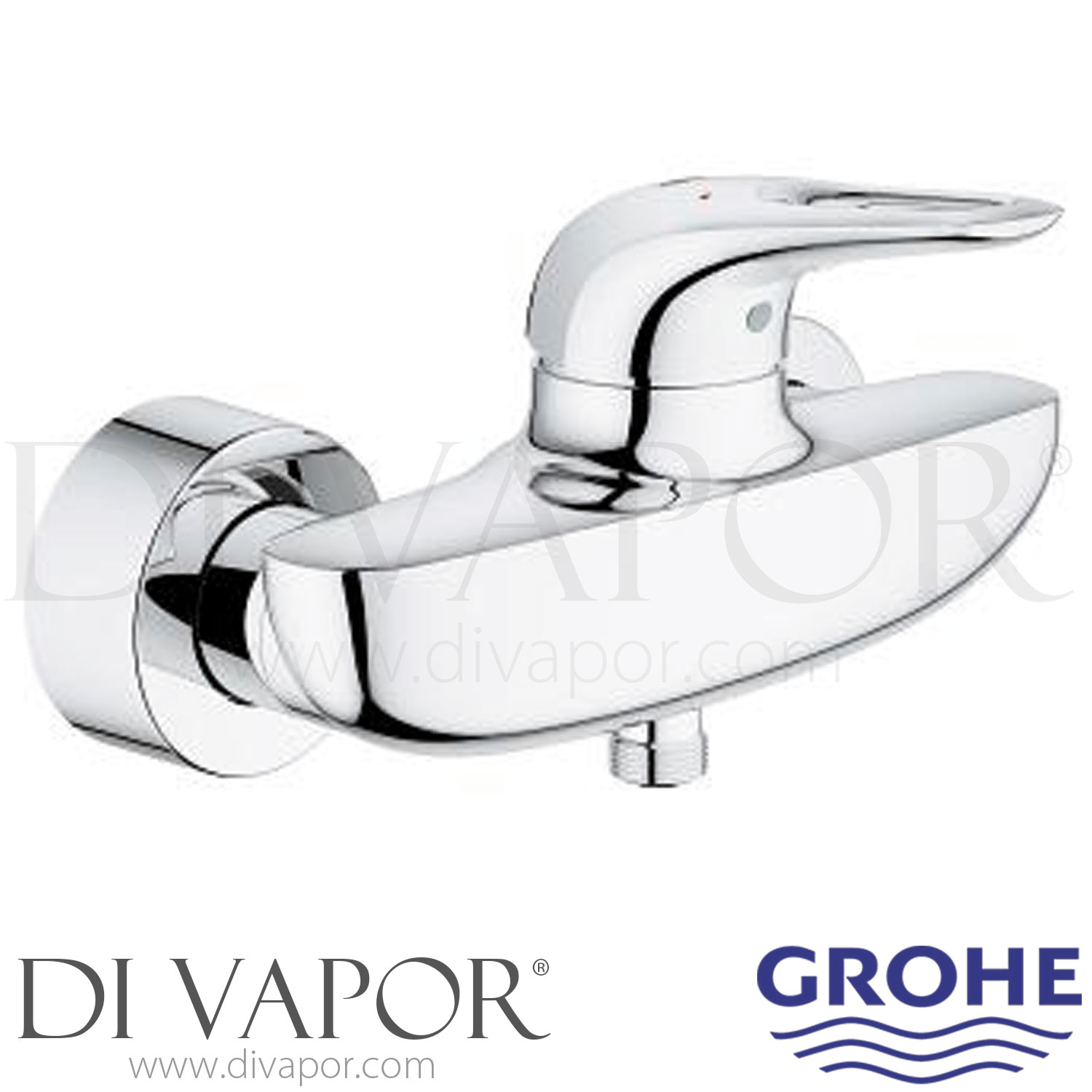

The Grohe 33590003 Eurostyle is a chrome, wall-mounted, exposed single lever shower mixer with 1/2 inch connections. It uses a single control lever to regulate water flow and temperature, and is designed around Grohe's 35 mm ceramic mixer cartridge.

This mixer incorporates a temperature limiter, adjustable flow-rate limiter, covered S-unions, and a shower outlet with an integrated non-return valve. When servicing the valve, selecting the correct Grohe shower spare parts by the exact mixer code helps ensure the cartridge, coupling, and other components correspond with the 33590003 assembly.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle

- - Category: Shower mixer

- - Product code: 33590003

- - Finish: Chrome

- - Installation: Wall-mounted, exposed installation

- - Control: Single lever

- - Cartridge type: 35 mm ceramic mixer cartridge

- - Cartridge code: 46374000

- - Shower outlet: G 1/2 inch

- - Inlet centres: 150 +/- 15 mm

- - Escutcheon diameter: 70 mm

- - Flow rate at 3 bar: 16.00 litres per minute

- - Temperature limiter: Yes

- - Adjustable flow-rate limiter: Yes

- - Backflow protection: Integrated non-return valve

- - EAN: 4005176334306

Before You Order

Check the mixer code is 33590003 before ordering replacement components. Similar Grohe Eurostyle and Eurostyle Cosmopolitan shower mixers use closely related product numbers, but their spare parts should not be assumed to be interchangeable without confirming the exact valve code.
