Grohe 32880000 Eurosmart Cosmopolitan Single-Lever Shower Mixer Spare Parts

SUMMARY

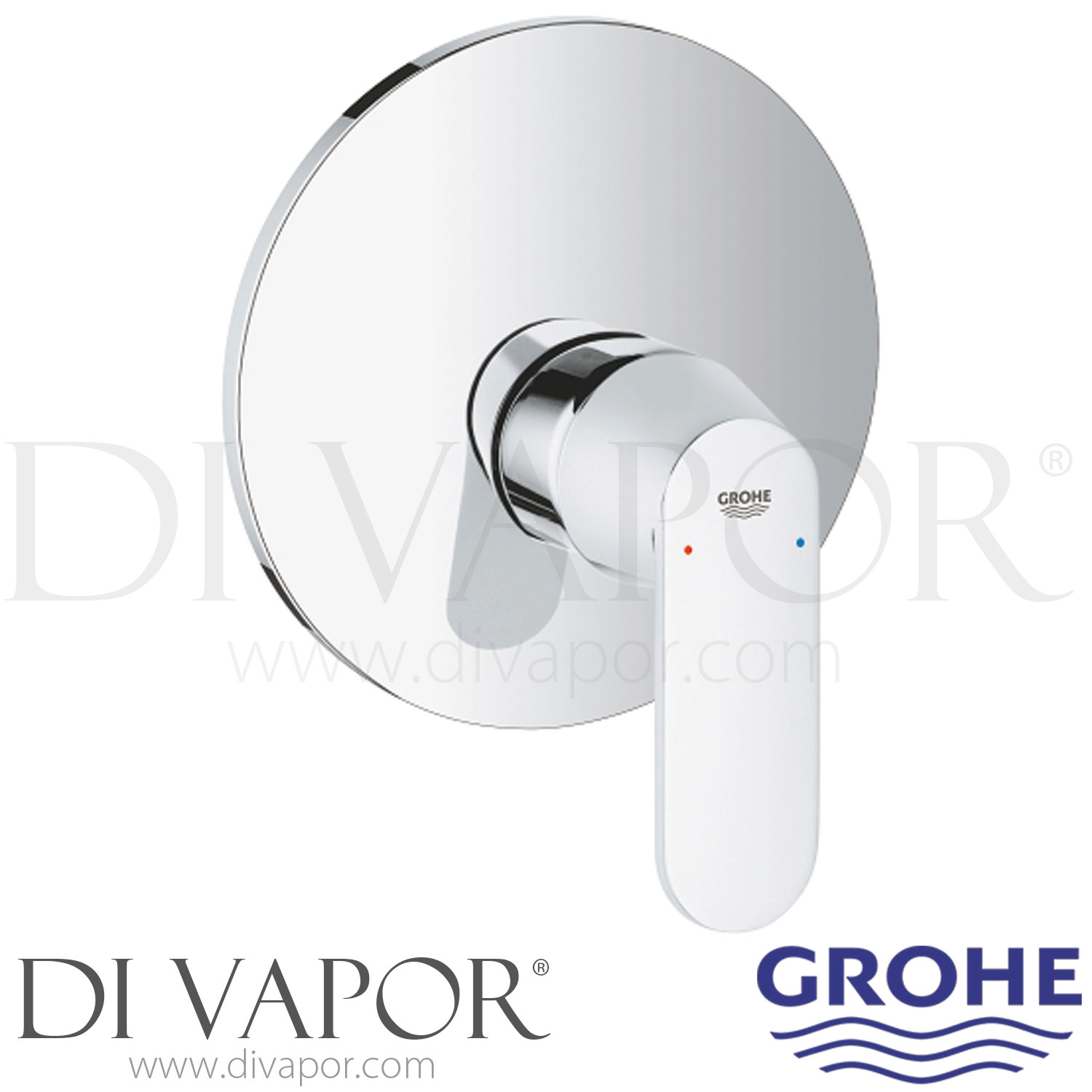

Shower Spares for Grohe 32880000 Eurosmart Cosmopolitan Concealed Single-Lever Shower Mixer

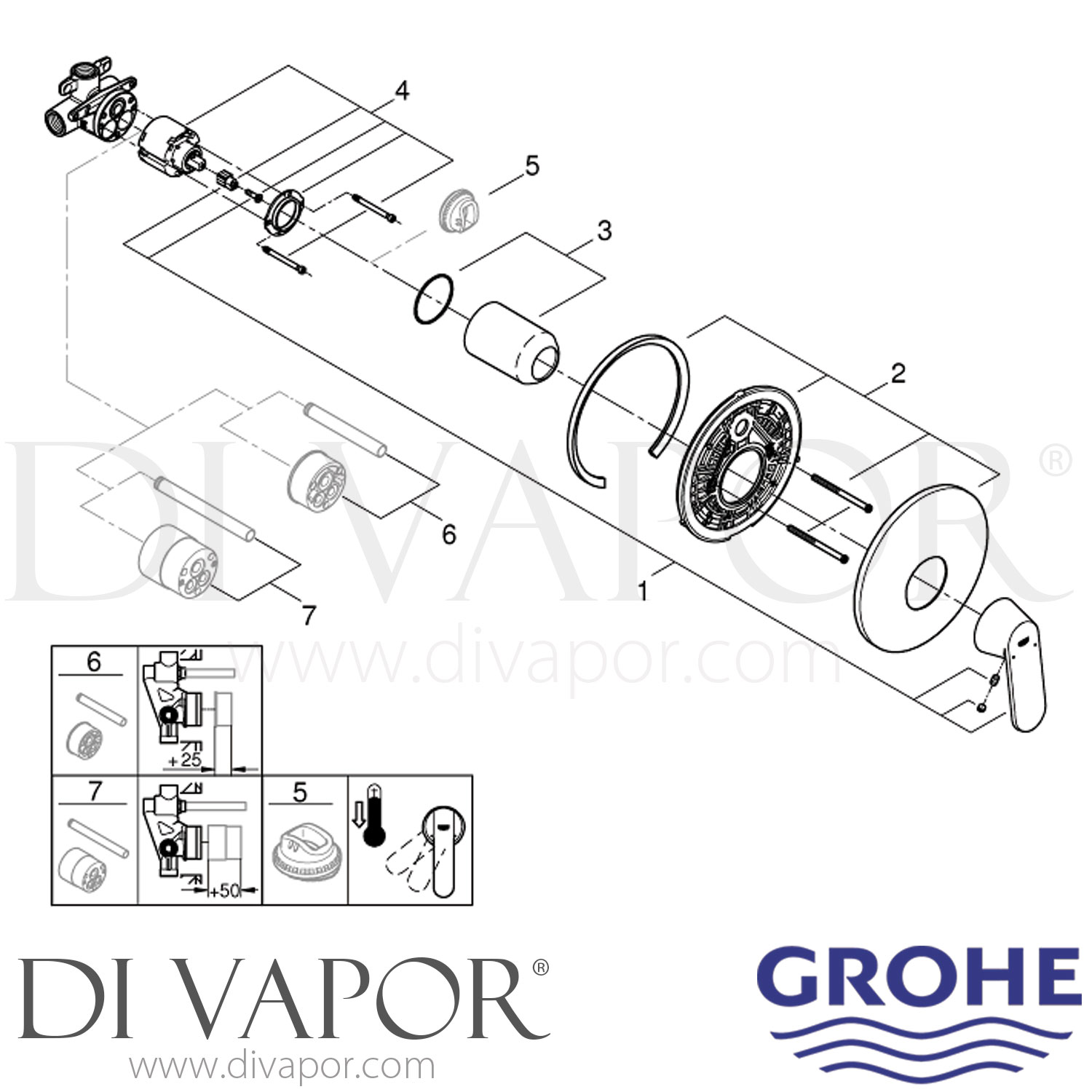

The GROHE 32880000 Eurosmart Cosmopolitan is a wall-mounted concealed single-lever shower mixer used to control water flow and mixed-water temperature. This page identifies the service parts and installation components available for maintaining the mixer.

The manual mixer uses a GROHE SilkMove 46mm ceramic cartridge. Cartridge wear or scale build-up can cause stiff or uneven lever movement, inconsistent temperature control, reduced flow or water continuing to pass through the shower outlet when the control is closed.

Technical Details

- - Brand: GROHE

- - Model code: 32880000

- - Range: Eurosmart Cosmopolitan

- - Category: Shower mixer

- - Mixer type: Manual single-lever mixer

- - Installation type: Concealed wall-mounted installation

- - Finish: Chrome

- - Cartridge type: GROHE SilkMove 46mm ceramic mixer cartridge

- - Lever and escutcheon: Metal

- - Flow control: Adjustable flow limiter with an adjustable minimum flow of approximately 2.5 litres per minute

- - Installation body: Grohe 33962000 1/2 Inch Concealed Mixer Body Spare Parts

- - Optional temperature limiter: GROHE 46308000

- - Product EAN: 4005176877360

Before You Order Check

GROHE documents two trim arrangements for model 32880000. Valves produced from September 2009 to December 2015 use escutcheon 46469000 with screw set 46088000. Valves produced from December 2015 onwards use escutcheon 46904000. Check the installation date and existing escutcheon arrangement before ordering generation-specific trim parts.

The GROHE 46048000 ceramic mixer cartridge and GROHE 46191000 25mm extension kit are shown for both documented generations. Isolate the water supplies before dismantling the mixer and compare the existing component code and physical arrangement with the replacement part.
