Grohe 32214001 Concetto Single-Lever Shower Bath Mixer Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 32214001 Concetto Single-Lever Shower Bath Mixer
Concealed Body: 33 963 000

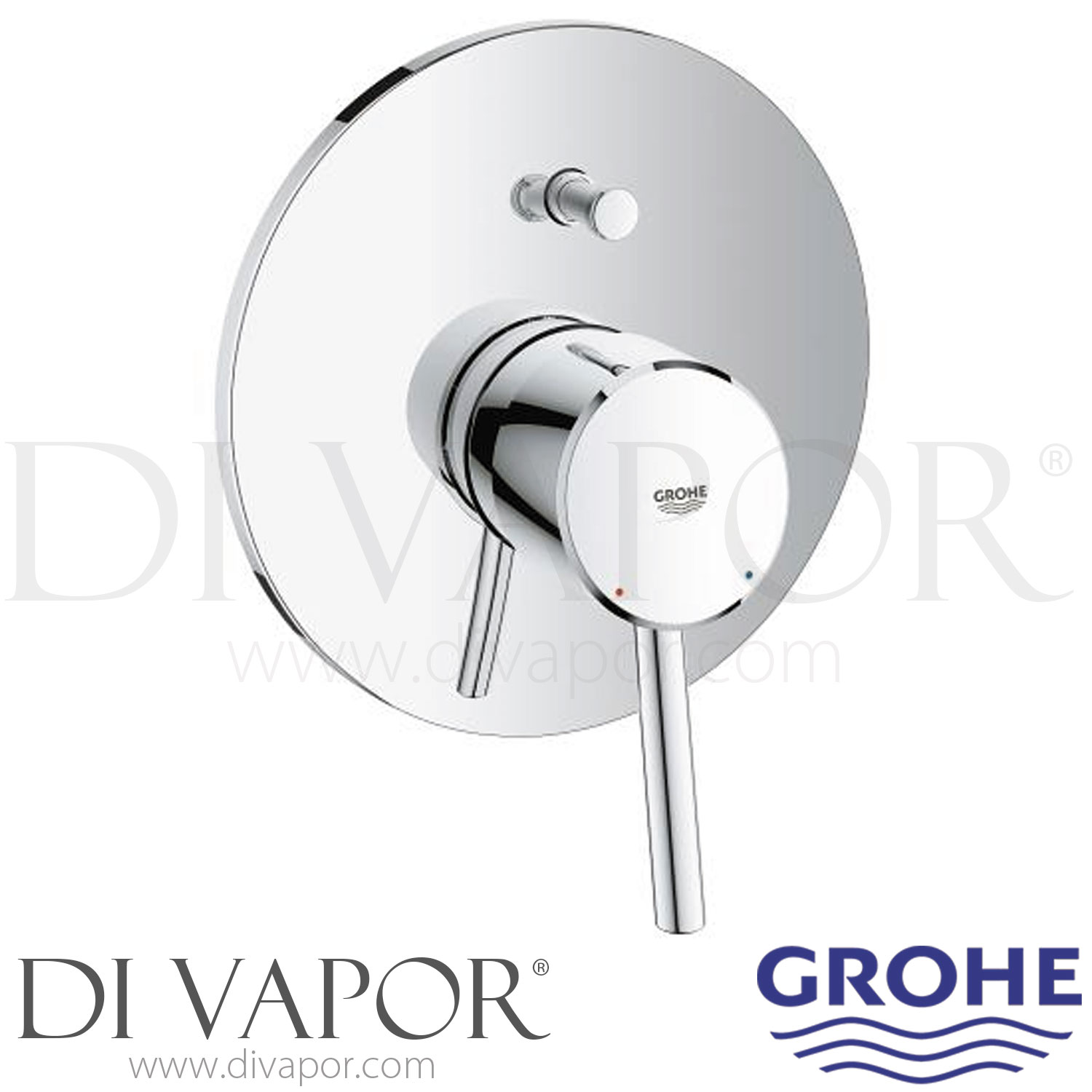

The Grohe 32214001 is a Concetto concealed single lever bath shower mixer for wall installation, with a chrome control trim, single lever operation and diverter control. This spare parts page covers service components used with the 32214001 mixer.

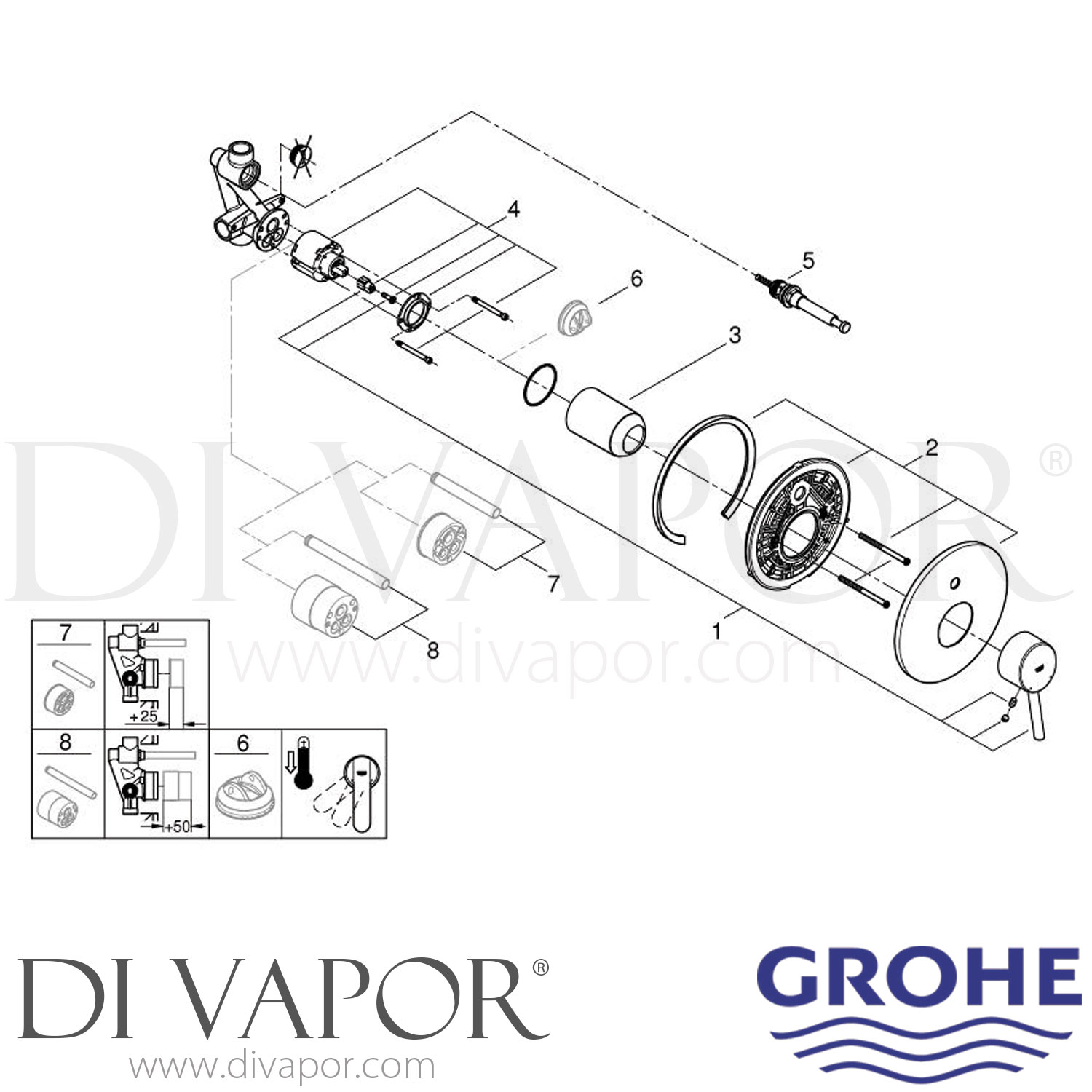

The mixer uses a 46mm GROHE SilkMove ceramic cartridge to control water flow and temperature. For servicing, the available Grohe shower spare parts include the main ceramic cartridge, diverter switch and installation extension kit, together with the shower hose currently listed for this model.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Bath shower mixer |
| Model code | 32214001 |
| Installation | Wall-mounted concealed installation |
| Control | Single lever with diverter |
| Cartridge | GROHE SilkMove 46mm ceramic cartridge |
| Finish | Chrome |

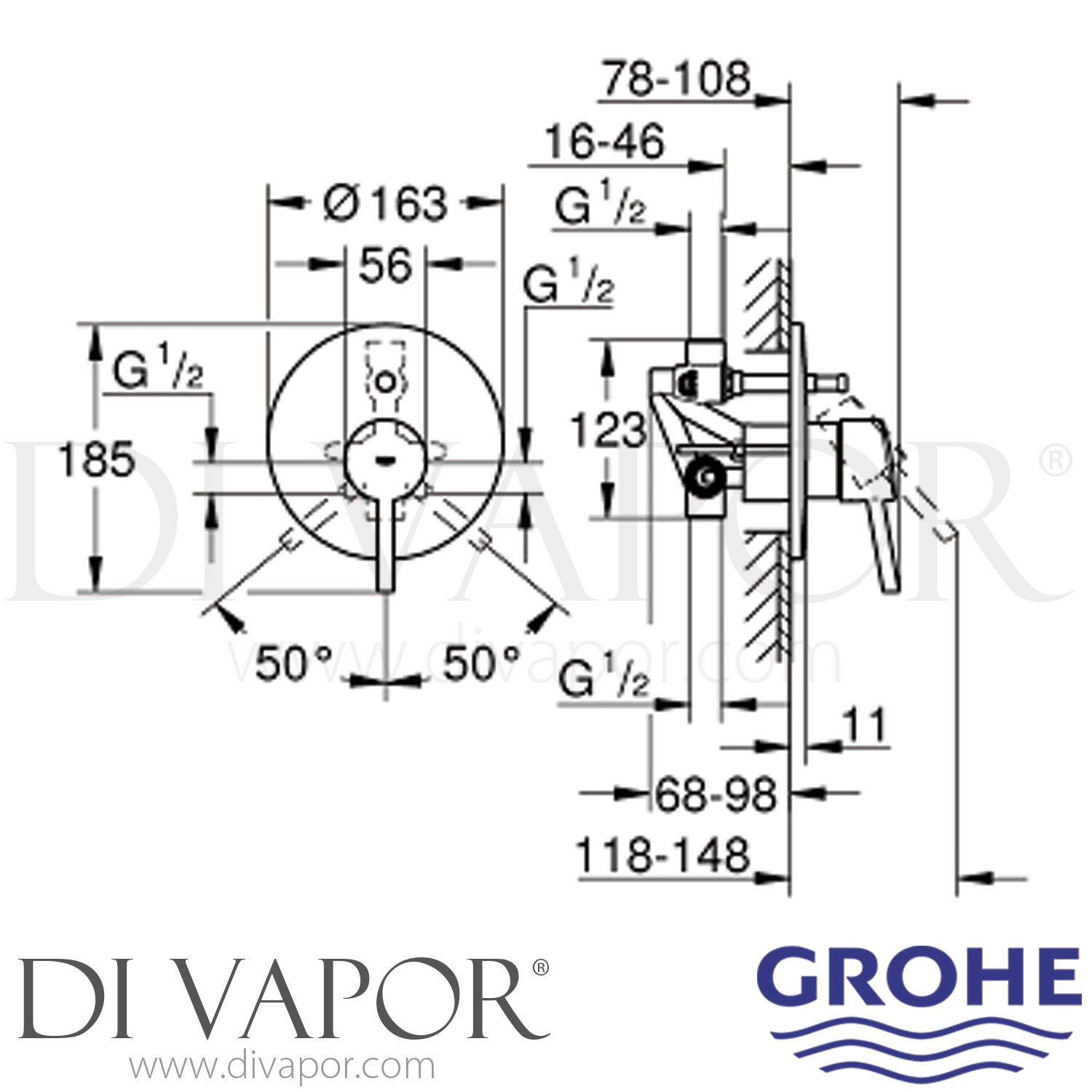

| Rosette diameter | 163mm |
| Connections | G 1/2 |
| Adjustable minimum flow rate | 2.5 l/min |
| Optional temperature limiter | 46375000 |
| EAN | 4005176889097 |
Concealed Body Spares
The concealed body code 33 963 000 for the 32214001. Spare parts for this concealed body can be viewed on the Grohe 33963000 Single-Lever Mixer 1/2 Inch Concealed Body spares page. Check the code on the installed concealed body before ordering body-specific parts.
Before You Order
Confirm the mixer model code and the spare part being replaced before ordering. For concealed-body components, also check the code marked on the installed body, as body-specific spare parts should be selected against the installed valve.
GROHE 46048000 GRO46048 46mm SilkMove Ceramic Cartridge for Single-Lever MixersGROHE 46048000 is a 46mm GROHE SilkMove ceramic cartridge used to control water flow and temperature in selected single-lever bath, shower, basin, sink, kitchen and concealed mixers. It is also referen...
Grohe 46737000 Diverter SwitchThe GROHE 46737000 is a 3-way diverter valve and trim assembly used in specified concealed single-lever bath and shower mixers. It directs mixed water between the bath outlet and shower outlet and is supplied with the diverter knob.The diverter is th...
GROHE 46191000 25mm Extension Kit for Concealed Single-Lever Bath and Shower MixersThe GROHE 46191000 is a 25mm extension kit for concealed single-lever bath and shower mixer installations. It is used where the concealed mixer has been installed too deeply for the standard trim a...
