Grohe 32213001 Concetto Single-Lever (1/2 Inch) Shower Mixer Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

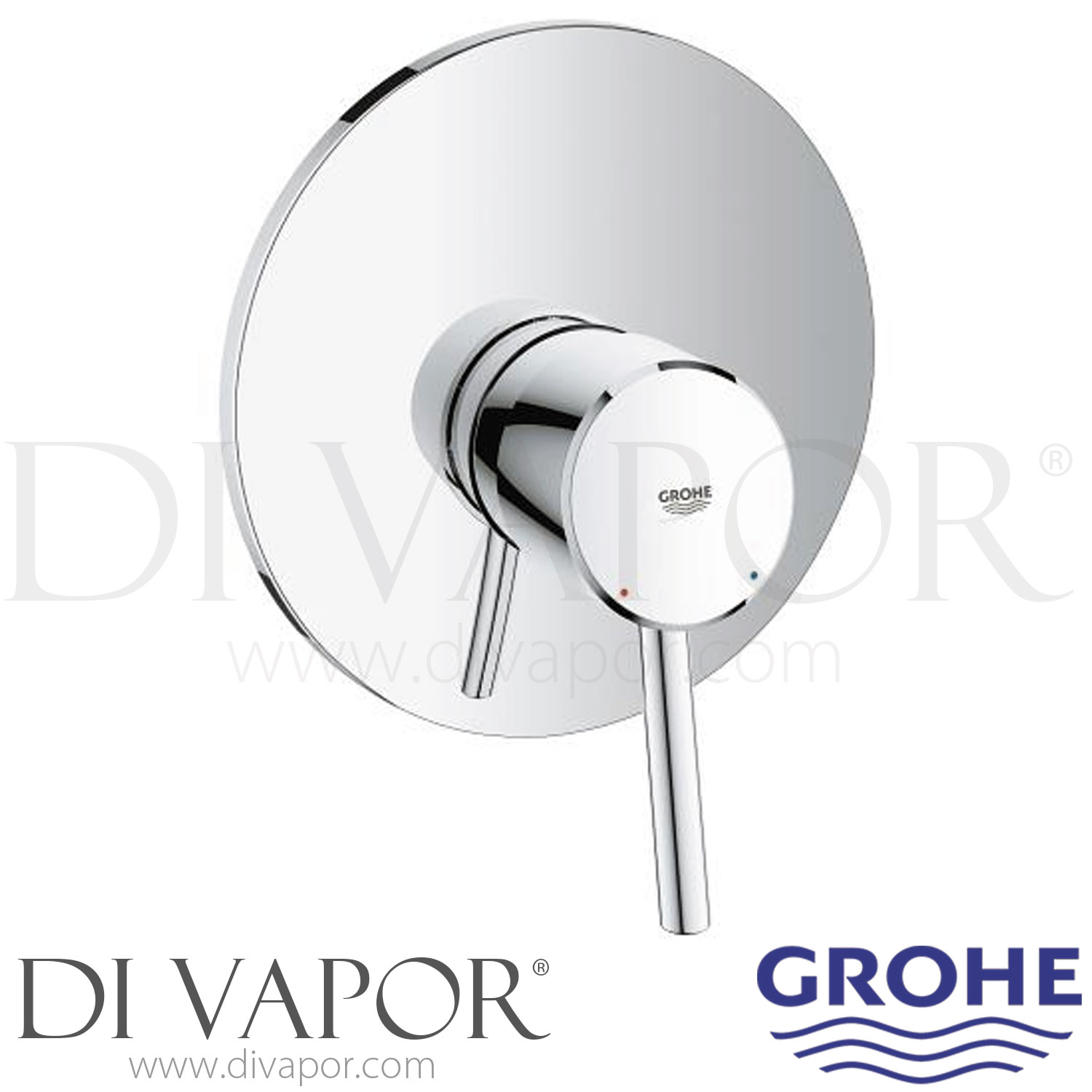

Spares for Grohe 32213001 Concetto Single-Lever 1/2 Inch Shower Mixer
- Concealed Body 33 964 000
Grohe 32213001 Concetto single-lever 1/2 inch concealed shower mixer spare parts for servicing the flow and temperature control components of this wall-mounted shower mixer. The mixer uses a concealed valve body behind the finished wall, with the operating lever and chrome escutcheon positioned at the front.

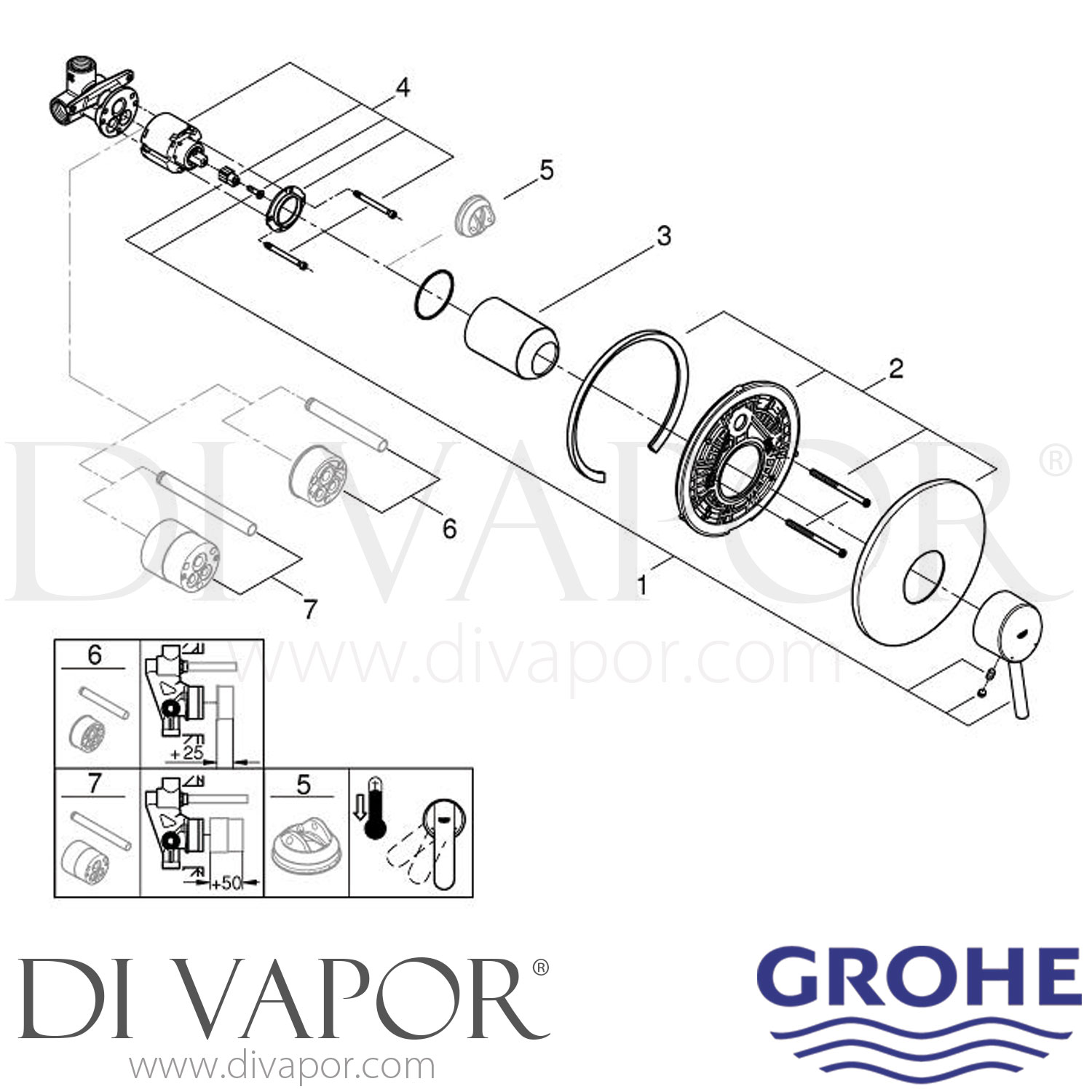

The single lever controls both water flow and mixed-water temperature through a 46mm ceramic cartridge. Wear within the cartridge can cause stiff lever movement, inconsistent temperature control, or difficulty shutting the water flow off fully. The Grohe shower spare parts listed below include the cartridge and extension kit shown for this mixer, together with the related shower hose listed for the model.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Shower mixer |
| Product code | 32213001 |
| Installation | concealed, wall-mounted |
| Connection size | 1/2 inch |
| Finish | chrome |
| Concealed body | Grohe 33964000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts, referenced as 33 964 000 for this mixer |
| Cartridge type | 46mm ceramic single-lever mixing cartridge |
- Adjustable flow-rate limiter
| Adjustable minimum flow | approximately 2.5 litres per minute |
|---|---|

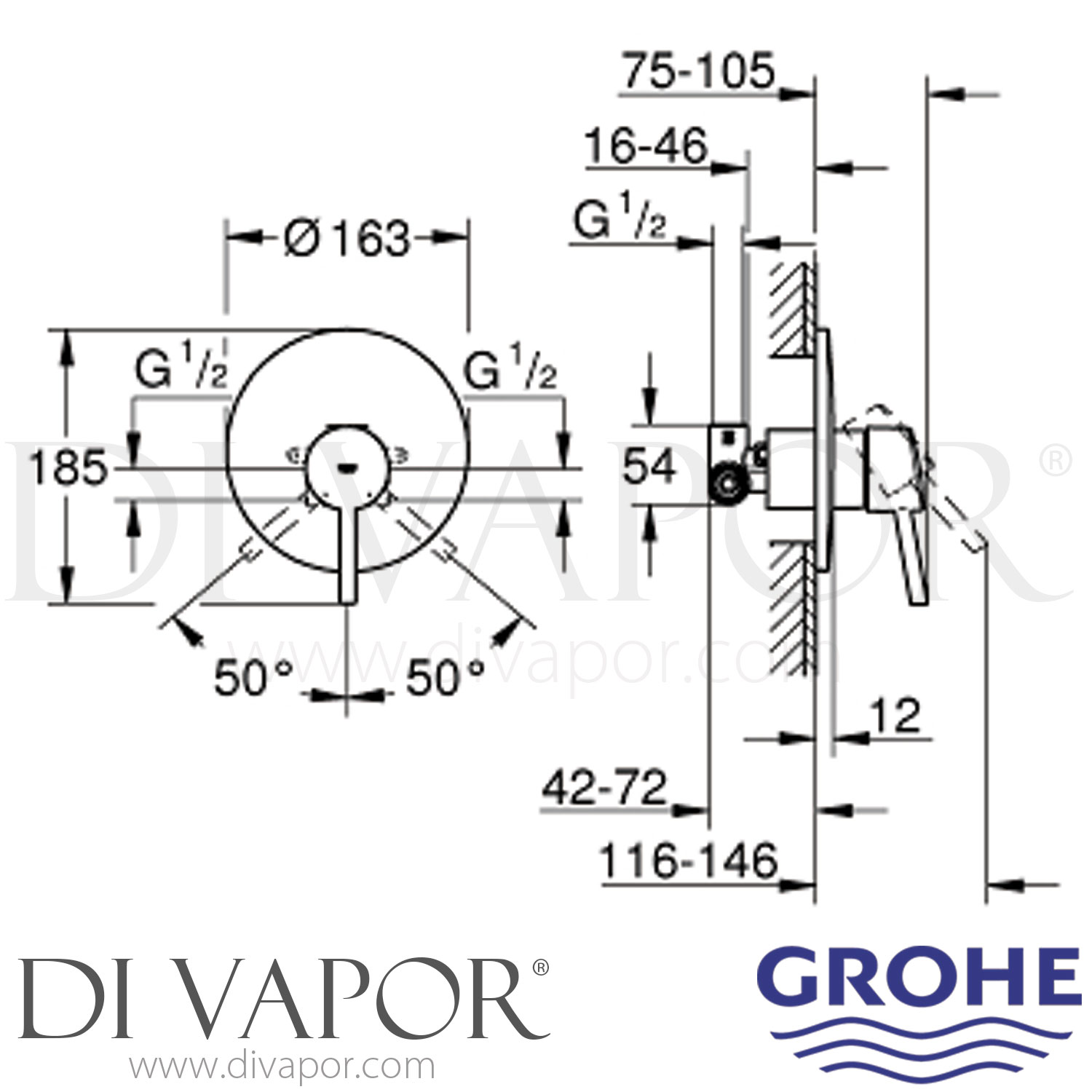

| Rosette diameter | 163mm |
| Optional temperature limiter | 46375000 |
| Service-generation note | service documentation distinguishes April 2010 to December 2015 and December 2015 onwards, with different escutcheon arrangements, so the existing trim should be checked before ordering generation-specific parts |
| EAN | 4005176888960 |
Before You Order
Check the mixer code is 32213001 and compare the existing cartridge and trim arrangement before ordering. Earlier and later service generations use different escutcheon components, so the trim should not be selected from appearance alone.
The 46048000 cartridge measures approximately 45.7mm in diameter and 73.6mm in total height, including the plastic top adapter and lower seals. Compare these details with the removed cartridge where identification is uncertain.
GROHE 46048000 GRO46048 46mm SilkMove Ceramic Cartridge for Single-Lever MixersGROHE 46048000 is a 46mm GROHE SilkMove ceramic cartridge used to control water flow and temperature in selected single-lever bath, shower, basin, sink, kitchen and concealed mixers. It is also referen...
GROHE 46191000 25mm Extension Kit for Concealed Single-Lever Bath and Shower MixersThe GROHE 46191000 is a 25mm extension kit for concealed single-lever bath and shower mixer installations. It is used where the concealed mixer has been installed too deeply for the standard trim a...
