Grohe 24053001 Concetto Single-Lever Shower Mixer Spare Parts

SUMMARY

Spares for Grohe 24053001 Concetto Single-Lever Shower Mixer

- Grohe Rapido SmartBox (35 600)

- Grohe SilkMove 46mm Ceramic Cartridge

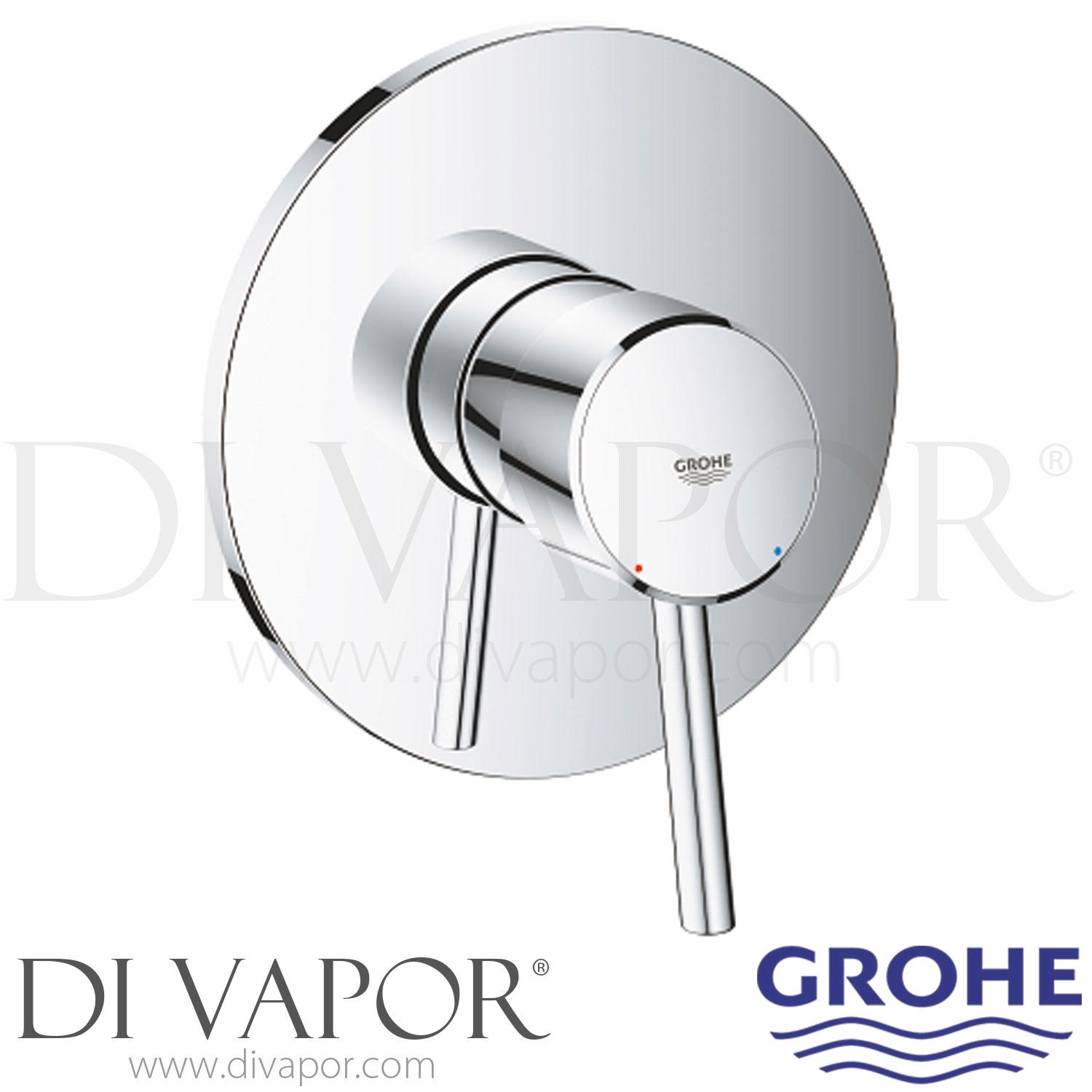

Grohe 24053001 Concetto concealed single-lever shower mixer spare parts for the chrome final-installation trim set used with a GROHE Rapido SmartBox concealed rough-in body. The mixer uses one metal lever to regulate water flow and mixed-water temperature, while the concealed body is ordered separately.

The mixer uses a GROHE SilkMove 46mm ceramic cartridge. A worn or contaminated cartridge can cause stiff or uneven lever movement, unreliable flow or temperature adjustment, or water continuing to drip from the shower outlet after the lever has been closed. The Grohe shower spares listed below can help restore smooth operation once the correct component has been identified.

Technical Details

- - Brand: Grohe

- - Range: Concetto

- - Category: Shower mixer

- - Product code: 24053001

- - Product type: concealed single-lever shower mixer trim set

- - Required concealed body: Grohe 35600000 Rapido Smartbox Universal Rough-In Box 1/2 Spare Parts, manufacturer reference 35 600, or GROHE Rapido SmartBox 35604000, manufacturer reference 35 604

- - Concealed rough-in body: not included

- - Cartridge: GROHE SilkMove 46mm ceramic cartridge

- - Finish: chrome with GROHE LongLife finish

- - Trim: metal escutcheon and metal lever

- - Fixing: GROHE FastFixation, with covered escutcheon and shaft sealing, and concealed fixing

- - Escutcheon adjustment: up to 6 degrees after installation

- - Flow performance: 30 litres per minute at 3 bar through outlet B or C

- - Recommended flow pressure: 1-5 bar

- - Minimum flow pressure without downstream resistance: 0.5 bar

- - Maximum operating pressure: 10 bar

- - Maximum hot-water supply temperature: 70 degrees C, with 60 degrees C recommended for energy saving

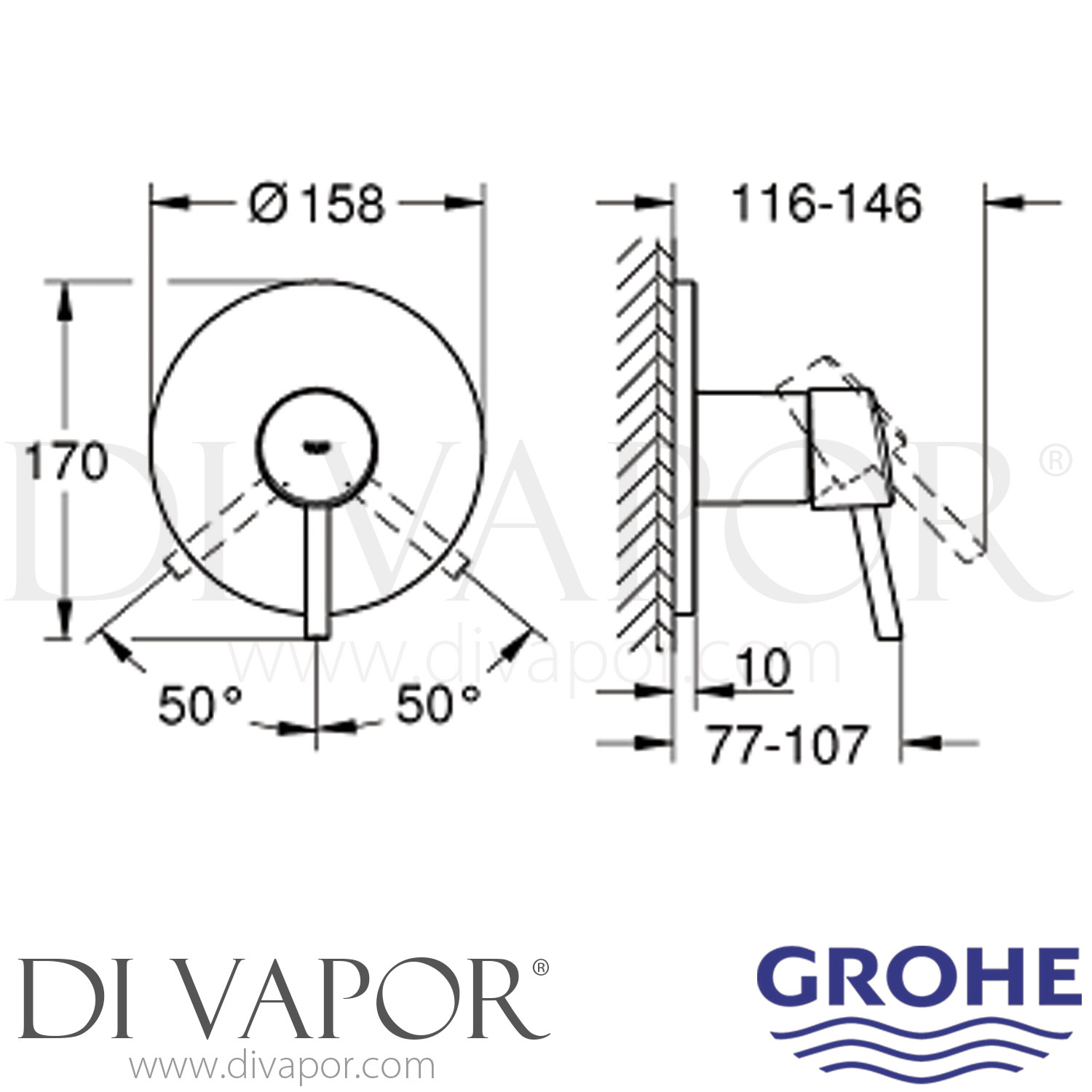

- - Escutcheon diameter: 158mm

- - Overall visible height: 170mm

- - Trim projection: 77-107mm, with a maximum lever projection of 116-146mm

- - Lever movement: 50 degrees to either side of the central position

- - Spare parts schedule: July 2017 onwards

- - EAN: 4005176465406

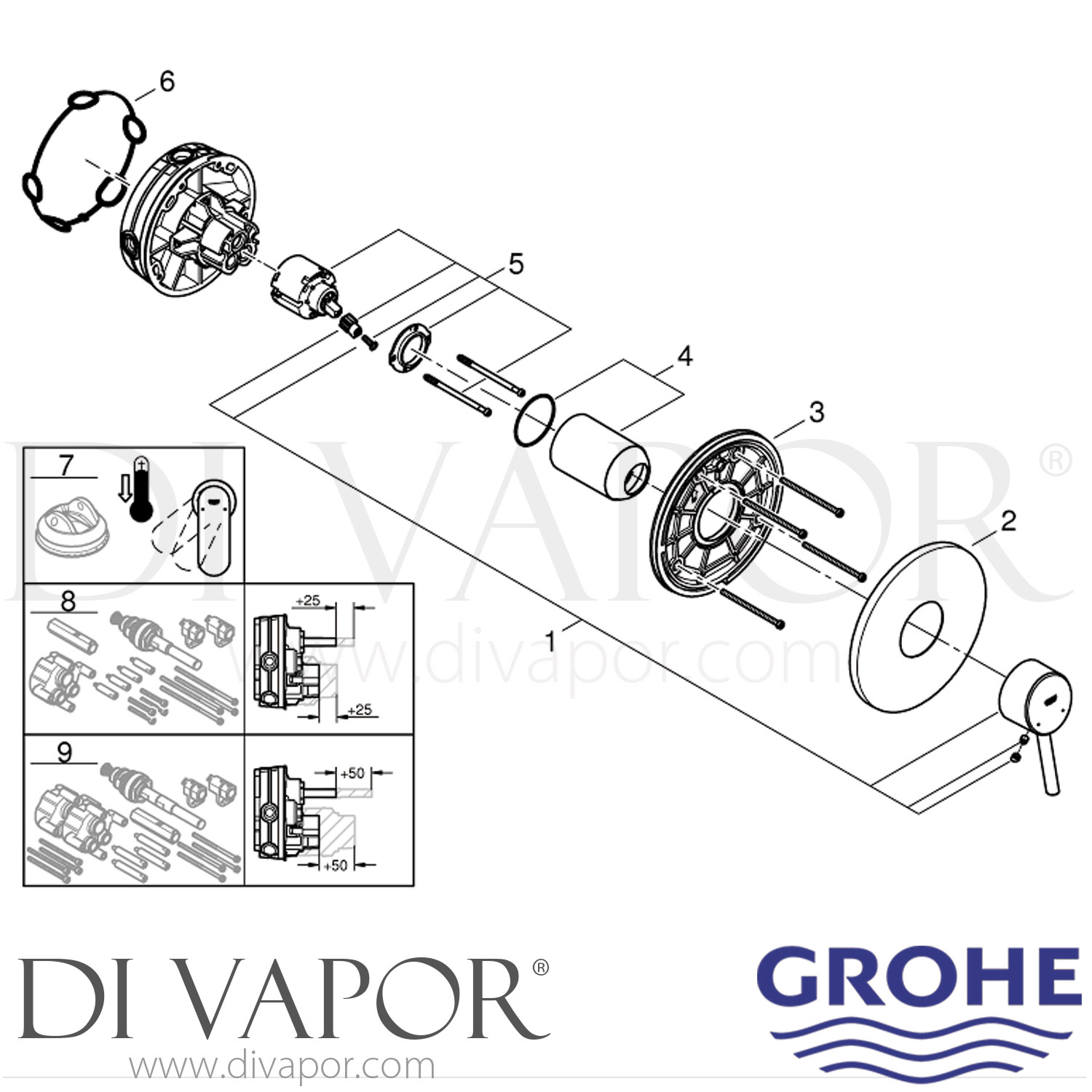

Manufacturer Spare Part References

- - Lever: 46723000

- - Escutcheon: 48428000

- - Mounting plate: 48439000

- - Cap: 06874000

- - Ceramic cartridge: 46048000

- - Seal: 48360000

- - Optional temperature limiter: 46375000

- - Optional 25mm extension set: 14056000

- - Optional 50mm extension set: 14057000

Before You Order Check

- - Confirm that the mixer code is 24053001 and that the installed concealed body is a Rapido SmartBox 35 600 or 35 604

- - Do not identify the mixer from the visible trim alone, because the 19345001 version uses different concealed rough-in bodies and different trim-specific spare parts

- - For cartridge replacement, compare the existing cartridge with Part Number GROHE-46048000, including its 45.7mm diameter and 73.6mm total height

- - Isolate the water supply before dismantling the trim, and apply only a thin layer of suitable silicone grease to replacement cartridge O-rings and applicable seals

Other Available Valve Generations

The 19345001 Concetto is another concealed shower mixer version for a different rough-in body system and is not a direct substitute for 24053001. Confirm the installed concealed body before selecting spare parts.

- - Grohe 19345001 Concetto Single-Lever Shower Mixer Spare Parts, for concealed bodies 33 961 000, 33 962 000, 33 963 000, 33 964 000, 33 965 000, 33 966 000, and 35 501 000
