Grohe 19507003 Eurostyle Single-Lever Shower Mixer Valve Spare Parts
SUMMARY
Spares for Grohe 19507003 Eurostyle Single-Lever Shower Mixer Valve

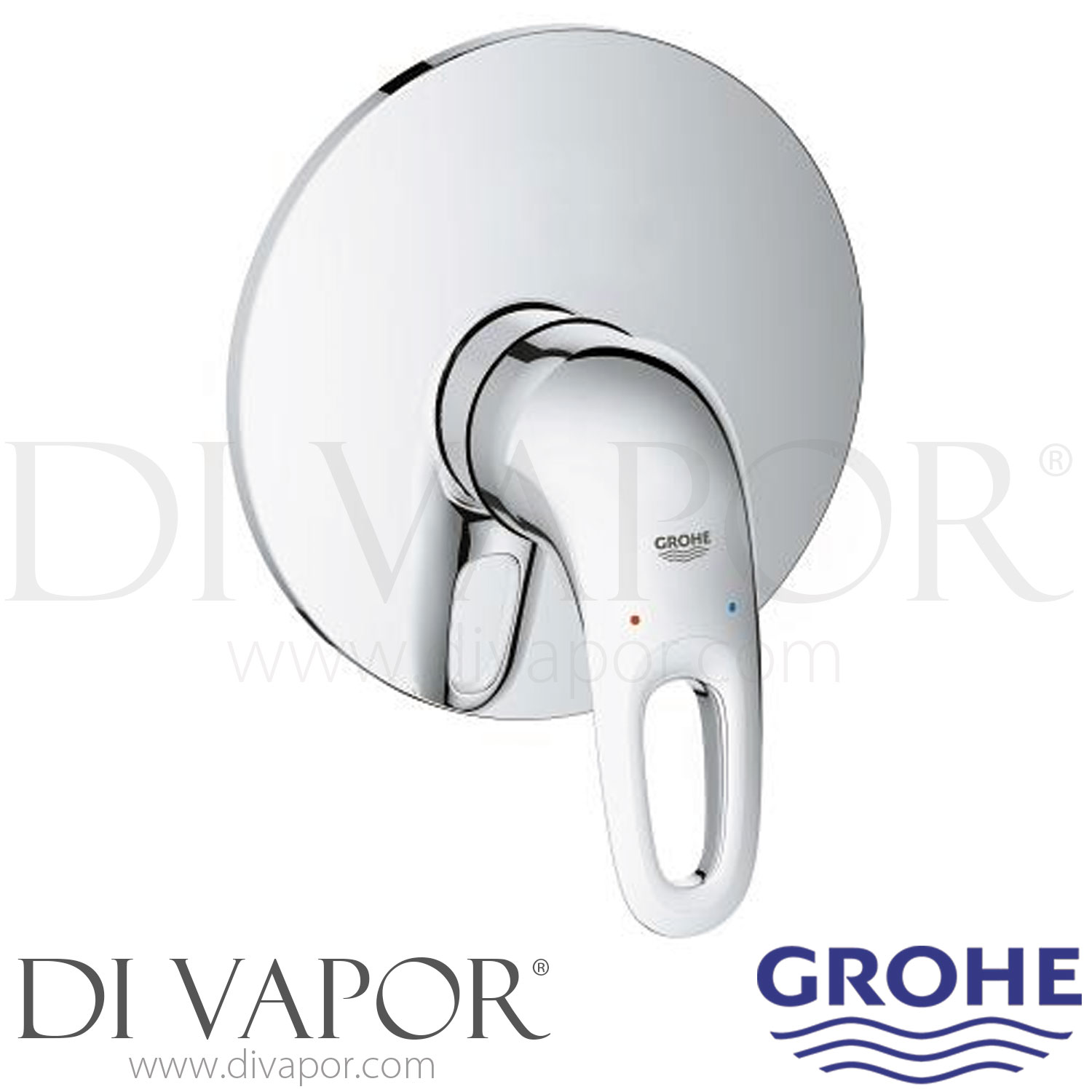

The Grohe 19507003 is a chrome Eurostyle single-lever shower mixer trim set for final installation over selected concealed Grohe mixer bodies. It provides the visible metal escutcheon and loop lever used to operate the concealed mixer, while the concealed body itself is not included.
This trim is used with the concealed mixer bodies listed below, allowing the shower to be serviced without replacing the complete installation where the underlying valve remains suitable. Matching Grohe shower spare parts should always be selected against the exact concealed body code, as the operating cartridge is housed within the concealed body rather than the 19507003 trim itself.
Technical Details
- - Brand: Grohe
- - Range: Eurostyle
- - Category: Shower mixer
- - Product code: 19507003
- - Product type: single-lever concealed shower mixer trim set and final installation set
- - Finish: chrome
- - Escutcheon: round metal wall escutcheon
- - Escutcheon diameter: 163mm
- - Overall vertical dimension shown: 193mm
- - Installation: concealed mixer body is not included
- - EAN: 4005176334337
Final Installation For
- - Grohe 33961000 Single-Lever Mixer 1/2 Inch Concealed Body
- - Grohe 33962000 Single-Lever Mixer 1/2 Inch Concealed Body
- - Grohe 33963000 Single-Lever Mixer 1/2 Inch Concealed Body
- - Grohe 33964000 Single-Lever Mixer 1/2 Inch Concealed Body
- - Grohe 33965000 Single-Lever Mixer 1/2 Inch Concealed Body
- - Grohe 33966000 Single-Lever Mixer 1/2 Inch Concealed Body
- - Grohe 35501000 Rapido E Universal Single Lever Manual Shower Mixer Valve
Before You Order Check
Confirm the shower trim code is 19507003 and identify the concealed mixer body behind the trim before ordering internal valve parts. The visible trim and the concealed-body cartridge are separate service components, so the concealed body code should be checked before selecting internal Grohe spares.
